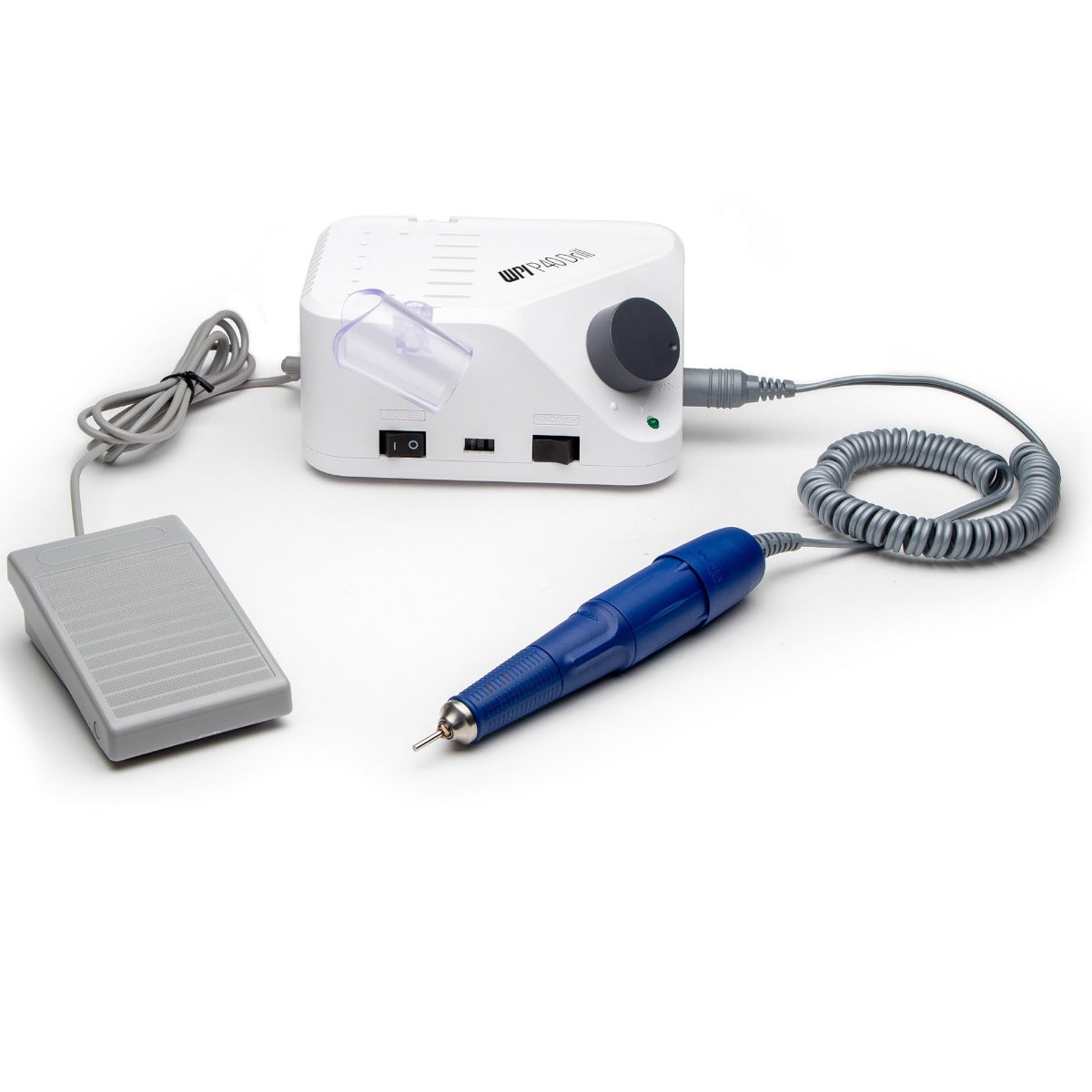

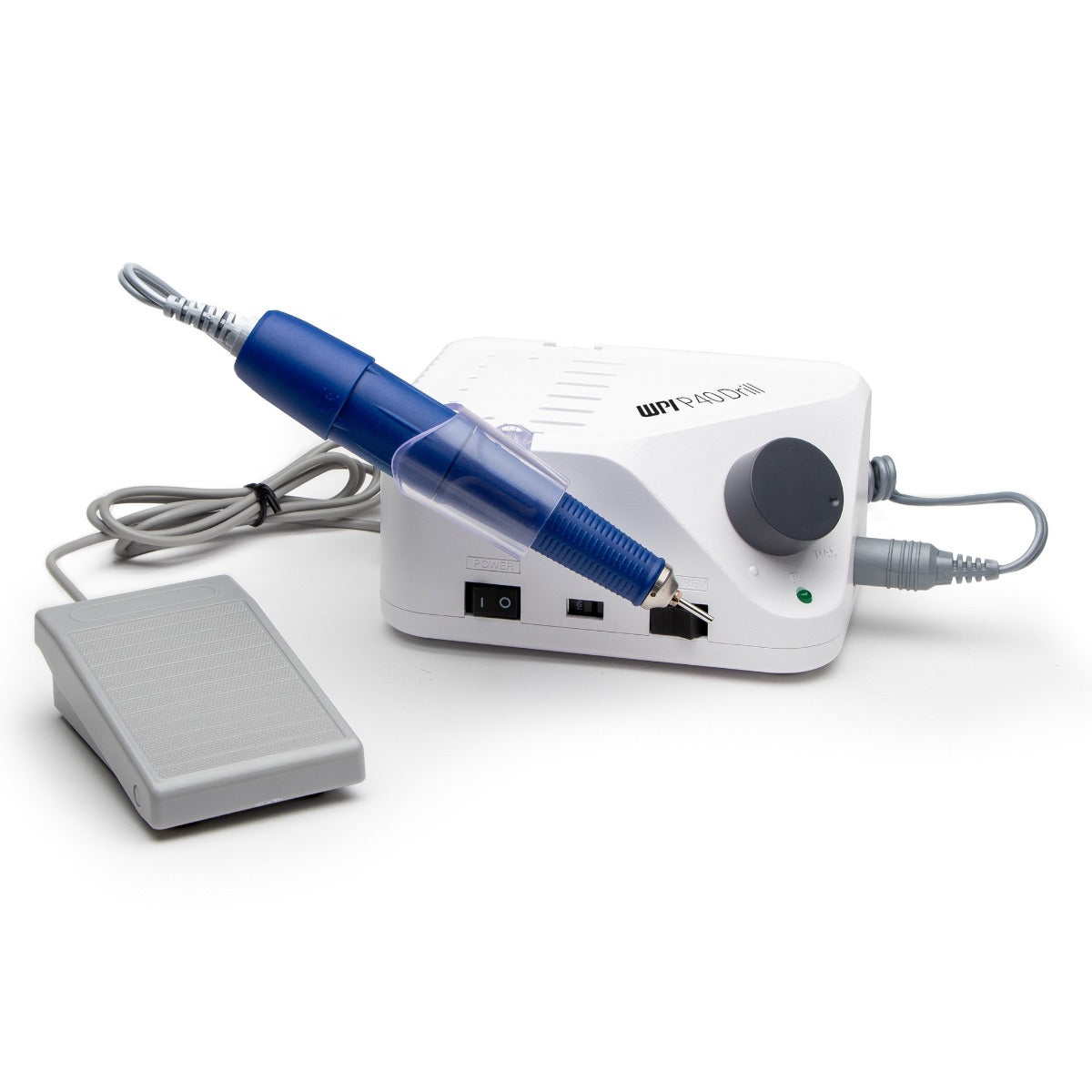

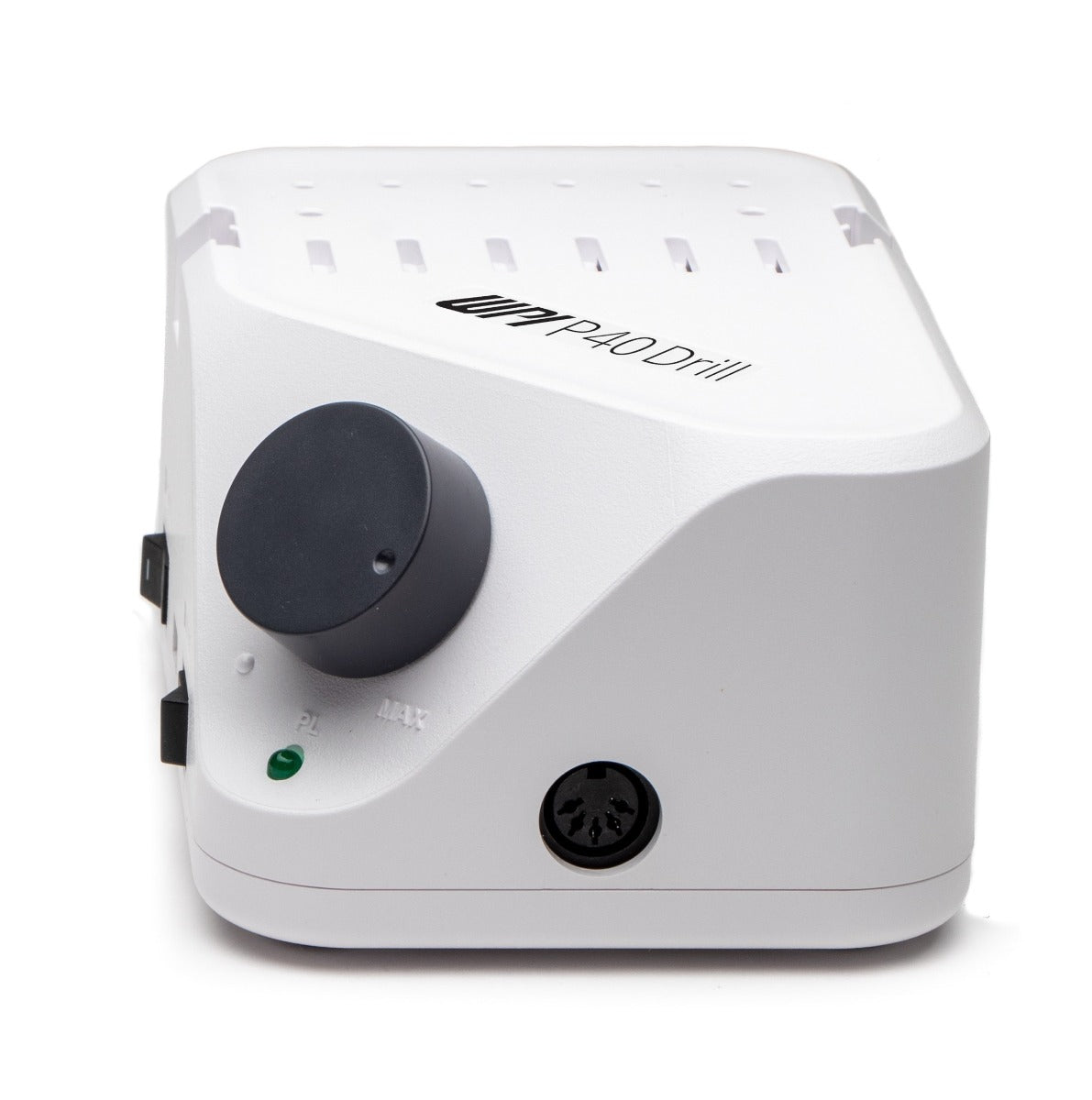

WPI P40 Micro Drill System, 110-220V

Options

Order code	Description
505634	WPI P40 Micro Drill System, 110-220V, Without Drill Bit Kit
505635	WPI P40 Micro Drill System, 110-220V, With 503563 Drill Bit Starter Kit

Benefits

• Removable nose cone that can be cleaned and sterilized
• Consistent power for the duration of its use
• Variable speeds so you control the amount of heat generated
• Switchable power supply from 110V to 220V
• Handpiece holder allows for a solid grip on the handpiece



This line-powered microdrill will make easy work of grinding, finishing, cutting and drilling bone, teeth and other material. The high-torque 40,000 RPM (maximum) motor is quiet and has minimal vibration, which reduces wear on the motor and provides greater comfort for you. It also features a forward and reverse switch.  The “E Type” handpiece is ergonomically design for ease of use manually or on a stereotaxic application.  The handpiece has a removable nose cone that can be cleaned and sterilized. It accepts 3/32” and 2.35mm bur shanks. Unlike battery-powered drills, this unit maintains consistent power for the duration of use. The wide range of speeds allows you to control the amount of heat generation.

Optional Drill Bits and Kits

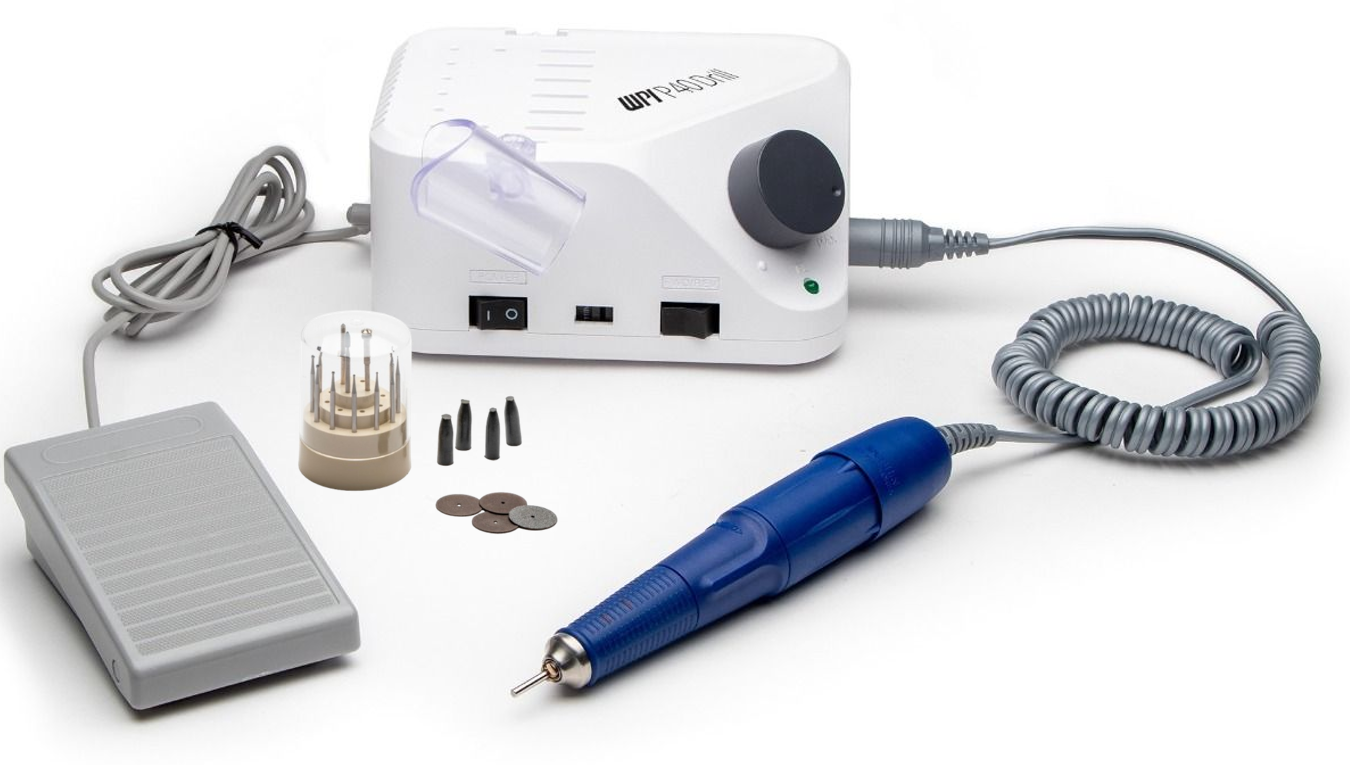

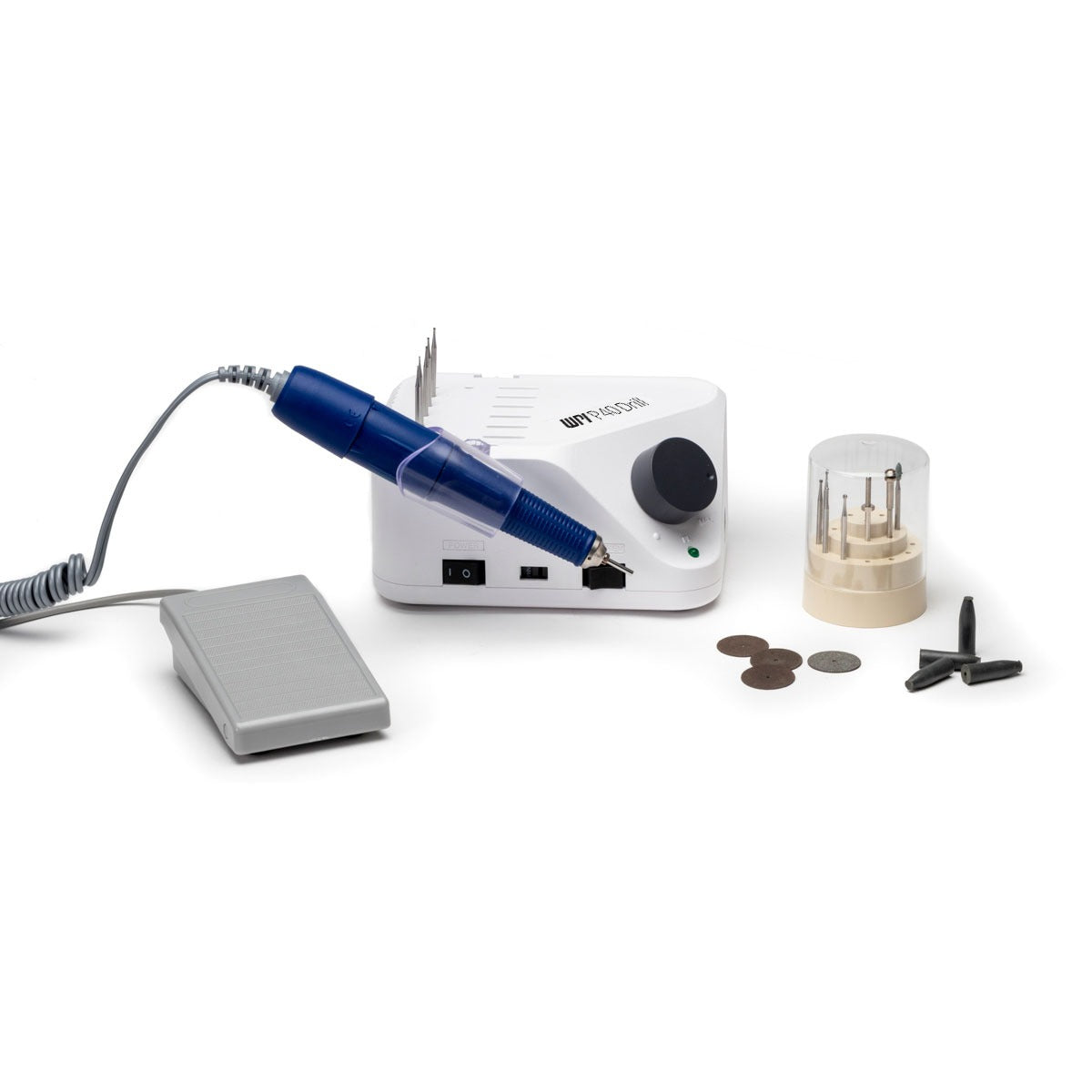

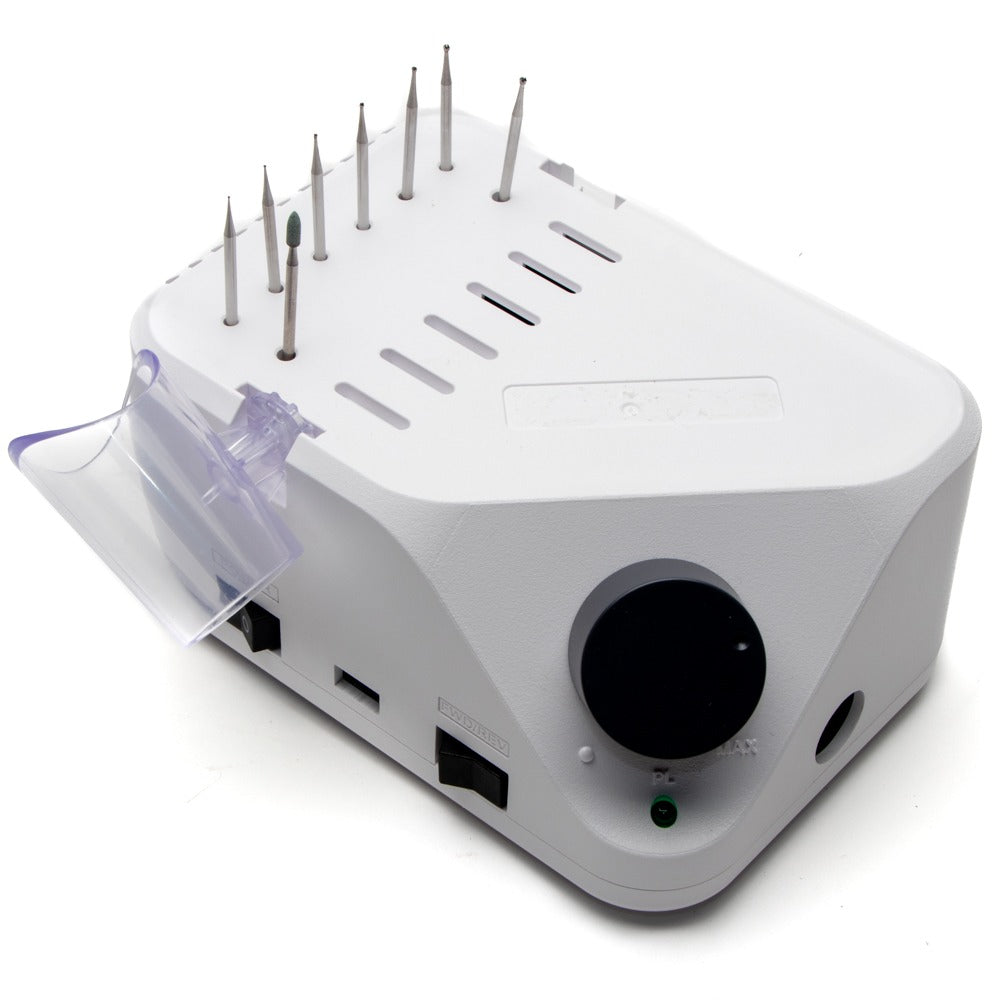

The startup kit (shown below) includes cutoff disks, burs, mandrel, and an accessory holder stand.

• 501853 Ball Mill, Carbide, #1, 0.031” diameter (pkg. of 5)
• 501854 Ball Mill, Carbide, #2, 0.039” diameter (pkg. of 5)
• 501855 Ball Mill, Carbide, #3, 0.047” diameter (pkg. of 5)
• 501856 Ball Mill, Carbide, #4, 0.055” diameter (pkg. of 5)
• 501857 Ball Mill, Carbide, #5, 0.063” diameter (pkg. of 5)
• 501858 Ball Mill, Carbide, #6, 0.071” diameter (pkg. of 5)
• 501860 Ball Mill, Carbide, #1/4, 0.019” diameter (pkg. of 5)
• 501861 Ball Mill, Carbide, #1/2, 0.027” diameter (pkg. of 5)
• 503563 Drill Accessory Starter Kit, with Accessory Stand, Screw Mandrel, Threaded Mandrel, Abrading Tip, Rubber (x2), Cutoff Disks (x4), Ball Mill Pack (Sizes #1 - #7, and #1/2), and a Stone Abraiding Tip





WPI P40 Microdrill can be mounted in the WPI stereotaxic frames using the 505247 Stereotaxic Omni Drill / WPI P40.

WPI P40 Micro Drill Instruction Manual

Type	Description
Operating Speed	0-40,000 RPM
Collet / Bur Holder	Chuck Type for bur Φ3/32" (2.35 mm)
Minimum fitting length of Bur	10 mm
Maximum Torque	3.0 N.cm
Footswitch	On/Off pedal with IP Rating IPX1
Power	110 VAC or 220 VAC switchable, 50/60 Hz
Dimensions	Base: 178 x 114 x 89 mm (7 x 4.5 x 3.5in.) Handpiece: 153 x Φ29 mm
Weight	1.7 kg (3.75 lbs.) Handpiece: 186 g (without cord)

Environmental Operating Conditions

Type	Description
Temperature	10°C to 40°C
Humidity	30 to 75%
Air pressure	700 to 1060 hPa
