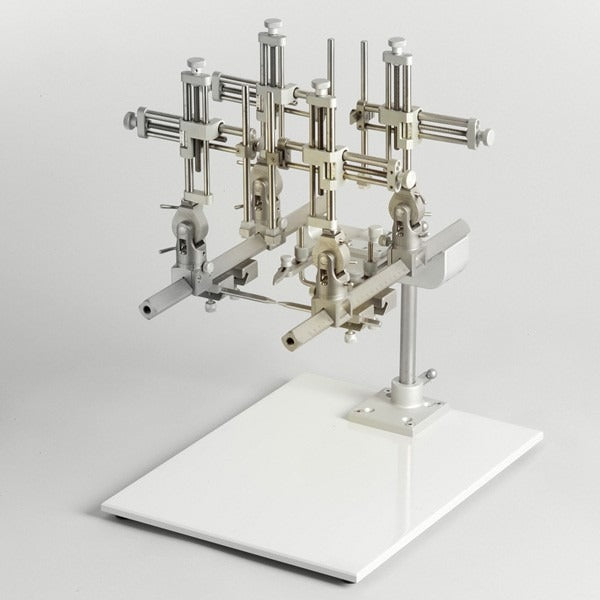

WPI X-Large Animal Parallel Rail Frames

For use with dogs, monkeys and other large animals.

• Parallel Rail Stereotaxic Instrument is designed for large animals, but can be used on almost any laboratory animal when used with WPI’s selection of animal species adaptors.
• Includes Parallel Rail frame, dog/monkey adaptor, two 100 micron 2-axes manipulator arms (1 right-hand, 1 left-hand), traditional (18˚) ear bars, swivel stand, base plate and four corner clamp probe holders.
• Reliable Locks
• Laser Engrave Scales
• Exceptionally Accurate
• Versatile
• Affordably Priced
• Holds up to six manipulator arms
• Works with large range of animals
• AP Microdrive available for fine control of third axis

Options

Order code	Description
505341	Large Animal Parallel Rail Stereotaxic Instrument, 2 Manipulator Arms
505342	Large Animal Parallel Rail Stereotaxic, Base and Frame Only



Easily Read Scales

Precise, laser engraved graduations allow vernier scales to be aligned to 0.1 mm. The scales are oriented to enhance readability from common user positions. Standard manipulator arms have 100 micron resolution, while high-quality digital arms have a resolution of 10 microns.

Versatile

Other species adaptors, probe holders and ear bars manufactured may be used on the 505326 series of stereotaxic instruments allowing for a use with a  wide range of animals and procedures.

A/P Microdrive Available



505345 Anterior/Posterior Microdrive

The optional 505345 Anterior/Posterior Microdrive provides fine movement control in the A/P dimension with 25 mm range and 10 micron graduations. The mounts between the rail and the manipulator and it includes a longer probe holder shaft for the extra height.

Included Components

The 505326 comes equipped with:

• One 505328 Large Animal Manipulator, Left handed (digital upgrade available)
• One 505329 Large Animal Manipulator, Right handed (digital upgrade available)
• One 505327 Large Animal Stereotaxic, Base and Frame Only
• One 505339 Cat Adaptor, with 18 Degree Earbars (Rat adaptor or 45° ear bars may be substituted at no extra charge)
• One Universal swivel stand with 4" x 4" mounting support plate
• One Base Plate, Plain 17in x 13in

The 505327 comes equipped with:

• One 505327 Parallel Rail Frame
• One 505339 Cat/Monkey Head Holder with 18° ear bars (Rat adaptor or 45° ear bars may be substituted at no extra charge)
• One Universal swivel stand with 4" x 4" mounting support plate
• One Base Plate, Plain 17in x 13in

Optional Mounting Plates

The optional base plate, Mounting Plate 12in x 36in base plate has four, full-length tee slots for mounting other instruments on the same base with a 505326 stereotaxic.
