Standard Manual Rat Stereotaxic

Features

• Large, easy to read vernier scales
• Scales are laser engraved — accurate to 100 microns
• Triple lead screws for fast positioning 80 mm of vertical, lateral and anterior-posterior travel
• Absolute lock at 90 degrees (vertical)
• Brass bushings in manipulator arm permit electrical grounding
• Accessories available for use with a wide variety of small animals
• Adaptors available for use with mice, neonatal rats, birds and other species
• Gas anesthesia compatible
• Easily cleaned durable surface
• Warmer ready base compatible with Stoelting Rodent Warmer System
• NEW FEATURE: The ONLY stereotaxic instrument on the market with an integrated warming base included on all units! Simply purchase the Temperature Control Box 1 (505375), or Temperature Control Box 2 (505376) and probe (505377) to use the warming function.

View our Stereotaxic Frame Compatibility Chart

Options

Order code	Description

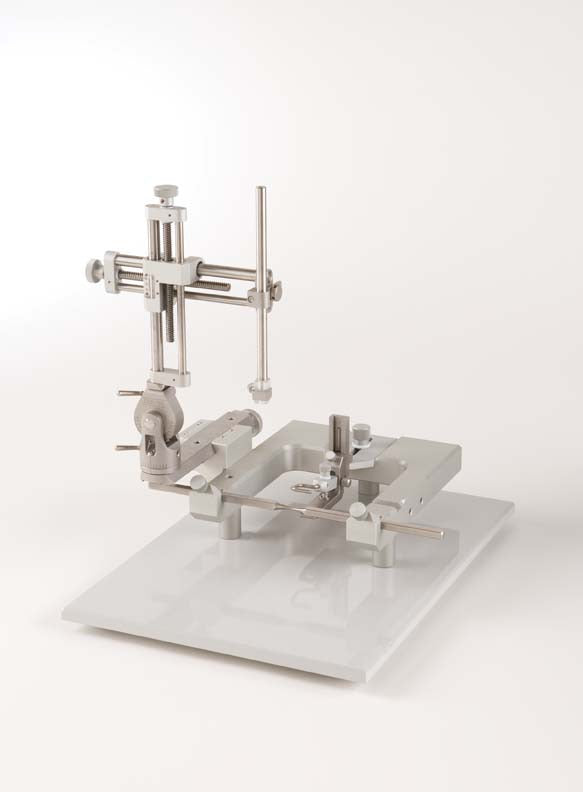

505211	WPI Standard Rat Stereotaxic Instrument
505213	WPI Standard Rat Stereotaxic, Base Only

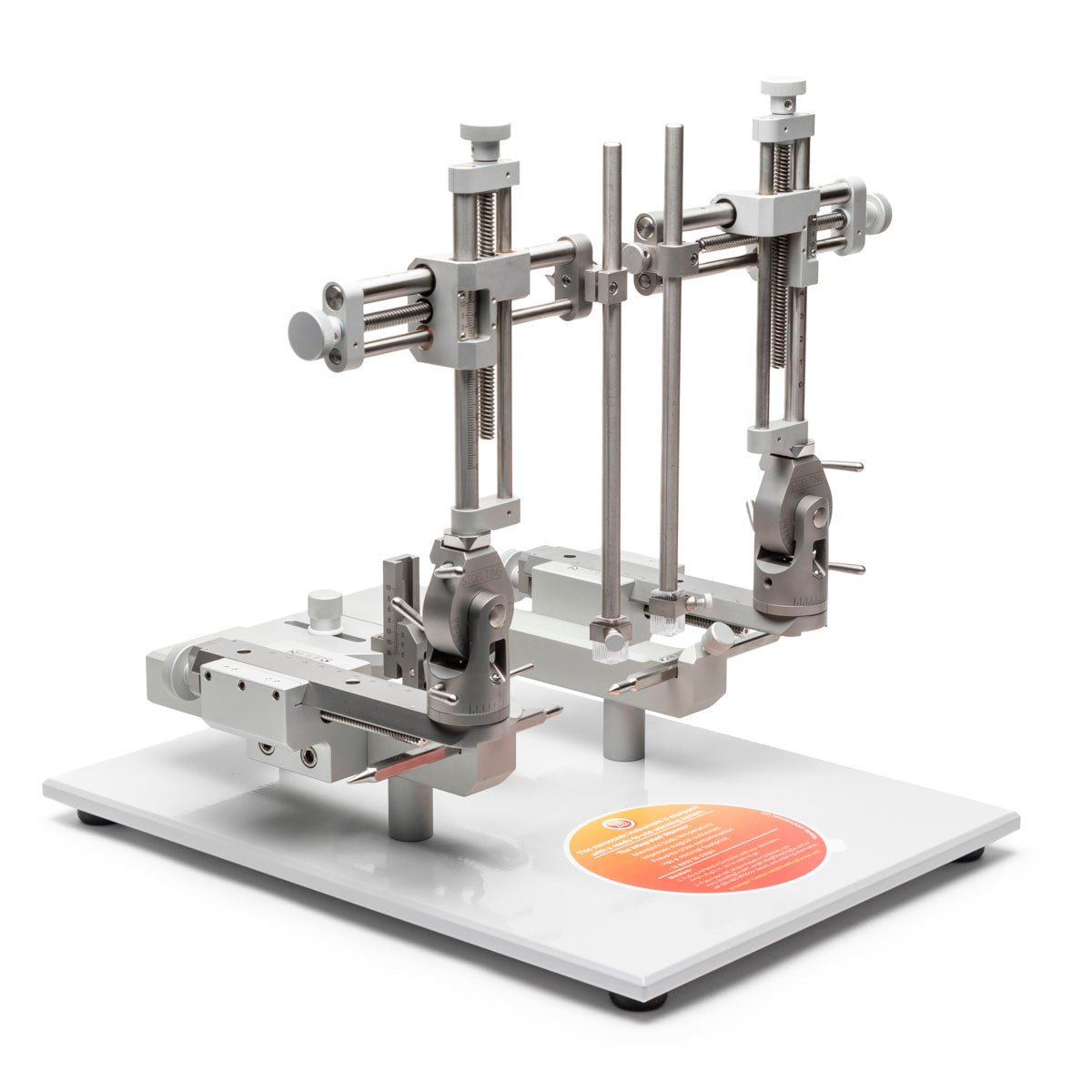

505216	WPI Standard Dual Rat Stereotaxic Instrument

WPI Rat Stereotaxic Instruments has been a standard in research labs for nearly five decades. The time-proven 'U'-Frame design provides stability and adaptability while the instrument's exclusive, triple-lead screws allow for smooth, consistent movements with rapid positioning. WPI Rat Stereotaxic Instruments includes a 100 micron 3-axes, left-hand manipulator arm, rat adaptor, traditional (18˚) ear bars, and corner clamp probe holder. Available as dual, digital or motorized.

• Versatile Positioning - The manipulator arm controls medial-lateral and ventral-dorsal using exclusive triple lead screws for faster positioning, and anterior-posterior movement via dovetail slide movement, with 80mm of travel possible in each direction. A universal joint allows the researcher to change the angle of the probe up to 90° in either the anterior-posterior or mediallateral planes. The improved locking mechanism on the Lab Standard™ will hold any angle position without slipping. And of course, it also provides an absolute lock at 90° vertical.
• Easily-Read Scales - All scales are oriented to be easily read from the open end of the ‘U’ — the position from which most scientists prefer to work. The scale numerals are large, and easy to read. The scale lines are laser engraved, to allow the finest possible permanent marking of scales on all 3 axes. Precise alignment with facing vernier scales gives accurate resolution to 100 microns.
• Smooth, Consistent Movements - WPI Rat Stereotaxic Instruments exclusive, triple-lead screws allow smooth consistent movements with the fastest positioning possible.
• Included Components - Both 505211 and 505216 include the U-frame Base, Manipulator Arm(s) 505249 Standard Probe Holder(s) with corner clamp and 505239 Rat Adaptor (Nose Clamp Assembly and 18° Taper Ear Bars). The 505269 and505272 include Non-Puncture 45° Taper Ear Bars instead of 18° Taper Ear Bars (not shown).
• Warmer ready base

Stereotaxic Base Plates are designed to be integrated with a warmer system (sold separately) and are used to maintain body temperature throughout surgical procedures.  Thermal heating pads are embedded into stereotaxic base plates to avoid cross contamination with easy clean-up and maintain a sterile environment during stereotaxic surgery. In addition, it can be used as a general warming system or with a rectal thermal probe (sold separately) for homeothermic regulation.

Affordably priced...immediate delivery

WPI Rat Stereotaxic Instruments Stereotaxic Instrument, manufactured by Stoelting, is ideal for researchers in need of a versatile, reliable instrument for stereotaxic procedures with small animals. Precision alignment when using the Lab Standard™ ensures accurate placement of electrodes, micropipettes, and other devices.

The time-proven ‘U’-Frame design concept, sturdy construction, and adaptability to most model species make this the best choice for a stereotaxic instrument.

Advantages of WPI Frame

WPI Rat Stereotaxic Instruments offers several advantages over competing instruments:

• Easily Read Scales - All scales are oriented to be read easily from the open end of the ‘U’. This is the position from which most scientists prefer to work. The numerals on the scales are larger, and therefore more easily read. The scale lines are laser engraved, to allow finest possible permanent marking of scales on all 3 axes. Precise alignment with facing vernier scales gives accurate resolution to 0.1mm.
• Smooth Movements - WPI Rat Stereotaxic Instruments exclusive, triple lead screws allow the fastest positioning possible, consistent with lining up the scales easily at a given coordinate.
• Versatility of Positioning - The manipulator arm controls medio-lateral and vertical positioning via lead screws, and antero-posterior movement via dovetail slide movement, with 80 mm of travel possible in each direction. A Universal Joint allows the investigator to change the angle of the probe up to 90o in either the antero-posterior or medio-lateral planes. The improved locking mechanism on WPI Rat Stereotaxic Instruments will hold any angle position without slippage. And of course, it also provides an absolute lock at 90o vertical. In addition, a swing joint allows the investigator to conveniently swing the manipulator arm and probe out of the way for performing a procedure — then reliably return the probe to the same point.
• Convenient for Electrophysiology - Integral brass bushings in the manipulator arm allow grounding directly to the closest metal on the manipulator arm — even the probe holder.
• Selection of Accessories

Species adaptors are available to fit rat, cat/monkey, dog/monkey, mouse, guinea pig and small bird. Probe holders and species adaptors for ‘U’ frame stereotaxic instruments from other manufacturers are generally compatible with the WPI Rat Stereotaxic Instruments frame.

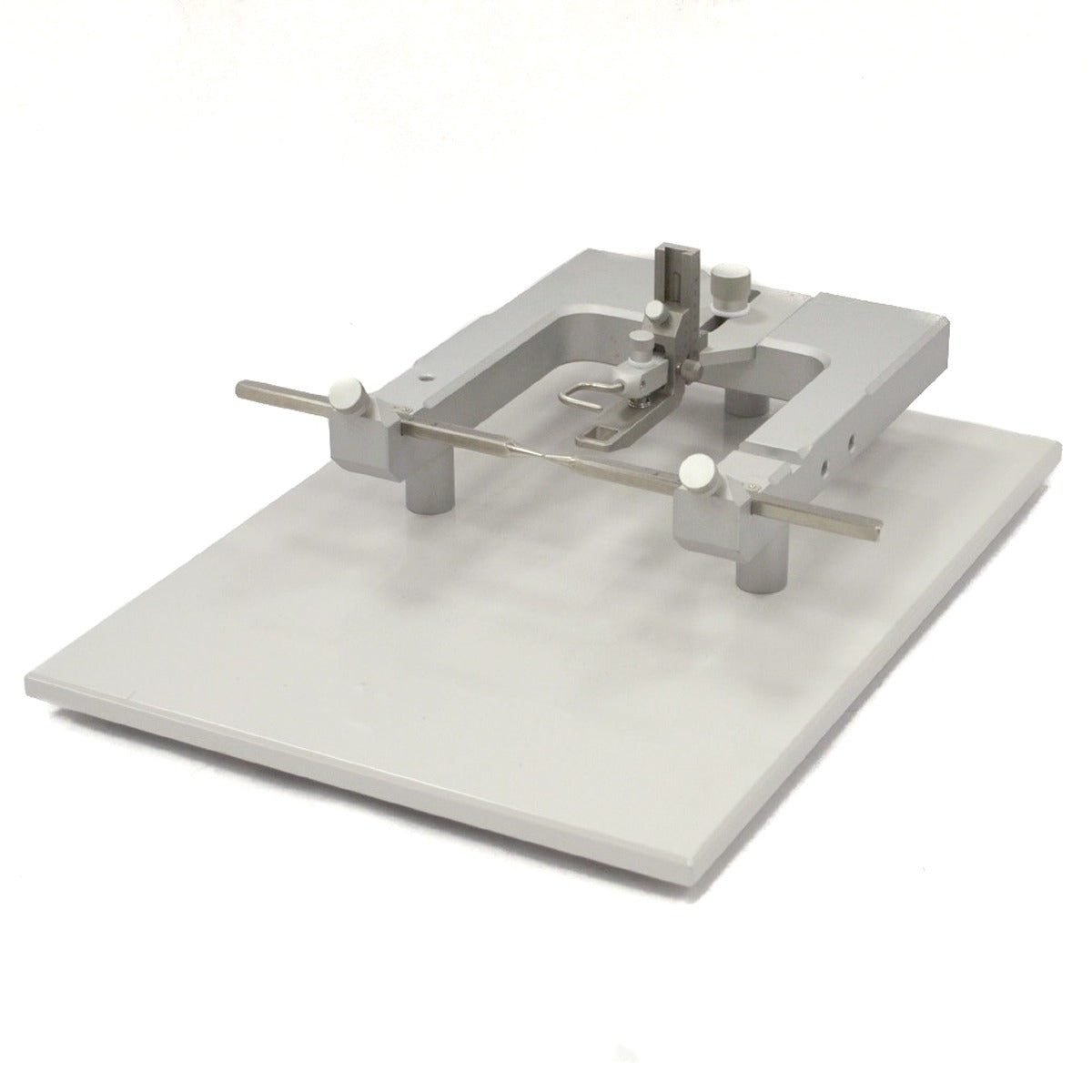

The classic 'U' frame mounted on a stainless steel base (10 x 13.5 inches) design without manipulator arms. WPI Rat Stereotaxic Instruments base is ideal for applications requiring that the rat's head is held firmly but no manipulator arm is necessary. This unit includes rat adaptor and traditional (18 deg) ear bars.

NEW FEATURE: The ONLY stereotaxic instrument line on the market with an integrated warming base included on all units! Simply purchase the Temperature Control Box 1 (505375), or Temperature Control Box 2 (505376) and probe (505377) to use the warming function.

Ultra-Precise Manipulators are ideal for use in mice and rats where high-accuracy positioning is required. Up to 80mm of travel is available in all directions with up to 90° angle adjustment in either the anterior-posterior or medial-lateral planes. Ultra-Precise Manipulators are compatible with all our Premium Stereotaxic Instruments frames.

Ultra-Precise Features

• 10 Micron Resolution
• Target Small Brain Regions with Confidence
• Upgrade to ANY Premium Stereotaxic frames and most other brands
