Standard Manual Mouse&Rat Stereotaxic

Features

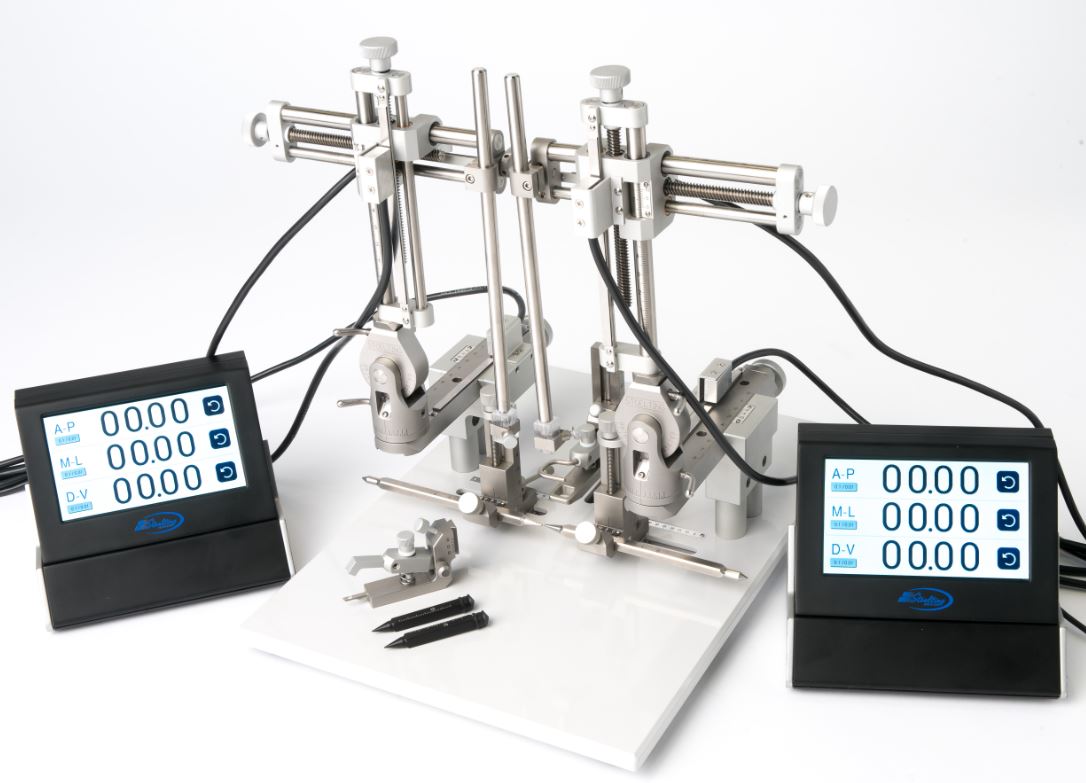

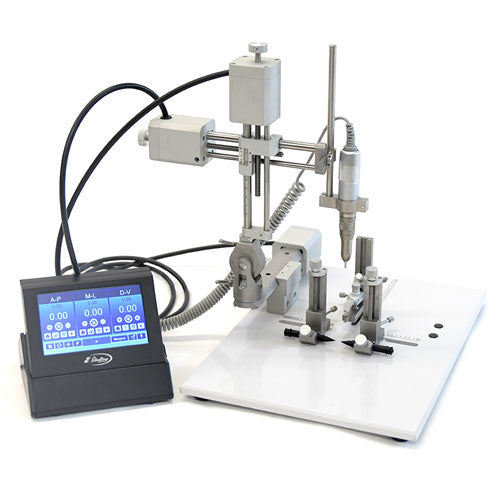

• The innovative design of the WPI Mouse and Rat Stereotaxic Instruments provides users with the ability to perform surgeries on both Mice and Rats on the same base. The WPI Mouse and Rat Stereotaxic Instruments includes a warmer ready base, 100 micron 3-axes, left-hand manipulator arm, separate rat and mouse adaptors, dual-sided (18° and 45°) rat ear bars, triple point mouse ear bars, and corner clamp probe holder. Available as dual, ultra-precise, digital or motorized.
• NEW FEATURE: The ONLY stereotaxic instrument on the market with an integrated warming base included on all units! Simply purchase the Temperature Control Box 1 (505375), or Temperature Control Box 2 (505376) and probe (505377) to use the warming function.

Options

Order code	Description

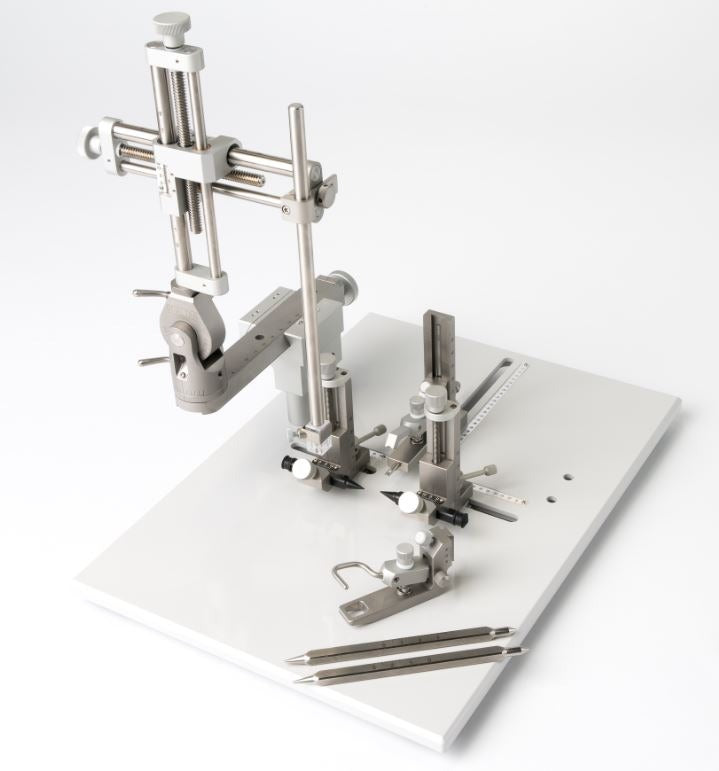

505200	WPI New Standard Mouse & Rat Stereotaxic Instrument, Warm Base

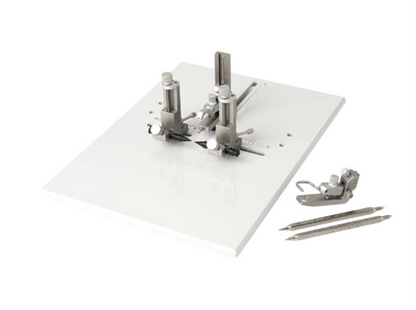

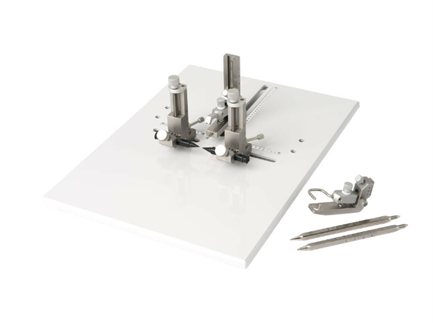

505205	WPI New Standard Mouse & Rat Stereotaxic Instrument, Warm Base Only

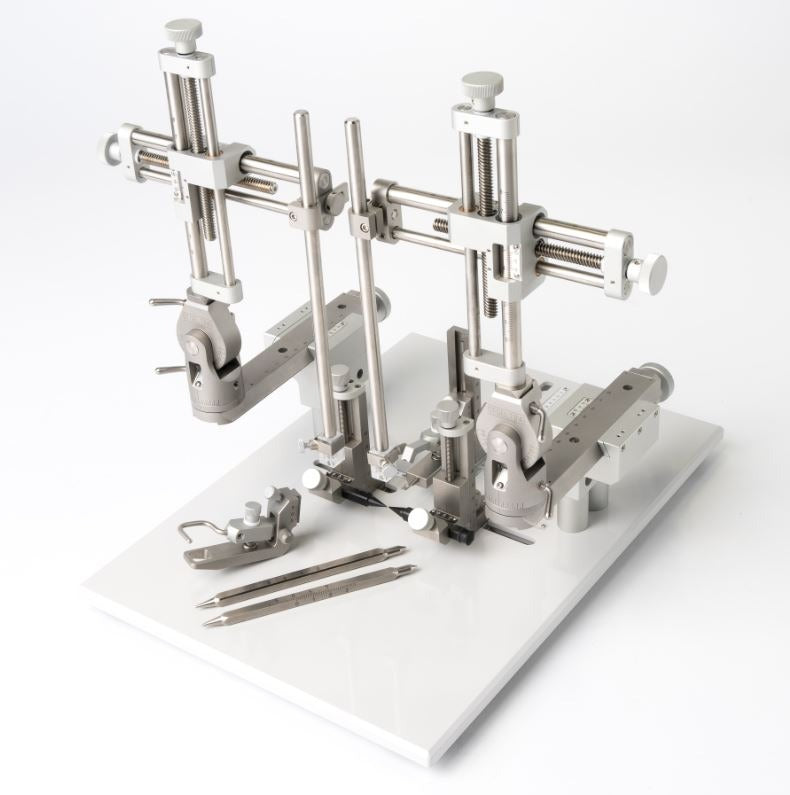

505206	WPI Standard Mouse & Rat Dual Stereotaxic Instrument, Warm Base

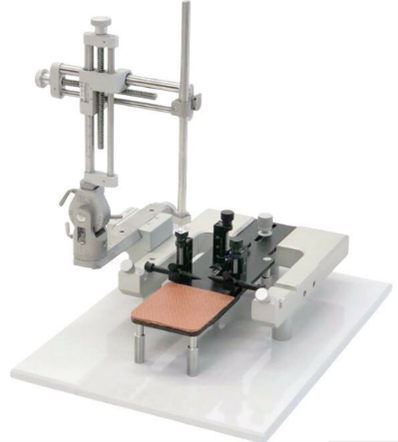

505233	WPI Standard Mouse & Neonatal Rat Stereotaxic Instrument With Adaptors

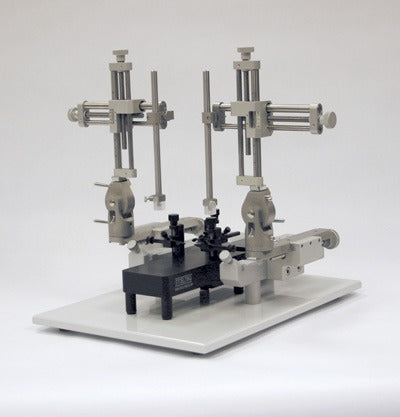

505236	WPI Standard Mouse & Neonatal Rat Dual Stereotaxic Instrument With Adaptors
505281	WPI Standard Mouse & Rat Stereotaxic Instrument With Adaptors

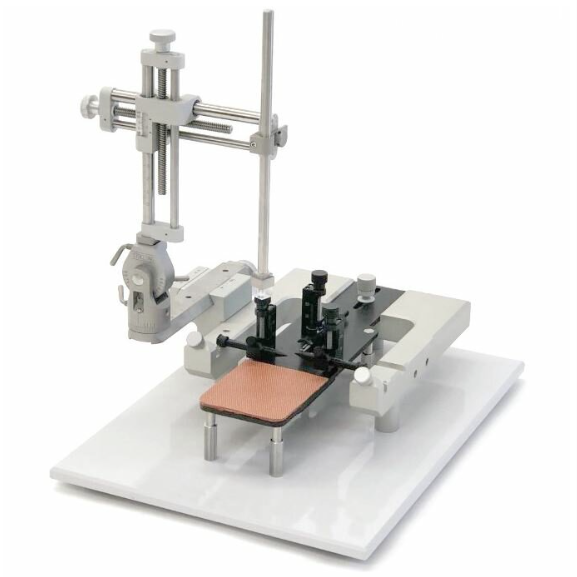

505283	WPI Standard Mouse & Rat Dual Stereotaxic Instrument With Adaptors

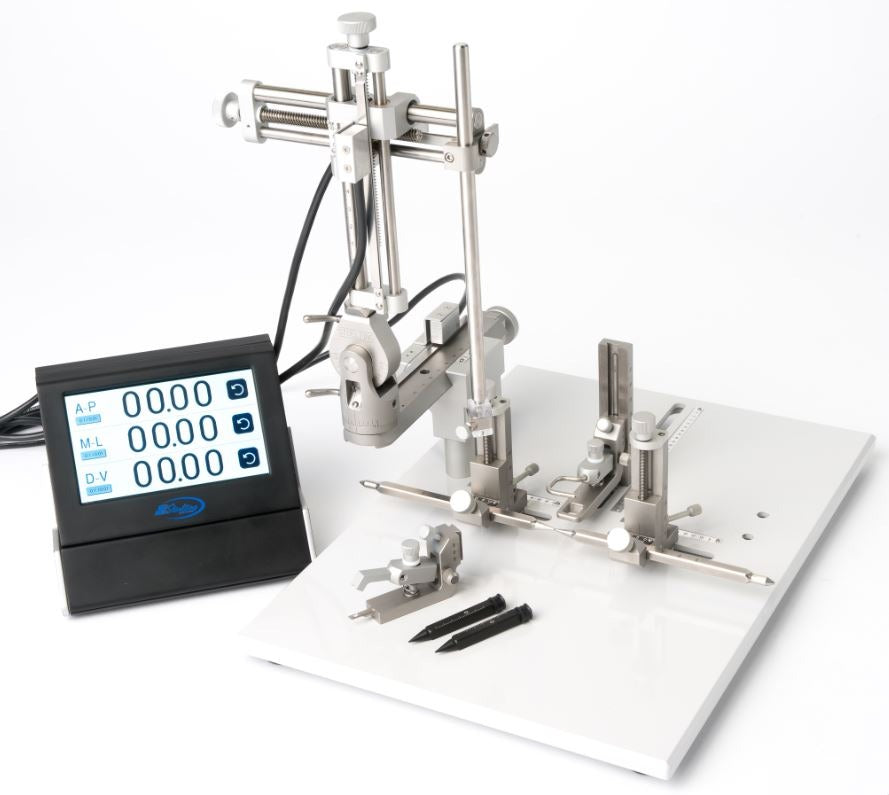

Like the WPI Rat Stereotaxic Instruments, the WPI Mouse and Rat Stereotaxic Instrument line has larger laser engraved vernier scales (accurate to 100 um), 80 mm of ventral-dorsal, medial-lateral and anterior-posterior travel, absolute lock at 90° ventral-dorsal and brass-bushings for electrical grounding. It is available as a digital or motorized model.

But the WPI Mouse and Rat Stereotaxic Instruments "design" is what sets it apart:

• Revolutionary vertically-adjusting ear and nose bar posts
• Revolutionary horizontally-adjusting ear and nose bar posts
• Designed for both Rats and Mice all on the same base
• No U-frame, maximizes operating space
• Traditional and non-traumatic Rat ear bars
• Includes the innovative Mouse ear bars
• Includes Mouse and Rat Nose adaptors

Includes the innovative Mouse ear bars



Includes Mouse and Rat nose adaptor



Includes dual tip ear bars with standard (18°) and non-traumatic (45°) ear bars



 Close-Up of The New Standard Stereotaxic

Warmer ready base

Stereotaxic Base Plates are designed to be integrated with a warmer system (sold separately) and are used to maintain body temperature throughout surgical procedures.  Thermal heating pads are embedded into stereotaxic base plates to avoid cross contamination with easy clean-up and maintain a sterile environment during stereotaxic surgery. In addition, it can be used as a general warming system or with a rectal thermal probe (sold separately) for homeothermic regulation.



Ultra-Precise Manipulators are ideal for use in mice and rats where high-accuracy positioning is required. Up to 80mm of travel is available in all directions with up to 90° angle adjustment in either the anterior-posterior or medial-lateral planes. Ultra-Precise Manipulators are compatible with all our Stereotaxic Instruments line.

Ultra-Precise Features:

• 10 Micron Resolution
• Target Small Brain Regions with Confidence
• Upgrade to ANY Stereotaxic frames and most other brands
