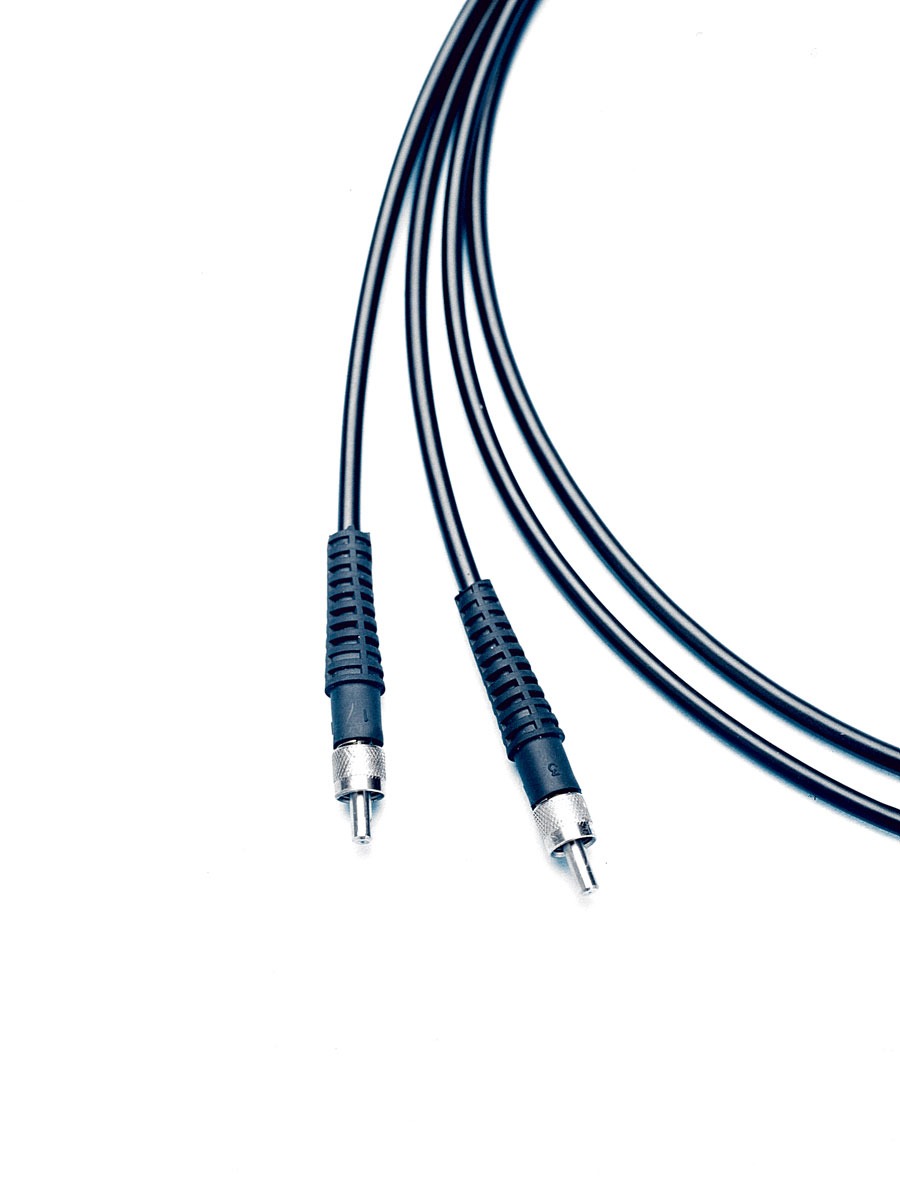

UV-Enhanced Fiber Optic Cables

General Purpose UV-Enhanced optical fiber for UV-VIS spectroscopy.

Features

WLUXUVIS-series

• Fiber Material: Silica
• Core Size: 100um, 200um, 300um, 400um, 600um, 800um, 1000um
• Wavelength: UV-VIS 260-1200nm
• Numerical Aperture (NA): 0.22
• Connector: SMA 905, FC, ST, DIN, F125,F250, LLG
• Jacketing: Silicone Monocoil Tubing
• Temperature Range -40C-120C

General Purpose Enhanced-UV Optical Fiber

WPI's WVLUXUVIS-series fiber is a great general purpose fiber for UV-VIS spectroscopy.

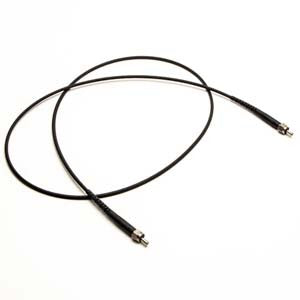

WVLUXUVIS-Series Patch Cord : Enhanced-UV Optical Fiber Cable Options

Order code	Catalog part #	Description	Core  Diameter
505171	WVLUXUVIS-S-0100-100-SMA	Silica fiber (260-1200nm),  1 m length with SMA 905 connectors	100 μm
505172	WVLUXUVIS-S-0200-100-SMA	Silica fiber (260-1200nm),  1 m length with SMA 905 connectors	200 μm
505173	WVLUXUVIS-S-0300-100-SMA	Silica fiber (260-1200nm),  1 m length with SMA 905 connectors	300 μm
505174	WVLUXUVIS-S-0400-100-SMA	Silica fiber (260-1200nm),  1 m length with SMA 905 connectors	400 μm
505195	WVLUXUVIS-S-0600-100-SMA	Silica fiber (260-1200nm),  1 m length with SMA 905 connectors	600 μm

Bifurcated, Cross, Mixed fiber patch cords built for your specific project contact wpi@wpiinc.com

WLUXUVIS-series

• Fiber Material: Silica
• Core Size: 100um, 200um, 300um, 400um, 600um, 800um, 1000um
• Wavelength: UV-VIS 260-1200nm
• Numerical Aperture (NA): 0.22
• Connector: SMA 905, FC, ST, DIN, F125,F250, LLG, N
• Jacketing: Silicone Monocoil Tubing
• Temperature Range -40C-120C

Additional fiber cable configurations and fiber materials available:

https://view.publitas.com/world-precision-instruments/2019-main-catalog/page/165
