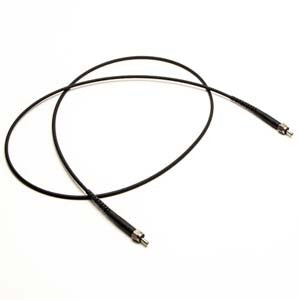

Qualified UV-NIR

$240
$240

505160

From $240 - $250
From $240 - $250
Fiber Optics

Prices valid in USA, Canada, and PR only.

Propriety Qualified UV-Enhanced Broad Range Silica Fiber for Optical Measurements

WPI can deliver “make-exact” fiber assemblies using proprietary qualified fiber and designed by in-house optical engineering. In addition WPI customers can count on the superior performance of WPI spectroscopy products and application knowledge to provide them reliable data to make new discoveries; whether it is one assembly, ten thousand assemblies or a complete fiber optic sensing system.

Details

Features

QVLUXNIR-series

  • Fiber Material: High Quality Silica/Silica-Step Index Multimode
  • Core Size: 200um 400um or 600um
  • Wavelength: UV-NIR 260-2200nm
  • Numerical Aperture (NA): 0.22
  • Connector: SMA 905, FC, ST, DIN, F125,F250, LLG
  • Jacketing: Silicone Monocoil Tubing
  • Temperature Range -40C-120C

UV-Enhanced broad range optical fiber 260-2200nm

WPI's QVLUXNIR is a UV-enhanced broad range 260-2200nm

QVLUXNIR 1x1 Qualified Optical Fiber Cable Options

Options

Order code Catalog part # Description Core  Diameter
505159 QVLUXNIR-S-0200-100-SMA 100cm Qualified silica fiber with 200µm core diameter (260-2200nm). Low solarization @248nm 200 µm Core
505160 QVLUXNIR-S-0400-100-SMA

100cm Qualified silica fiber with 400µm core diameter (260-2200nm). Low solarization @248nm

 400 µm Core
505161 QVLUXNIR-S-0600-100-SMA 100cm Qualified silica fiber with 600µm core diameter (260-2200nm). Low solarization @248nm 600 µm Core


Benefits

Bifurcated, Cross, Mixed fiber patch cords built for your specific project contact wpi@wpiinc.com

  • Qualified proprietary fiber is WPI’s most advanced fiber product line.  DIN 58145:2017-01

  • Qualified fiber allows for excellent transmission of UV-NIR light in long length fiber and perform exceptionall well in the 700-2200nm wavelength region

  • Resists degradation due to UV exposure better than virtually any fiber on the market

  • Allows for true “plug and play” replacement

  • Ideal for OEM and applications requiring field service or where multiple instruments must be used for a battery of tests

  • Includes certificate and data of both UV transmission and induced loss generated by continuous exposure to a 30W deuterium bulb of each fiber material batch from 185-360nm

Applications

  • Liquid chromatrography
  • Forensic Medicine
  • UV Raman
  • Medical

https://view.publitas.com/world-precision-instruments/2019-main-catalog/page/165

/qualifiedfo

Resources

Video

WPI’s Photonics Center of Excellence Array of Optical Products



WPI Optical Fiber Solutions for Researchers and Product Developers

Specifications

QVLUXNIR STANDARD SPECIFICATIONS

Our QVLUX fiber has been engineered to not only provide superior transmission in the UV but have excellent consistency over length.  This makes QVLUX a perfect choice for critical measurements or where “plug-and-play” capability is required without having to recalibrate after a fiber assembly change. Our QVLUX fiber offers superior resistance to solarization, lowest basic attenuation at 200nm (<1 dB/m) and the lowest solarization at 214nm on the market.   WPI is the only company offering DIN 58145:2017-01 certified low solarization UV fiber and assemblies.



  • Fiber Material: High Quality Qualified Silica /Silica-Step Index Multimode
  • DIN 58145:2018-01
  • Available core diameters: 400um, 600um
  • Wavelength: High OH:  DUV-VIS 180-1200nm
  • Numerical Aperture (NA): 0.22
  • Connector: SMA 905, FC, ST, DIN, F125 (1.25mm ferrule), F250 (2.50mm Ferrule)
  • Jacketing: Silicone Monocoil Tubing, Stainless Steel Monocoil
  • Temperature Range -40C-120C
  • Lowest attenuation @180nm

UV-NIR Certificate
