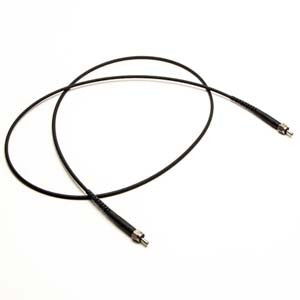

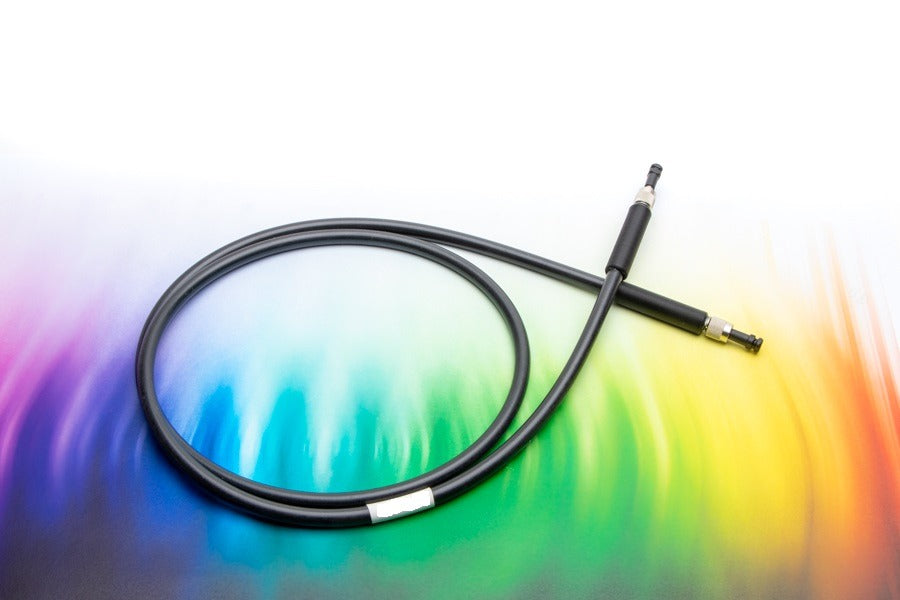

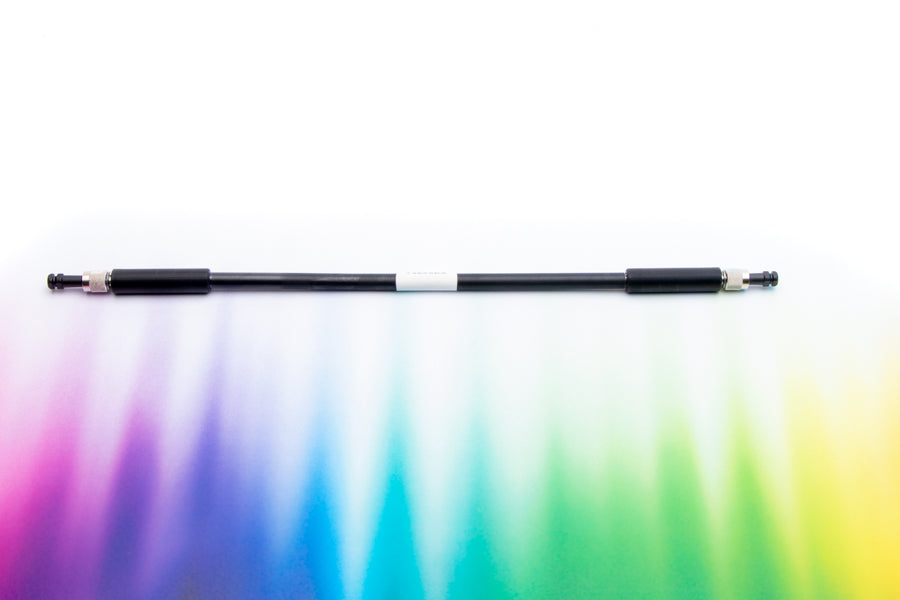

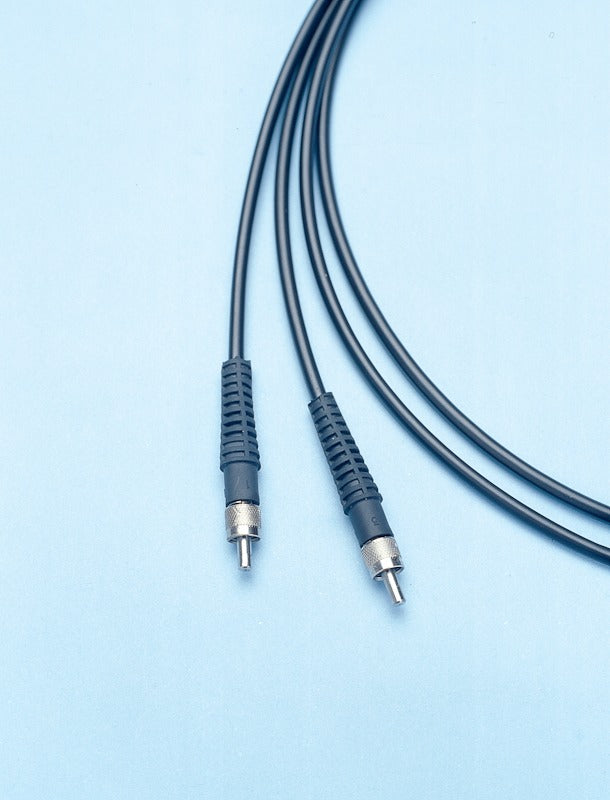

Qualified Fiber Optic Cable Deep UV-NIR

Name: Qualified Fiber Optic Cable Deep UV-NIR
Brand: World Precision Instruments
SKU: 505155
Price: 250.0 USD
Availability: InStock

$250

505155

From $200 - $510

Fiber Optics 200 µm Core 400 μm Core, 1 m 400 μm Core, 25 cm 600 µm Core, 1 m 600 µm Core, 25 cm

Prices valid in USA, Canada, and PR only.

Propriety Qualified Deep UV Silica Fiber for Demanding UV Applications-A difference you need to see to believe.

Details

Features

QVLUX-series

Fiber Material: High-Quality Silica/Silica-Step Index Multimode
Core Size: 400um or 600um
Wavelength: UV-VIS 180-1200nm
Numerical Aperture (NA): 0.22
Connector: SMA 905, FC, ST, DIN, F125,F250, LLG
Jacketing: Silicone Monocoil Tubing
Temperature Range -40C-120C
Lowest attenuation @180nm

Qualified fibers for UV optical measurements

WPI's QVLUX-series fiber has been engineered to not only provide superior transmission in the UV but have excellent consistency over length.This makes QVLUX a perfect choice for critical measurements or where "plug-and-play" capaiblity is required without having to recalibrate after a fiber assembly change. Standard silica fiber exhibits a "solarization impact" when transmitting light in the UV below ~280nm. Over time, depending on the optically transmitted power, the fiber's abiltiy to transmit UV light drops off. Our QVLUX fiber offers superior resistance to solarization. The lowest basic attenuation of our solarization resistant fiber is at 200nm (<1 dB/m) and the lowest solarization at 214 nm on the market. WPI is the only companyoffering DIN 58145:2018-01 certified low solarization UV fibers and assemblies.

QVLUX-Series 1x1 Qualified Optical Fiber Cable Options

Order code	Catalog part #	Description	Core Diameter
505155	QVLUXDUV-S-0400-025-SMA	Qualified Deep UV fiber (180-1200nm), 25 cm length with SMA 905 connectors	400 μm
505156	QVLUXDUV-S-0400-100-SMA	Qualified Deep UV fiber (180-1200nm), 1 m length with SMA 905 connectors	400 μm
505157	QVLUXDUV-S-0600-025-SMA	Qualified Deep UV fiber (180-1200nm), 25 cm length with SMA 905 connectors	600 μm
505158	QVLUXDUV-S-0600-100-SMA	Qualified Deep UV fiber (180-1200nm), 1 meter length with SMA 905 connectors	600 μm
505163	WVLUXDUV-S-0200-100-SMA	100cm Specialty silica fiber with 200µm core diameter (200-1200nm). Low solarization @214nm	200 µm

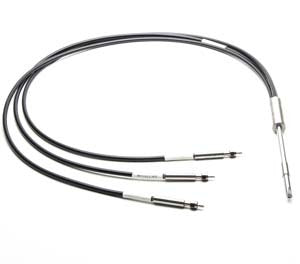

For Bifurcated fiber, Cross fiber, Mixed optical fiber patch cords and other fiber optic assemblies built for your specific project contact wpi@wpiinc.com.

Benefits

Qualified proprietary optical fiber is WPI’s most advanced optical fiber product line. Very resistant to UV light down to 185nm DIN 58145:2017-01
Qualified fiber allows for excellent transmission of UV light in long length optical fiber
Resists degradation due to UV exposure better than virtually any optical fibers on the market
Allows for true “plug and play” replacement
Ideal for OEM and applications requiring field service or where multiple instruments must be used for a battery of tests
Includes certificate and data of both UV transmission and induced loss generated by continuous exposure to a 30W deuterium bulb of each fiber material batch from 185-360nm

Applications

UV fiber optic spectroscopy techniques requiring coupling to a high power UV source, pulsed laser
Liquid chromatrography
Forensic Medicine
UV Raman
Medical

More fiber configurations and fiber materials available:

https://view.publitas.com/world-precision-instruments/2019-main-catalog/page/165

/qualifiedfo

Resources

Brochure

Video

WPI’s Photonics Center of Excellence Array of Optical Products

WPI Optical Fiber Solutions for Researchers and Product Developers

Specifications

QVLUXDUV STANDARD SPECIFICATIONS

Our QVLUX fiber has been engineered to not only provide superior transmission in the UV but have excellent consistency over length. This makes QVLUX a perfect choice for critical measurements or where “plug-and-play” capability is required without having to recalibrate after a fiber assembly change. Our QVLUX fiber offers superior resistance to solarization, lowest basic attenuation at 200nm (<1 dB/m) and the lowest solarization at 214nm on the market. WPI is the only company offering DIN 58145:2017-01 certified low solarization UV fiber and assemblies.

Fiber Material: High Quality Qualified Silica /Silica-Step Index Multimode
DIN 58145:2018-01
Available core diameters: 400um, 600um
Wavelength: High OH: DUV-VIS 180-1200nm
Numerical Aperture (NA): 0.22
Connector: SMA 905, FC, ST, DIN, F125 (1.25mm ferrule), F250 (2.50mm Ferrule)
Jacketing: Silicone Monocoil Tubing, Stainless Steel Monocoil
Temperature Range -40C-120C
Lowest attenuation @180nm

UV-NIR Certificate

References

We provide OEM fiber optic cable, fiber optic assemblies, optical probes, optical flow cells and optical sensors that are designed, manufactured and tested to deliver repeatability from one optical assembly to the next. A trusted partner for reliable optical measurements we offer: Qualified optical fiber for UV Instrumentation products providing pre-defined parameters or end-user specified parameters bifurcated and cross fiber assemblies of different core diameter and fiber length. Customization is also possible. For Y-assemblies and X-assemblies. Liquid Waveguide Capillary Cell (LWCC) with long pathlengths for small sample volumes for FIA, HPLC and process analysis. Fluorescence Probes for the detection of the transient response of free ion concentration. Optical Oxygen Sensor to detect oxygen in living tissues. Our proprietary optical fiber formulation and over 50 years of assembly experience have enabled us to be the only company offering DIN 58145:2018-01 certified low solarization UV fibers and assemblies for the 185 nm to 340 nm spectral range. This allows our OEM partners to obtain repeatability and accuracy from one system to the next. Using our Qualified Optical Fibers overcomes the inherent weakness of a standard optical fiber and offers advantages to designers of optical systems. Contact us and talk with our seasoned optical engineering team about introducing qualified fibers into your designs.
