Fire Polished Replacement Glass Capillaries for NANOLITER Systems

$83
$83

504949

From $83 - $92
From $83 - $92
Length (in)

Prices valid in USA, Canada, and PR only.

These fire polished glass capillaries are designed for use with WPI’s Nanoliter 2010, legacy Nanoliter 2000, and compatible systems such as the NANOLITER2020 and Injector Head #300704. Available in 3.5" (#504949) or 7" (#504950) lengths, each capillary has an OD of 1.14 mm and an ID of 0.530 mm ± 25 μm, supplied in vials of 300 pieces. The fire-polished tips make insertion into microelectrode holders easier, prevent gasket damage, and avoid scratching chloridized wire in recording electrodes, all without altering the glass’s mechanical or electrical properties. Products are supplied non-sterile.

Looking for something specific? Compare the variety of capillary glass options.



Details

Options

Order code Description
504949

Glass replacement ,1.14mm, 3.5"
504950

Glass replacement, 1.14mm, 7"

Features

    • 3.5 in or 7 in long
    • 300 in vial
    • For use with the Nanoliter 2010 or the older Nanoliter 2000
    • ID = 0.530 mm ± 25 μm, OD 1.14 mm
    • Fire polished
    • Compatible with NANOLITER2020 and the Injector Head: 300704
    • #504949 replaces the discontinued #4878
    • Products supplied non-sterile

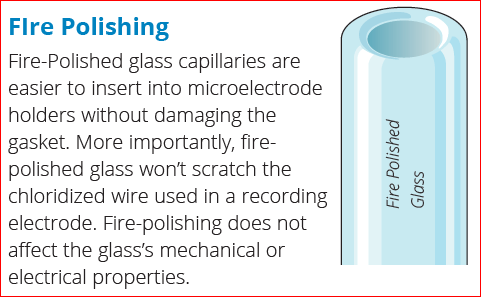

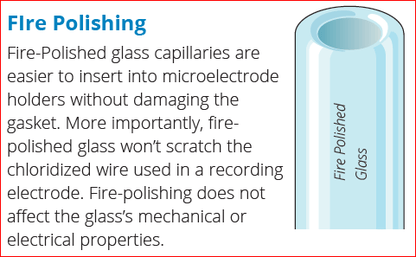

Fire Polishing

Fire-Polished glass capillaries are easier to insert into microelectrode holders without damaging the gasket. More importantly, firepolished glass won’t scratch the chloridized wire used in a recording electrode. Fire-polishing does not affect the glass’s mechanical or electrical properties.
