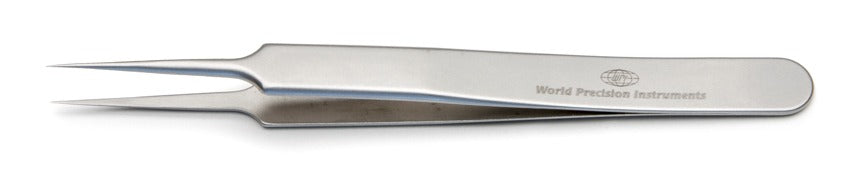

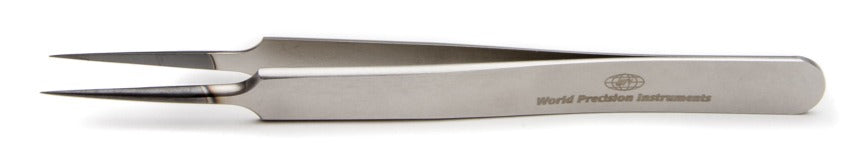

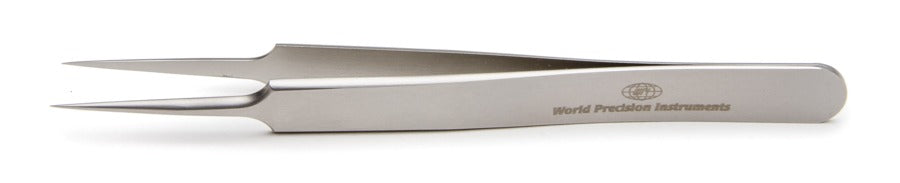

WPI Swiss Microdissection Tweezers

$50
$50

504506

From $50 - $70
From $50 - $70
Metal

Prices valid in USA, Canada, and PR only.

Swiss Microdissecting Forceps have fine tips for precision work in microsurgery, microdissection, and applications requiring fine manipulation of tissue or small objects under a microscope. The tips on WPI Microdissecting Forceps are fine and straight. These are hand forceps with a spring action letting you pinch the blades together to control the amount of pressure used. You have a choice of steel they are manufactured from, all of which are suitable for autoclaving or chemical sterilization. Surgical grade stainless steel is the standard alloy for surgical instruments. The acid-resistant, anti-magnetic alloy works well in an MRI environment. The Nickel-Chromium-Molybdenum (Ni-Cr-Mo) super alloy is six times harder than antimagnetic stainless steel, resistant to fatigue with a very high shape retention, and fully non-magnetic. The Diamond Like Coating (DLC) has a black, non-reflective surface, is extremely high wear and abrasion resistant, chemically inert up to 350°C, and bio-compatible. DLC instrument last a long time. All of these surgical forceps are quality Swiss-made instruments.

Details

Features

  • Microdissection forceps with choice of construction from a variety of metals
  • 11 cm (4.3") Long
  • 0.1 x 0.06 mm Fine straight tips
  • Swiss-made quality
  • Autoclavable

Options

Order code Metal
504506 Stainless Steel
504507 Acid-Resistant/Anti-Magnetic
504524 Ni-Cr-Mo Superalloy
504515 Anti-Magnetic, Diamond Coated Tips



Super Alloy NC

  • Ni-Cr-Mo Nickel-Chromium-Molybdenum super alloy
  • Excellent strength from room temperature to 800°C
  • Six times harder than antimagnetic stainless steel
  • Resistant to fatigue, very high shape retention
  • Fully non-magnetic
  • Excellent corrosion resistance to most chemicals, salts and acids
  • Typical applications include non-magnetic tools for electronic and watch industry applications and for laboratory and medical applications in aggressive chemical environments.

High–Tech Diamond Like Coating (DLC)

The High-Tech DLC Coating is composed of carbon clusters which develop a crystal structure similar to a natural diamond and practically detain the same properties of the diamond. This high-tech coating is done by a very innovative plasma-assisted deposition technique. During this process a pure diamond film grows directly on the exposed surfaces of the metallic substrate (this is not diamond powder adhesively bonded on the metal surface).

  • High hardness (up to 80 GPa)
  • High adhesion to the metallic substrate
  • Black color
  • Thin layer (2 microns)
  • High elasticity
  • Extremely high wear and abrasion resistance (protects fine tip tweezers from wearing)
  • No particulate shedding (no contamination of the handled components)
  • Chemically inert up to 350°C
  • Bio-compatible (maintain cell integrity, no inflammatory response), no contamination of biological tissue with metal particles)
  • Very clean material
  • NVR (Non Volatile Residue): 0.088 μg/cm2
  • LPC 0.5 μm (Liquid Particle Count): 7043 counts/cm2
  • IC (Ion Chromatoghraphy):
    • chloride 0.039 μg/cm2
    • nitrate not detected
    • sulfate 0.005 μg/cm2
    • total anions 0.114 μg/cm2
  • ESD safe



Specifications

Mechanical properties:

  • State: 50% cold reduction
  • Density: 8.4 g/cm3
  • Hardness: Rockwell C 60-64 (Highest hardness at tweezers tip)
  • Tensile strength, ultimate: 1500 MPa
  • Tensile strength, yield: 1250 MPa
  • Elongation, break: 5%
  • Modulus of elasticity: 208 GPa
  • Thermal properties
  • Coef. of lin. therm expansion: 12.8 E-6/°C 25°C-100°C
  • Coef. of lin. therm expansion: 13.4 E-6/°C 25°C-300°C
  • Specific heat capacity: 0.41 J/(g·K)
  • Thermal conductivity: 10 W/(m·K)
  • Continuous use temperature: 600°C
  • Max service temperature, air: 980°C



Electrical properties

  • Resistivity 1.29E-4 Ohm-cm
