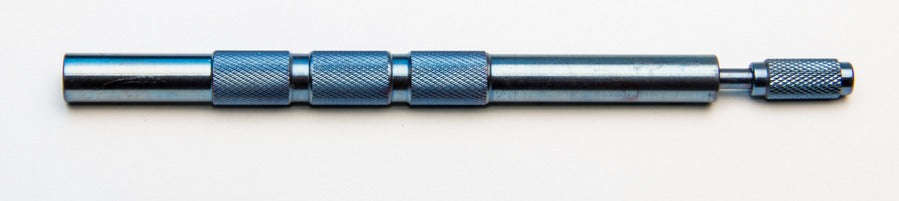

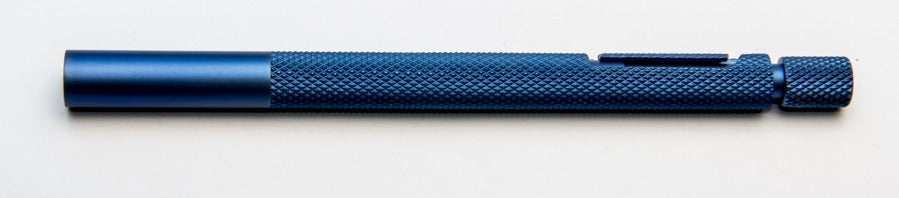

Titanium Scalpel Handle for Sapphire Blades

$175
$175

501811

From $163 - $175
From $163 - $175
Tip Shape

Prices valid in USA, Canada, and PR only.

The Titanium Scalpel Handle is for use with our Sapphire Blades. The 501811 version is for use with the regular sapphire blades (504074, 504075, and 504168), and the 501812 version is for use with angled sapphire blades. Since sapphires are one of the hardest materials available (second only to diamonds), they make super sharp blades for precise, clean cuts. They are non-magnetic, especially when combined with a titanium handle. Sapphire blades are non-conductive, which may be important if you are using electrical instruments. Sapphire blades are impervious to corrosion and extremely durable. The sapphire blades are sold separately. These handles are retractable, so you can protect the blade when it is not in use. The reusable scalpel handle is 13 cm (5.1") long.  They are constructed of titanium and are autoclavable or suitable for chemical sterilization.

Details

Features

  • Titanium is non-magnetic, non-conductive, non-corrosive
  • 13 cm (5.12") Long
  • Retractable
  • 501811: Use with Sapphire Blades 504074, 504075 and 504168
  • 501812: Use with Angled Sapphire Blades
  • Blades sold separately

Options

 Order code Description Details
501811

Titanium Handle for Sapphire Blades

Use with Sapphire Blades 504074, 504075 and 504168
501812

Titanium Handle for Angled Sapphire Blades

Use with Angled Sapphire Blades

Handle for Angle

Handle Blade
501811 504074, 504075, 504168
500317 504072, 504073, 504076, 504077
501812
501763

Sapphire blades

Cleaning

Manual Cleaning

  1. Use a syringe with distilled water to flush the instrument of blood and body fluids.
  2. Dip the blade and handle into a weak alkaline cleaning solution and let it sit for 60 minutes at a temperature of +22°C (+72°F ).
  3. The handle of a knife may be cleaned with a soft brush.
  4. Flush the instrument with tap water for 30 seconds. Then, rinse with distilled water for other 30 seconds. The blade should be pointed down for flushing.

Ultrasonic Cleaning

Using a  sterilizing case with silicon inserts or mats to reduce vibration and protect the blade.

  1. Fill the ultrasonic cleaner with warm distilled water (+70°C (+152°F)).
  2. Immerse the blade and handle in the water.
  3. A 2 to 3 min washing cycle should be enough to clean knife.
  4. Rinse the instrument with distilled water.

Suggested Sterilization Methods

We recommend sterilizing the knives in trays with silicone inserts or silicone mats. This will prevent movement and avoid damaging the blade.

Sterilization Method  Type of Sterilization  Temperature Exposure Time
Steam Gravity Displacement +132ºC (+270ºF) 4 min
Flash Process Gravity Displacement +132ºC (+270ºF) 4 min
Autoclave Gravity Displacement +132ºC (+270ºF)  4 min

These sterilization cycles represent the industry standards and should be capable of producing a sterile device.

NOTE: Ethylene oxide (ETO) sterilization is recommended for items that are heat or moisture sensitive, and is best  suited for expensive medical equipment. ETO takes longer, between 3.5–16 hours to ensure sterilization. If time is not an factor, then ETO is an excellent sterilization method. Follow the manufacturer's recommendation for your instruments.

Resources

Surgical Instrument Care and Handling Instructions
