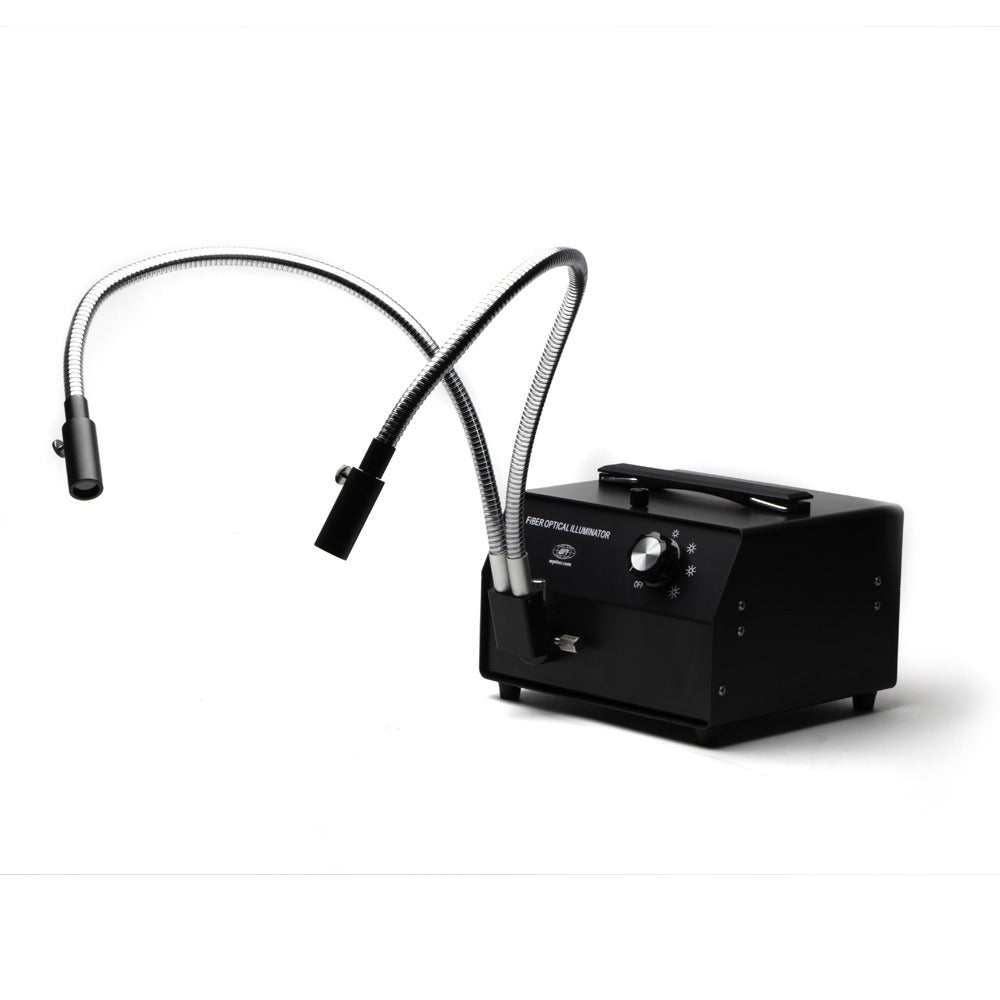

High Intensity Fiber Optic Illumination Source

Uninterrupted, directed light for microscopes and other applications

• Reliable, uninterrupted high-intensity light
• Use with microscopes
• Intensity controlled by rotary knob
• Use with ring light, or single/bifurcated guides, sold separately

Note : Z-LITE-Z and Z-LITE-Z186 are for orders placed outside of the USA.

Options

Benefits

• Contains full spectrum of visible light

Applications

• General laboratory use
• Microscopy illumination

The Z-LITE Fiber Optic Il­lu­mi­na­tor provides reli­able, un­in­ter­rupt­ed high-intensity light for micro­scopes. Z-LITE allows a continuous range of subdued or concentrated light­ing controlled by a rotary dim­mer on the front panel. Z-LITE may be used with a ring light and single or bi­fur­cat­ed flex­i­ble fiber bundles, en­abling the light beam to be placed ex­act­ly where it is need­ed. Forced air cool­ing prolongs the lamp life. Lamp color temper­a­ture is 3350°K. An interlock switch automatically cuts off power when front panel is opened to replace bulb.

Options include:

• Z-LITE – 110V, 60Hz Fiber optic illuminator, beige
• Z-LITE-Z – 220V, 60Hz Fiber optic illuminator, black
• Z-LITE-186 – Z-LITE with bifurcated light guides
• Z-LITE-Z186 – 220V, Z-LITE-Z with bifurcated light guides

Single and bifurcated light guides may be purchased separately, but the Z-LITE-Z (and Z-LIGHT-Z186) system includes a set of bifurcated light guides.

Z-LITE Instruction Manual
