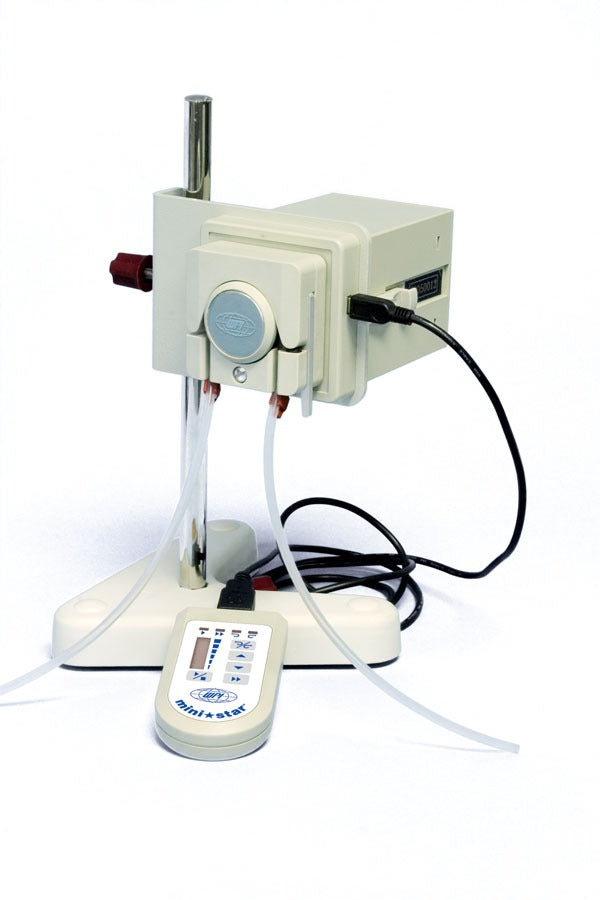

Mini Peristaltic Pump

Lightweight, portable Mini★Star™

• Flow Range: 0.06-14.0mL/min
• Speed: 1-50.0 rpm, forward/reverse
• MINISTAR is sold separately with out the stand and clamp shown in the image; 504011 system includes the MINISTAR, stand and clamp
• Includes tubing

Options

Order code	Description
MINISTAR	MINISTAR is sold separately without the stand and clamp.
504011	504011 system includes the MINISTAR, stand and clamp



Benefits

• Remote control (wired)
• Small footprint
• Quiet operation
• Compact and easily transported

Applications

• Small volume chemical transfer
• Pharmaceutical processing
• Sample perfusion

This compact, lightweight peristaltic pump fits just about anywhere. It can be mounted directly on the bench, in a regular rack or to a post. The speed can be adjusted from 1 to 50 rpm. With recommended silicone tubing, the volume can be set from 0.06 to 14.0 mL/min. The MiniStar™ also features a hand held remote control that allows you to start and stop the pump, purge or adjust its speed and direction.

See how to setup your Ministar Peristaltic Pump



The MINISTAR pump works well with both the LWCCs and the LWCC Injection System (89372).

LWCC

The image below shows a typical setup with an LWCC. You see the sample injector kit (58006) and the MINISTAR pump connected with aLiquid Waveguide Capillary Cell(flow cell).

LWCC Injection System

The LWCC Injection System (89372) works well with a MINISTAR pump as shown below.

MiniStar Instruction Manual

Channel	1
Speed	1-50.0 rpm, forward/reverse
Flow range	0.06~14.0 mL/min
Resolution	1 rpm (0.1 rpm computer control)
Speed control	Remote control
Display	Indicators for status and speed
Power	12 V DC (110/220 VAC adapter incl.)
Working condition	Temperature 0-40°C, humidity < 80%

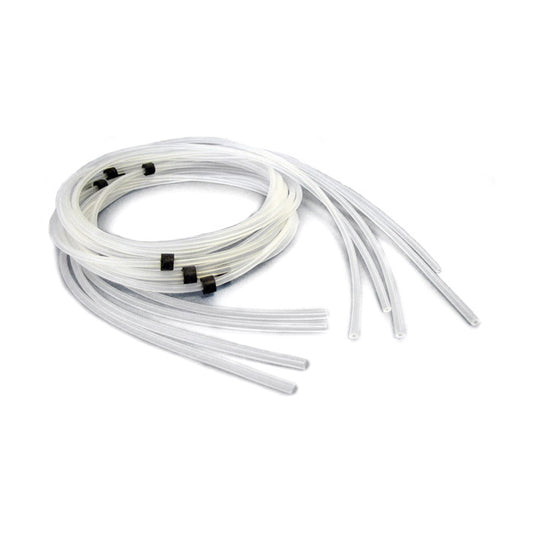

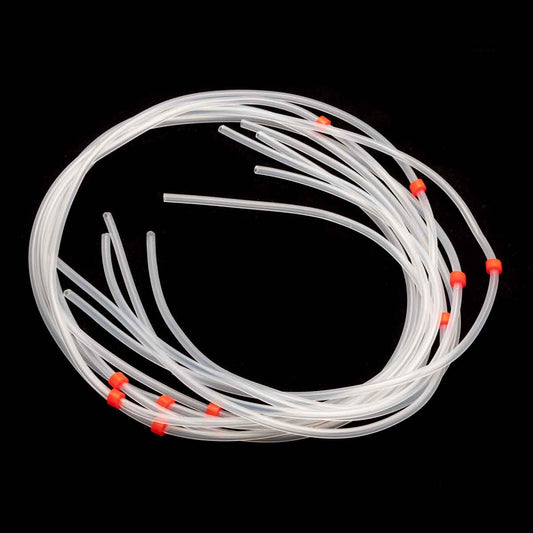

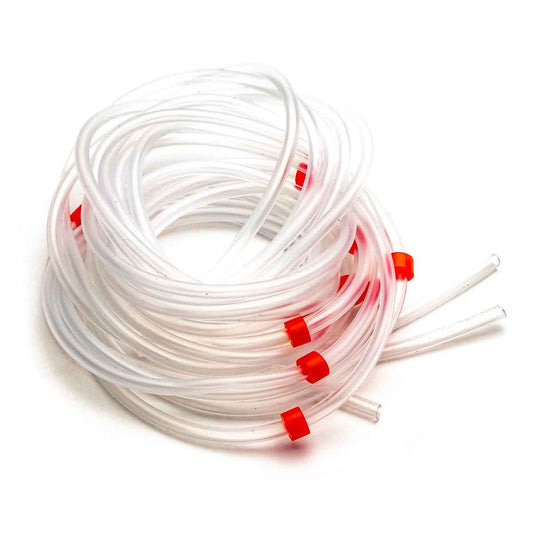

Tubing	Two-stop Silicone
Tubing: Wall Thickness	0.8~1.0 mm
Tubing: Outer Diameter	≤4.8 mm
Dimension of driver	135 x 72 x 72 mm (LWH)
Dimension of remote control	105 x 5 x 16 mm (LWH)
Weight of driver	0.5 kg
