Dual Tool-Holder Micromanipulator
Regular price
$2,826
Sale price
$2,826
Regular price
Unit price
per
MD4-M3-L
Regular price
From $2,325 - $2,826
Sale price
From $2,325 - $2,826
Regular price
Unit price
per
Couldn't load pickup availability
Prices valid in USA, Canada, and PR only.

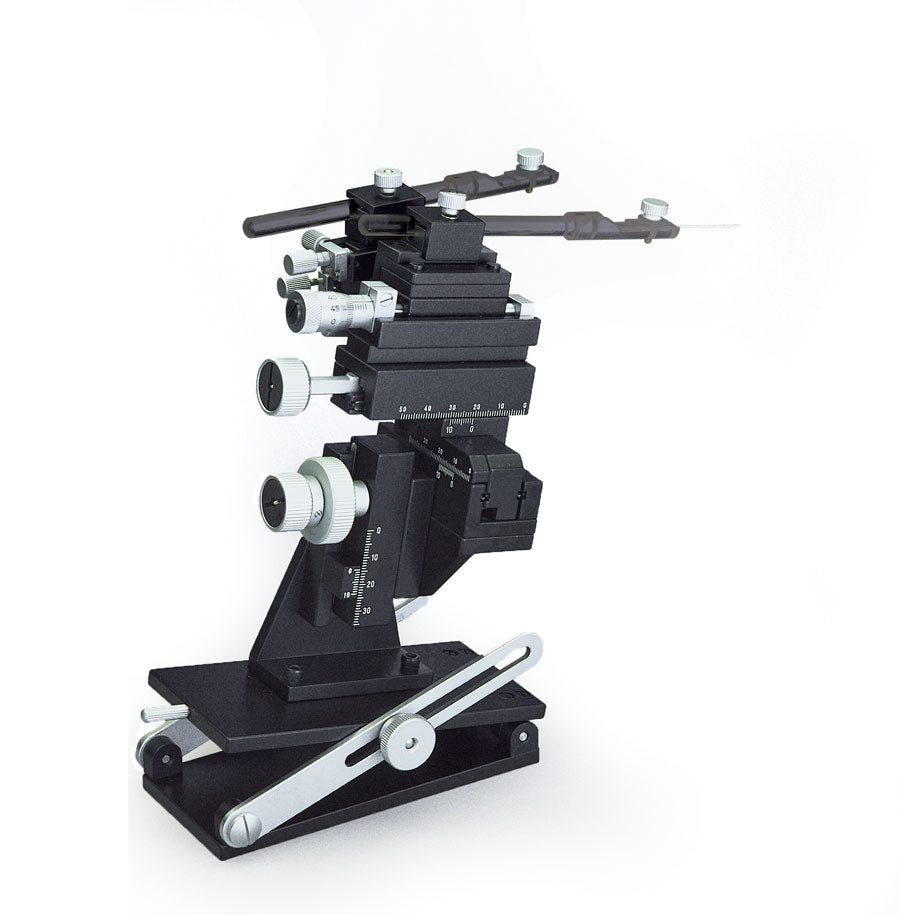

A small and compact micromanipulator for manual manipulation in all three axes (x, y and z), the MD4 is equipped with a mounting bracket for a second tool or electrode holder which can be positioned in the x and y axes independent of the manipulator and may also be tilted and swiveled by two fine-adjust screws. Scales allow readings of coarse adjustment with an accuracy of 100 µm. Additional x-axis fine control is achieved with a micrometer screw with a resolution of 10 µm.
ACCESSORIES
Details
Details
Dual Tool-Holder Micromanipulator
- X-axis fine control is achieved with a micrometer screw
- Scales allow coarse adjustment readings with an accuracy of 100 micrometers
Options
| Order code | Description | Style |
| MD4-M3-R | MD4 Manipulator Includes M3 Tilting Base |
Right Hand |
| MD4-M3-L | MD4 Manipulator Includes M3 Tilting Base |
Left Hand |
| MD4R | MD4 Manipulator Base not included |
Right Hand |
| MD4L | MD4 Manipulator Base not included |
Left Hand |
Benefits
- Dual electrode holders
Applications
- Electrophysiology differential amplification
A small and compact micromanipulator for manual manipulation in all three axes (x, y and z), the MD4 is equipped with a mounting bracket for a second tool or electrode holder which can be positioned in the x and y axes independent of the manipulator and may also be tilted and swiveled by two fine-adjust screws. Scales allow readings of coarse adjustment with an accuracy of 100 µm. Additional x-axis fine control is achieved with a micrometer screw with a resolution of 10 µm. Supplied with one M3301EH electrode holder and a 12 mm clamp for mounting on M10 Stand or other 12 mm supports. May also be mounted on optional M-3 Tilting Base. Travel, standard electrode: x-axis, 37 mm (fine, 10 mm); y-axis, 20 mm; z‑axis, 25 mm. Additional electrode: x-axis, 7 mm; y-axis, 10 mm.
Resources
Resources
Specifications
Specifications
