Large FORT Force Transducer

$582
$582

FORT100

From $582 - $695
From $582 - $695
Size (g)

Prices valid in USA, Canada, and PR only.

This rigid-lever force transducer transforms applied force into proportional voltage. Using balanced strain gauges, FORT transducers produce linear output voltage vs. applied force input with very little deflection. To use, clamp the handle of the FORT transducer in a horizontal position and apply the forces to be measured to a rivet or hook mounted in the hole at the end of the flat sensing leaf.

The transducer is highly resistant to mechanical damage. Its body is machined from aluminum and mounts to a standard ring stand or, with the handle removed, clamp mounts.

Details

Features

  • Transform applied force into proportional voltage

Options

Order code Size

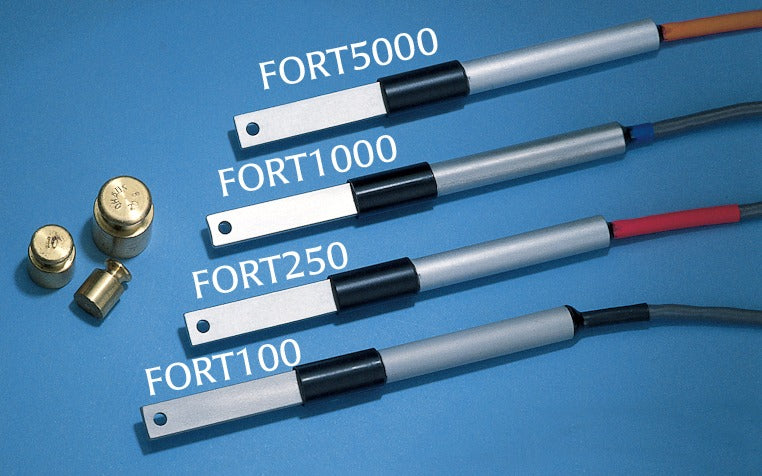

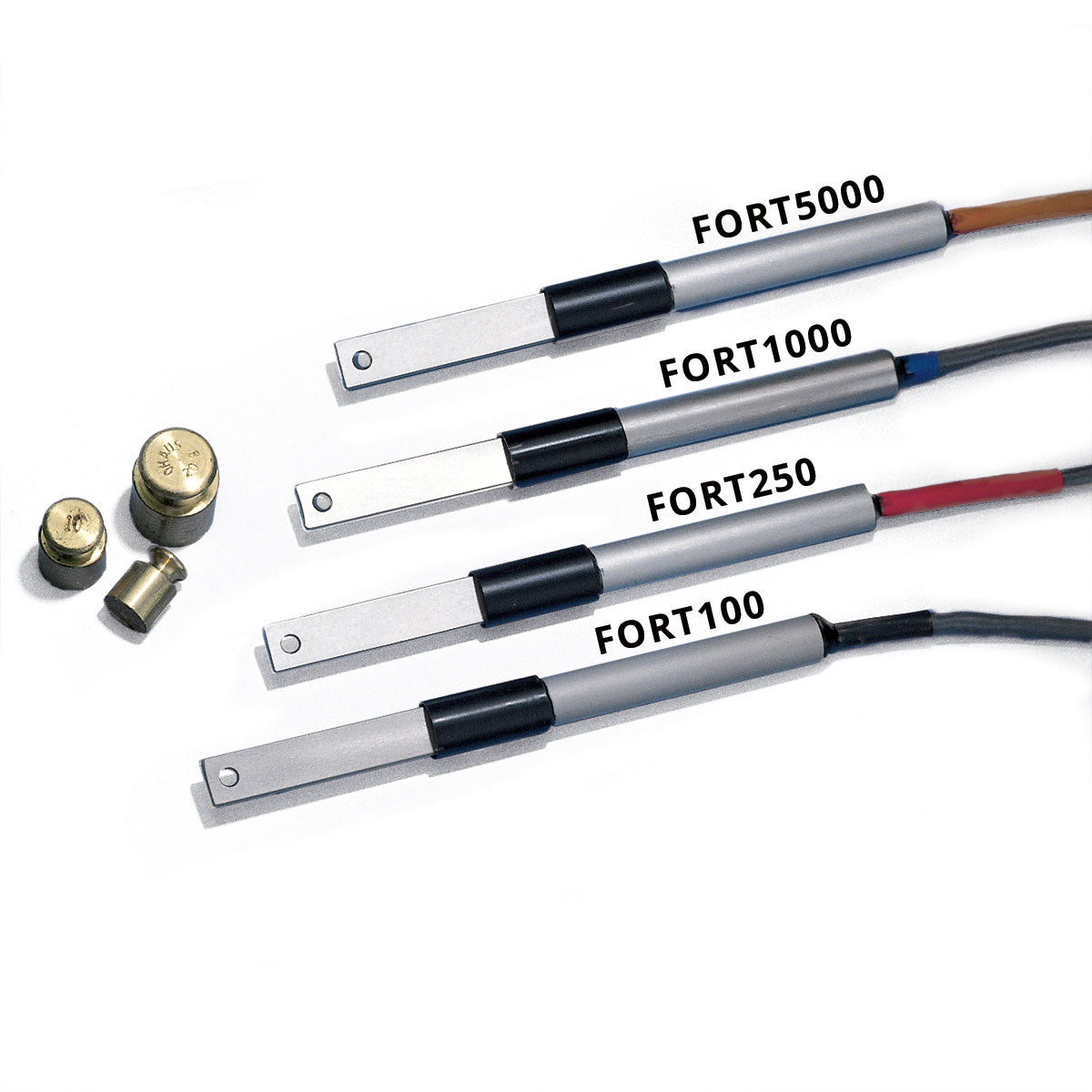

FORT5000 5000g
FORT1000 1000g
FORT250 250g
FORT100 100g



This rigid-lever force transducer transforms applied force into proportional voltage. Using balanced strain gauges, FORT transducers produce linear output voltage vs. applied force input with very little deflection. To use, clamp the handle of the FORT transducer in a horizontal position and apply the forces to be measured to a rivet or hook mounted in the hole at the end of the flat sensing leaf.

The transducer is highly resistant to mechanical damage. Its body is machined from aluminum and mounts to a standard ring stand or, with the handle removed, clamp mounts.

How to use

Clamp the handle of the FORT transducer in a horizontal position and apply the forces to be measured to a rivet or hook mounted in the hole at the end of the flat sensing leaf.

Resources

FORT Instruction Manual

Specifications

  FORT5000 FORT1000 FORT250 FORT100
FORCE RANGES, FULL SCALE 5000g  1000 grams  250g 100g
OUTPUT SENSITIVITY (± 10%) 0.38 μV/V/g 0.84 μV/V/g  3 μV/V/g 7 μV/V/g
INPUT & OUTPUT RESISTANCE 350 Ω
RESOLUTION 0.01% of full scale force
RESONANT FREQUENCY  60 Hz 300 Hz  300Hz 300Hz
LINEARITY ERROR Less than 0.1% of full scale
MAX. OPERATING VOLTAGE 10 V AC or DC
MAXIMUM APPLIED FORCE 3x rated full scale force
DRIFT thermally compensated
DIMENSIONS 0.3" inch diam — 4 in.
(7.6 mm diam— 10.2 mm)
WEIGHT (excluding cable) 0.3 oz (8 g)




Large FORT Force Transducer

$582.00
