Ag/AgCl Electrode

$65
$65

EP05

$65
$65
Size (mm)

Prices valid in USA, Canada, and PR only.

New, improved sintered pellets with lower resistance and high strength. Stable and well balanced in the presence of current, these small and inexpensive half-cells are easy to work with as bath electrodes.

Details

Features

  • Silver/Silver Chloride half cells ideal for use as bath electrodes
  • Low resistance and high strength
  • Stable and well balanced in the presence of current



New, improved sintered pellets with lower resistance and high strength. Stable and well balanced in the presence of current, these small and inexpensive half-cells are easy to work with as bath electrodes.

Options

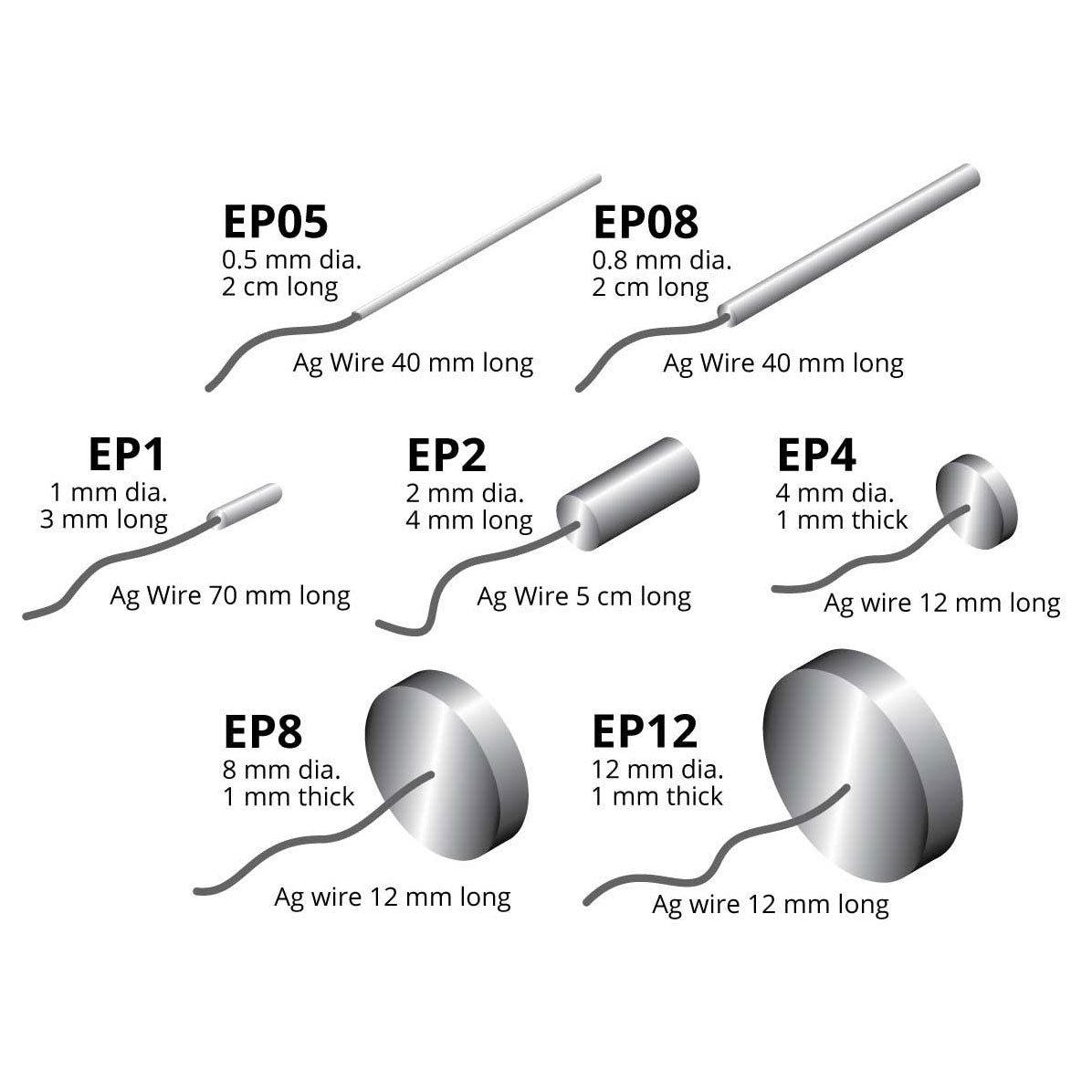

Order code Image Description

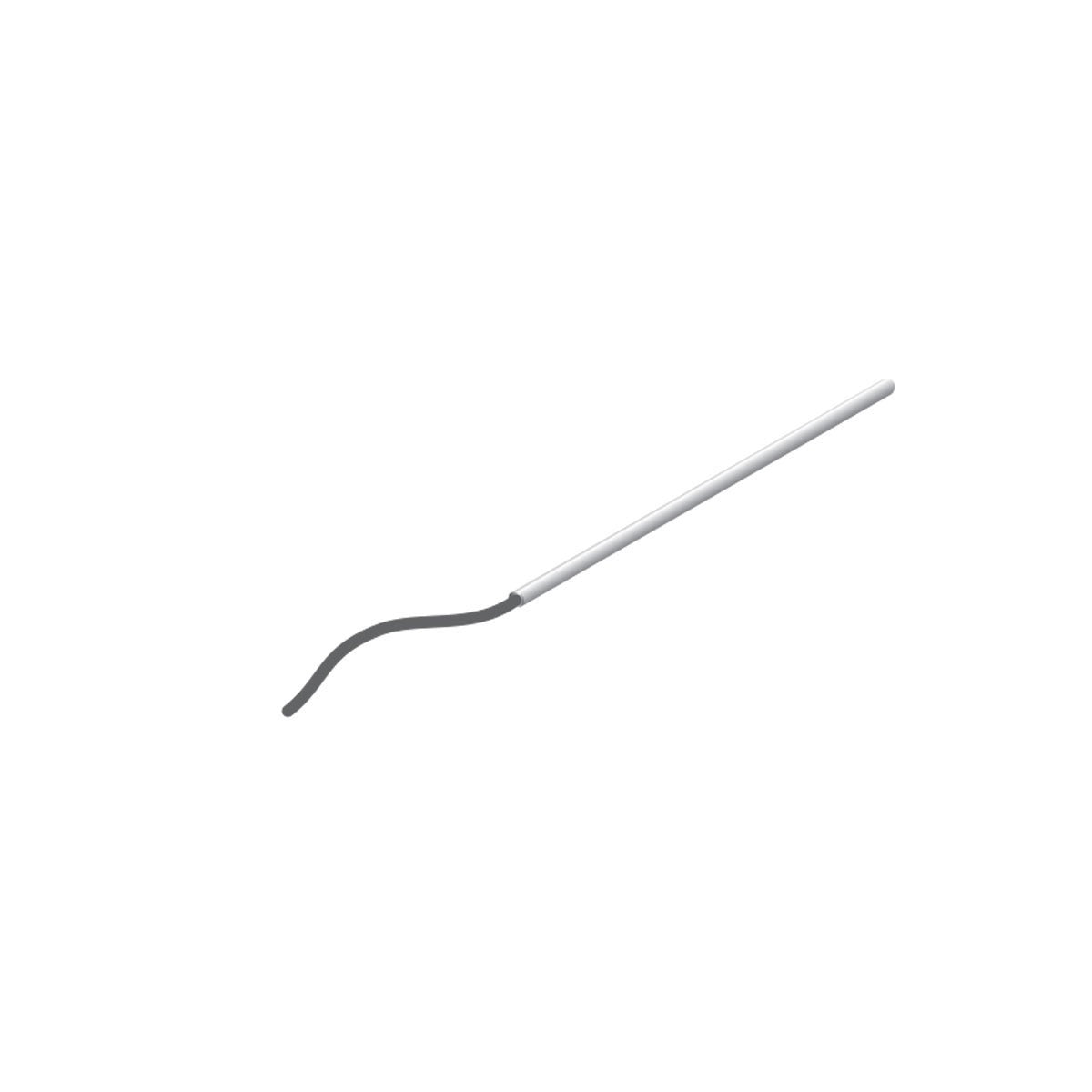

EP05  EP05 electrode
  • 0.5mm Φ x 20mm
  • 40mm long silver wire
  • 0.250 μm diameter
EP08 EP08
  • 0.8mm Φ x 20mm
  • 40mm long silver wire
  • 0.250 μm diameter

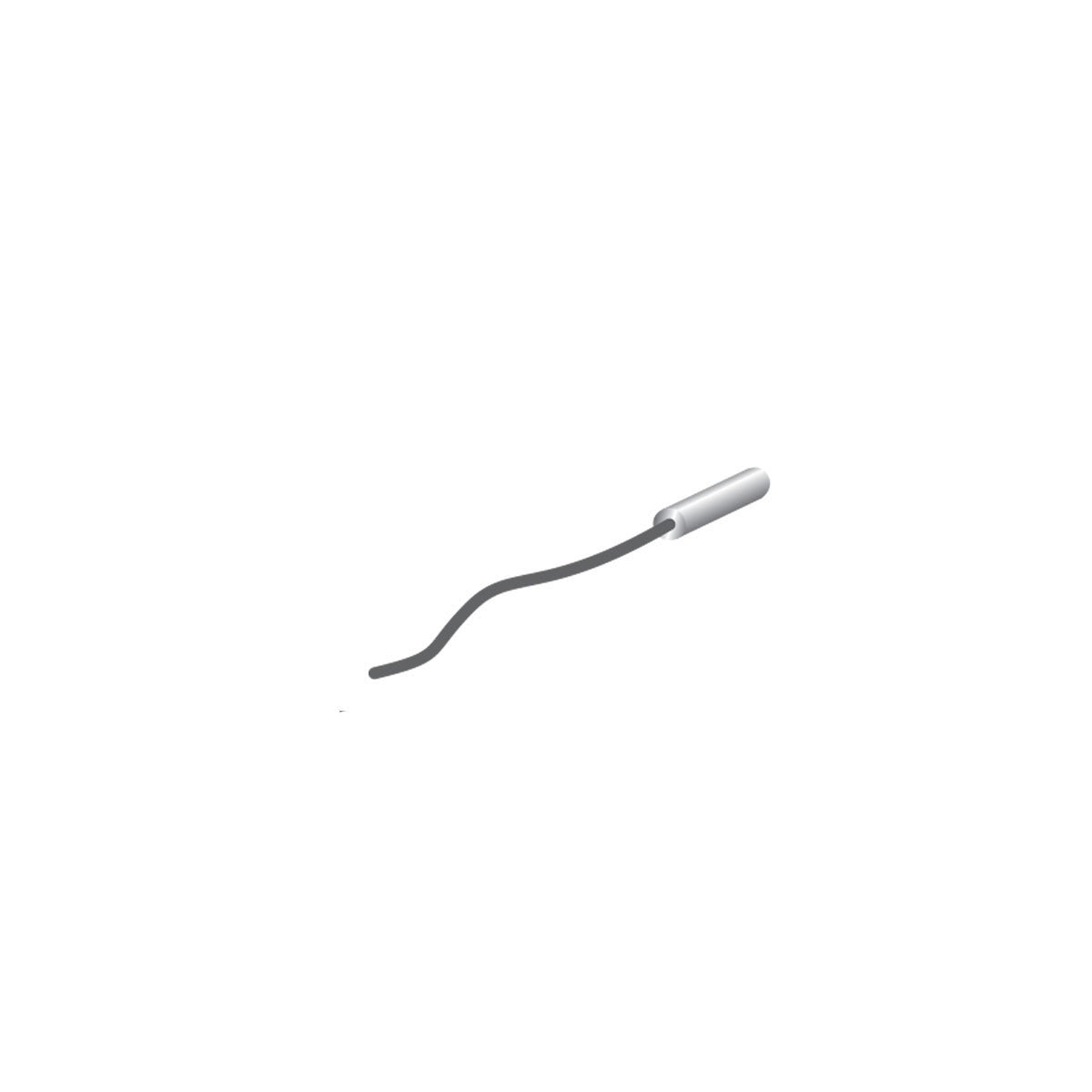

EP1 EP1 electrode
  • 1.0mm Φ x 3mm
  • 70mm long silver wire
  • 0.250 μm diameter

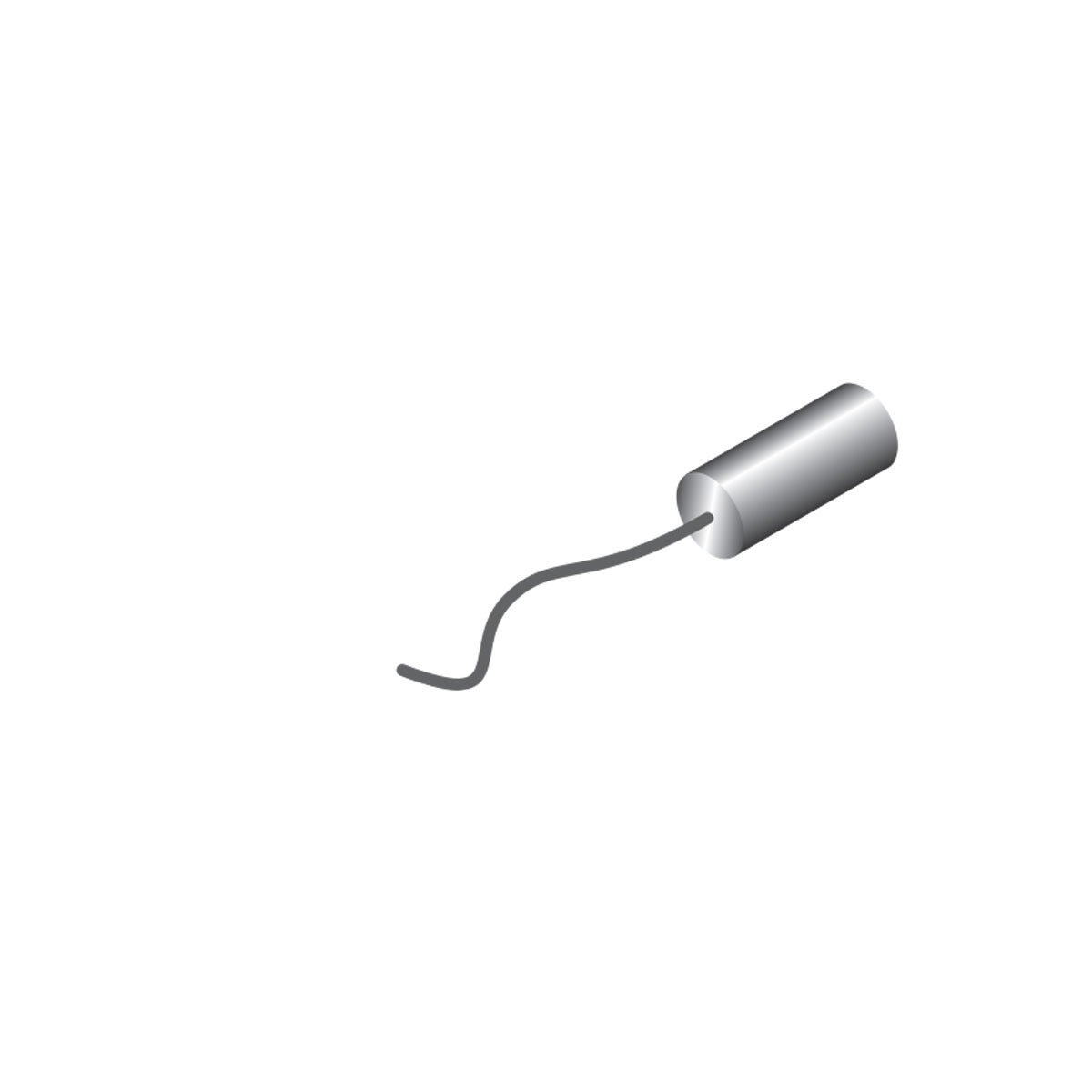

EP2 EP2 Electrode
  • 2.0mm Φ x 4mm
  • 5cm long silver wire
  • 0.250 μm diameter

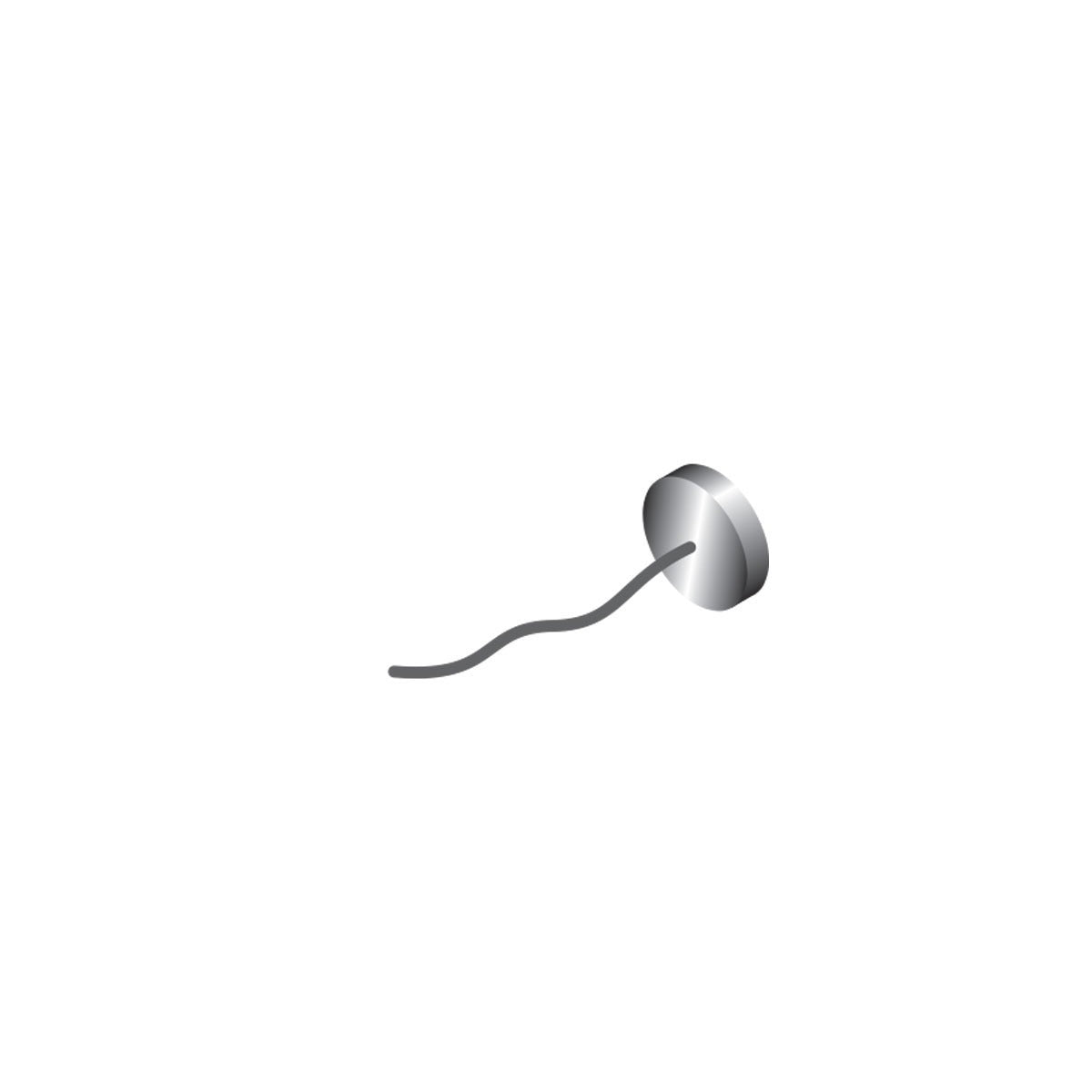

EP4 EP4 Electrode
  • 4.0mm Φ x 1mm
  • 12mm long silver wire
  • 0.250 μm diameter

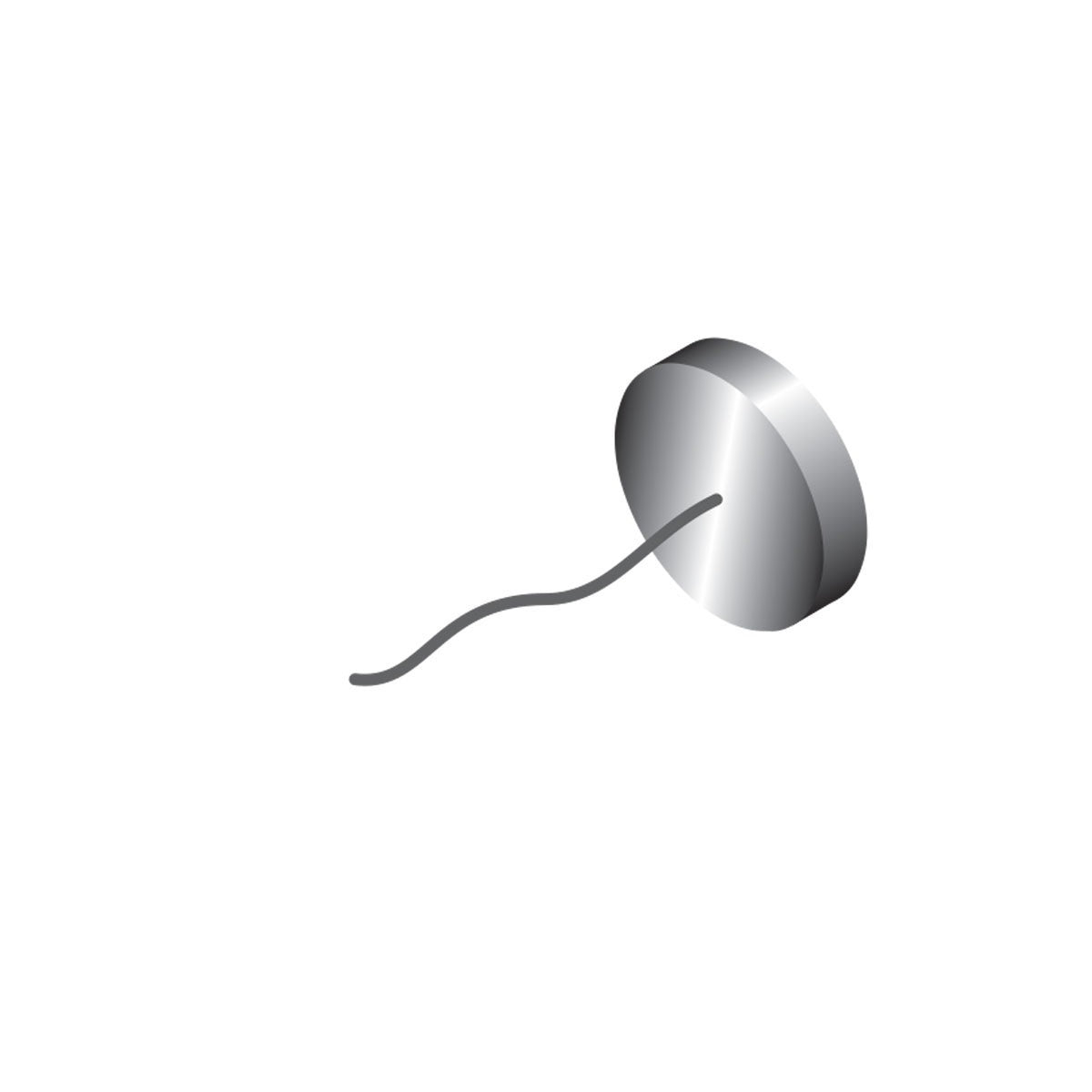

EP8
  • 8.0mm Φ x 1mm
  • 12mm long silver wire
  • 0.250 μm diameter

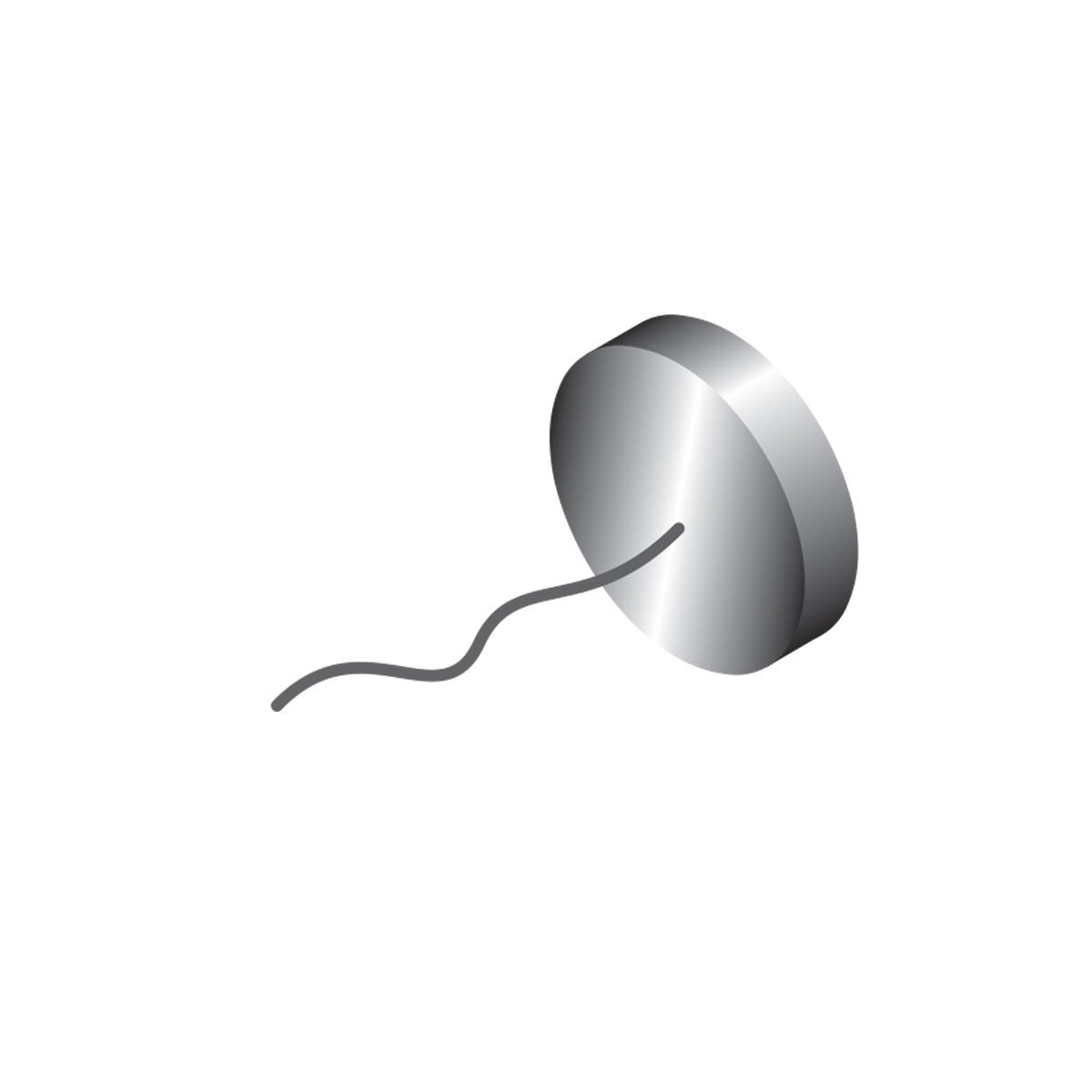

EP12  EP12 electrode
  • 12.0mm Φ x 1mm
  • 12mm long silver wire
  • 0.250 μm diameter



Resources

AgAgCl Pellet Instruction Manual

References

J.A.Feijo, J. Sainhas, G.R. Hackett, J.G. Kunkel, P.K. Hepler "Growing Pollen Tubes Possess a Constitutive Alkaline Band in the Clear Zone and a Growth-dependent Acidic Tip" J of Cell Biology 144. 1999: 483-496
