Manual Microsyringe Pump

Precise manual injection of fluid using glass pipettes

• Accepts syringe sizes: 10 µL - 1 mL gas tight Luer tip
• Micrometer head has resolution of 10 µm per division
• Solid, stainless steel frame

Options

Order code	Description	Micrometer
MMP	Manual Microsyringe Pump	Standard
DMP	Manual Microsyringe Pump with Digital Display	Digital



Benefits

• Choice of medels, with or without digital display
• Cost-effective solution

Applications

• Use for perfusion or withdrawal of liquids

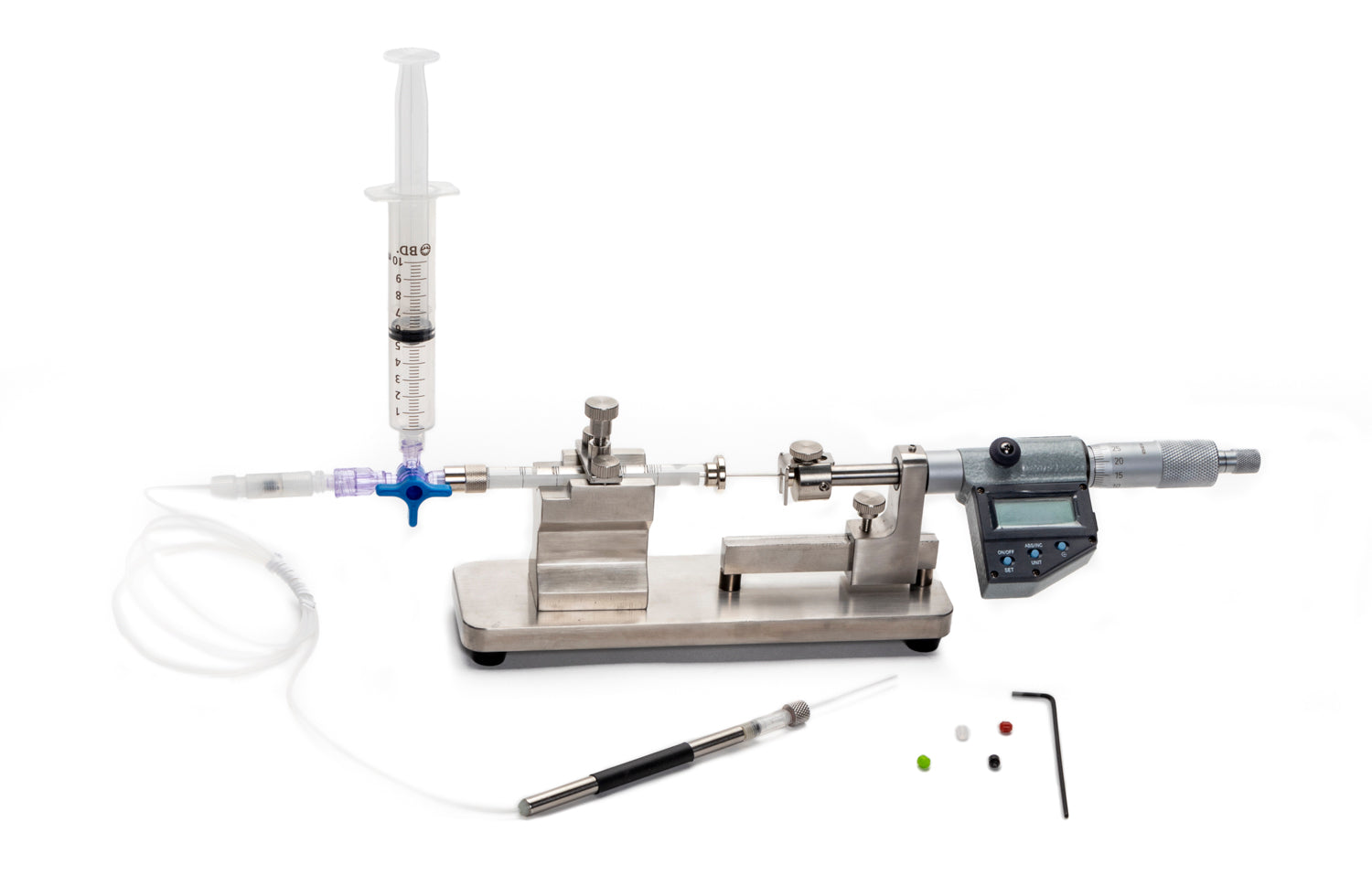

This pump is available with your choice of micrometer, standard or digital display (shown above).

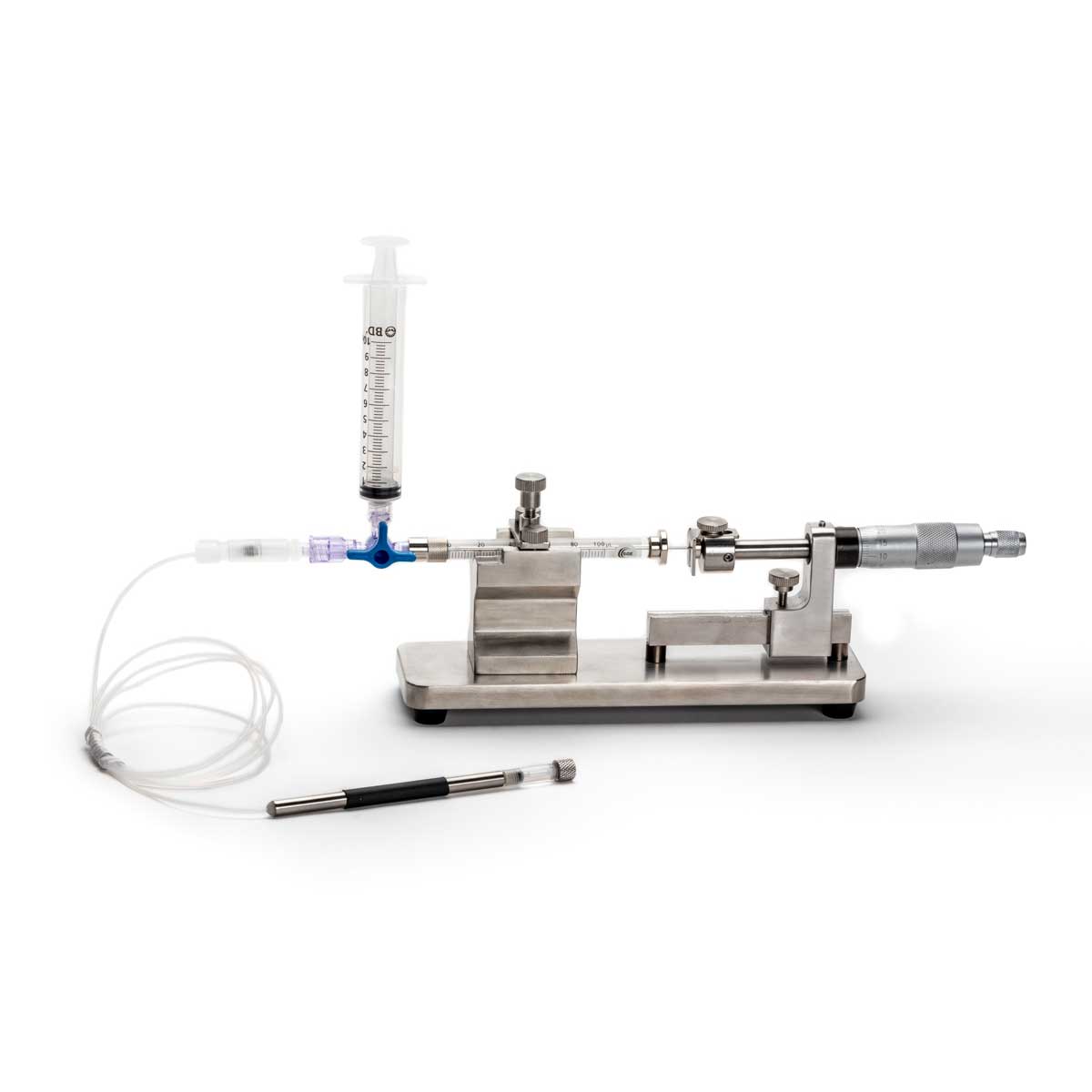

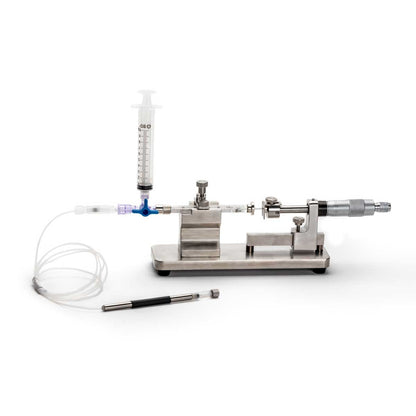

The MMP comes with a standard micrometer head. The DMP includes a digital display.

Precise manual injection

The manual microsyringe pump is a convenient tool for precise manual injection of fluid using glass pipettes or similar injection devices. The design allows visual feedback of flow at the pipette tip. They can also be used as a manual micro syringe pump for perfusion or withdrawal of liquids. The resolution of the injection volume can be continuously varied from 10 nanoliters to the microliter range, depending on the syringe used.

With or without digital display

The DMP comes with a digital micrometer that will allow the reading of piston advancement easily with a 0.001 mm resolution. The MMP has the traditional mechanical micrometer head with a resolution of 10 µm per division and advances 500 µm per revolution.

Constructed of stainless steel

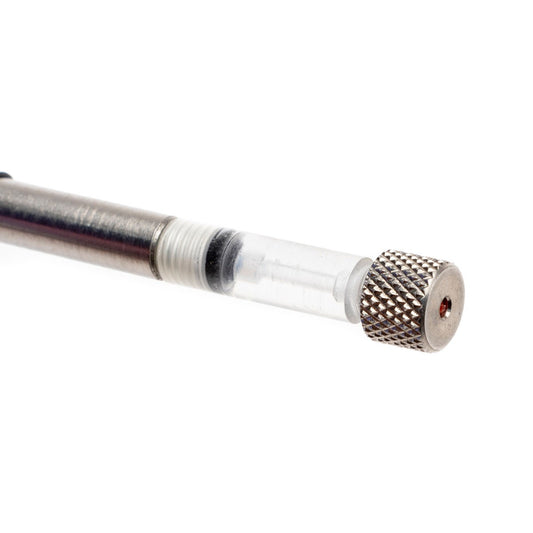

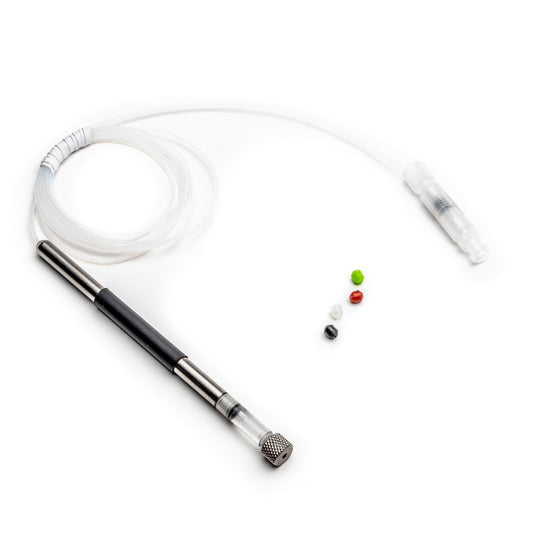

The entire frame body of the injector is constructed with  stainless steel for excellent stability and durability. The piston of the micrometer can be slid across the rail to the syringe's plunger position. Small diameter PTFE tubing is used to improve the accuracy and solution compatibility. The unique design of the pipette holder can securely hold any pipette with an outer diameter of between 1.0 mm and 1.5 mm. All necessary accessories for removing air and filling the syringe and tubing with liquid are included. The system comes complete with a 100 µL gas tight syringe and other syringe sizes may be purchased separately.

MMP DMP Instruction Manual

Syringe Volume Calculation Spreadsheet- Use this .XLS spreadsheet to calculate the volume of your syringe when you are using an UMP3, DMP, MMP or PV820/PV830.

Video

How to Setup the WPI Digital Microsyringe Pump for Manual Microinjection



Type	Description
Travel Distance	25 mm
Advances Resolution	0.001 mm for DMP and 0.01 mm for MMP
Syringe Size	10 µL to 1 mL gas tight Luer tip syringe
Tubing	1.5 m of PTFE tubing with 0.5 mm ID
Pipette Holder	0.24" x 5.2"
Pipette Holder Fits	1.0 to 1.5 mm OD pipette
Pipette Holder Body Diameter	6.0 mm
