Microprobe Thermometers

Instrument of chioce for biological and laboratory use

• Super accurate
• Fast response
• Analog output signal
• Single input (BAT-12R) or Multiple inputs (BAT-10R/LOP)
• Differential temperature measurements
• Choose type: Multiple Input, 110 VAC (BAT-10R/LOP), Multiple Input, 220 VAC (BAT-10R/LOP220), Single Input, 110 VAC (BAT-12R), Single Input, 220 VAC (BAT-12R-220)
• See Details for part numbers and descriptions

Options

Order code	Description	Image
BAT-10R/LOP	Multiple Input Type T Thermocouple Thermometer, rechargeable NiCad batteries and 110 VAC adapter (microprobes ordered separately)
BAT-10R/LOP220	Multiple Input Type T Thermocouple Thermometer, rechargeable NiCad batteries and 220 VAC adapter (microprobes ordered separately)
BAT-12R	Single Input Type T Thermocouple Thermometer, rechargeable NiCad batteries and 110 VAC adapter (microprobes ordered separately)
BAT-12R-220	Single Input Type T Thermocouple Thermometer, rechargeable NiCad batteries and 220 VAC adapter (microprobes ordered separately)

Benefits

• Portable
• A variety of probes available

Applications

• Temperature monitoring
• Cryogenic measure for blood banking
• Skin temperature measurement in exercise experiments

A Microprobe Thermometer is the instrument of choice for biological and laboratory temperature measurements. These thermometers are very versatile, providing fast response, high accuracy and stability with digital display and analog signal for connection to a computer or recorder. With the wide selection of probes, the instruments can be used in almost any application.

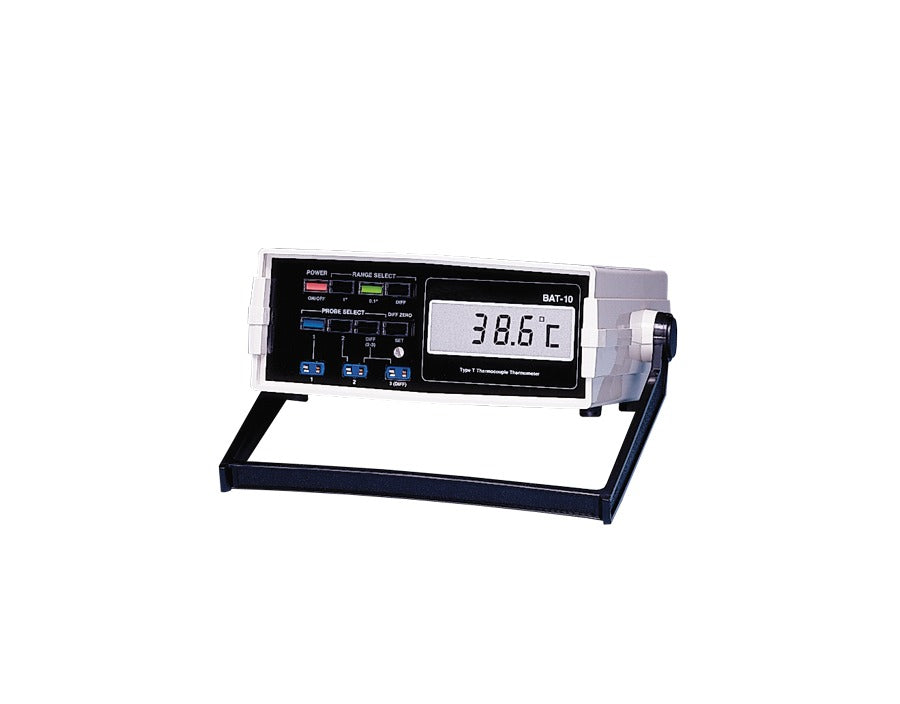

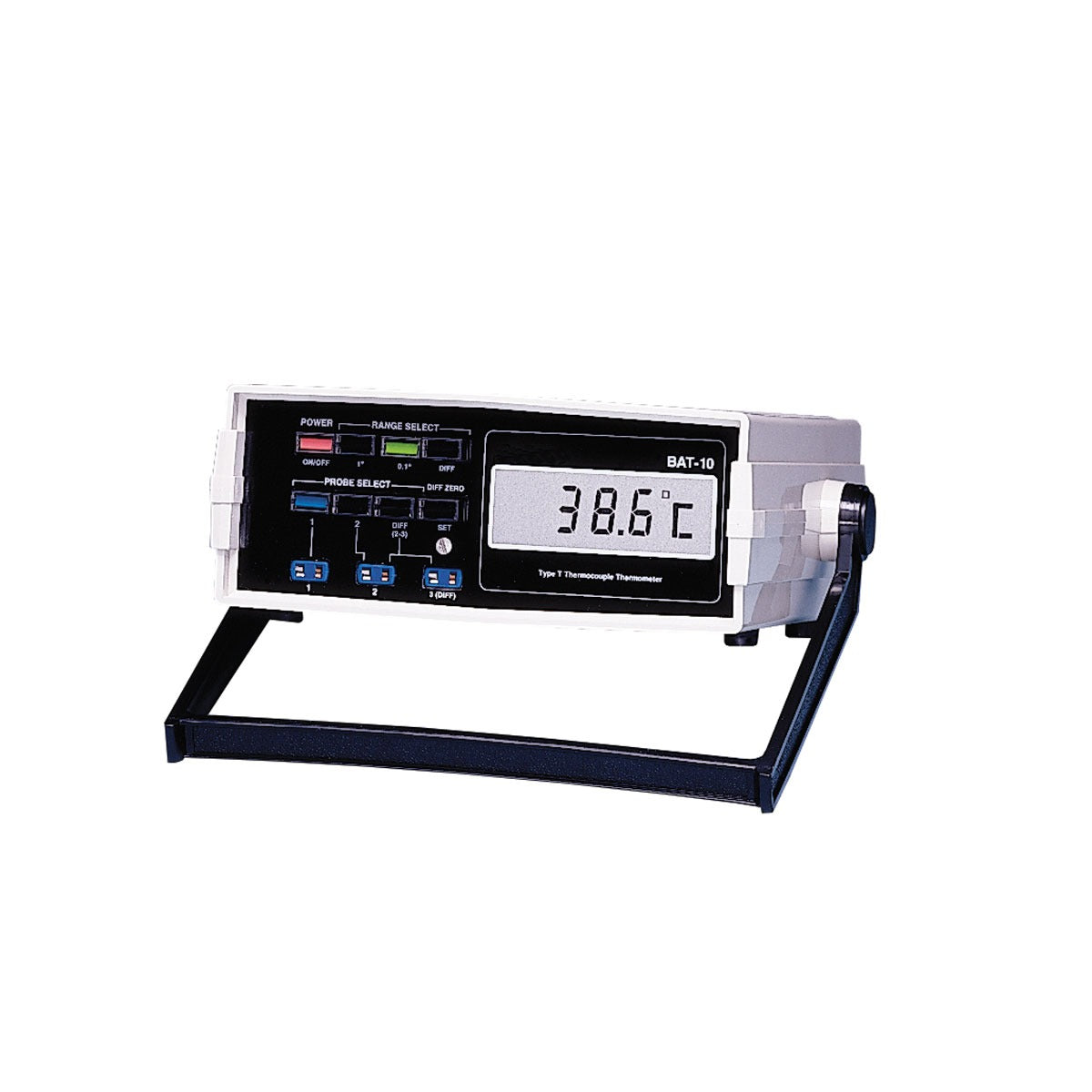

BAT-10 This is the most versatile thermometer available. The instrument has a wide temperature range and fast response with most microprobes. The BAT‑10 accuracy is NIST traceable and in each of the two temperature ranges, the accuracy is the same as the resolution. There are three microprobe inputs, 1 and 2 can be selected as separate inputs while 2 and 3 will read the differential temperature measurement between the two. The instrument has automatic warnings for low battery or faulty probes on the digital display. The linearized analog output (LOP) signal allows ease of connection to a data acquisition system or recorder.

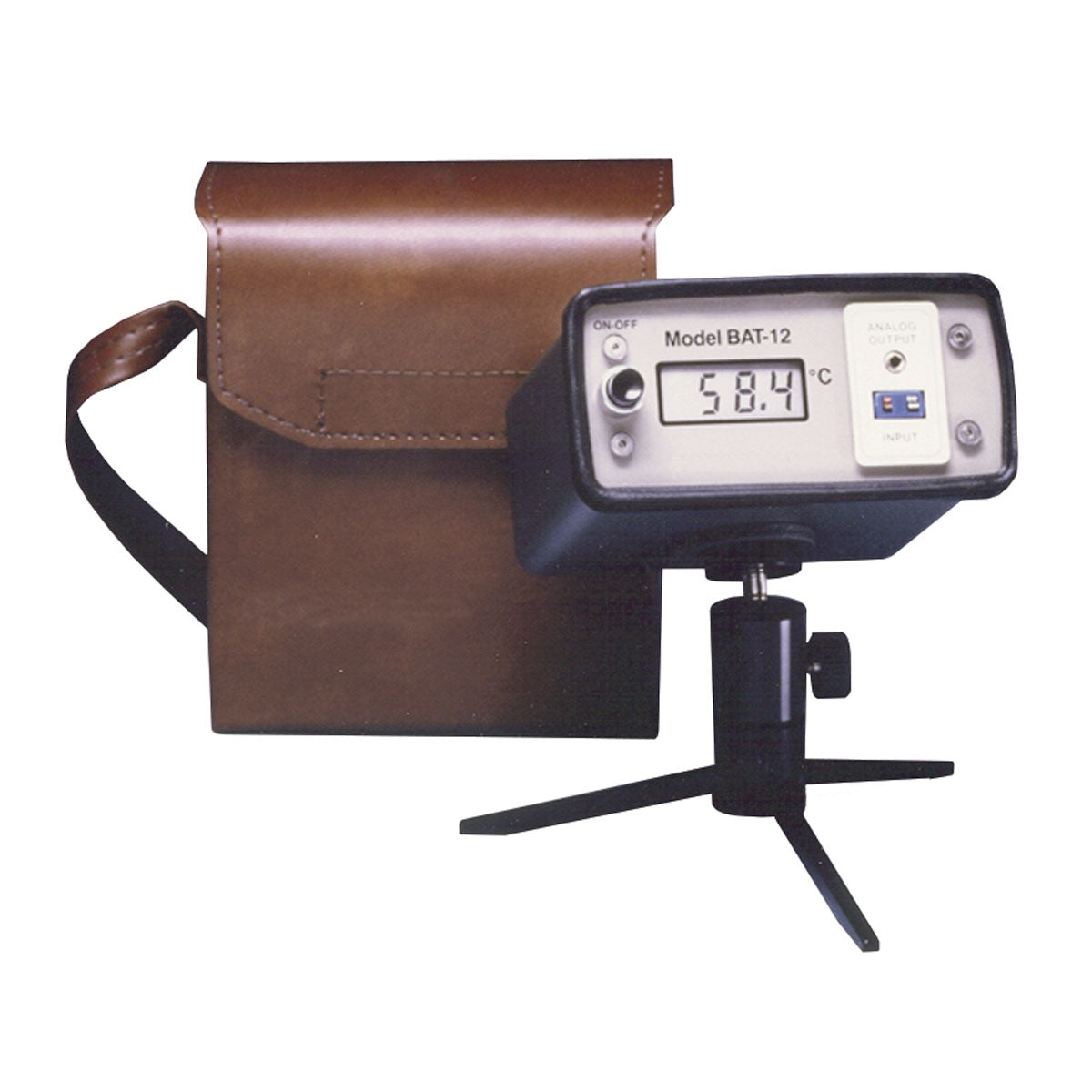

BAT-12 This thermometer has a sealed construction making it water, dust and fume resistant. The BAT-12 has a single microprobe input and a single range with the same high accuracy as the BAT-10. Comes complete with carrying case.

The thermometers can be used with any “Type T” thermocouple. Select a temperature microprobe on the following page for your specific application.

Systems include rechargeable NiCd batteries and 110 VAC adapter. (Microprobes must be ordered separately.)
