Standard Glass Capillaries

Quality glass, superior prices for microinjection/microelectrodes

Features

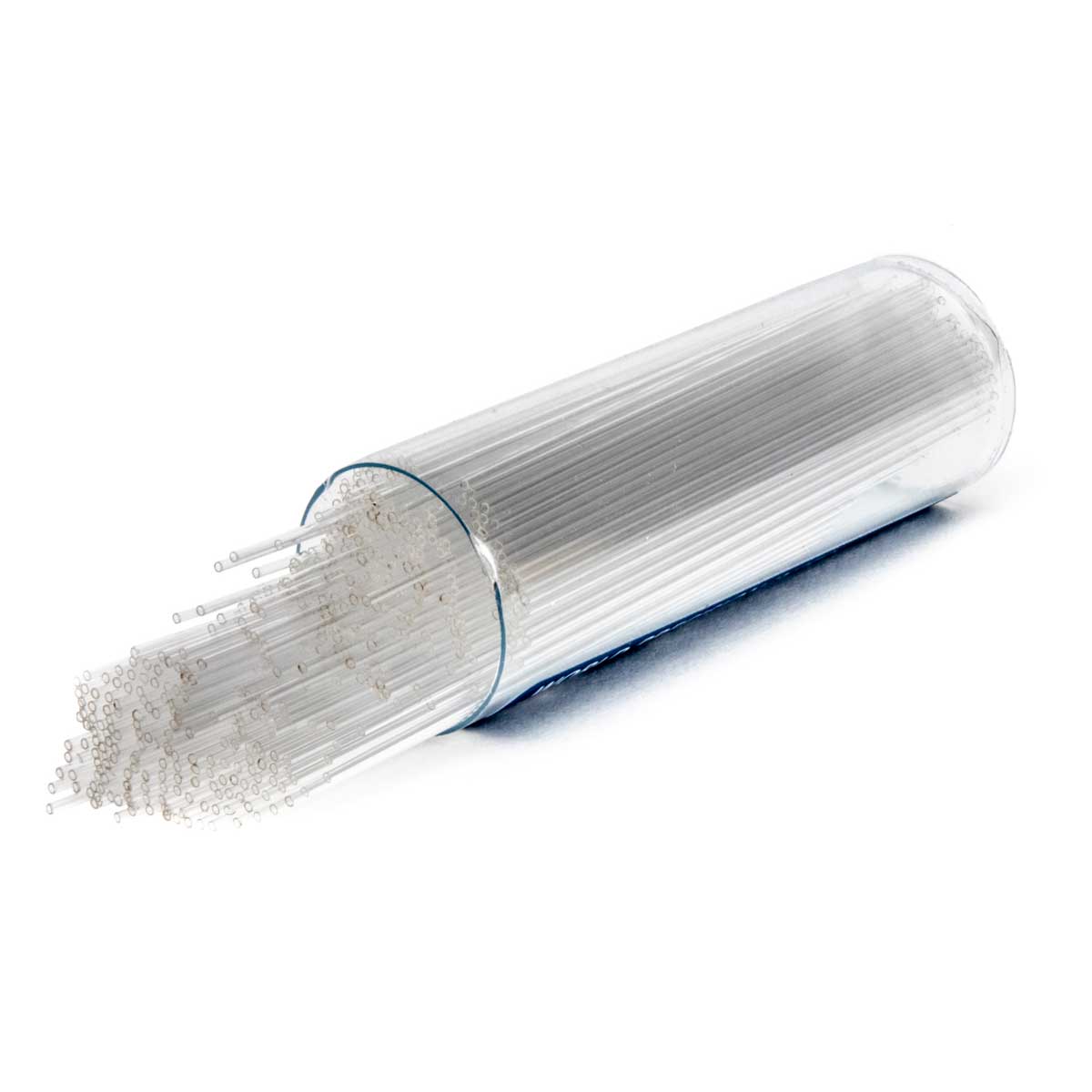

• Quality borosilicate glass capillaries
• Large variety available
• Some varieties are fire polished (See Description)
• OD/ID Tolerance: ±0.1 mm
• Length Tolerance: ±1 mm
• Recommended to use with Glass Handling Forceps (77020)
• Products supplied non-sterile

Options

Order code	OD (mm)	ID (mm)	Length	Filament	Fire Polish	Qty

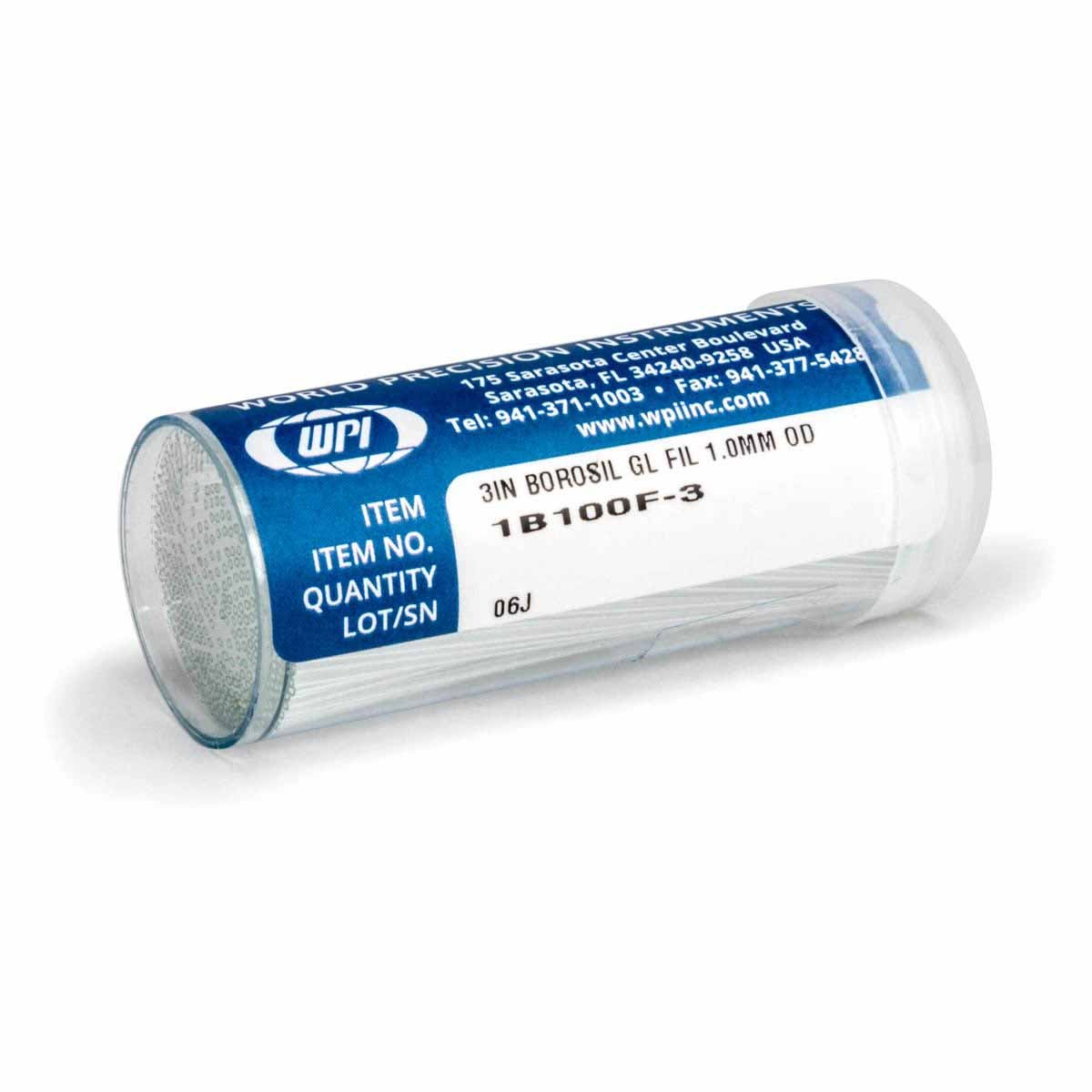

1B100F-3	1.0	0.58	3 in. (76mm)	•		500

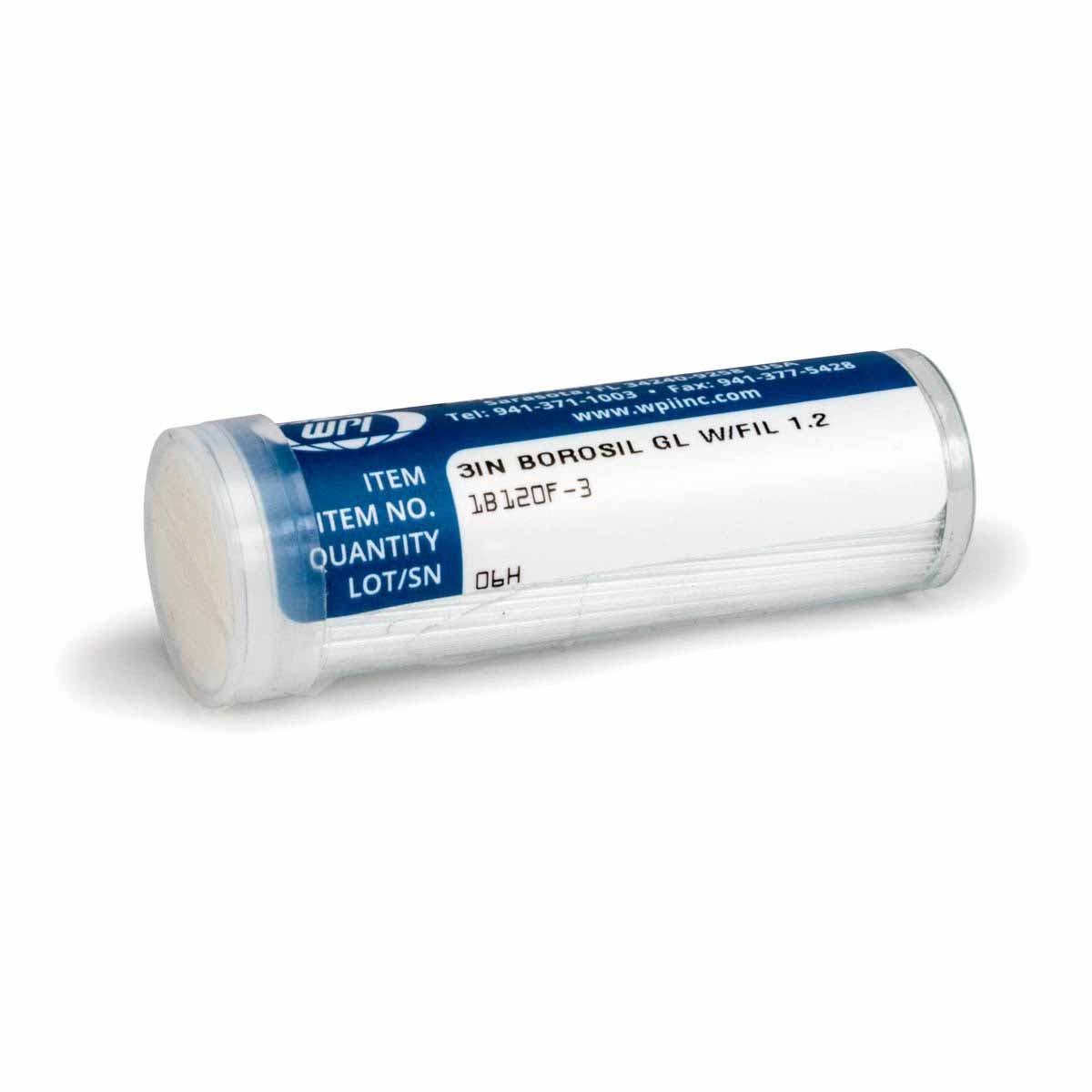

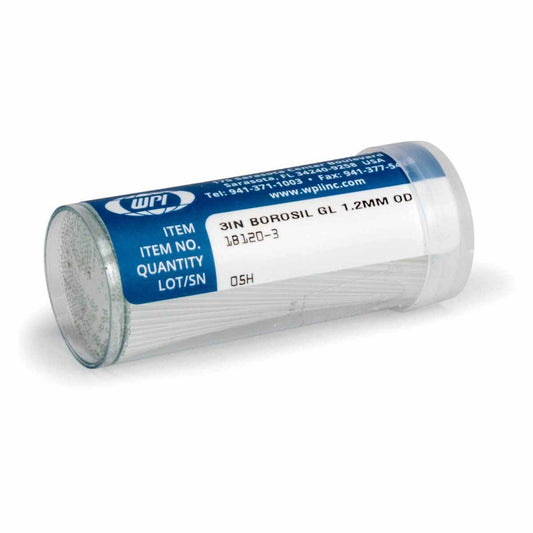

1B120F-3	1.2	0.68	3 in. (76mm)	•		350
1B150F-3	1.5	0.84	3 in. (76mm)	•		225
1B100F-4	1.0	0.58	4 in. (100mm)	•	•	500

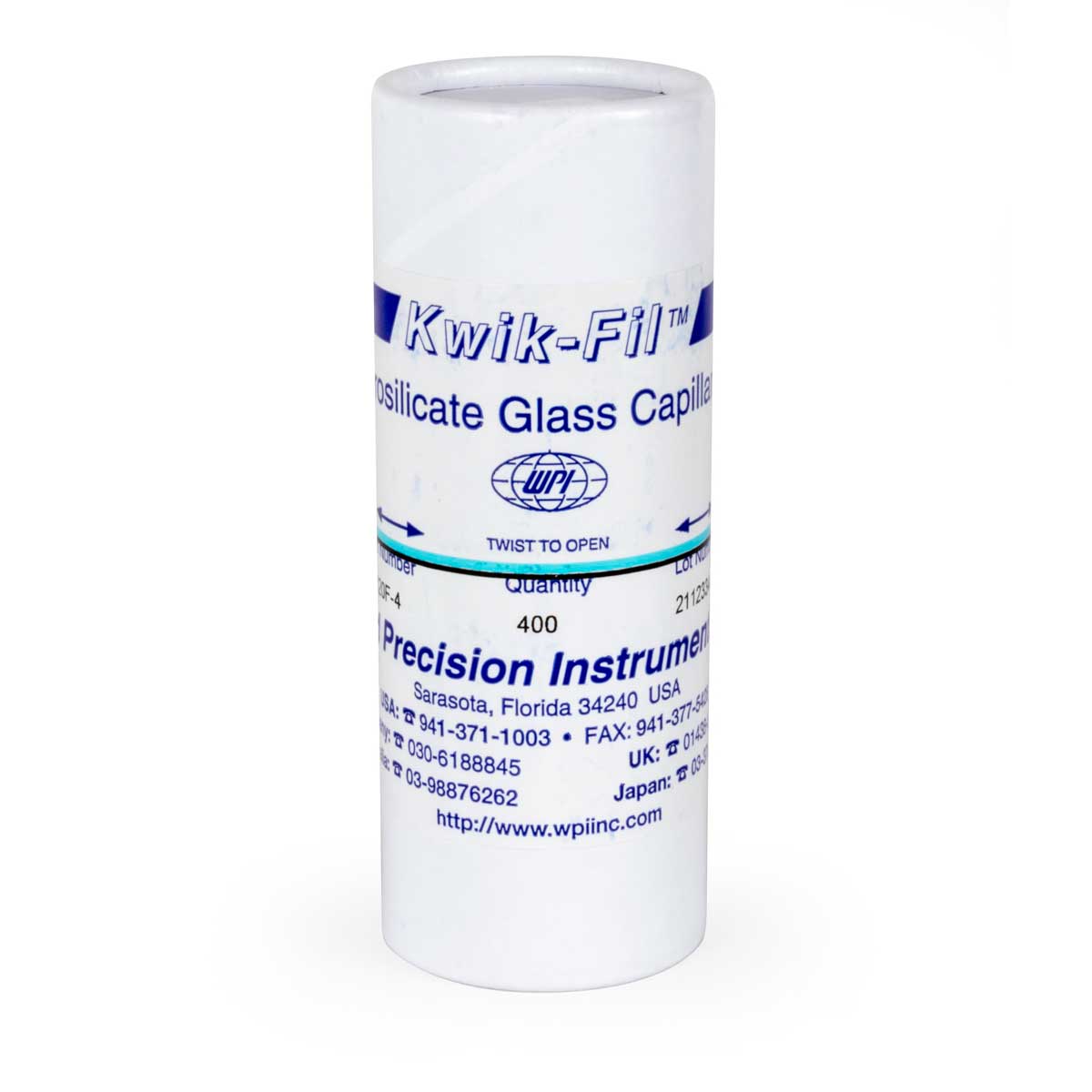

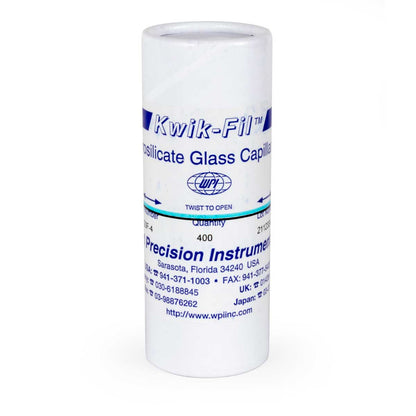

1B120F-4	1.2	0.68	4 in. (100mm)	•	•	400

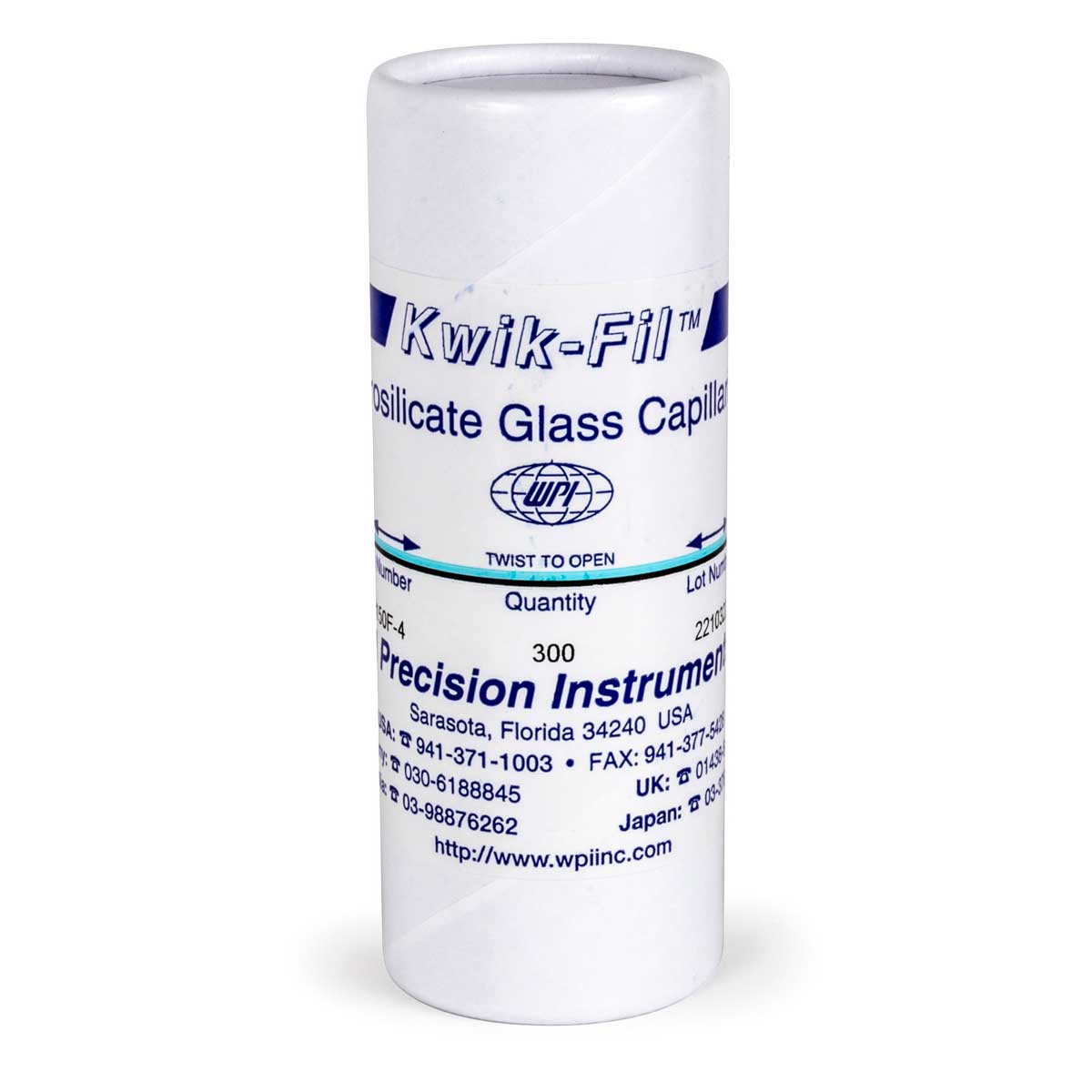

1B150F-4	1.5	0.84	4 in. (100mm)	•	•	300
1B200F-4	2.0	1.12	4 in. (100mm)	•		125
1B100F-6	1.0	0.58	6 in. (152mm)	•		500
1B120F-6	1.2	0.68	6 in. (152mm)	•		350
1B150F-6	1.5	0.84	6 in. (152mm)	•		225

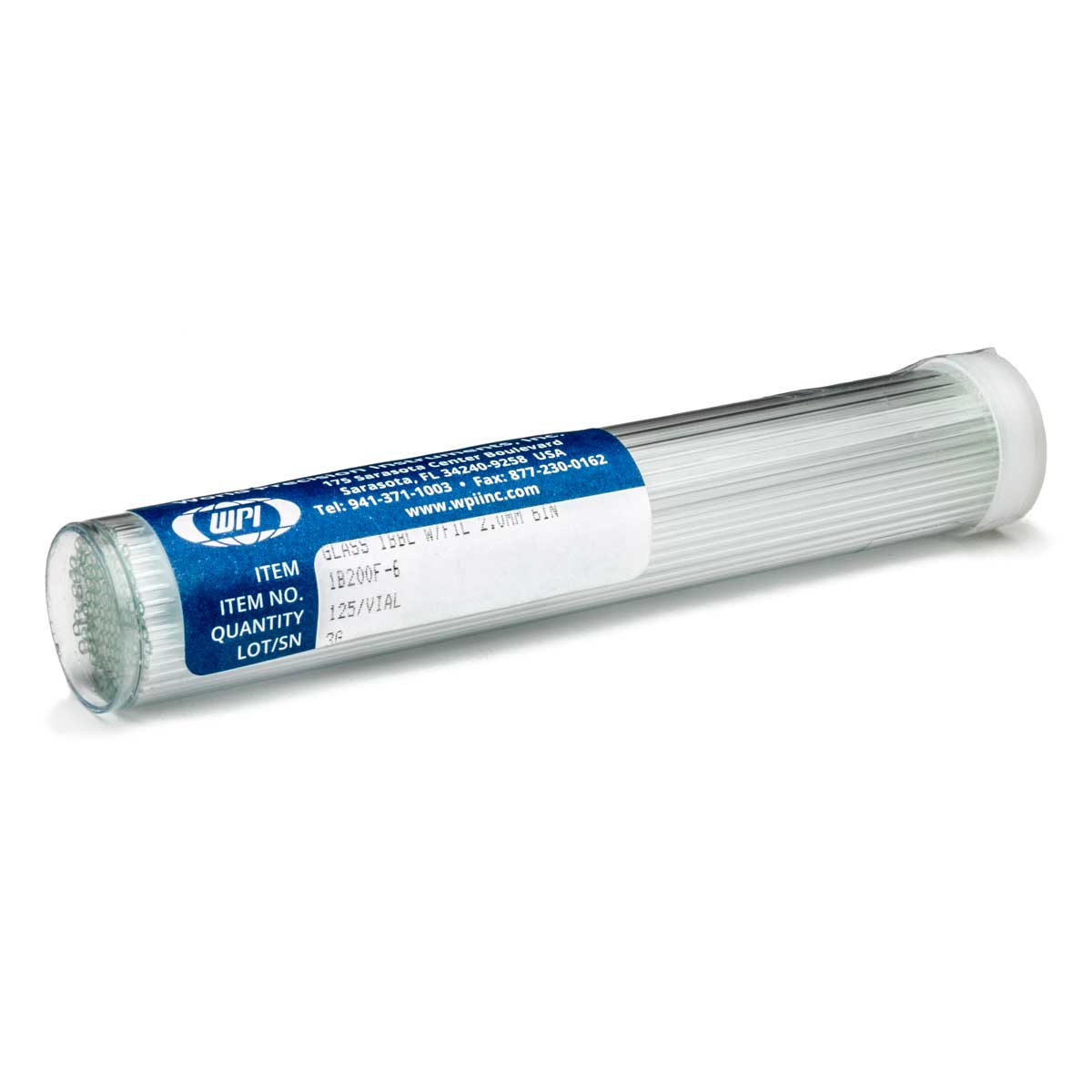

1B200F-6	2.0	1.12	6 in. (152mm)	•		125

Benefits

• Superior pricing
• Most glass capillary orders ship within 48 hours

Applications

• Microinjection
• Electrophysiology
• Patch clamp
• Fluid Handling

Fire Polishing

Fire-Polished glass capillaries are easier to insert into microelectrode holders without damaging the gasket. More importantly, fire-polished glass won’t scratch the chloridized wire used in a recording electrode. Fire-polishing does not affect the glass’s mechanical or electrical properties.

Making Uniform, Reproducible Microelectrodes

Borosilicate glass capillaries: Close di­men­sion­al tol­er­anc­es assure mi­cro­elec­trode uni­for­mi­ty and reproducibility. Capillaries are available in 1, 2, 3, 5 and 7-barrel con­fig­u­ra­tions, complete range of single bar­rel thin-wall siz­es and a variety of special con­fig­u­ra­tions. Cap­il­lar­ies with filaments con­tain a solid fil­a­ment fused to the inner wall, which speeds filling of electrodes. Cap­il­lar­ies with or with­out inner filaments are available for making microelectrodes in a wide range of diameters.

Filament Glass Capillaries

Single Barrel standard wall thickness cap­il­lar­ies are offered either with or without in­ner fil­a­ments for quick filling in a variety of lengths and diameters.

Thin Wall Glass Capillaries

Thin Wall single barrel capillaries are of­fered both with or without inner filaments.



NOTE: Because electrode tips erode when left filled with saline solutions for long periods, electrodes should be made and filled immediately prior to use.
