TPP Electrode Tips, Replacement

$185
$185

TIPTPP

Prices valid in USA, Canada, and PR only.

Replacement Tips

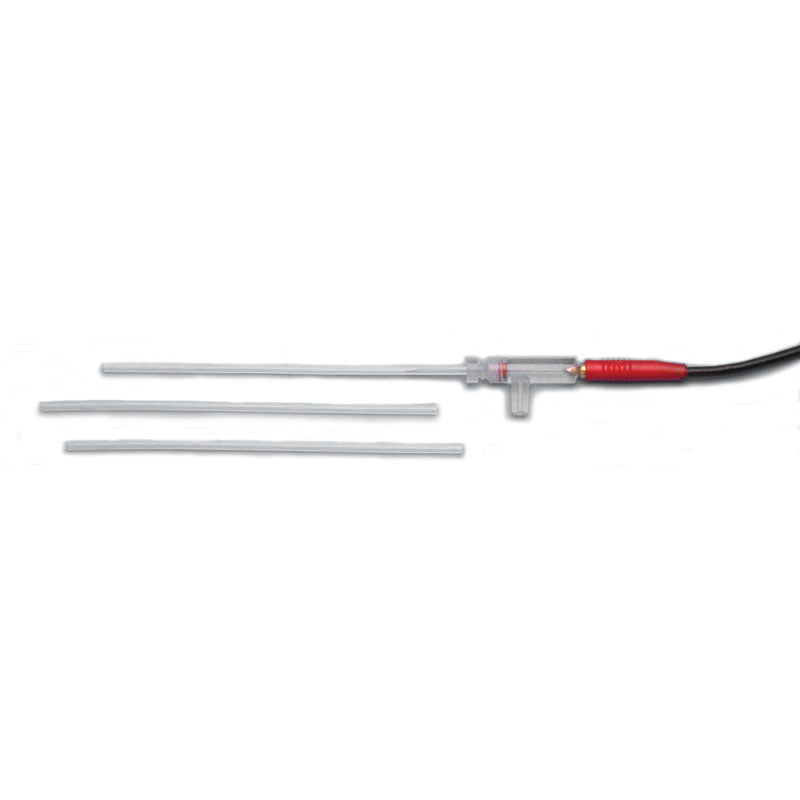

Set of 3 TPP+ replacement tips for ion selective electrodes. Change the tip on your holder in less than a minute.

ACCESSORIES

Details

Features

  • Replacement tips for KWIK-TIP Ion Selective Electrodes



Notes

The tips should be stored dry under refrigeration prior to use. Once filled, the membrane tip can last up to 30 days and be used for that length of time. The tip is fragile and the “membrane” gets softer when wetted. After use, the tips can be placed into storage. Before storage, wash the exterior and carefully blot it dry. Leave the filling solution inside the electrode and seal it with parafilm. Then, place it in a dry container and store it in the refrigerator.

The KWIK Ag/AgCl pellet should be washed in distilled water, dried and stored in a dry, dark location. If desired, you may change to a new ionic solution, however, it takes time for the old ionic solution to exchange out of the KWIK pellet and be replaced with the new ionic concentration.This should be done in a small beaker and the contaminated solution should be discarded.  The new tip and electrode should be filled with fresh solution.

Resources

Kwik-Tip Instruction Manual

Specifications

  Electrode
 Color Code
 Filling Solution
 Nim. Slope/Decade
 Concentration Range
 Selectivity Coeffiecients (-log)
TIPCA
 Calcium Green 0.1M CaCl2 28mV 0.1 - 10-6.75M Na+ 5.5, K+ 5.4, Mg++ 4.9
TIPH
 Hydrogen Orange 1M Citric acid, 0.01M NaCl, pH 5.6 54mV pH 5.0-12 Na+ 10.4, K+ 9.8, Ca++ 11.1
TIPK
 Potassium Yellow 0.1M KCl 54mV 0.1 - 10-4.5M Na+ 4.0, Ca++ 3.9, Mg++3.0
TIPTPP
 TPP+ Purple 10mM TPP+ 54mV 0.001 - 10-4M K+ 6.0
TPP Electrode Tips, Replacement

$185.00
