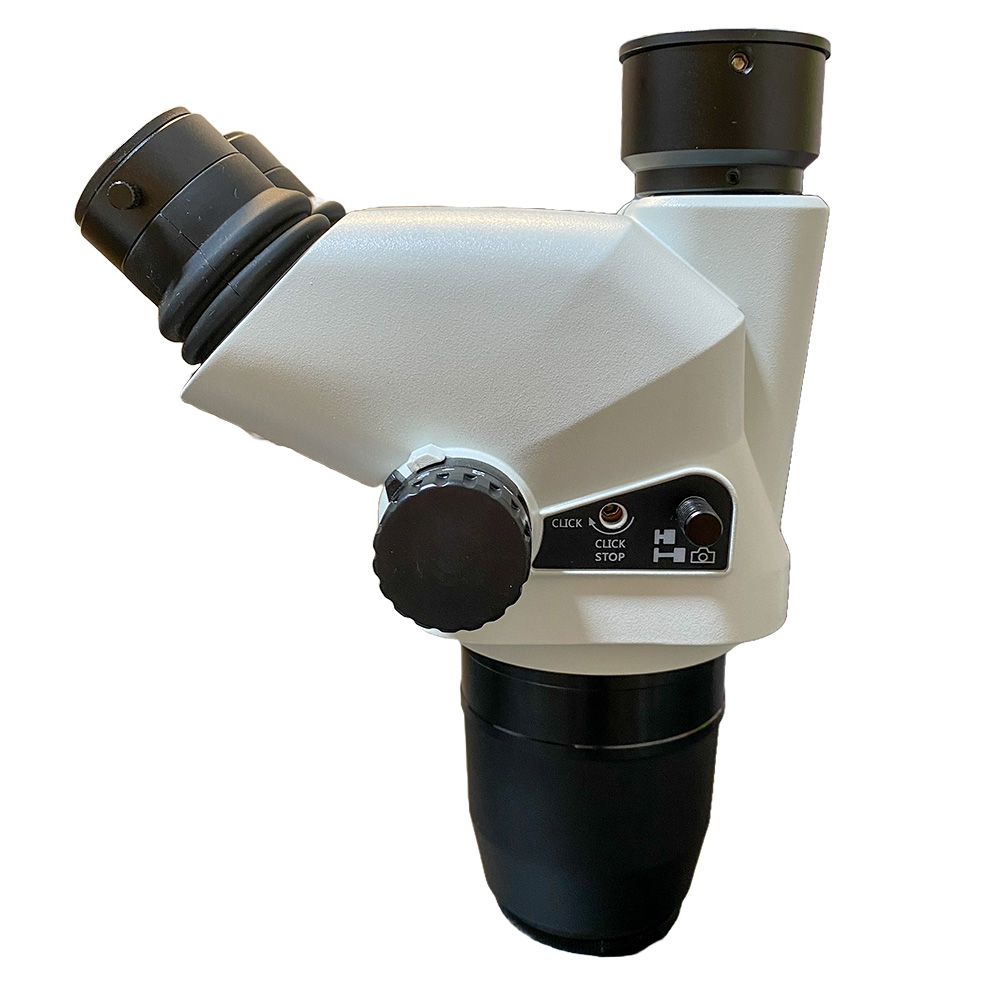

PZMVI Trinocular Stereo Microscope Head

$2,000
$2,000

PZMVI-T-H

Prices valid in USA, Canada, and PR only.

WPI's newest addition to the PZM family, the PZMVI series. The PZMVI trinocular stereo microscope head features a 45° inclined viewing head with 360° rotation. Interpupillary adjustment from 54mm - 76mm. Compatible with WPI's PZM series post stands, articulating arms, and motorized stereo microscope bases. Head locks in place with tightening screw. Dual diopters on each eyetube. Featuring a beam splitter, when engaged, light is split between left eyetube and trinocular port while right eyetube goes dark.

Details

PZMVI Trinocular Stereo Microscope Head

Specifications

  • Microscope Viewing Head: Trinocular 45º inclined viewing head rotates 360º. Interpupillary adjustment from 54mm - 76mm. Beam splitter splits light between left eyetube and trinocular port while right eyetube goes dark. Includes 0.5x c-mount adapter.
  • Eyepieces: Includes high eyepoint widefield focusable 10x eyepieces, FN 22 with +/-5 diopter adjustment on each eye.  Eyepieces accept a 24mm diameter reticle.
  • Objective Lenses: Zoom range of 0.67x - 4.5x.
  • Zoom Ratio: 6.7:1
  • Total Magnification: 6.7x - 45x.  Magnification can be increased or decreased with auxiliary lenses. See magnification chart below for details.
  • Working Distance: 100mm. Can be adjusted from 26mm - 200mm depending on auxiliary lens utilized. See magnification chart below.
  • Field of View: 32.8mm at 6.7x and 4.9mm at 45x.

*Note: when changing eyepieces the magnification of the camera will not be altered.

PZMVI Trinocular Stereo Microscope Head chart

Resources

PZMVI Stereo Microscopes Instruction Manual
