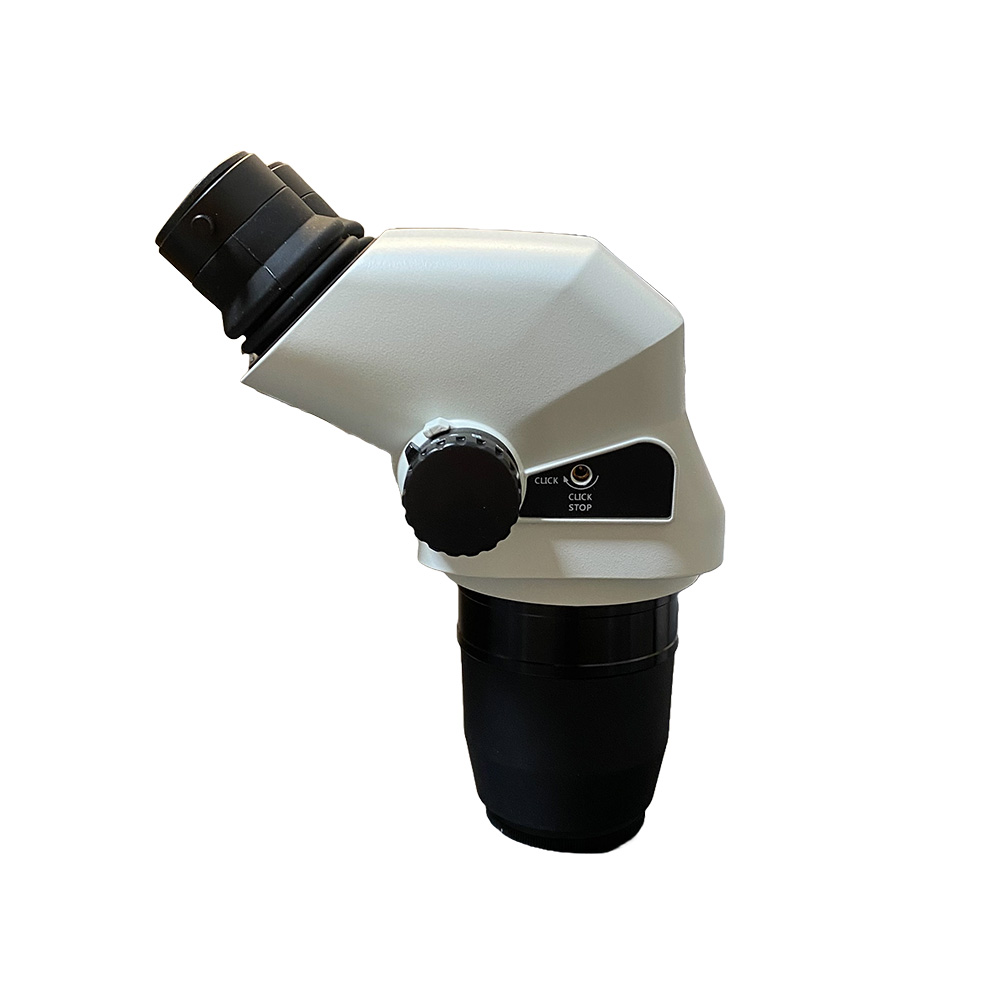

PZMVI Binocular Stereo Microscope Head

  • pzmvi-b-h
$1,450
$1,450

PZMVI-B-H

Prices valid in USA, Canada, and PR only.

WPI's newest addition to the PZM family, the PZMVI series. The PZMVI binocular stereo microscope head features a 45° inclined viewing head with 360° rotation. Interpupillary adjustment from 54mm - 76mm. Compatible with WPI's PZM series post stands, articulating arms, and motorized stereo microscope bases. Head locks in place with tightening screw. Dual diopters on each eyetube.

Details

Specifications

  • Microscope Viewing Head: Trinocular 45º inclined viewing head rotates 360º. Interpupillary adjustment from 54mm - 76mm.
  • Eyepieces: Includes high eyepoint widefield focusable 10x eyepieces, FN 22 with +/-5 diopter adjustment on each eye.  Eyepieces accept a 24mm diameter retifcle.
  • Objective Lenses: Zoom range of 0.67x - 4.5x.
  • Zoom Ratio: 6.7:1
  • Total Magnification: 6.7x - 45x.  Magnification can be increased or decreased with auxiliary lenses. See magnification chart below for details.
  • Working Distance: 100mm. Can be adjusted from 26mm - 200mm depending on auxiliary lens utilized. See magnification chart below.
  • Field of View: 32.8mm at 6.7x and 4.9mm at 45x.

PZMVI Binocular Stereo Microscope Head chart
