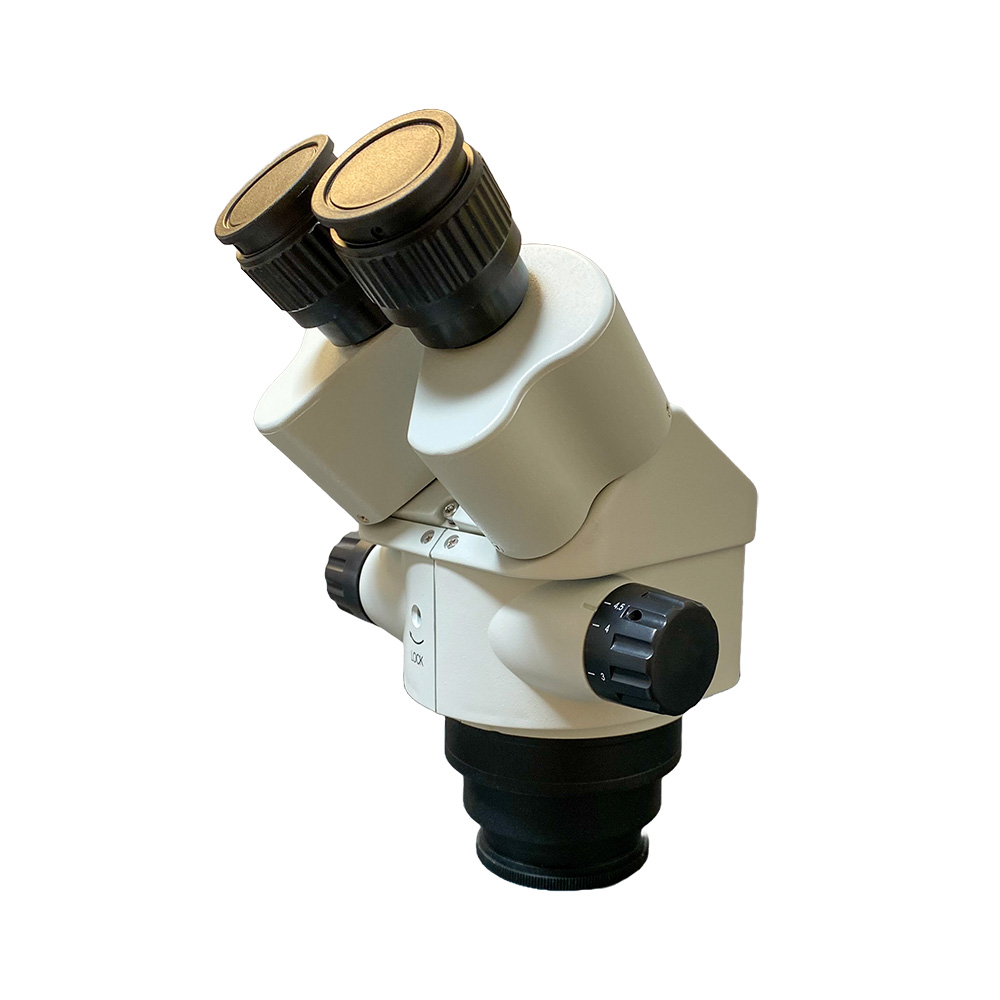

PZMV Binocular Stereo Microscope Head

  • pzmv-b-h
  • pzmv-b-h_2
  • pzmv-b-h_3
  • pzmv-b-h_4
$1,100
$1,100

PZMV-B-H

Prices valid in USA, Canada, and PR only.

WPI's newest addition to the PZM family, the PZMV series. The PZMV binocular stereo microscope head features a 45° inclined viewing head with 360° rotation. Interpupillary adjustment from 54mm - 76mm. Compatible with WPI's PZM series post stands, articulating arms, and motorized stereo microscope bases. Head locks in place with tightening screw. Dual diopters on each eyetube.

Details

Specifications

  • Head: Binocular body. Viewing head rotates 360°, locks in place by tightening set screw. *C-mount not included in modular option.
  • Eyepieces: Includes widefield 10x / 20mm high eyepoint eyepieces. Interpupillary adjustment from 50mm to 75mm. Dual diopters on eyetubes. Eyepieces accept 24mm diameter reticle. 15x and 20x eyepieces are available, sold separately.
  • Objective Lenses:  Zoom range of 0.7x - 4.5x.
  • Zoom Ratio: 6.4:1
  • Total Magnification:  7x -45x. For alternate magnifications eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart below for details:

PZMV Binocular Stereo Microscope Head Screenshot
PZMV Binocular Stereo Microscope Head
