Platinum Iridium Metal Electrodes Profile C , 51 mm long-PTM23B10KT

Features

• Platinum Iridium Profile C, 51 mm
• Length : 51 mm
• Insulation Thickness : 3µ
• Shaft Diameter : 0.356mm
• Nominal Impedance ±20%: 1.0MΩ
• Tip Diameter : 1-2µ
• Typical Use : Single and multi unit recording, stimulation, chronic implants.
• Quantity : Package of 5



Kapton tubing

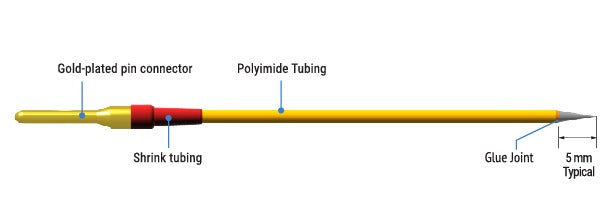

Kapton tubing, indicated by “KT” in the part number, extends from the connector to within 5 mm of the tip, providing stiffness and additional insulation to the electrode shaft. Kapton-clad electrodes are recommended when the electrode is to be inserted through a cannula for extra deep penetration.
