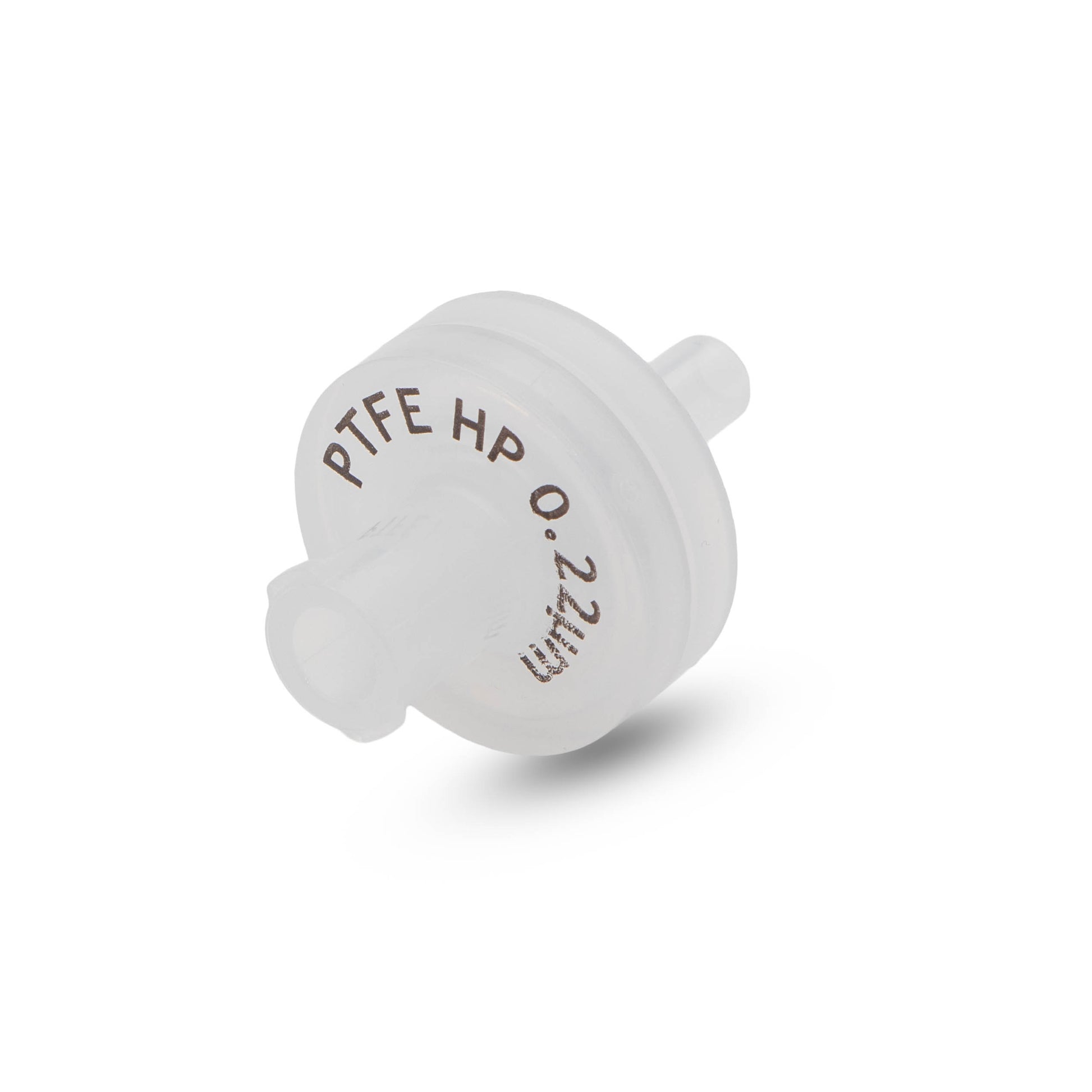

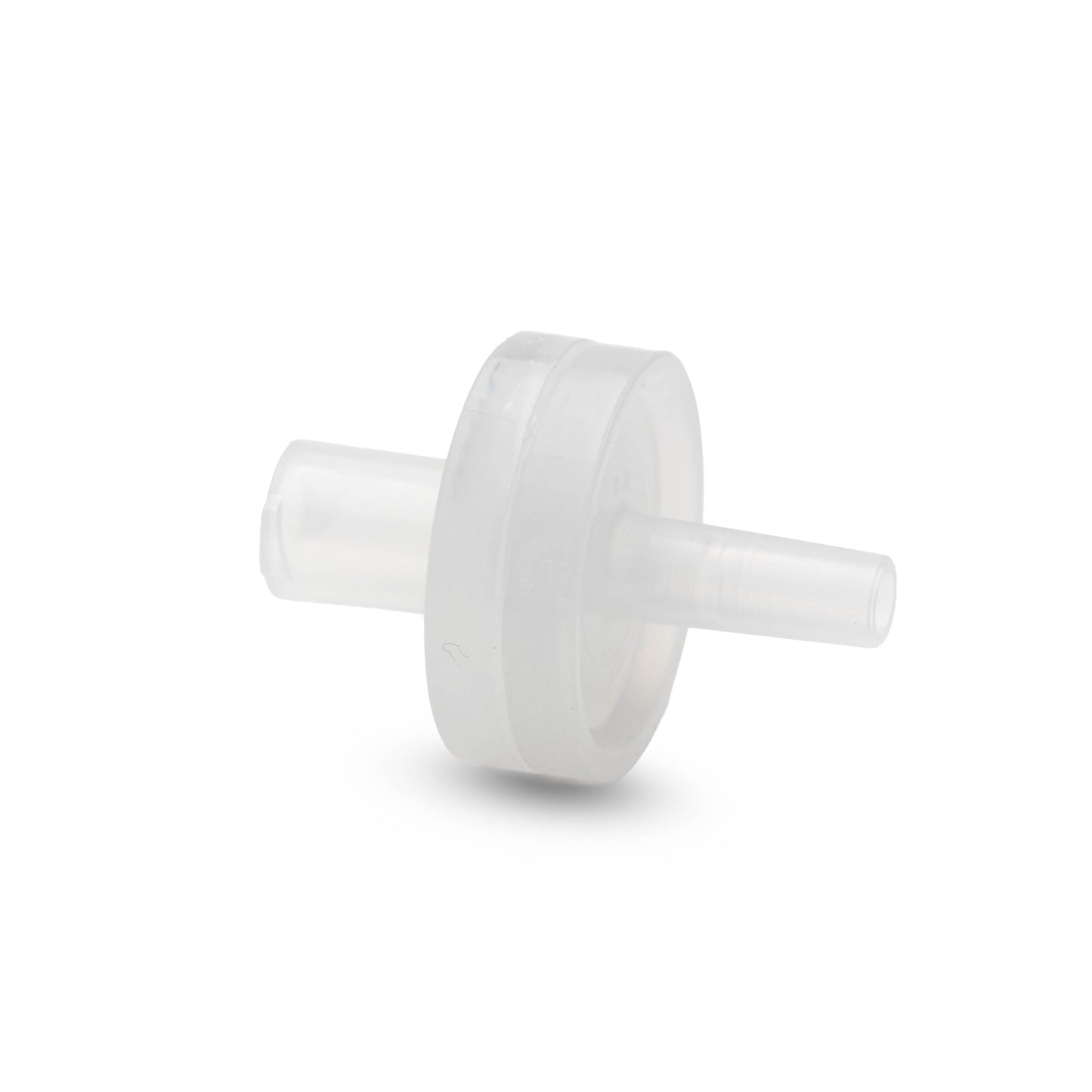

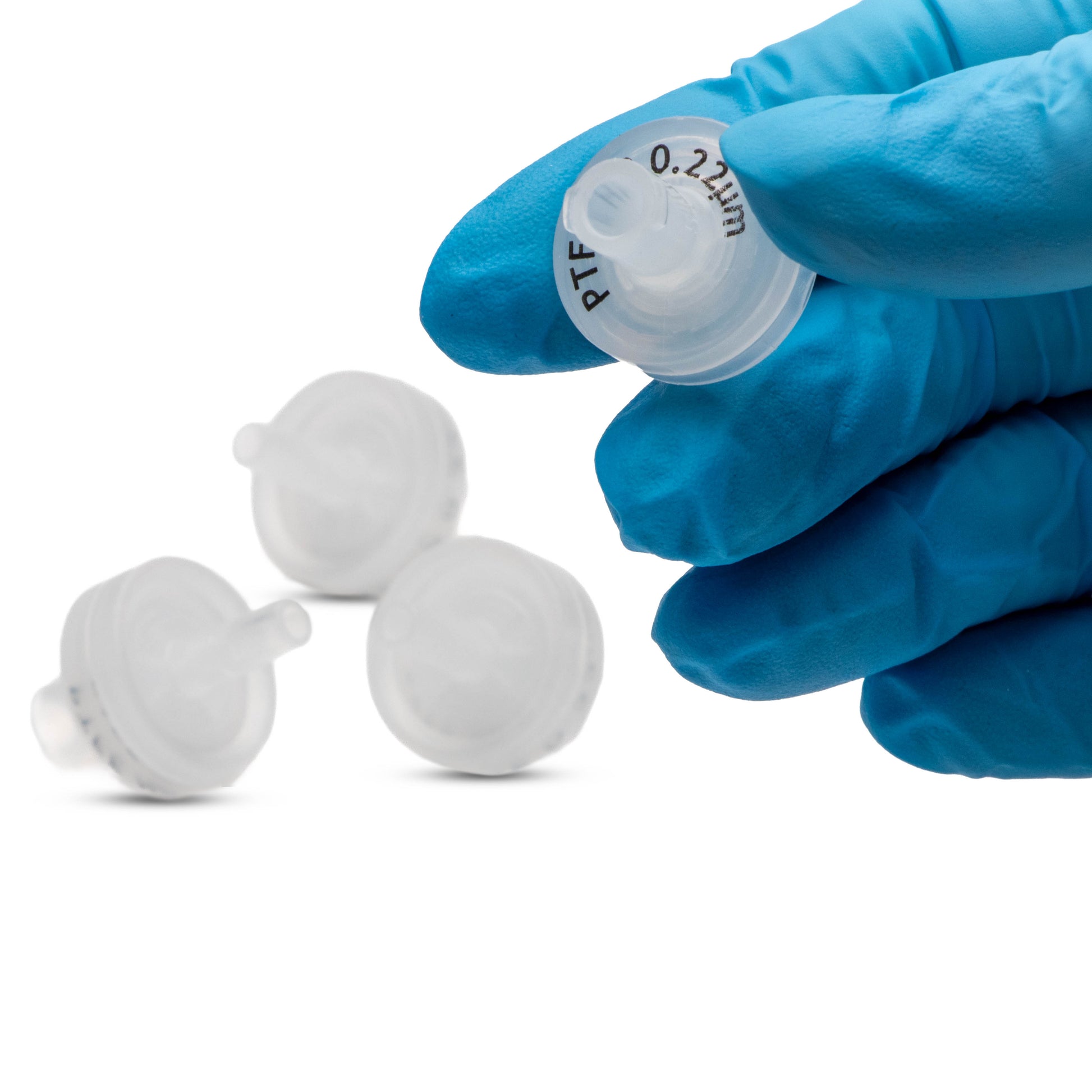

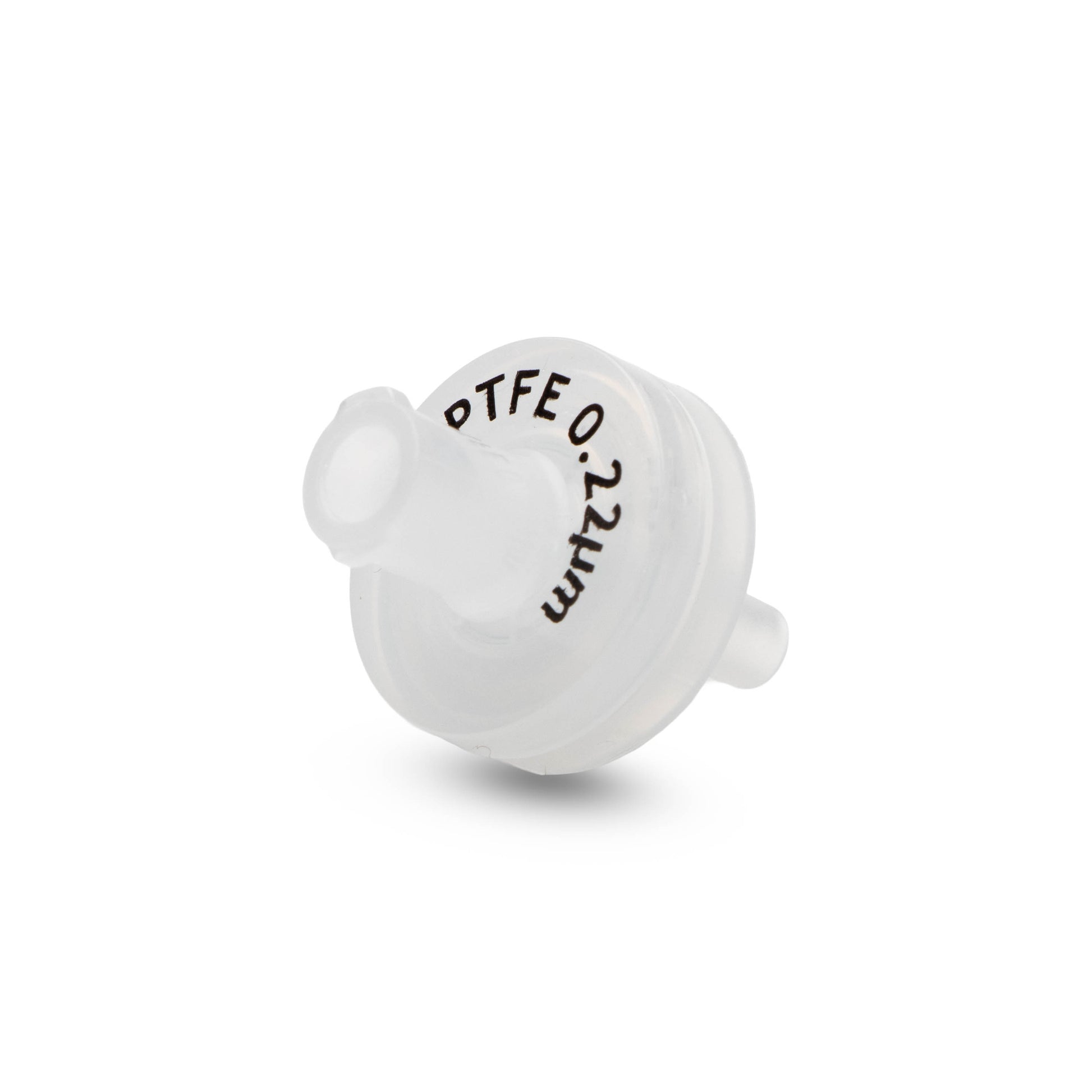

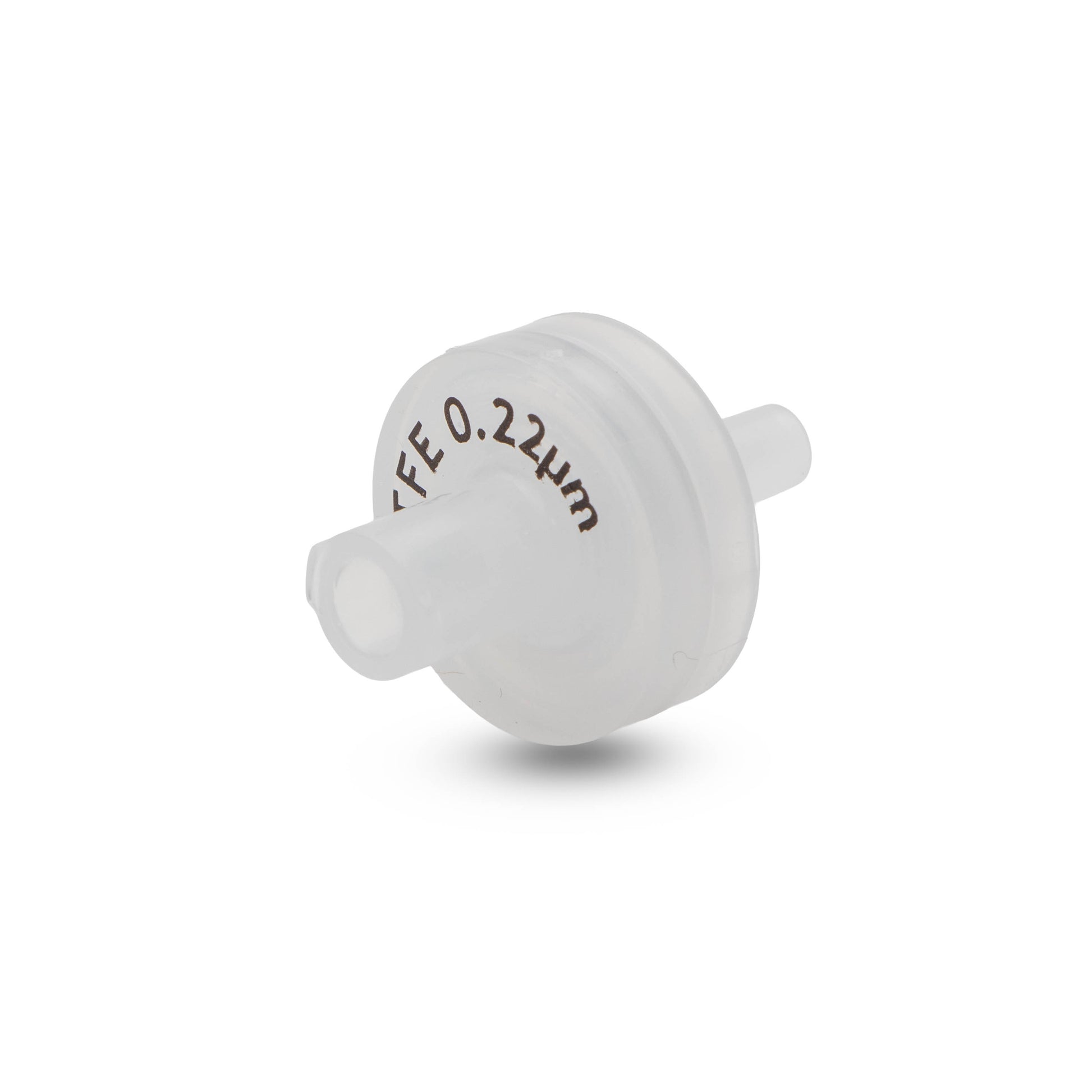

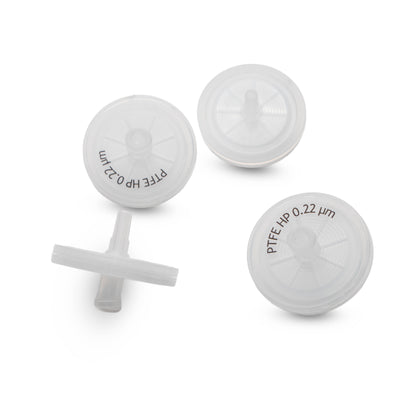

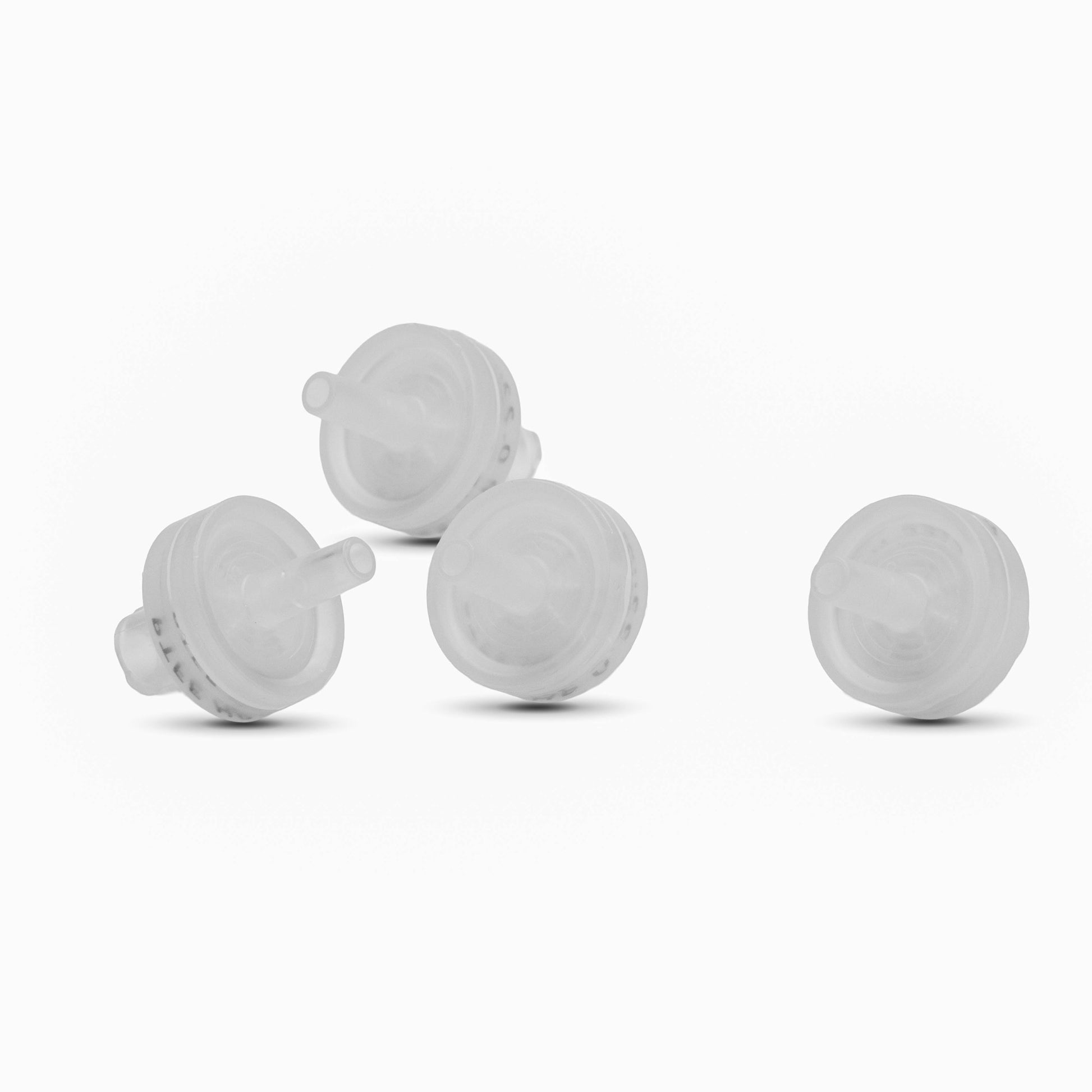

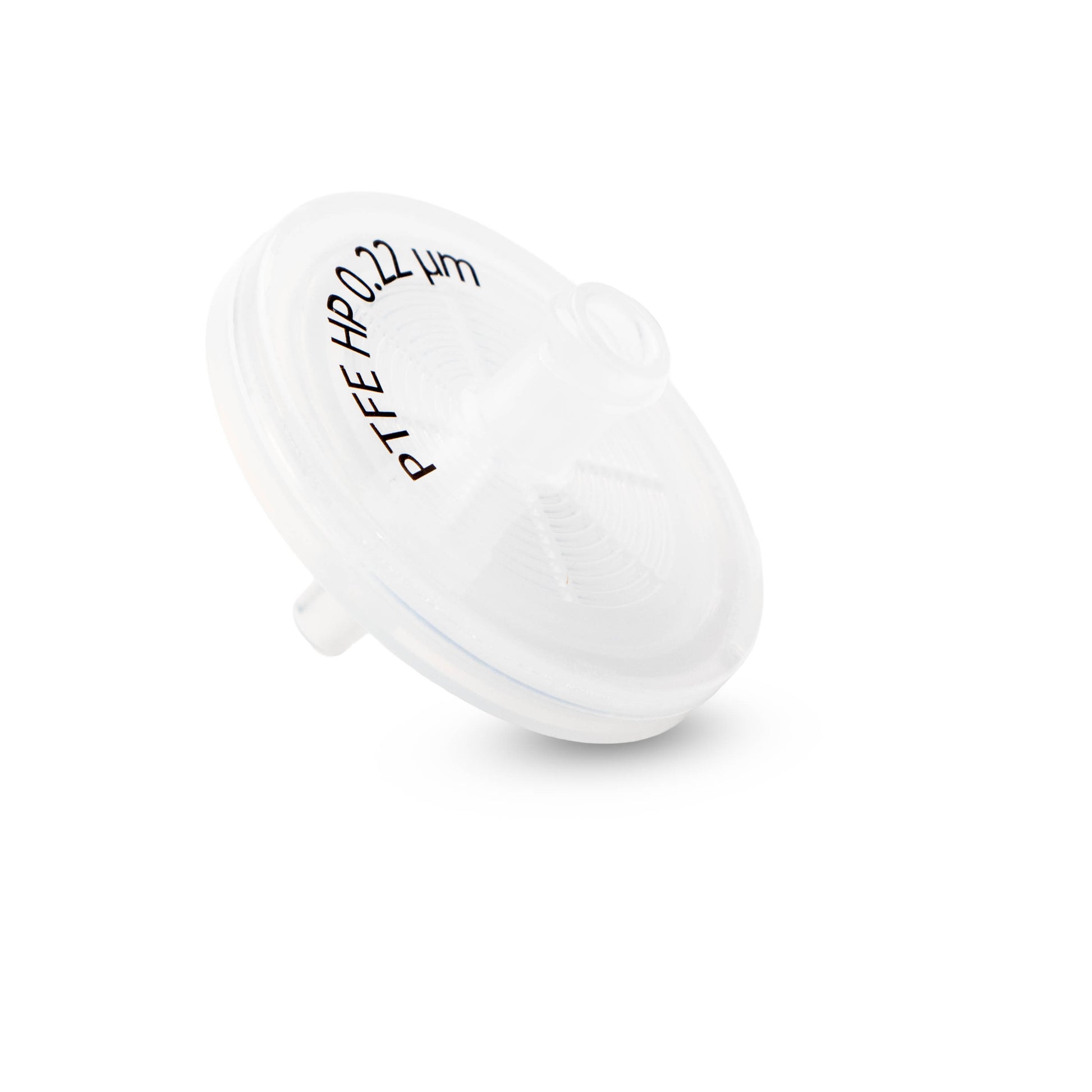

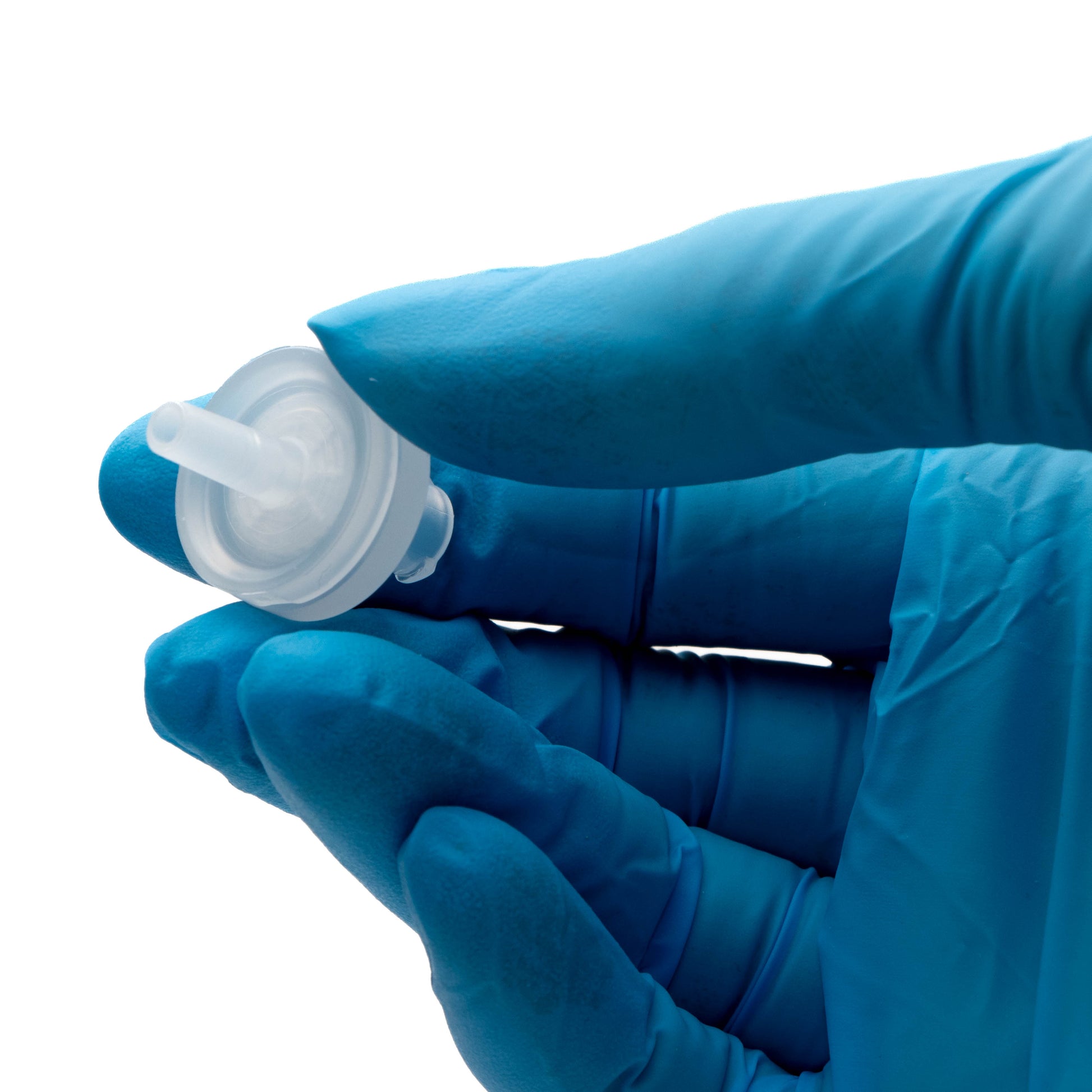

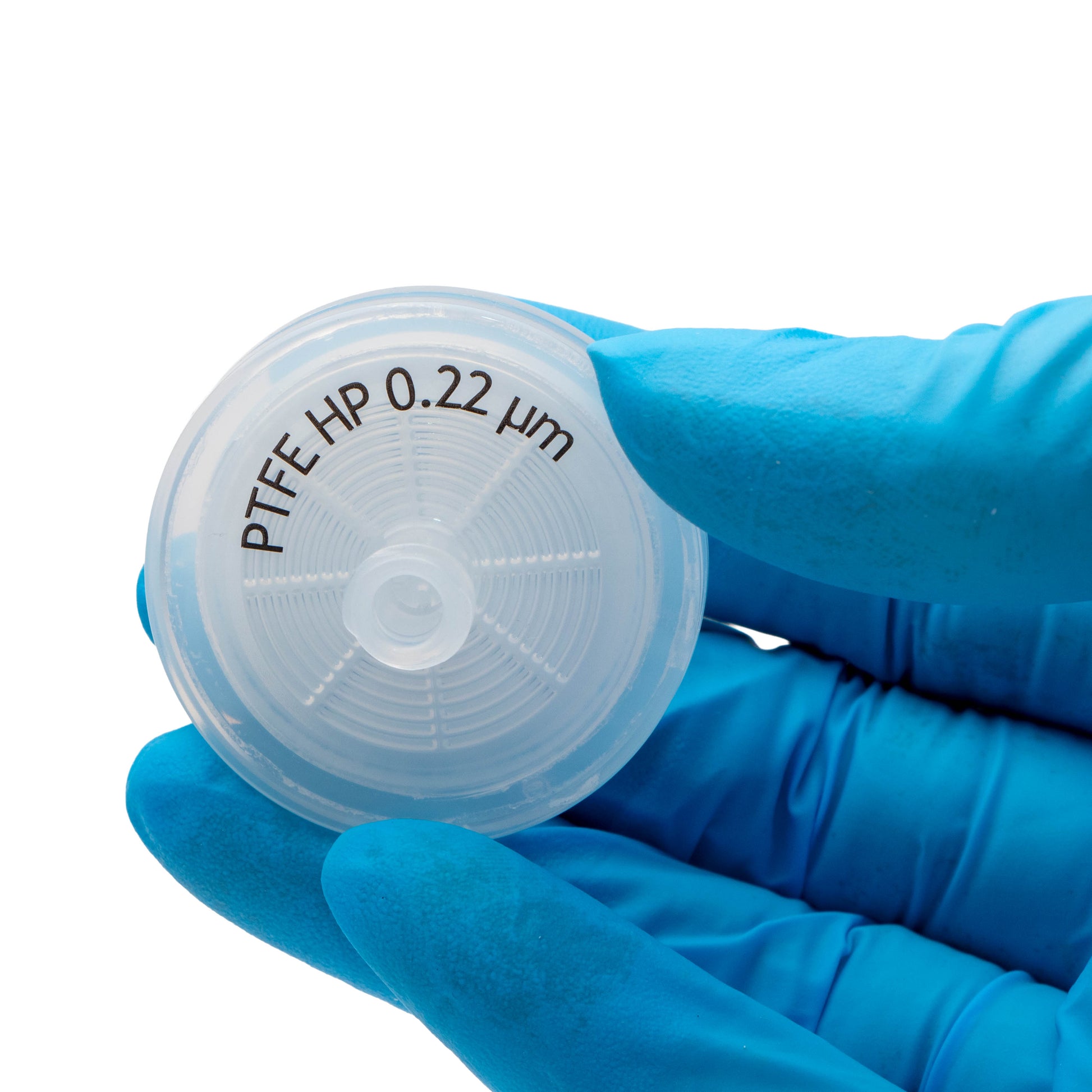

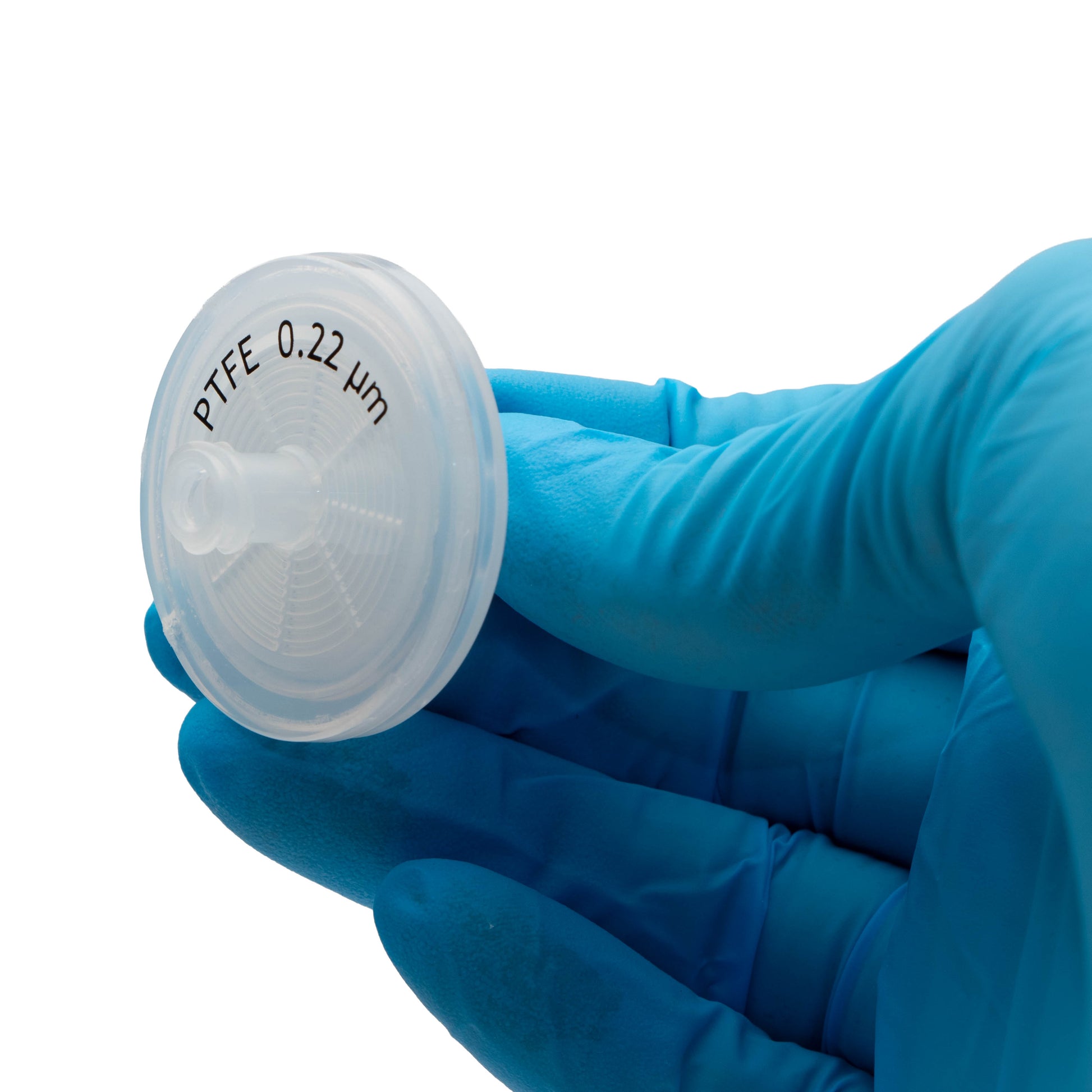

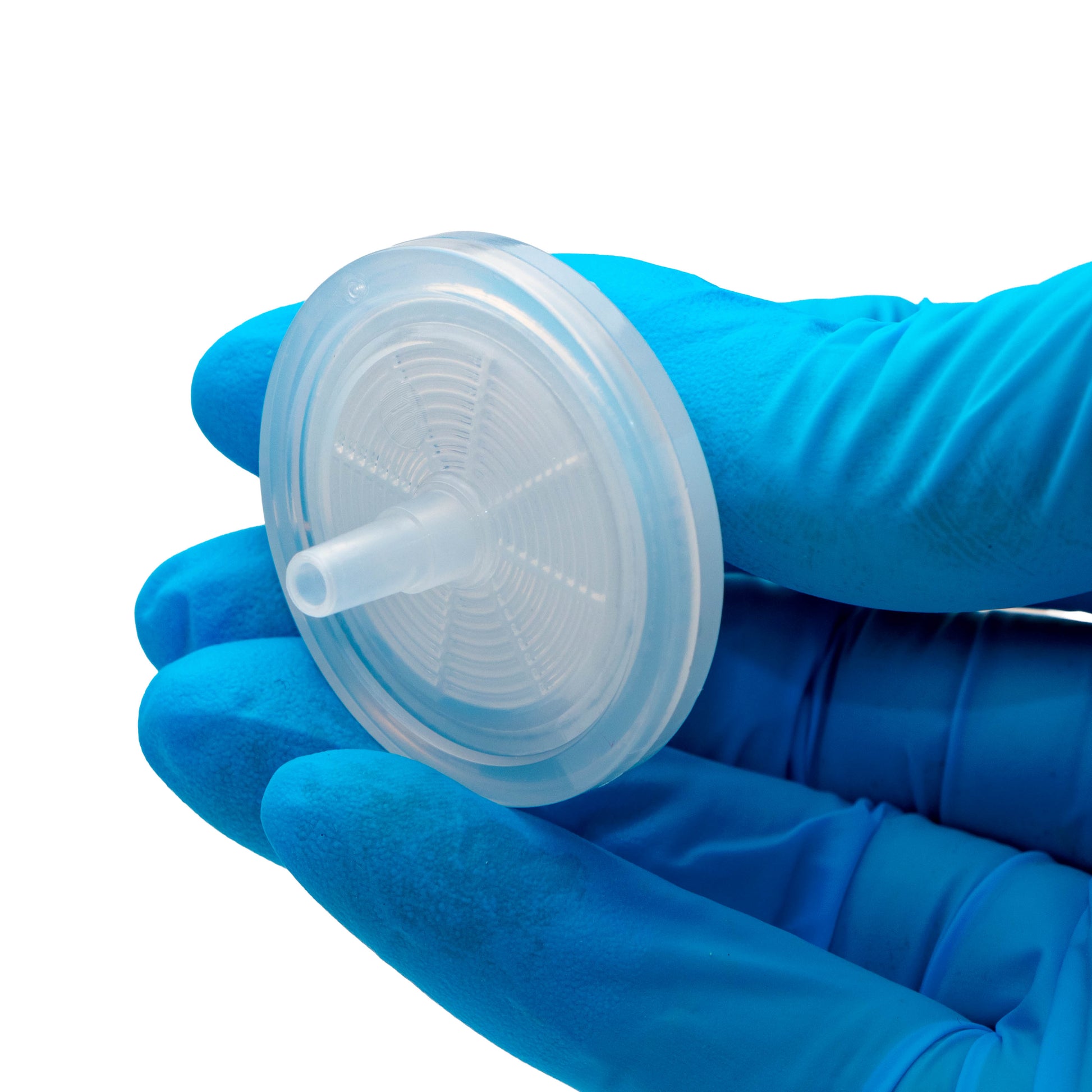

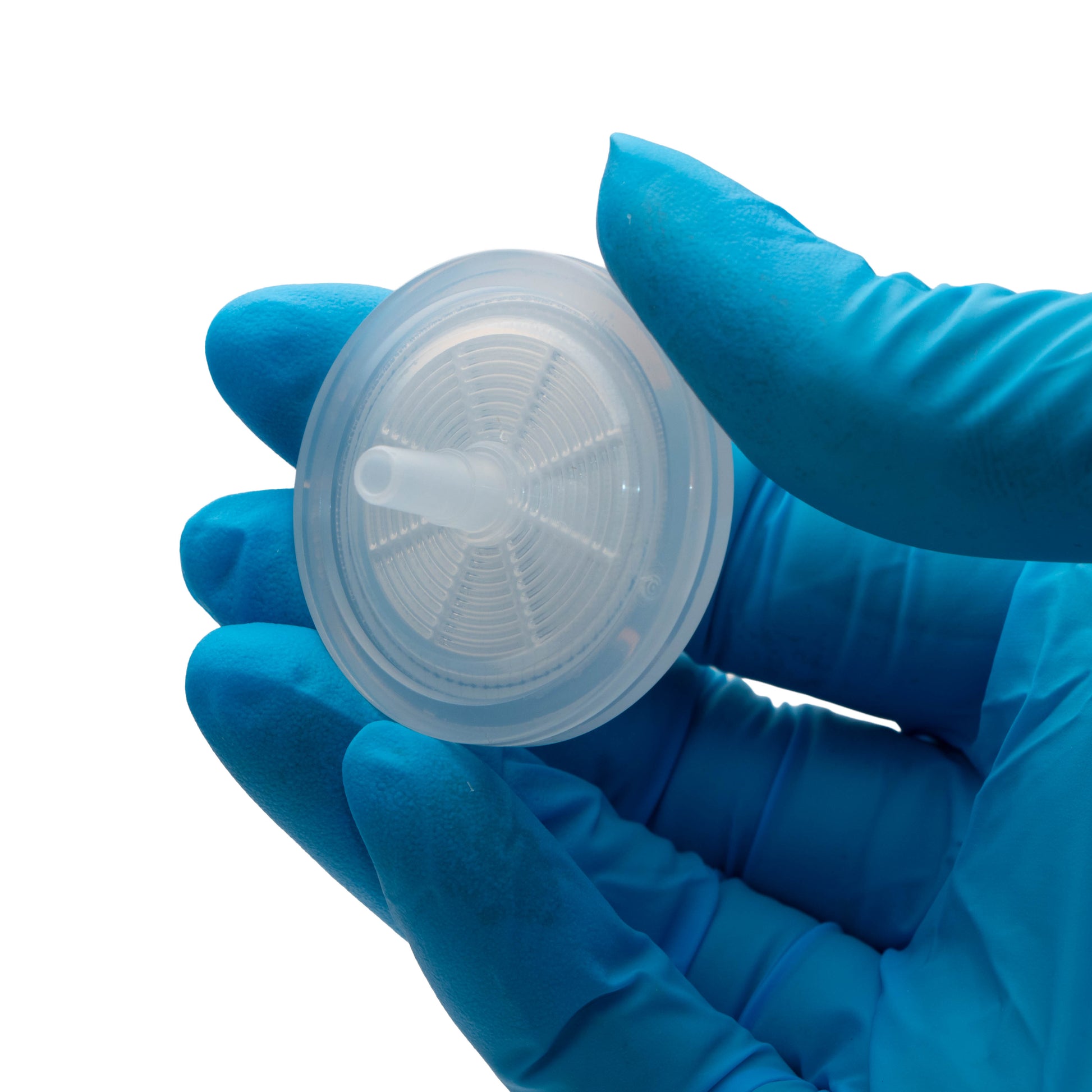

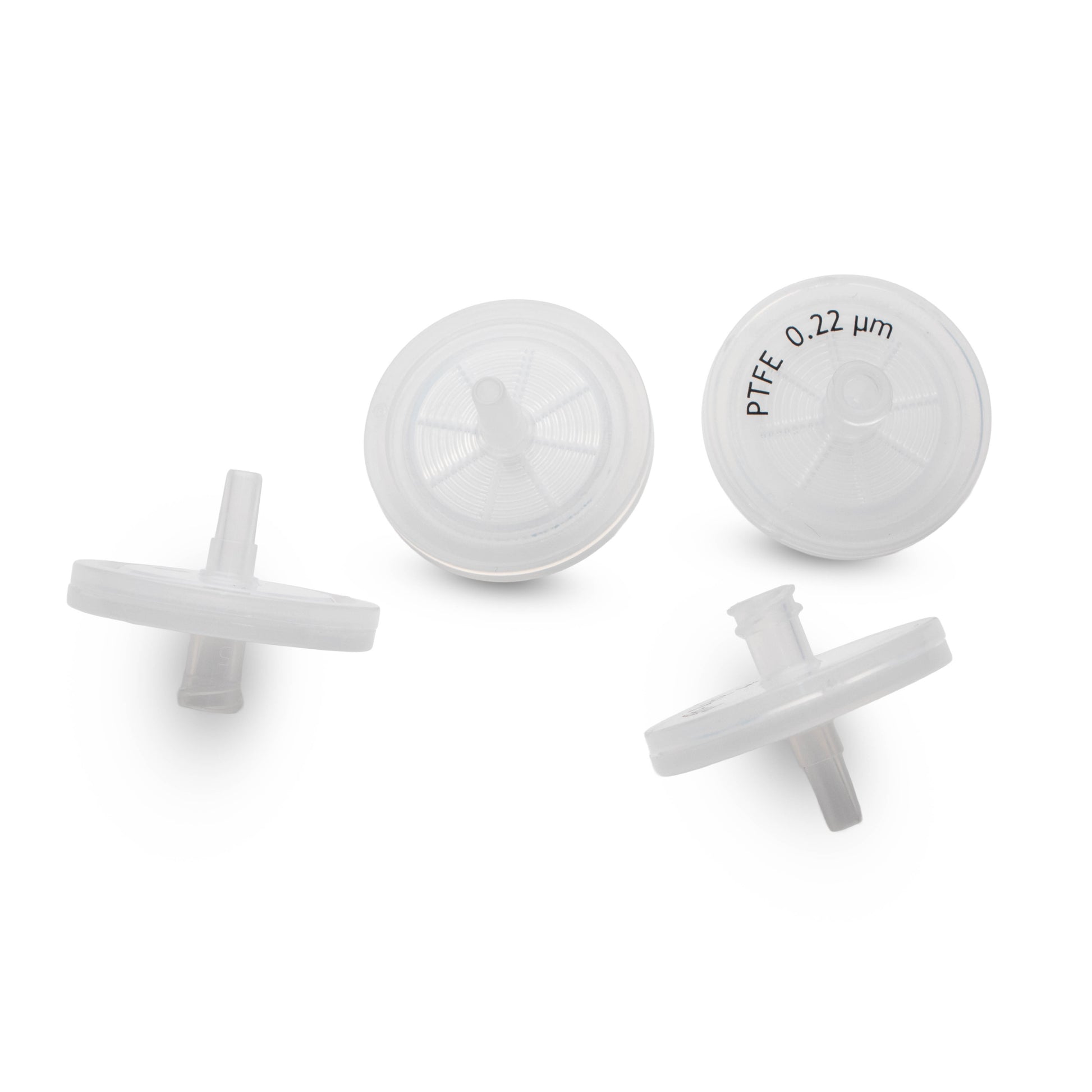

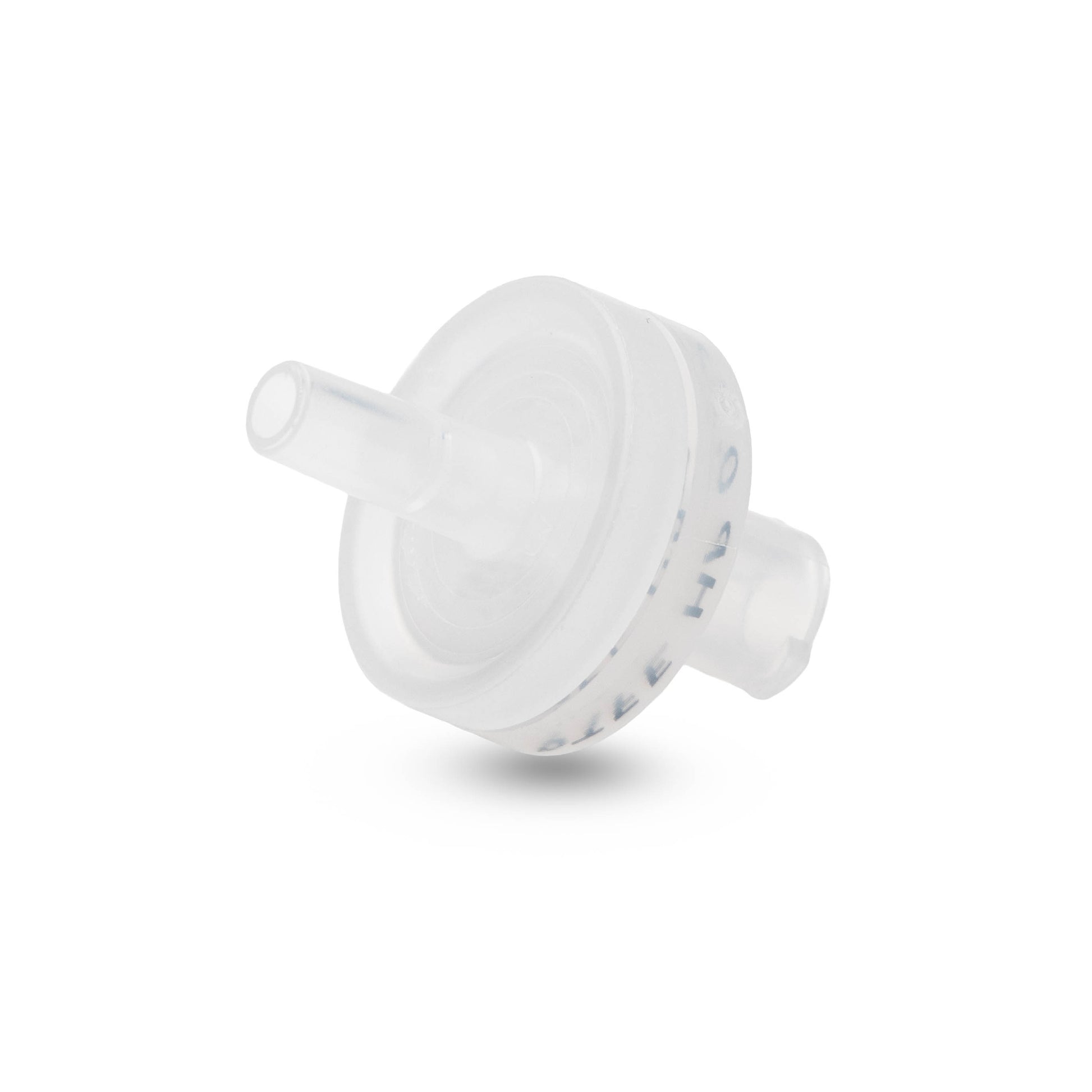

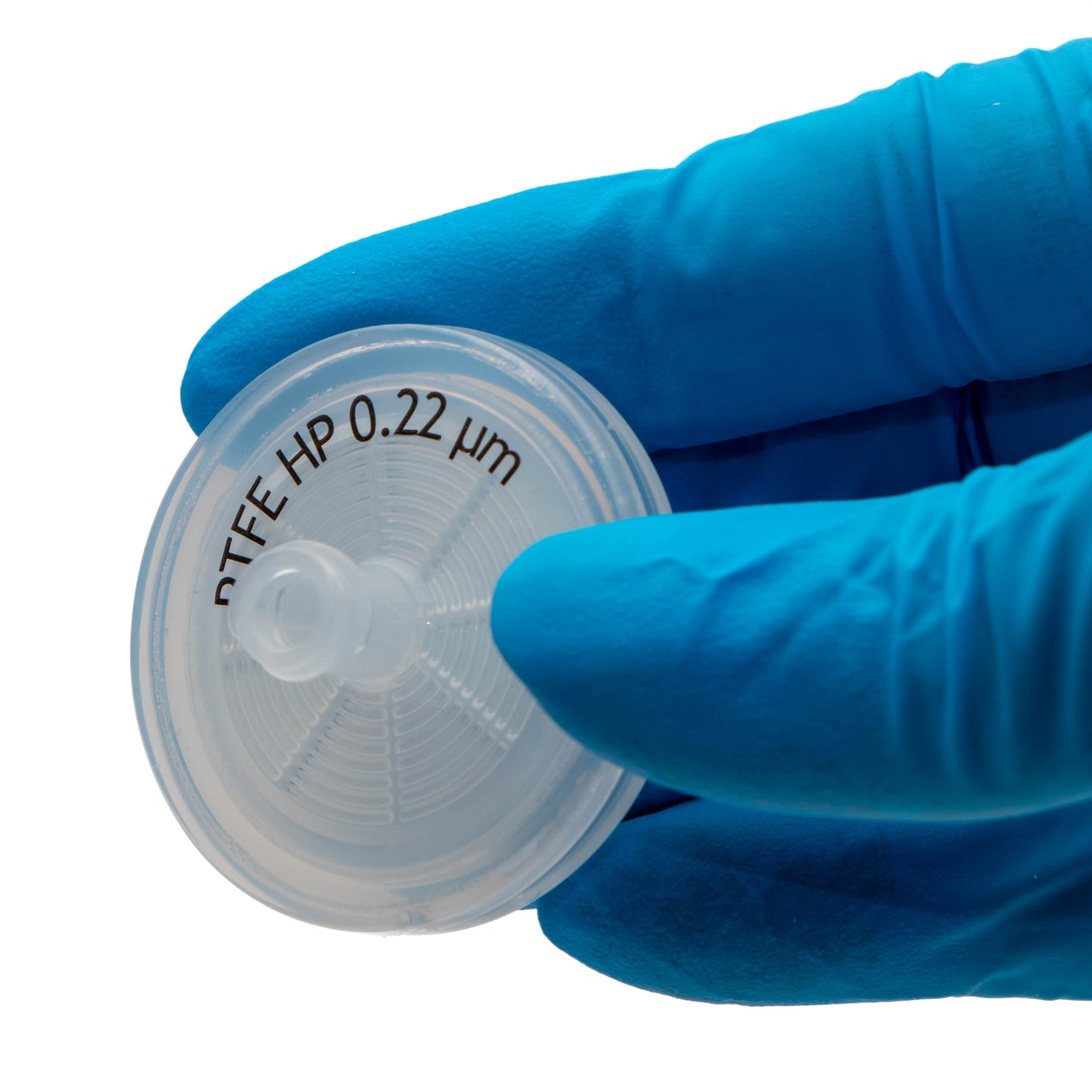

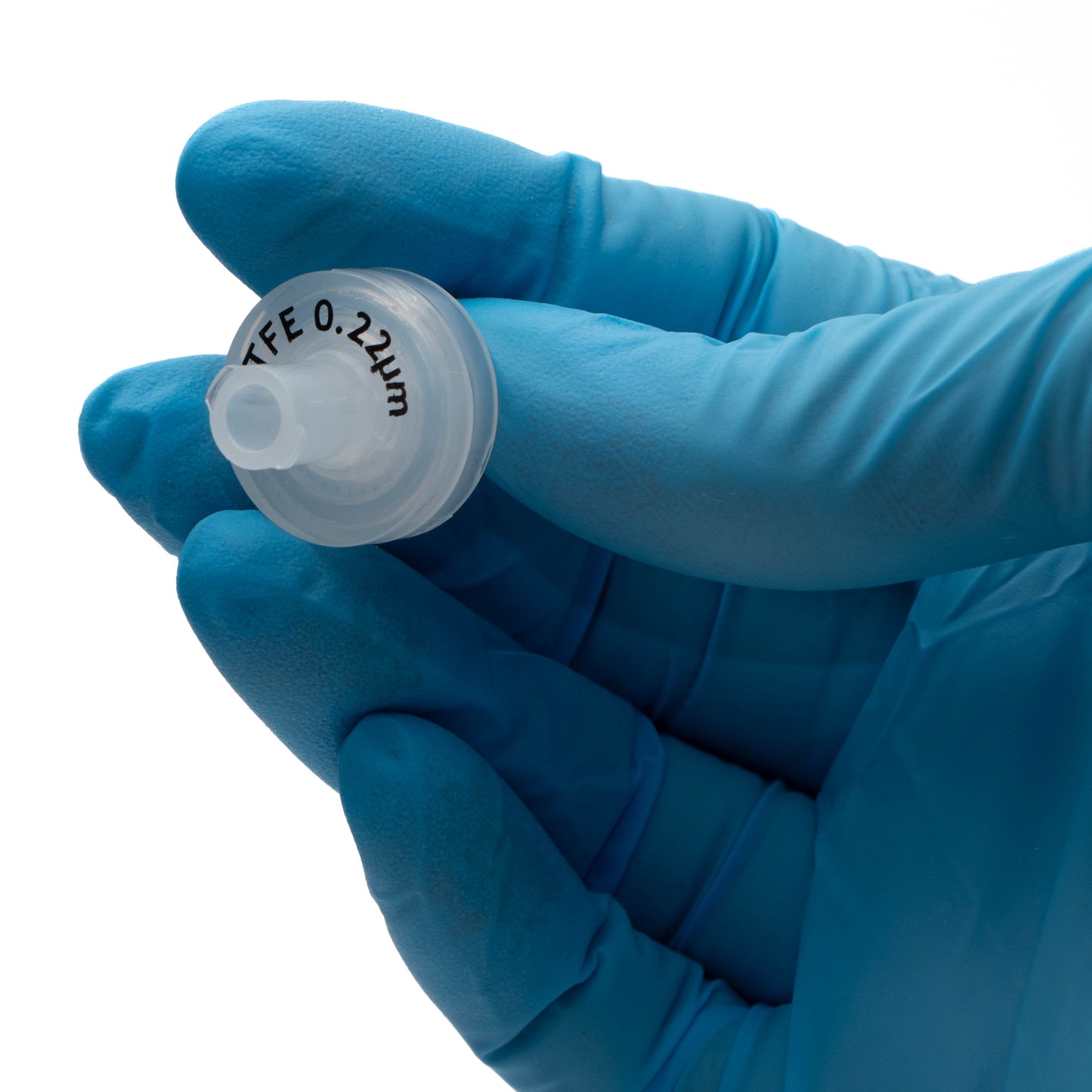

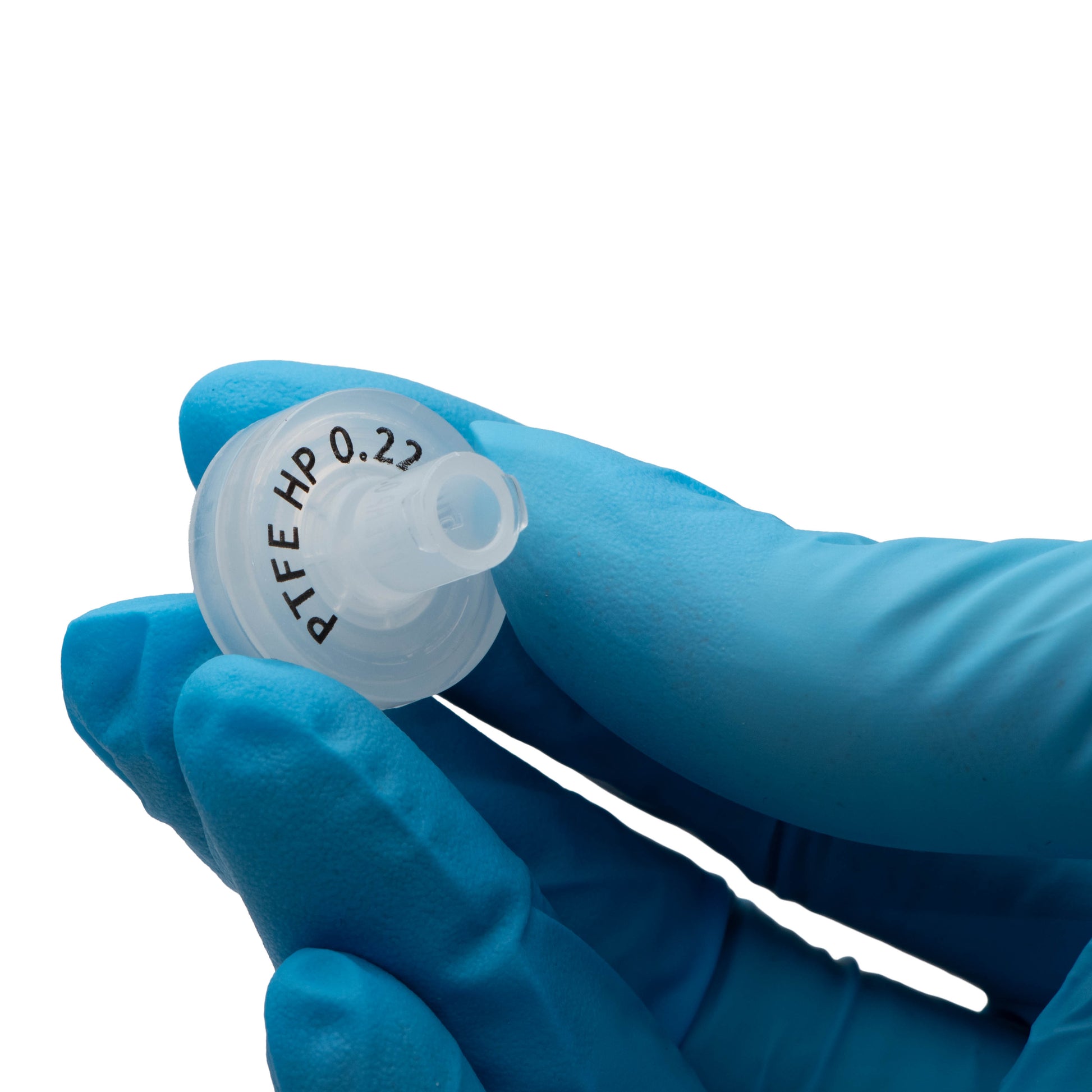

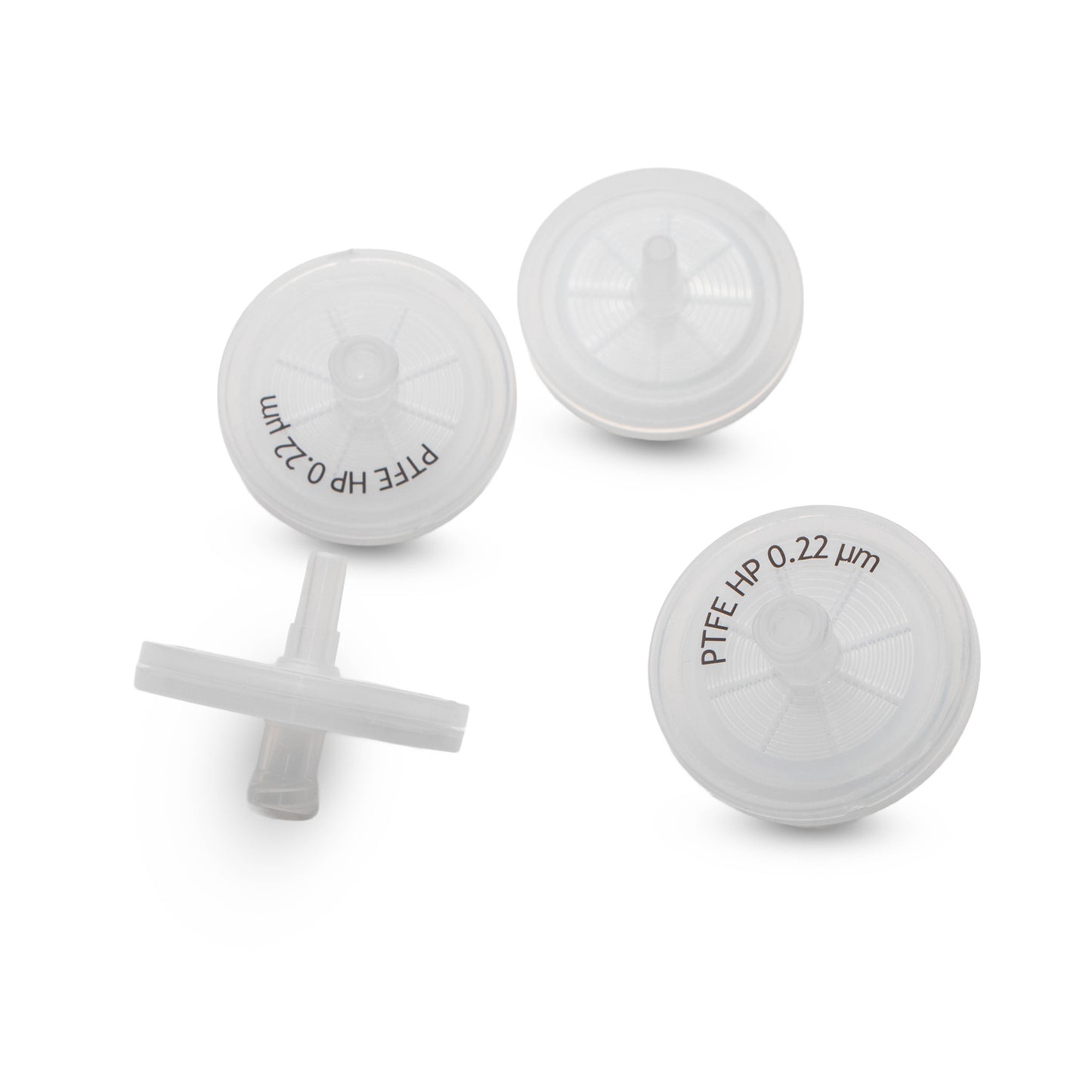

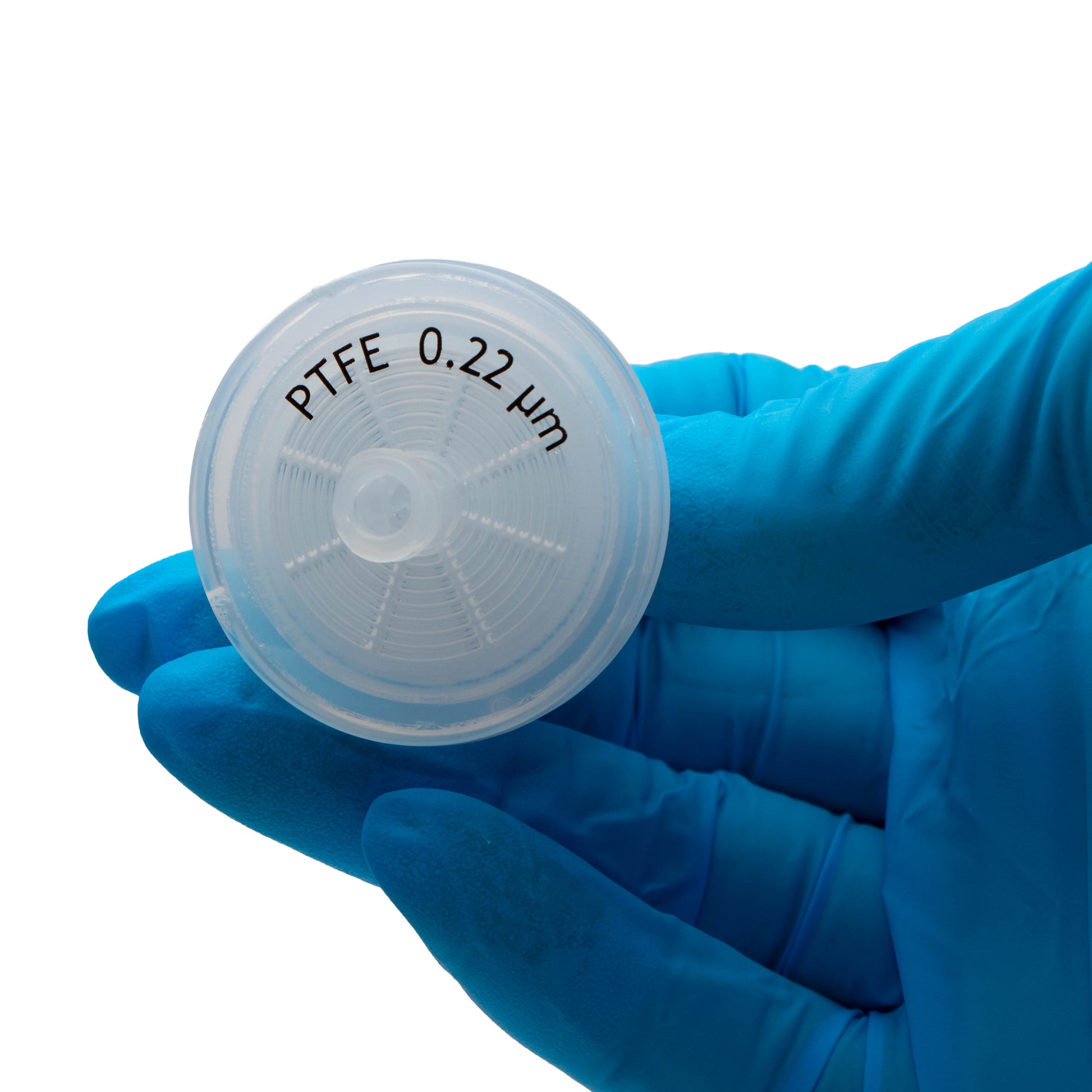

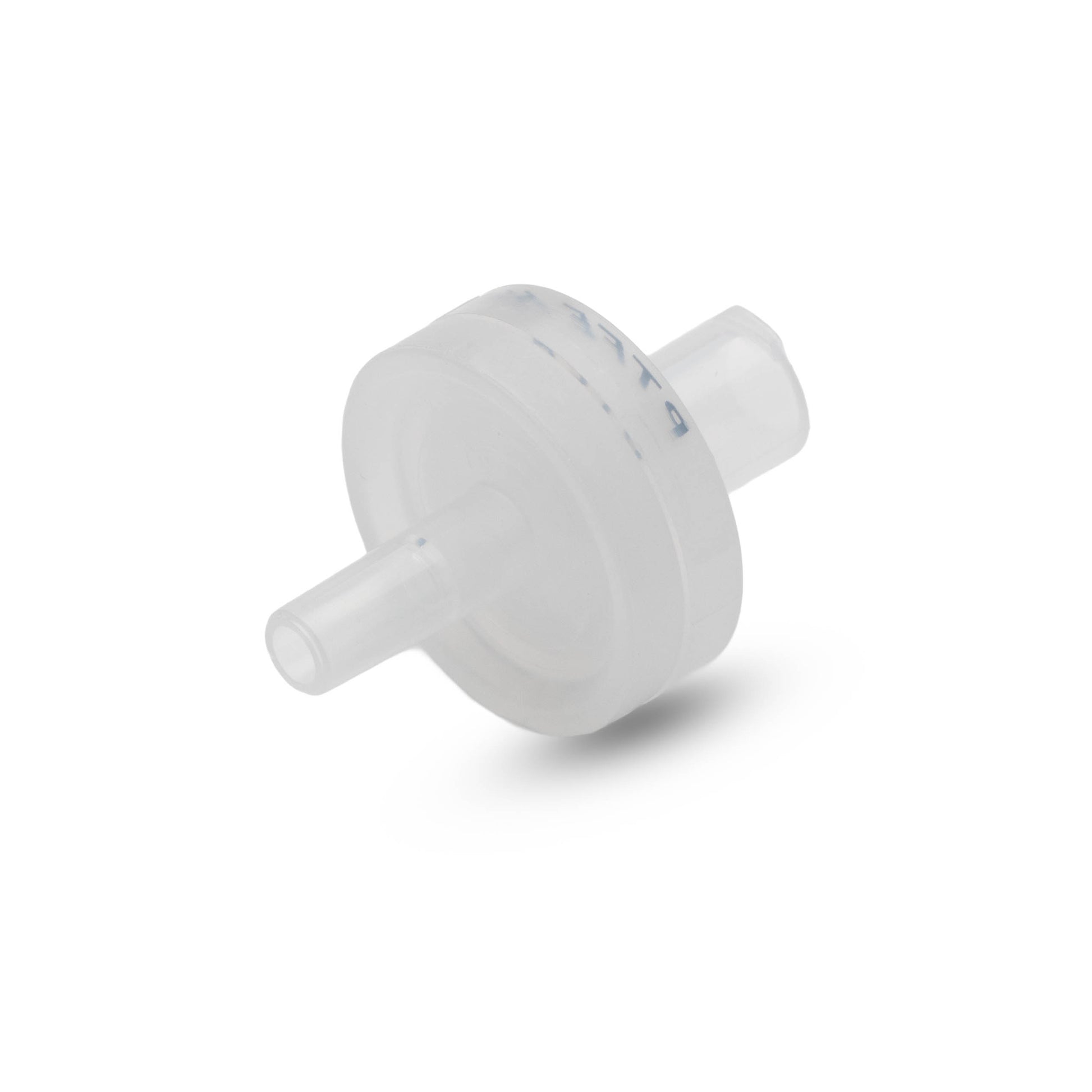

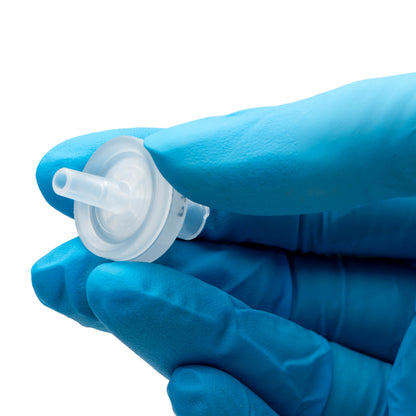

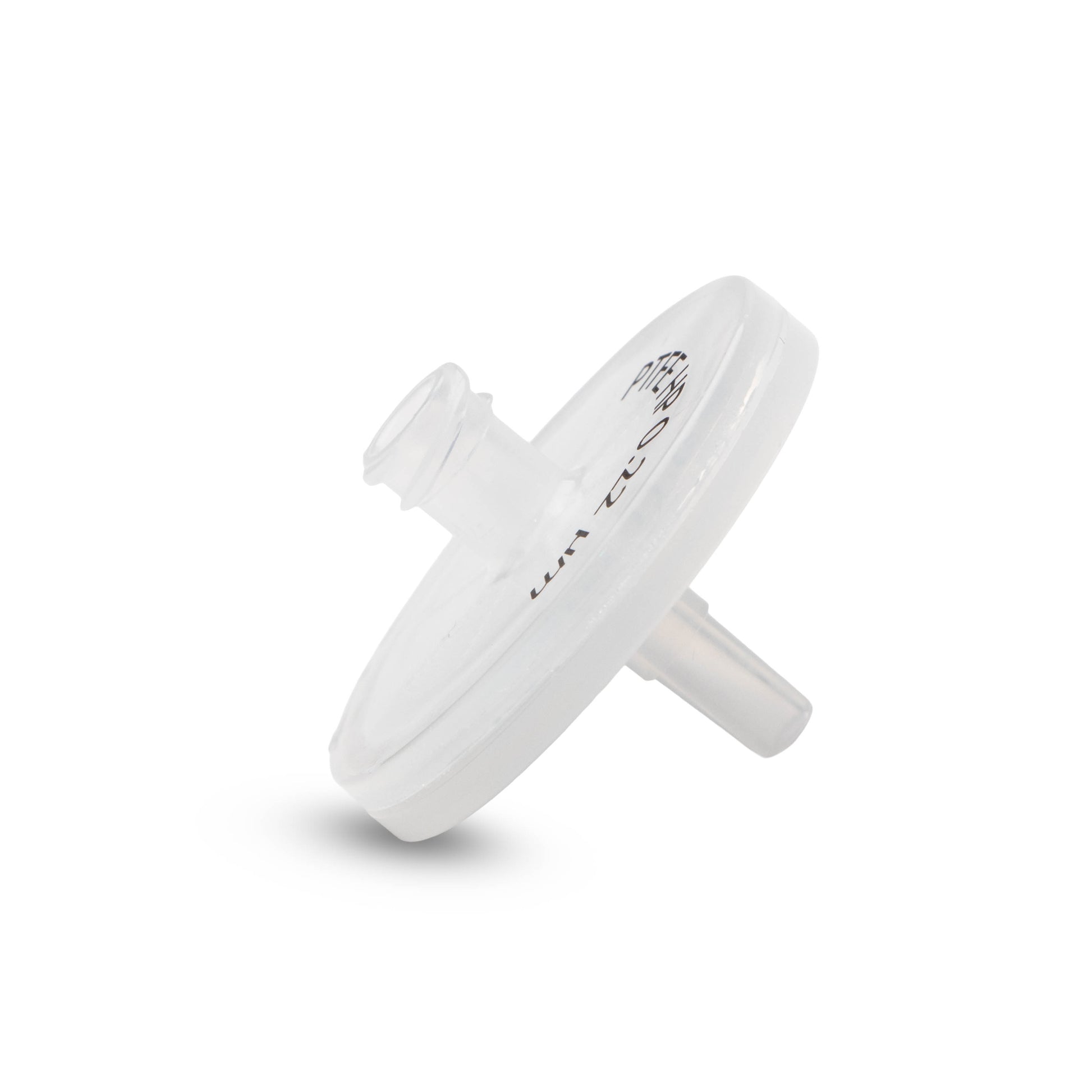

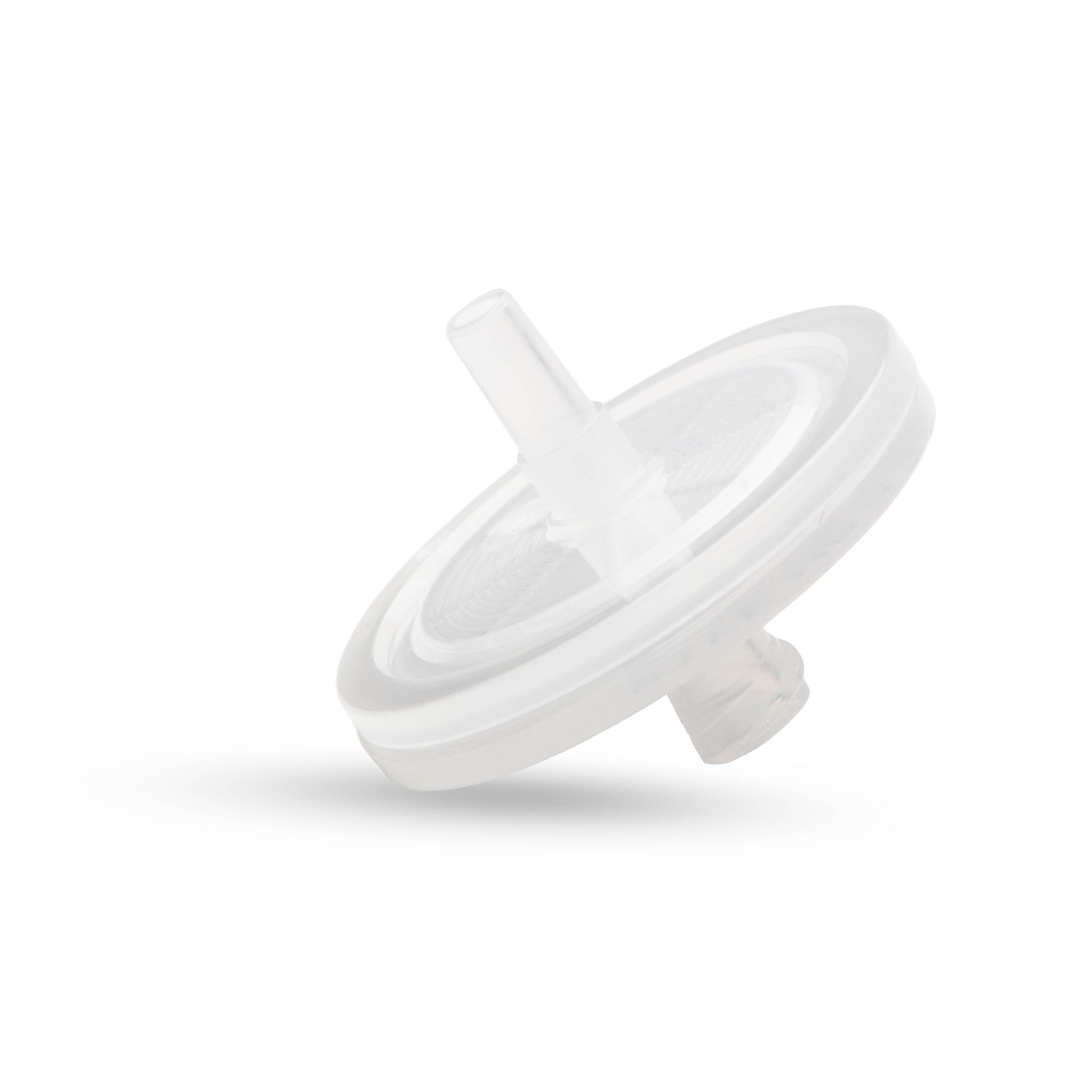

PTFE Syringe Filters, Pack of 100

Syringe filters are useful when an aqueous sample must be rid of any contaminants, artifacts, or general particles suspended in the fluid affecting overall homogeneity required to transfer the sample into the desired target. Many studies require that the final sample preparation be free of any particles to ensure safe transfer into tissue, effectively into another container, or ensuring proper mixture into other substances, for example.

The acrylic housing of these filters bidirectionally supports the membrane, allowing for injection or aspiration.

Options

Order code	Description
506023	PTFE Syringe Filter, 25mmOD/0.22µmID, Pack of 100
506024	PTFE Syringe Filter Hydrophilic, 25mmOD/0.22µmID, Pack of 100
506025	PTFE Syringe Filter, 13mmOD/0.22µmID, Pack of 100
506026	PTFE Syringe Filter Hydrophilic, 13mmOD/0.22µmID, Pack of 100

Applications

• Analytical sample preparation
• Biological fluids
• Buffer solutions
• Sterile filtering of tissue culture media
• Protein aqueous solutions

Syringe Filters Sell Sheet

The non-sterile syringe filters are made of Polypropylene housing, assembled with various pore sizes of Polytetrafluoroethylene (PTFE) membrane.

Order code	Membrane Material	Pore Size (µm)	End Fitting	Housing Material	Packaging
506023	Polytetrafluoroethylene (PTFE)	0.20	FLL/MLS	Polypropylene	100/pk
506024		0.22
506025		0.20
506026		0.22

*FLL= Female Luer Lock, MLS= Male Luer Slip

Type	25 mm OD	13 mm OD
Membrane Materials	PTFE
Regenerated Cellulose
Membrane Diameter	25 mm	13 mm
Effective Filtration Area	4.6 cm²	0.76 cm²
Housing Diameter	33 mm	18 mm
Housing Materials: Polypropylene Inlet / Outlet	FLL / MLS
Holdup Volume	<100 microliter	<50 microliter
Maximum Operating Temperature	- 90°C/194°F
Maximum Operating Pressure	80 psi
Sterile	No



Biocompatibility according ISO 10993-1
Rohs, Directive 2002/32/CE
BSE/TSE, directive 2003/32/CE
1907/2006/CE (hazardous substances regulation)
