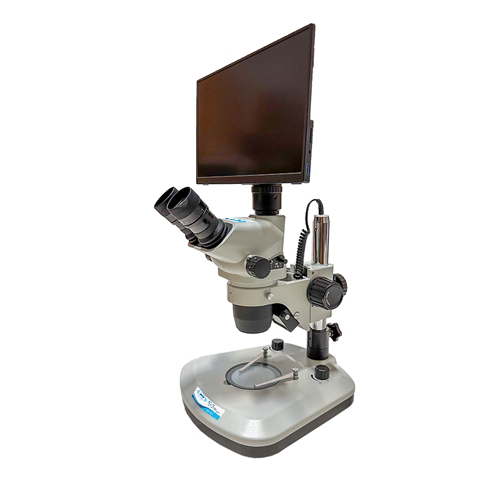

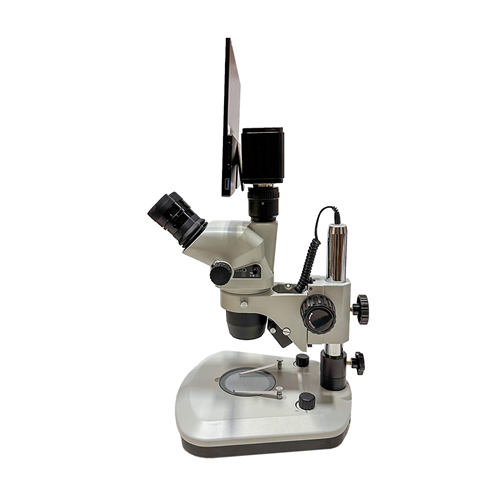

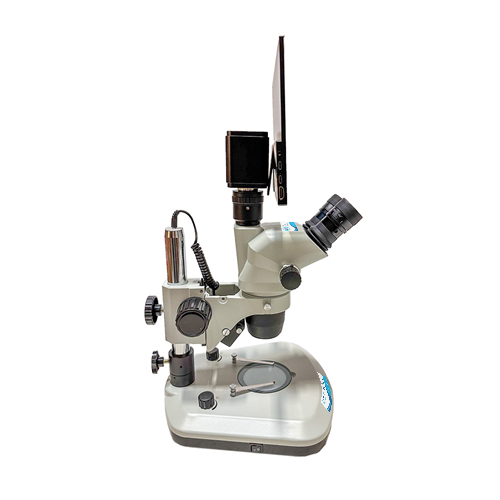

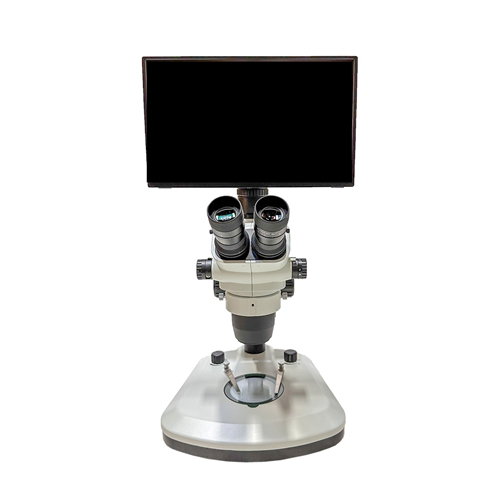

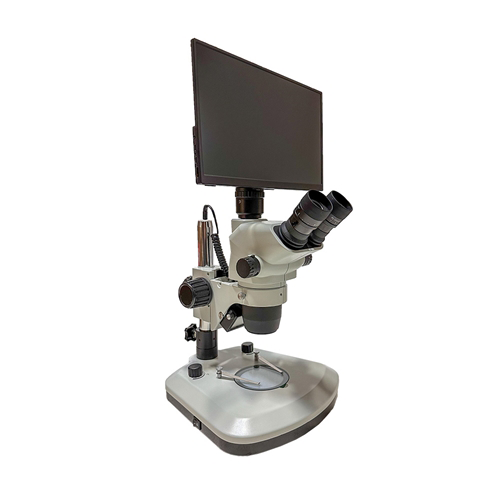

PRO PZMVI Trinocular Stereoscope, 4K Camera and 13" HD Monitor

High Resolution Stereo Zoom Digital HD Trinocular Microscope

Features

• Microscope Viewing Head: Trinocular 45° inclined viewing head rotates 360°. Interpupillary adjustment from 54mm - 76mm. Beam splitter splits light between left eyetube and trinocular port while right eyetube goes dark. Includes 0.5x c-mount adapter.
• Eyepieces: Includes high eyepoint widefield focusable 10x eyepieces, FN 22 with +/-5 diopter adjustment on each eye.  Eyepieces accept a 24mm diameter reticle.
• Objective Lenses: Zoom range of 0.67x - 4.5x.
• Zoom Ratio: 6.7:1
• Total Magnification: 6.7x - 45x.  Magnification can be increased or decreased with auxiliary lenses. See magnification chart below for details. Note that when changing eyepieces the magnification of the camera will not be altered.
• Working Distance: 100mm. Can be adjusted from 26mm - 200mm depending on auxiliary lens utilized. See magnification chart below.
• Field of View: 32.8mm at 6.7x and 4.9mm at 45x.
• Stand: Post stand with transmitted and reflected LED illumination. Top light has separate rheostat control from bottom light. Includes dust cover.
• Specimen Stage: Supplied with 100mm clear glass stage plate. Two locked-in stage clips.
• Focusing: Coarse focusing with tension adjustable focus knobs.
• Illumination: Transmitted and reflected LED illumination with intensity control and on/off switch for each light. 100~240V.
• Camera: Includes 0.5x c-mount adapter and 4K HD camera with HDMI and USB2 output. 1/1.8" Exmor/STARVIS Sony IMX678(C) sensor. Pixels 2.0 x 2.0µm. 30 frames per second at 3840 x 2160 HDMI. Binning 1x1. 8mp image capture, software, power adapter 100~240V, HDMI Cable, SD Card, USB Mouse. Includes software for PC with USB connection for image capture. Software can be used to capture images and video and make measurements. If making measurements with the software you will need a stage micrometer (available below).
• Software Calibration: If you plan to make measurements using the software you will need to calibrate the microscope with the software. *Calibrating your software with the microscope requires use of a stage micrometer (sold separately). When ordering please add this option if you do not already have a stage micrometer. The standard stage micrometer is a dual ruler with 1" equally spaced and numbered 0-10 as well as 25mm equally spaced and numbered 0-25. If NIST certification is selected 10 points in total will be certified. Please note that NIST certification takes approximately 2 weeks.
• LCD HD Monitor: 13.3" LCD HDMI monitor, true 1080P. LED backlight. Monitor mounts directly to HD camera. Includes 110~240V power cord and HDMI cable.
• Stand Size: 11.5" W x 12" D x  14.75" H
• Warranty: 1 Year Warranty.

PZMVI Stereo Microscopes Instruction Manual

Auxiliary Lens	Working Distance	10x Eyepieces		15x Eyepieces		20x Eyepieces
		Magnification	Field Size	Magnification	Field Size	Magnification	Field Size
1x (None)	100mm	6.7x - 45x	32.8mm - 4.9mm	10.1x - 67.5x	23.9mm - 3.6mm	13.4x - 90x	17.9mm - 2.7mm
0.5x	177mm	3.4x - 22.5x	65.7mm - 9.8mm	5x - 33.8x	47.8mm - 7.1mm	6.7x - 45x	35.8mm - 5.3mm
0.7x	120mm	4.69x - 31.5x	46.9mm - 7mm	7x - 47.25x	34.1mm - 5.1mm	9.38x - 63x	25.6mm - 3.8mm
1.5x	47mm	10.1x - 67.5x	21.9mm - 3.3mm	15.1x - 101.3x	15.9mm - 2.4mm	20.1x - 135x	11.9mm - 1.8mm
2.0x	26mm	13.4x - 90x	16.4mm - 2.4mm	20.1x - 135x	11.9mm - 1.8mm	26.8x - 180x	9mm - 1.3mm
