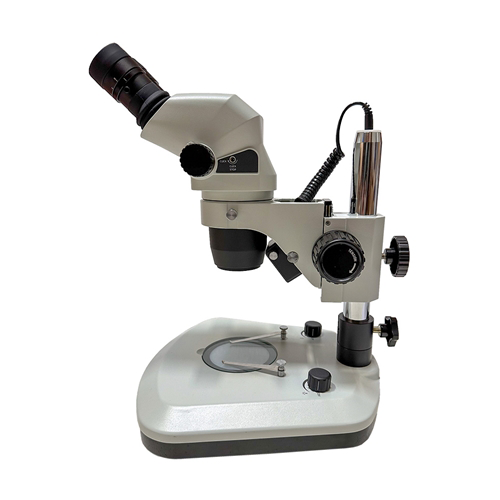

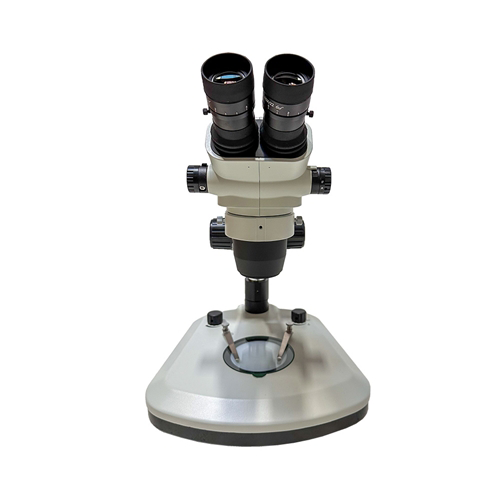

PRO PZMVI Binocular Stereoscope

$3,500
$3,500

PRO-PZMVI-B

Prices valid in USA, Canada, and PR only.

WPI's new generation of PZM Stereo Microscopes, the PZMVI, features built-in overhead and stage plate LED illuminaton. The top and bottom illuminators have their own intensity control built into the base, and are independently adjustable.

Details

High Resolution Stereo Zoom Binocular Microscope

Features

  • Viewing Head: 45° inclined viewing head rotates 360°. Interpupillary adjustment from 54mm - 76mm. Your choice of binocular or trinocular. When beam splitter is engaged light is split between left eyetube and trinocular port, while right eyetube goes dark.
  • Eyepieces: Includes high eyepoint widefield 10x eyepieces, FN 22mm with +/-5 diopter adjustment on each eye. Included 10x eyepieces accept a 24mm diameter reticle. Optional 15x/16mm and 20x/12mm eyepieces are available for purchase below.
  • Objectives: Zoom stereo 0.67x - 4.5x provides a zoom ratio of 6.7:1.
  • Total Magnification: Zoom range of 6.7x - 45x when using included 10x eyepieces. View chart below for alternate options when using auxiliary lenses or alternate eyepieces.
  • Working Distance: 100mm. Can be adjusted from 26mm - 200mm depending on auxiliary lens utilized. See magnification chart below.
  • Specimen Stage: Supplied with a 100mm glass stage plate and two locked-on stage clips.
  • Stand: Post stand with transmitted and reflected LED illuminators.
  • Focusing: Coarsefocusing with tension adjustable focus knobs.
  • Illumination: Transmitted and reflected LED illumination with intensity control and on/off switch for each light. Top & bottom LED illuminators with dual intensity control and on/off switches. 100~240V.
  • Stand Size: 11.5" W x 12" D x 14.5" H, 9.2lbs
  • Warranty: 1 Year Warranty.



Resources

PZMVI Stereo Microscopes Instruction Manual

Specifications

Auxiliary Lens Working Distance 10x Eyepieces
 15x Eyepieces
  20x Eyepieces
 Magnification  Field Size
  Magnification Field Size
 Magnification Field Size
 1x (None)
 100mm
6.7x - 45x
 32.8mm - 4.9mm
10.1x - 67.5x
23.9mm - 3.6mm
13.4x - 90x 17.9mm - 2.7mm
0.5x
 177mm
  3.4x - 22.5x
 65.7mm - 9.8mm
5x - 33.8x  47.8mm - 7.1mm
 6.7x - 45x 35.8mm - 5.3mm
0.7x
 120mm
  4.69x - 31.5x
 46.9mm - 7mm
7x - 47.25x  34.1mm - 5.1mm
 9.38x - 63x 25.6mm - 3.8mm
 1.5x 47mm  10.1x - 67.5x
 21.9mm - 3.3mm
15.1x - 101.3x 15.9mm - 2.4mm 20.1x - 135x
 11.9mm - 1.8mm
 2.0x 26mm  13.4x - 90x
 16.4mm - 2.4mm
20.1x - 135x 11.9mm - 1.8mm 26.8x - 180x  9mm - 1.3mm
