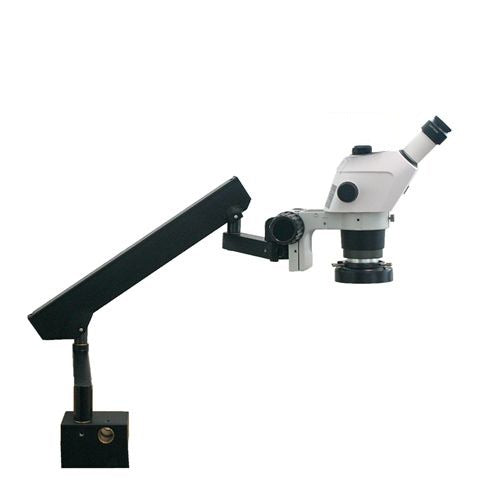

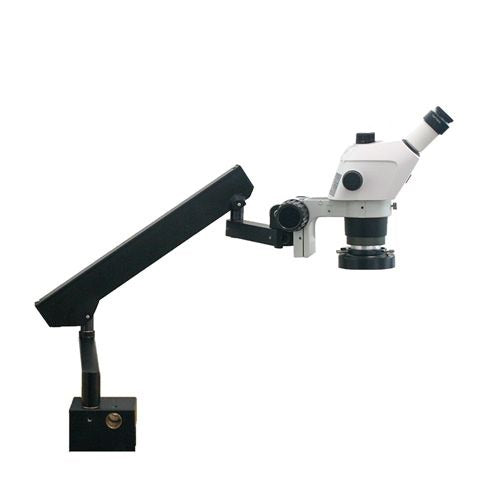

PRO PZMV Trinocular Articulating Stereoscope with Ring Light

$2,200
$2,200

PRO-PZMV-T-ART

Prices valid in USA, Canada, and PR only.

WPI's new generation of PZM Stereo Microscopes, the PZMV, features overhead ring-light illuminaton. The trinocular stereoscope head is mounted on an extended articulating arm with a choice of a table mount or table clamp mount. The four quadrant LED ring light provides precision illumination ideal for creating variable contrasts to your subject matter.

Camera and C-Mount not included. Check out our optional cameras here, & check out our c-mount options for this microscope here.

***NOTE: It is required to have a c-mount adaptor to marry a microscope camera to the system. If your camera has a 1/2.9" or 1/3" sensor, you will need a 505847 (0.35x) c-mount adaptor. If your camera has a 1/2" sensor, you will need a 505848 (0.5x) c-mount adaptor.

Details

Features

    • Head: Binocular or trinocular body. *The PRO-PZMV-T-ART is a trinocular model.Viewing head rotates 360°, locks in place by tightening set screw.
    • Eyepieces: Includes widefield 10x / 20mm high eyepoint eyepieces. Interpupillary adjustment from 50mm to 75mm. Dual diopters on eyetubes. Eyepieces accept 24mm diameter reticle. 15x and 20x eyepieces are available and can be ordered below.
    • Objective Lenses:  Zoom range of 0.7x - 4.5x.
    • Zoom Ratio: 6.4:1
    • Total Magnification:  7x -45x. For alternate magnifications eyepieces can be changed and auxiliary lens added to stereo microscope. View magnification chart below for details.

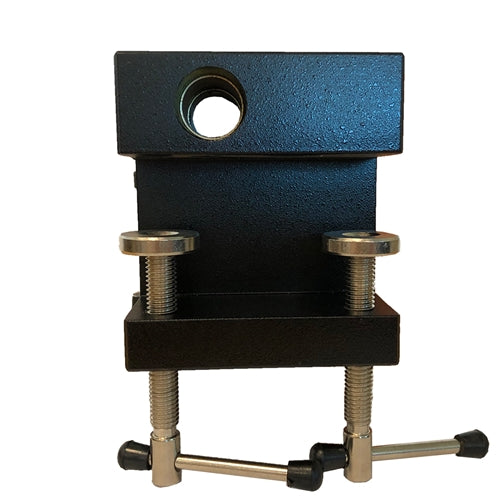

    • Stand: Short articulated arm stand clamps to table. Clamp opening size is 0-53mm. Distance of total articulated arm is 54". Height of articulated arm is adjustable.
    • Working Distance: 100mm.
    • Focusing: Coarse focusing.
    • Illumination: LED polarizing ring light to reduce glare. 120 LED lights provide cool, bright illumination. Light intensity rheostat control 0-100%. Rotatable analyzer 360°, polarizer drops into slot and is removable. 100~240V, UL and CE certified.
    • Digital Option: Camera not included. If you add a camera to your system separately and wish to take measurements using your camera, please note that you will require a stage micrometer for calibration (sold separately).
    • Size & Weight: Length of articulated arm is 54", 16 lbs.
    • Warranty: 1 Year Warranty.
