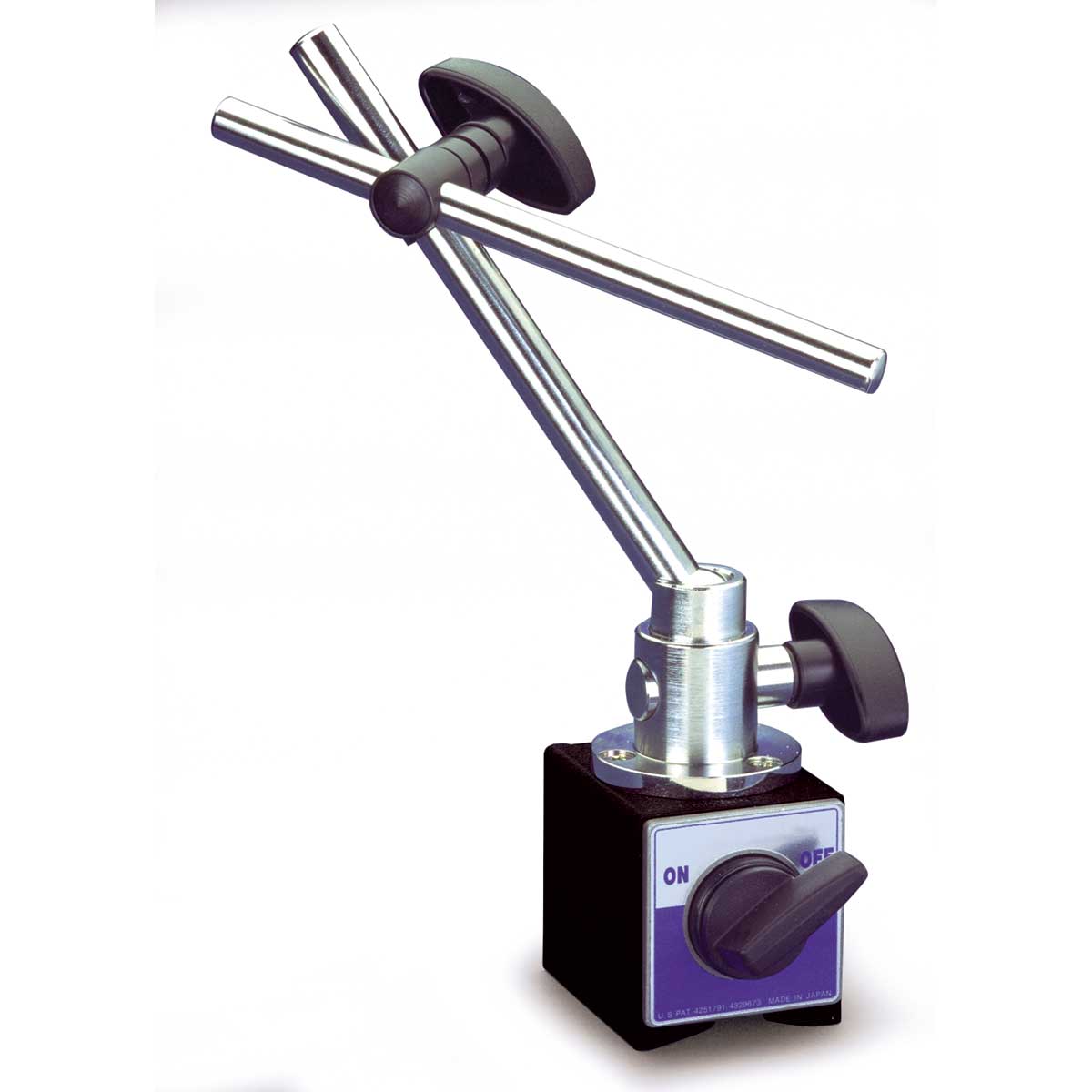

Magnetic Stand with Balljoint

$250
$250

M8

Prices valid in USA, Canada, and PR only.

The base of each stand exerts a powerful magnetic force that holds it solidly on ferrous metal surfaces - even vertically or upside down

A ball joint at the base of the main post allows 360° rotation, offering considerable versatility. The second arm adopts angles up to 75°. (Optional M5 10 mm clamp should be added for use with M3301, DC3001, MD4 and MMJ manipulators.)

Details

Features

  • Main post rotates 360°
  • Main Post Diameter: 12 mm
  • Sub Post Diameter: 10 mm



Type Description
Base 50 ( w ) x 58 ( l ) x 55 ( h ) mm ( 2.0 x 2.3 x 2.2 in.)
Vertical Holding Power 80 kgf (176 lb. force)
Main Pole diameter: 12 mm (0.47 in.)
length: 194 mm (7.6 in.)
Sub Pole diameter: 10 mm (0.39 in.)
length: 165 mm (6.5 in.)
Clamp Hole Adjustable from 4.5 mm to 6.5­ mm
Weight 1.8 kg (4 lb.)
