Magnetic Stand - Flexible

$60
$60

M11

Prices valid in USA, Canada, and PR only.

The base of each stand exerts a powerful magnetic force that holds it solidly on ferrous metal surfaces - even vertically or upside down

The arm of this magnetic base bends freely for maximum flexibility. The connecting arm twists and bends like a snake. Lock the arm in position with a flick of the controlling lever. These are an ideal stands probe holders and lightweight objects.

Details

Features

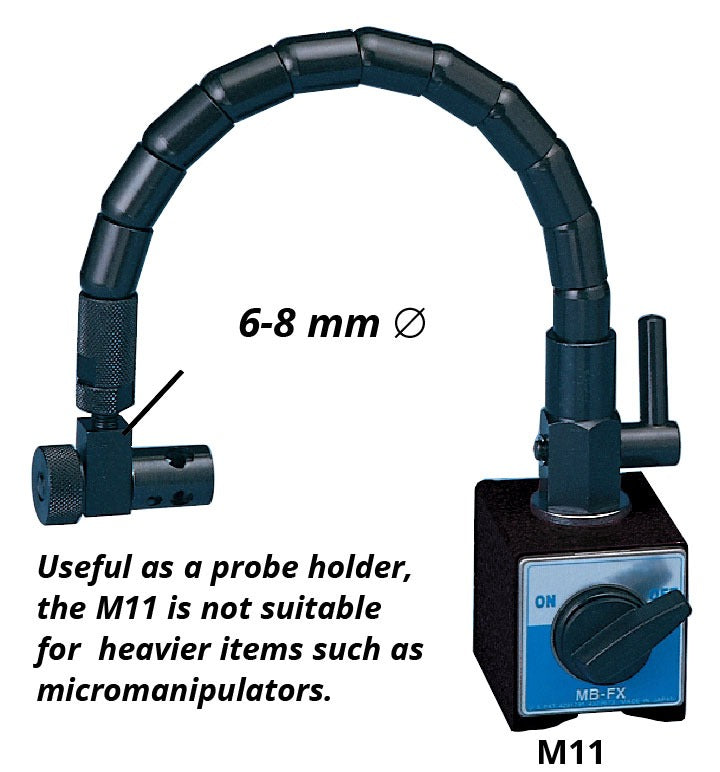

  • Clamp hole adjustable from 6 to 8 mm
  • Main Post Diameter: 16 mm
  • Not suitable for micromanipulators



Type Description
Base 50 (w) x 58 (l) x 55 (h) mm
(2.0x 2.3 x 2.2 in.)
Vertical Holding Power 80 kgf (176 lb. force)
Main Pole diameter: 16 mm (0.63 in.)
length: 315 mm (12.4 in.)

Sub Pole

 none

Clamp Hole

Adjustable from 6 mm to 8 mm
Weight

1.4 kg (3 lb.)

Resources

Video

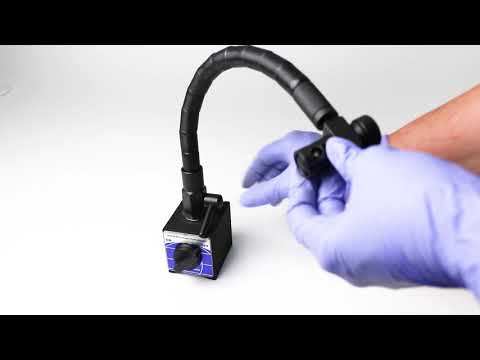

Setting up Your WPI M11 Flexible Magnetic Stand


Magnetic Stand - Flexible
