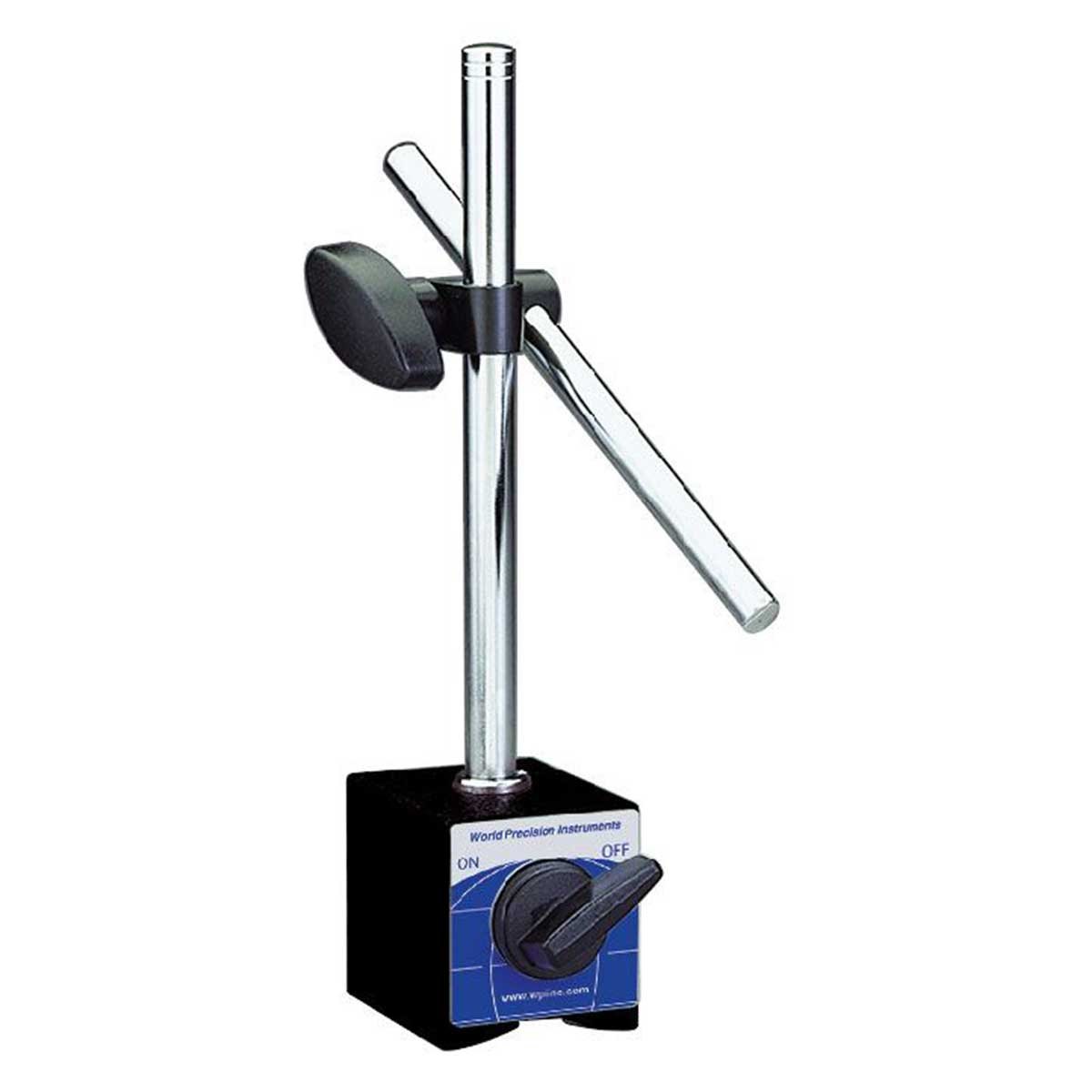

M1 Magnetic Stand

$100
$100

M1

Prices valid in USA, Canada, and PR only.

The base of each stand exerts a powerful magnetic force that holds it solidly on ferrous metal surfaces - even vertically or upside down

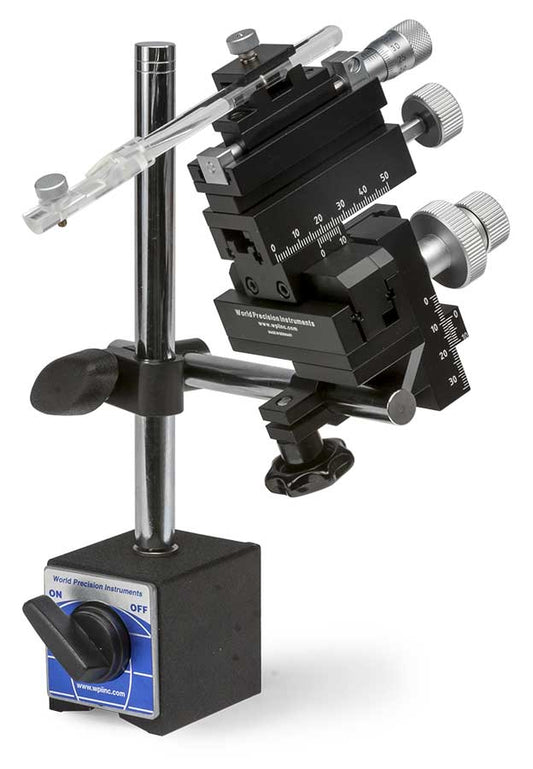

A precision magnetic base provides stable support for such devices as electrodes and micromanipulators. The adjustable second arm adopts a variety of angles.These are an ideal manipulator stands.

Optional M5 10mm clamp should be added for use with M3301, DC3001, MD4 and MMJ manipulators.

Details

Features

  • Main Post Diameter: 12 mm
  • Sub Post Diameter: 10 mm
  • Height: 176 mm
  • Not for use with the KITE or M3301 (See M10)



Type Description
Base 50 (w) x 58 (l) x 55 (h) mm
( 2.0 x 2.3 x 2.2 in. )
Vertical Holding Power 80 kgf (176 lb. force)
Main Pole diameter: 12 mm (0.47 in.)
length: 176 mm (6.9 in.)
Sub Pole diameter: 10 mm (0.39 in.)
length: 165 mm (6.5 in.)
Clamp Hole diameter: 4.5 mm and 6.5 mm
Weight 1.8 kg (4 lb.)


M1 Magnetic Stand

$100.00
