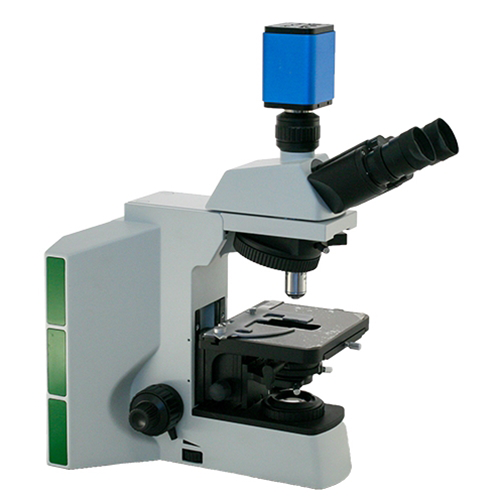

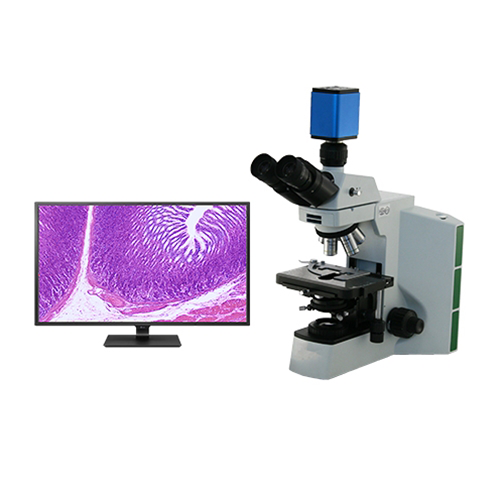

Pathology Microscope, 24" 4K Monitor, HD Camera with Analysis Software

4K Pathology Lab Microscope

Features

• Objective Lenses: Quintuple objective turret holds the included DIN Infinity Corrected Optical System (ICOS) Objectives:
  • Plan Achromat 2x, NA 0.06, WD 5mm
  • Plan Semi-Apochromat Fluor 4x, NA 0.13, WD 18.5mm
  • Plan Semi-Apochromat Fluor 10x, NA 0.30, WD 10.6mm
  • Plan Semi-Apochromat Fluor 20x, NA 0.50, WD 2.33mm
  • Plan Semi-Apochromat Fluor 40x, NA 0.75, WD 0.6mm
• Viewing Head: Trinocular head with beam splitter 100:0, 0:100.
• Eyepieces: FPL-WF 10x Widefield, high eyepoint eyepieces, FN22, one eyepiece contains reticle retaining ring for 26mm diameter reticle.
• Total Magnification: 20x, 40x, 100x, 200x, 400x
• Specimen Stage: Double-layer mechanical stage, 175mm x 145mm with right-hand ergonomic controls. Specimen holder allows for either one or two slides. X-Y Axis travel of 76mm x 50mm.
• Illumination: High intensity 3W LED transmitted Koehler light system gives a bright and uniform field for each magnification. Voltage 100~240V.
• Light Focusing: Telecentric Koehler illumination system provides NA 1.2/0.22 swing-out condenser for use with 2x-100x objectives.
• Focusing: Coaxial coarse and fine focus adjustment with graduations of 2um. Ergonomic design provides optimal comfort for user when focusing.
• 4K HD Camera: includes c-mount adapter and 4K HD camera with HDMI, USB3 and GE (Gigabit Ethernet) output. 1/1.8" Exmor Sony IMX334(C) sensor. Pixels 2.0 x 2.0?m. 60 frames per second at 3840 x 2160 HDMI. Binning 1x1. 8mp image capture, software, power adapter 100~240V, HDMI Cable, SD Card, USB Mouse.
• Software Calibration: If you plan to make measurements using the software you will need to calibrate the microscope. *Calibrating your software with the microscope requires use of a stage micrometer (sold separately). When ordering please ensure to select this option for a standard or NIST certified if you do not currently have a stage micrometer.

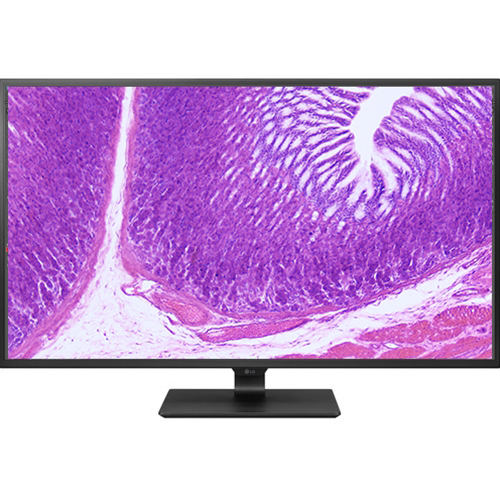

• 4K Monitor: 24" 4K monitor with 3840 x 2160 resolution. 100~240V, 50/60Hz
• Size: 9.8" (250mm) W x 18.2" (463mm) D x 16" (408mm) H
• Warranty: 1 Year Warranty

*If you require a stage micrometer please note: Stage micrometer offers 1mm / 100 divisions. If NIST certification is required, 10 points will be certified. Please note that NIST certification takes approximately 2 weeks.
