Corning® 6.5/12/24 mm Transwell® with 0.4 microns Pore Polyester Membrane Insert, Sterile

  • EVM-AC-03-C3450
  • EVM-AC-03-C3460
$178
$178

EVM-AC-03-C3450

From $178 - $321
From $178 - $321
Diameter

Prices valid in USA, Canada, and PR only.

  • Treated for optimal cell attachment

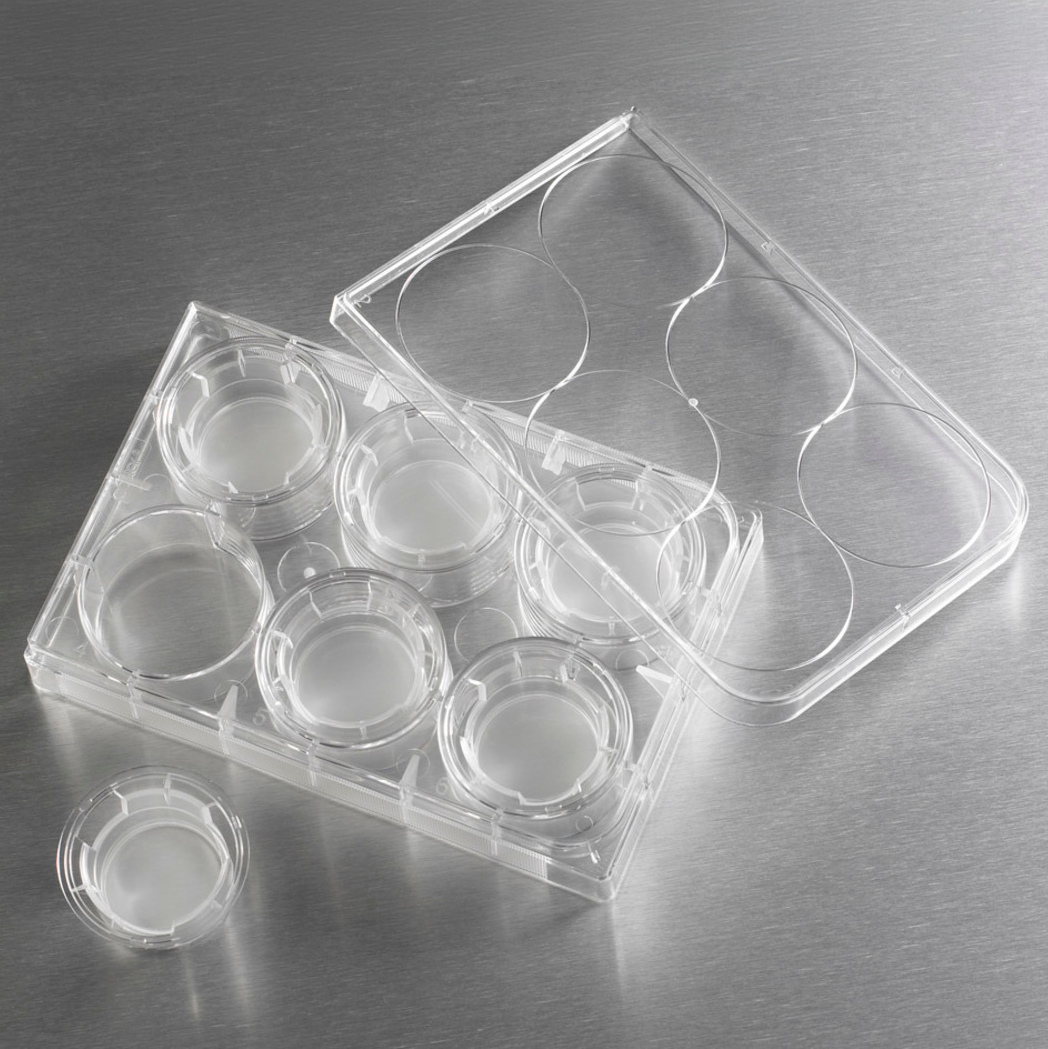

  • EVM-AC-03-C3450 : Packaged 6 inserts in a 6 well plate, 4 plates per case

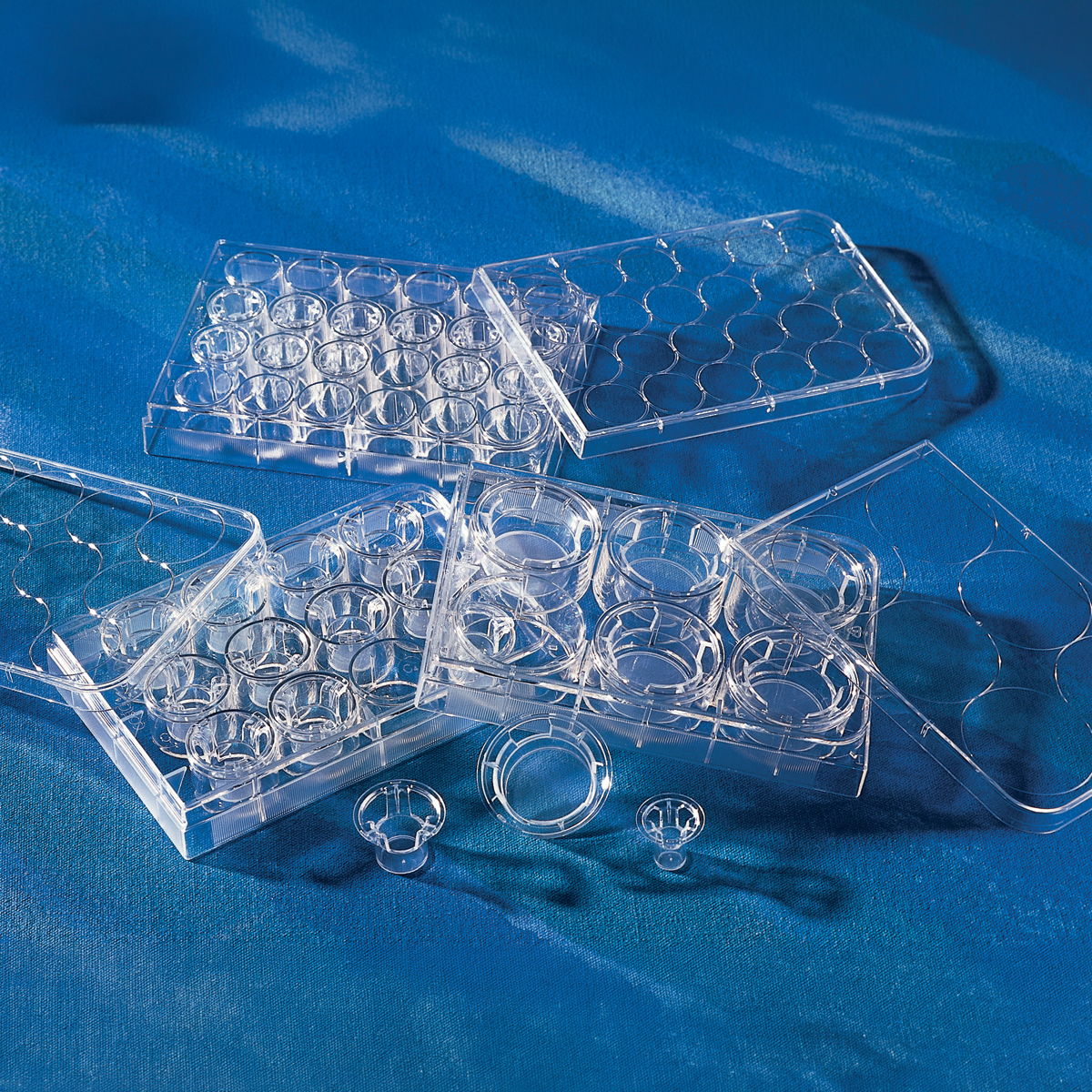

  • EVM-AC-03-C3460 : Packaged 12 inserts in a 12 well plate, 4 plates per case
  • EVM-AC-03-C3470 : Packaged 12 inserts in a 24 well plate, 4 plates per case
  • Excellent visibility under phase contrast microscopy



One or more facilities manufacturing this product is 100% covered by renewable energy through the purchase of unbundled energy attribute certificates (EACs).

Details

Options

Order code Corning P/N Description Case of
EVM-AC-03-C3450 3450 Corning® 24 mm Transwell® with 0.4 µm Pore Polyester Membrane Insert, Sterile 24
EVM-AC-03-C3460 3460 Corning® 12 mm Transwell® with 0.4 µm Pore Polyester Membrane Insert, Sterile 48
EVM-AC-03-C3470 3470 Corning® 6.5 mm Transwell® with 0.4 µm Pore Clear Polyester Membrane Insert, TCT, Sterile 48

EVOM™Compatibility:

These 6, 12, and 24 well inserts are compatible with WPI’s EVOM™ Manual (EVM-MT-03-02, EVM-MT-03-01, EVOM3), EVOM2 older meters.

Order code Compatible Electrode

EVM-AC-03-C3450

ENDOHM Chamber:

  • ENDOHM for 24 mm Culture Cups (6 wells per plate)
EVM-EL-03-01-03 for EVOM™ Manual and EVOM3, ENDOHM-24G-SNAP for EVOM2, or older manual EVOM™ systems

EVM-AC-03-C3460

ENDOHM Chamber:

  • ENDOHM for 12 mm Culture Cups (12 wells per plate)
EVM-EL-03-01-02 for EVOM™ Manual and EVOM3, ENDOHM-12G for EVOM2, or older manual EVOM™ systems

EVM-AC-03-C3470



ENDOHM Chamber:

  • ENDOHM for 6 mm Culture Cups (24 wells per plate)
EVM-EL-03-01-01 for EVOM™ Manual and EVOM3, ENDOHM-6G for EVOM2, or older manual EVOM™ systems

Chopstick Electrode:

These 24 well Inserts (EVM-AC-03-C3470) can be used with WPI’s EVOM™ Auto

Compatible System  Compatible Electrode  Additional Accessory/ Consumable Required for EVOM™ Auto

EVOM™ AUTO for TEER Measurement In 24/96 HTS Plate (EVA-MT-03-03)

Note: EVA-MT-03-03 system includes electrode EVA-EL-03-03

EVOM™ Auto 24M HTS Electrode Array (EVA-EL-03)

24 Well Companion Plate
EVOM™ Auto Exchange Plate for 24 Well Inserts

Inserts need to be moved to these companion plates for automated TEER measurement.

Note: The 6 and 12 well inserts (EVM-AC-03-C3450 and EVM-AC-03-C3460) are not compatible with EVOM™ Auto.

Resources

EVM-AC-03-C3450 Product Descriptions

EVM-AC-03-C3460 Product Descriptions

EVM-AC-03-C3470 Product Descriptions

Specifications

Type



EVM-AC-03-C3450

(Corning P/N 3450)

EVM-AC-03-C3460

(Corning P/N 3460)

EVM-AC-03-C3470

(Corning P/N 3470)
Qty./Pk 6 / Pk 12 / Pk 12 / Pk
Qty./Cs 24 / Cs 48 / Cs 48 / Cs
Brand Corning® Corning® Corning®
Plate Format 6-well  12-well 24-well
Plate Color Clear Clear Clear
Well Bottom Flat Flat Flat
Well Bottom Color Clear Clear Clear
Well Shape Round Round Round
Cell Growth Area 4.67 cm² 1.12 cm² 0.33 cm²
Recommended Medium Well Volume 2.6 mL 1.5 mL 0.6 mL
Recommended Medium Insert Volume 1.5 mL 0.5 mL 0.1 mL
Surface Treatment TC-Treated TC-Treated TC-Treated
Sterile Yes Yes Yes
Membrane Material Polyethylene terephthalate (PET) Polyethylene terephthalate (PET) Polyethylene terephthalate (PET)
Membrane Pore Size 0.4 µm 0.4 µm 0.4 µm
Nominal Pore Density 4x10⁶ pores per cm²  4x10⁶ pores per cm² 4x10⁶ pores per cm²
Membrane Diameter 24 mm 12 mm 6.5 mm
Lids Included Yes Yes Yes
Application Air-Liquid Interface (ALI) Cultures   Air-Liquid Interface (ALI) Cultures Air-Liquid Interface (ALI) Cultures
Packaging Format     12 Inserts/Plate/Pk, 4 Plates/Cs
Corning® 6.5/12/24 mm Transwell® with 0.4 microns Pore Polyester Membrane Insert, Sterile

$178.00
