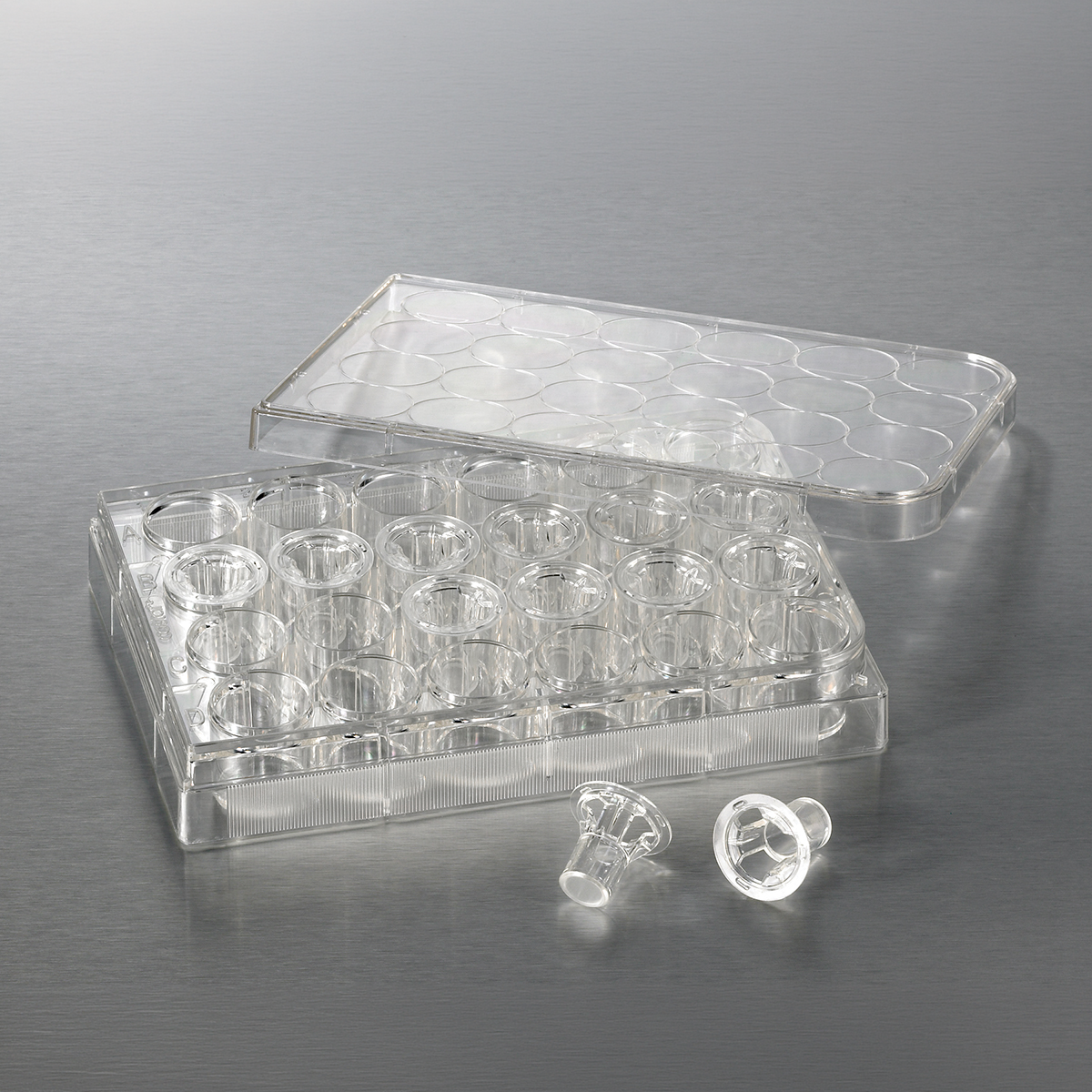

Corning® 6.5 mm Transwell® with 0.4/3/8 microns Pore Polycarbonate Membrane Insert, Sterile

  • EVM-AC-03-C3413
  • EVM-AC-03-C3413
  • EVM-AC-03-C3422
$301
$301

EVM-AC-03-C3413

$301
$301
Membrane Pore Size

Prices valid in USA, Canada, and PR only.

  • Packaged 12 inserts in a 24 well plate, 4 plates per case
  • Treated for optimal cell attachment
  • Membrane must be stained for cell visibility



One or more facilities manufacturing this product is 100% covered by renewable energy through the purchase of unbundled energy attribute certificates (EACs).

Details

Options

Order code Corning P/N Description Case of
EVM-AC-03-C3413 3413 Corning® 6.5 mm Transwell® with 0.4 µm Pore Polycarbonate Membrane Insert, Sterile 48
EVM-AC-03-C3415 3415 Corning® 6.5 mm Transwell® with 3.0 µm Pore Polycarbonate Membrane Insert, 4 Plates per Case, Sterile 48
EVM-AC-03-C3422 3422 Corning® 6.5 mm Transwell® with 8.0 µm Pore Polycarbonate Membrane Insert, 4 Plates per Case, Sterile 48

EVOM™ Compatibility:

These 24 well inserts are compatible with WPI’s EVOM™ Manual (EVM-MT-03-02, EVM-MT-03-01, EVOM3), EVOM2 older meters.

Order code Compatible Electrode

EVM-AC-03-C3413

EVM-AC-03-C3415

EVM-AC-03-C3422



ENDOHM Chamber:

  • ENDOHM for 6 mm Culture Cups (24 wells per plate)
EVM-EL-03-01-01 for EVOM™ Manual and EVOM3, ENDOHM-6G for EVOM2, or older manual EVOM™ systems

Chopstick Electrode:

These 24 well Inserts can be used with WPI’s EVOM™ Auto

Compatible System  Compatible Electrode  Additional Accessory/ Consumable Required for EVOM™ Auto

EVOM™ AUTO for TEER Measurement In 24/96 HTS Plate (EVA-MT-03-03)

Note: EVA-MT-03-03 system includes electrode EVA-EL-03-03

EVOM™ Auto 24M HTS Electrode Array (EVA-EL-03)

24 Well Companion Plate
EVOM™ Auto Exchange Plate for 24 Well Inserts

Inserts need to be moved to these companion plates for automated TEER measurement.



Resources

EVM-AC-03-C3413 Product Descriptions

EVM-AC-03-C3415 Product Descriptions

EVM-AC-03-C3422 Product Descriptions

Specifications

Type



EVM-AC-03-C3413

(Corning P/N 3413)

EVM-AC-03-C3415

(Corning P/N 3415)

EVM-AC-03-C3422

(Corning P/N 3422)
Qty./Pk 12 / Pk 12 / Pk 12 / Pk
Qty./Cs 48 / Cs 48 / Cs 48 / Cs
Brand Corning® Corning® Corning®
Plate Format 24-well  24-well 24-well
Plate Color Clear Clear  Clear
Well Bottom Flat Flat Flat
Well Bottom Color Clear Clear Clear
Well Shape Round Round Round
Cell Growth Area 0.33 cm² 0.33 cm² 0.33 cm²
Recommended Medium Well Volume 0.6 mL 0.6 mL 0.6 mL
Recommended Medium Insert Volume 0.1 mL 0.1 mL 0.1 mL
Surface Treatment TC-Treated TC-Treated TC-Treated
Sterile Yes Yes Yes
Membrane Material Polycarbonate Polycarbonate Polycarbonate
Membrane Pore Size 0.4 µm 3 µm 8 µm
Nominal Pore Density 1x10⁸ pores per cm² 2x10⁶ pores per cm² 1x10⁵ pores per cm²
Membrane Diameter 6.5 mm 6.5 mm 6.5 mm
Lids Included Yes Yes Yes
Packaging Format 12 Inserts/Plate/Pk, 4 Plates/Cs 12 Inserts/Plate/Pk, 4 Plates/Cs 12 Inserts/Plate/Pk, 4 Plates/Cs
Corning® 6.5 mm Transwell® with 0.4/3/8 microns Pore Polycarbonate Membrane Insert, Sterile

$301.00
