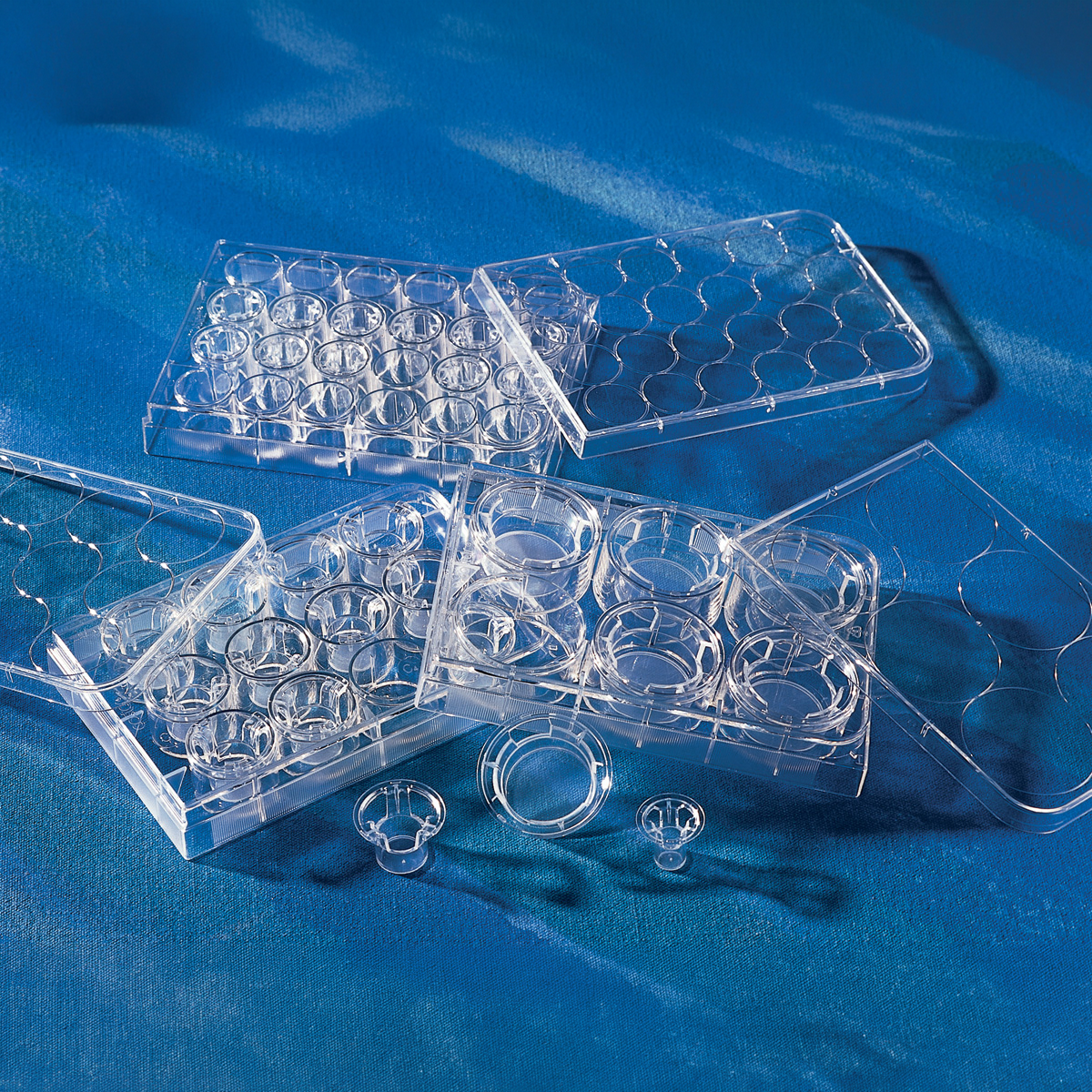

Corning® 12 mm Transwell® with 0.4/3.0 microns Pore Polycarbonate Membrane Insert, Sterile

  • EVM-AC-03-C3401
  • EVM-AC-03-C3407
  • EVM-AC-03-C3460
$325
$325

EVM-AC-03-C3401

From $300 - $325
From $300 - $325
Membrane Pore Size

Prices valid in USA, Canada, and PR only.

  • Treated for optimal cell attachment
  • EVM-AC-03-C3401 and EVM-AC-03-C3462
    • Packaged 12 inserts in a 12 well plate, 4 plates per case
    • Membrane must be stained for cell visibility
    • Excellent visibility under phase contrast microscopy
  • EVM-AC-03-C3407

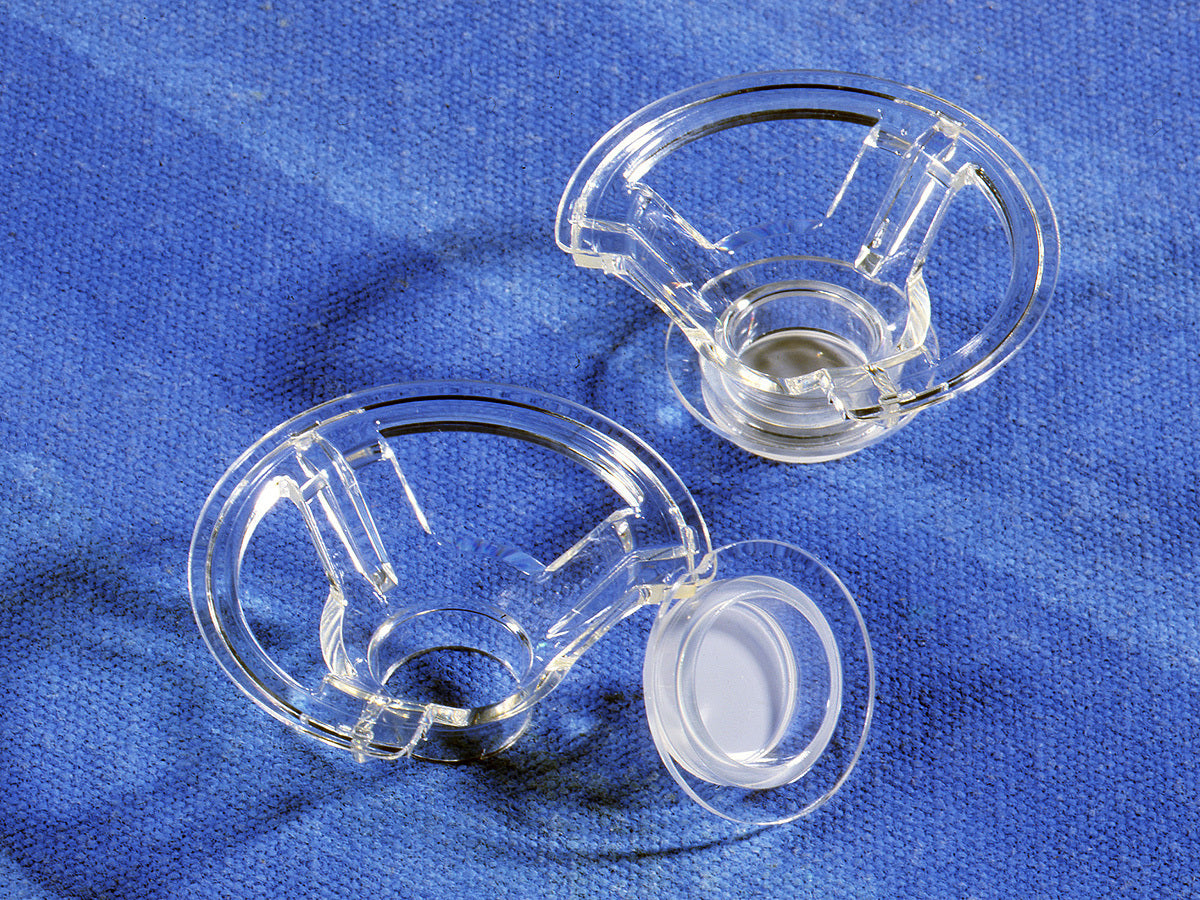

    • A modified Transwell permeable support containing a 12mm diameter 0.4 µm pore polycarbonate membrane supported by a detachable ring
    • Once cells are grown to confluence on the Snapwell insert, the ring can be placed in a vertical or horizontal diffusion chamber. [Diffusion Chambers are available through Harvard Apparatus (www.harvardapparatus.com)]
    • Packaged in 6 well plates



One or more facilities manufacturing this product is 100% covered by renewable energy through the purchase of unbundled energy attribute certificates (EACs).

Details

Options

Order code Corning P/N Description Case of

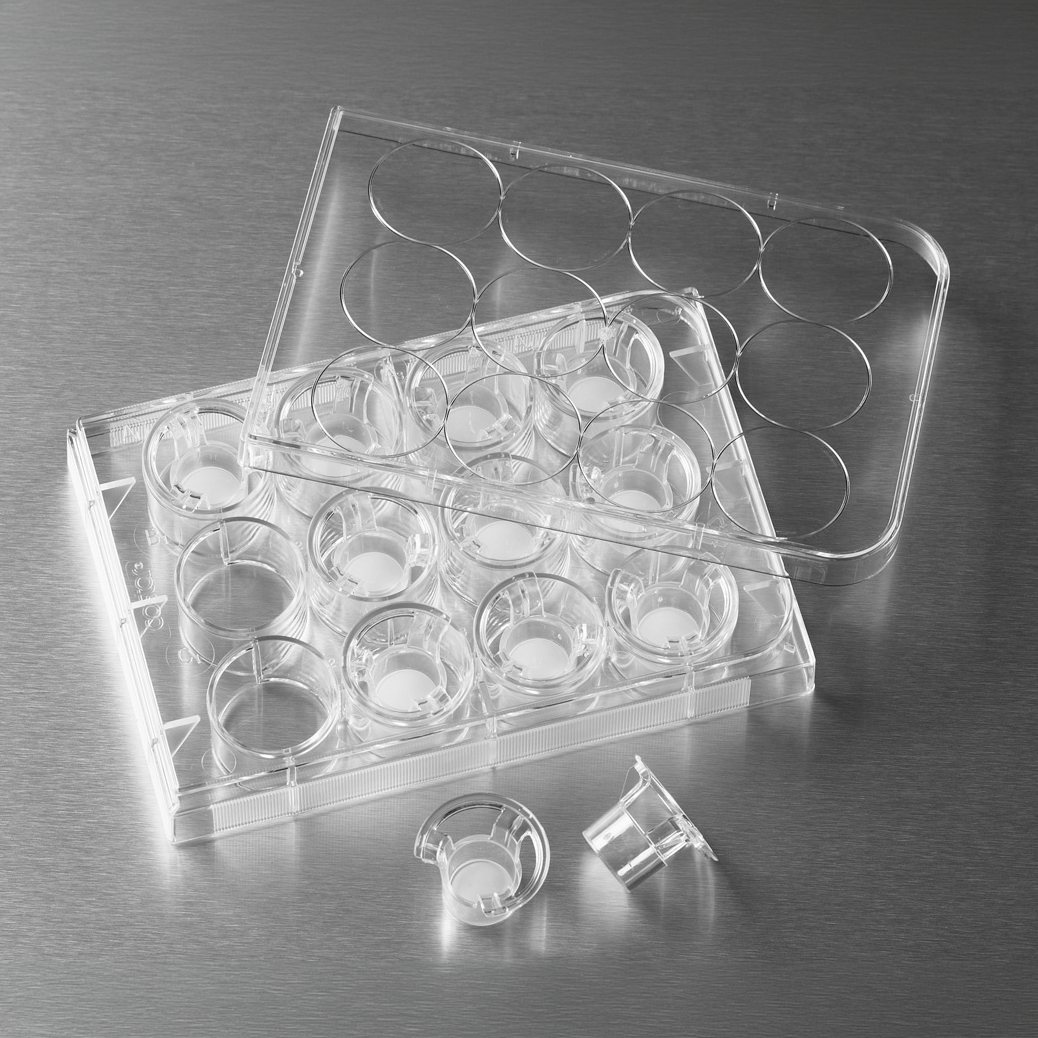

EVM-AC-03-C3401 3401 Corning® 12 mm Transwell® with 0.4 µm Pore Polycarbonate Membrane Insert, Sterile 48
EVM-AC-03-C3407 3407 Corning® 12 mm Snapwell™ Insert with 0.4 µm Pore Polycarbonate Membrane, 4 Plates per Case, Sterile 24
EVM-AC-03-C3462 3462 Corning® 12 mm Transwell® with 3.0 µm Pore Polyester Membrane Insert, 4 Plates per Case, Sterile 48

EVOM™Compatibility:

These 12 mm inserts are compatible with WPI’s EVOM™ Manual (EVM-MT-03-02, EVM-MT-03-01, EVOM3), EVOM2 older meters.

Order code Compatible Electrode

EVM-AC-03-C3401

EVM-AC-03-C3462

ENDOHM Chamber:

  • ENDOHM for 12 mm Culture Cups (12 wells per plate)
EVM-EL-03-01-02 for EVOM™ Manual and EVOM3, ENDOHM-12G for EVOM2, or older manual EVOM™ systems

EVM-AC-03-C3407

ENDOHM Chamber:

  • ENDOHM for 24 mm Culture Cups (6 wells per plate)
EVM-EL-03-01-03 for EVOM™ Manual and EVOM3, ENDOHM-24G-SNAP for EVOM2, or older manual EVOM™ systems

Note: These 12 mm inserts are not compatible with EVOM™ Auto.

Resources

EVM-AC-03-C3401 Product Descriptions

EVM-AC-03-C3407 Product Descriptions

EVM-AC-03-C3462 Product Descriptions



Specifications

Type



EVM-AC-03-C3401

(Corning P/N 3401)

EVM-AC-03-C3407

(Corning P/N 3407)

EVM-AC-03-C3462

(Corning P/N 3462)
Qty./Pk 12 / Pk 6 / Pk 12 / Pk
Qty./Cs 48 / Cs 24 / Cs 48 / Cs
Brand Corning®  Corning®  Corning®
Plate Format 12-well   12-well
Plate Color Clear   Clear
Well Bottom Flat   Flat
Well Bottom Color Clear   Clear
Well Shape Round   Round
Cell Growth Area 1.12 cm²   1.12 cm²
Recommended Medium Well Volume 1.5 mL   1.5 mL
Recommended Medium Insert Volume 0.5 mL   0.5 mL
Surface Treatment TC-Treated   TC-Treated
Sterile  Yes    Yes
Membrane Material Polycarbonate   Polyethylene terephthalate (PET)
Membrane Pore Size 0.4 µm   3 µm
Nominal Pore Density 1x10⁸ pores per cm²   2x10⁶ pores per cm²
Membrane Diameter 12 mm   12 mm
Lids Included Yes   Yes
Corning® 12 mm Transwell® with 0.4/3.0 microns Pore Polycarbonate Membrane Insert, Sterile

$325.00
