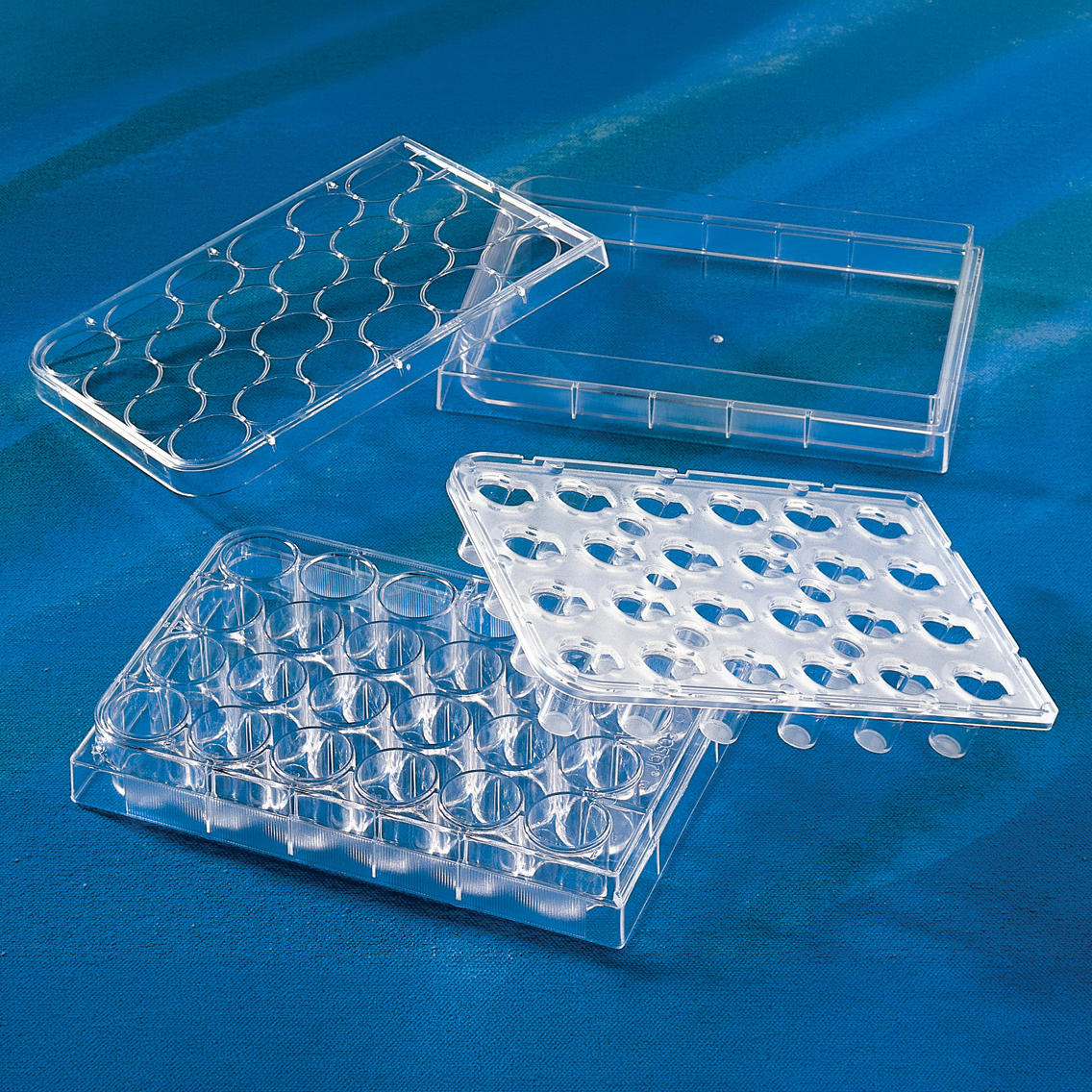

Corning® HTS Transwell®-24-well Permeable Support with 3.0 microns Pore Polycarbonate Membrane and 6.5 mm Inserts, Sterile

Options

Order code	Corning P/N	Description	Case of
EVM-AC-03-C3398	3398	Corning® HTS Transwell®-24-well Permeable Support with 3.0 µm Pore Polycarbonate Membrane and 6.5 mm Inserts, Sterile	2
EVM-AC-03-C3399	3399	Corning® HTS Transwell®-24-well Permeable Support with 3.0 µm Pore Polycarbonate Membrane and 6.5 mm Inserts, 12 Plates per Case, Sterile	12

EVOM™Compatibility:

These HTS plates are compatible with WPI’s EVOM™ Manual (EVM-MT-03-02, EVM-MT-03-01, EVOM3), EVOM2 older meters when used with the compatible electrode.

Order code	Compatible Electrode
EVM-AC-03-C3398 EVM-AC-03-C3399	STX HTS EVOM™ Electrode for CORNING 96 (EVM-EL-03-03-05)

These HTS plates can be used with WPI’s EVOM™ Auto

Compatible System	Compatible Electrode	Additional Accessory/ Consumable Required for EVOM™ Auto
EVOM™ AUTO for TEER Measurement In 24/96 HTS Plate (EVA-MT-03-01) Note : EVA-MT-03-01 includes EVA-EL-03-01	EVOM™ Auto 96 HTS Electrode Array (EVA-EL-03-01)	Not required

EVM-AC-03-C3398 Product Descriptions

EVM-AC-03-C3399 Product Descriptions



Type	EVM-AC-03-C3398 (Corning P/N 3398)	EVM-AC-03-C3399 (Corning P/N 3399)
Qty./Pk	1 / Pk	12 / Pk
Qty./Cs	2 / Cs	12 / Cs
Brand	Corning®	Corning®
Plate Format	24-well	24-well
Cell Growth Area	0.33 cm² (approx.)	0.33 cm² (approx.)
Recommended Medium Well Volume	0.6 mL	0.6 mL
Recommended Medium Insert Volume	0.1 mL	0.1 mL
Sterile	Yes	Yes
Membrane Material	Polycarbonate	Polycarbonate
Membrane Pore Size	3 µm	3 µm
Membrane Diameter	6.5 mm	6.5 mm
