Corning® HTS Transwell®-96 Permeable Support with 1.0 microns Pore Polyester Membrane, Sterile

  • EVM-AC-03-C3392
$393
$393

EVM-AC-03-C3380

From $393 - $1,947
From $393 - $1,947
Case of

Prices valid in USA, Canada, and PR only.

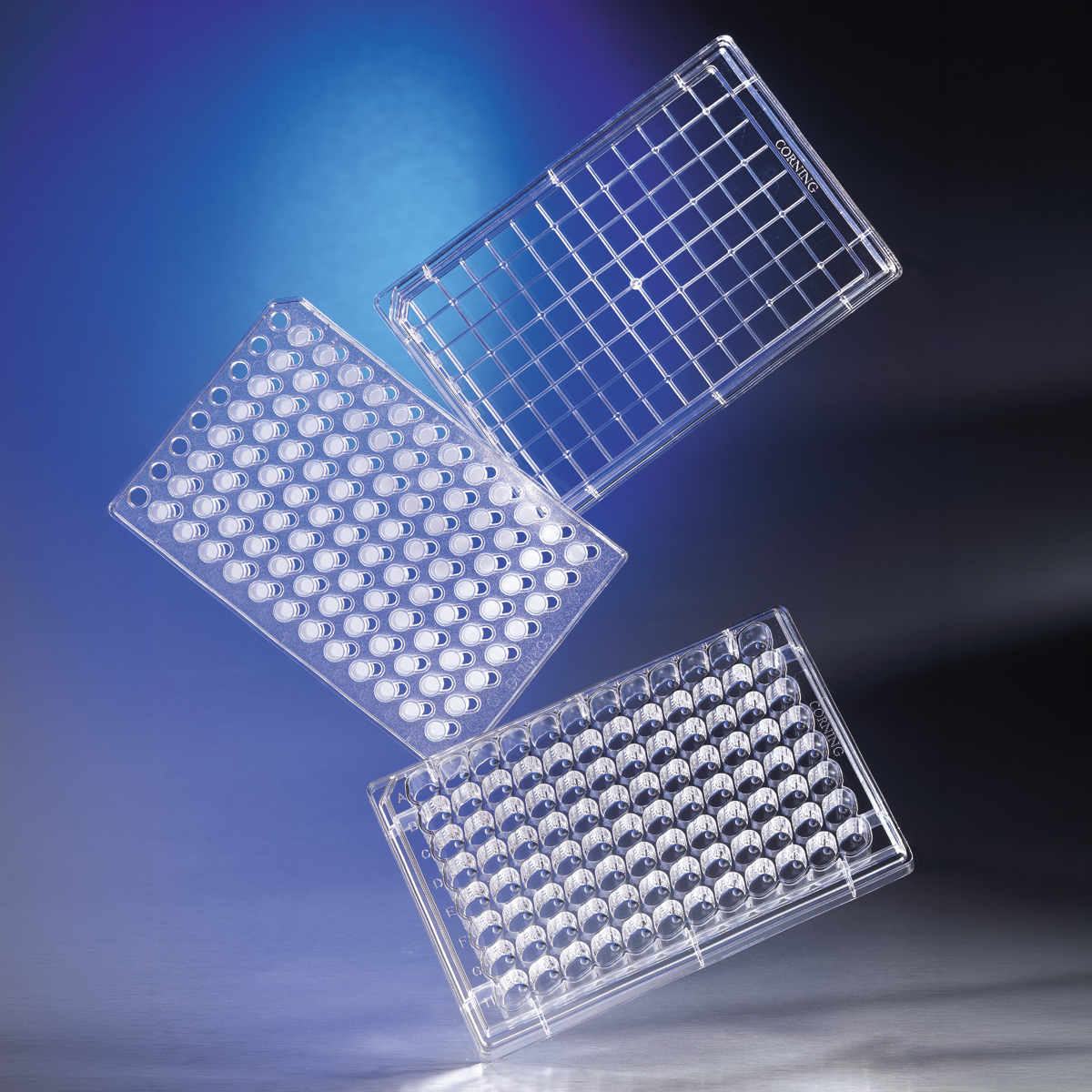

  • Product includes: Transwell® unit (1 integral tray with 96 wells), reservoir plate (for cell growth steps), receiver plate (96 wells for growth or assay steps) and 2 sterile lids
  • 1.0 µm pore size PET (polyester) membrane
  • Membrane is treated for optimal cell attachment
  • Receiver and reservoir plates are untreated
  • Cell growth area is 0.143 cm² which is 20-50% greater than other brands
  • Large apical and basolateral access ports
  • Automation optimized design with multi-channel feeder ports, improved gripping surface and bar coding



One or more facilities manufacturing this product is 100% covered by renewable energy through the purchase of unbundled energy attribute certificates (EACs).

Details

Options

Order code Corning P/N Description Case of
EVM-AC-03-C3380 3380 Corning® HTS Transwell®-96 Permeable Support with 1.0 µm Pore Polyester Membrane, 1 per Case, Sterile 1
EVM-AC-03-C3392 3392 Corning® HTS Transwell®-96 Permeable Support with 1.0 µm Pore Polyester Membrane, 5 per Case, Sterile 5

EVOM™Compatibility:

These HTS plates are compatible with WPI’s EVOM™ Manual (EVM-MT-03-02, EVM-MT-03-01, EVOM3), EVOM2 older meters when used with the compatible electrode.

Order code Compatible Electrode

EVM-AC-03-C3380

EVM-AC-03-C3392

STX HTS EVOM™ Electrode for CORNING 96 (EVM-EL-03-03-05)



These HTS plates can be used with WPI’s EVOM™ Auto

Compatible System  Compatible Electrode  Additional Accessory/ Consumable Required for EVOM™ Auto

EVOM™ AUTO for TEER Measurement In 24/96 HTS Plate (EVA-MT-03-01)

Note : EVA-MT-03-01 includes EVA-EL-03-01

EVOM™ Auto 96 HTS Electrode Array (EVA-EL-03-01)







Not required







Resources

EVM-AC-03-C3380 Product Descriptions

EVM-AC-03-C3392 Product Descriptions

Specifications

Type



EVM-AC-03-C3380

(Corning P/N 3380)

EVM-AC-03-C3392

(Corning P/N 3392)
Qty./Pk 1 / Pk 5 / Pk
Qty./Cs 1 / Cs 5 / Cs
Brand Corning®  Corning®
Plate Format 96-well 96-well
Cell Growth Area 0.143 cm² (approx.) 0.143 cm² (approx.)
Recommended Medium Well Volume 0.235 mL   0.235 mL
Recommended Medium Insert Volume 0.075 mL 0.075 mL
Sterile  Yes Yes
Membrane Material Polyester (PET) Polyester (PET)
Membrane Pore Size 1 µm 1 µm
Membrane Diameter 4.26 mm 4.26 mm
Corning® HTS Transwell®-96 Permeable Support with 1.0 microns Pore Polyester Membrane, Sterile

$393.00
