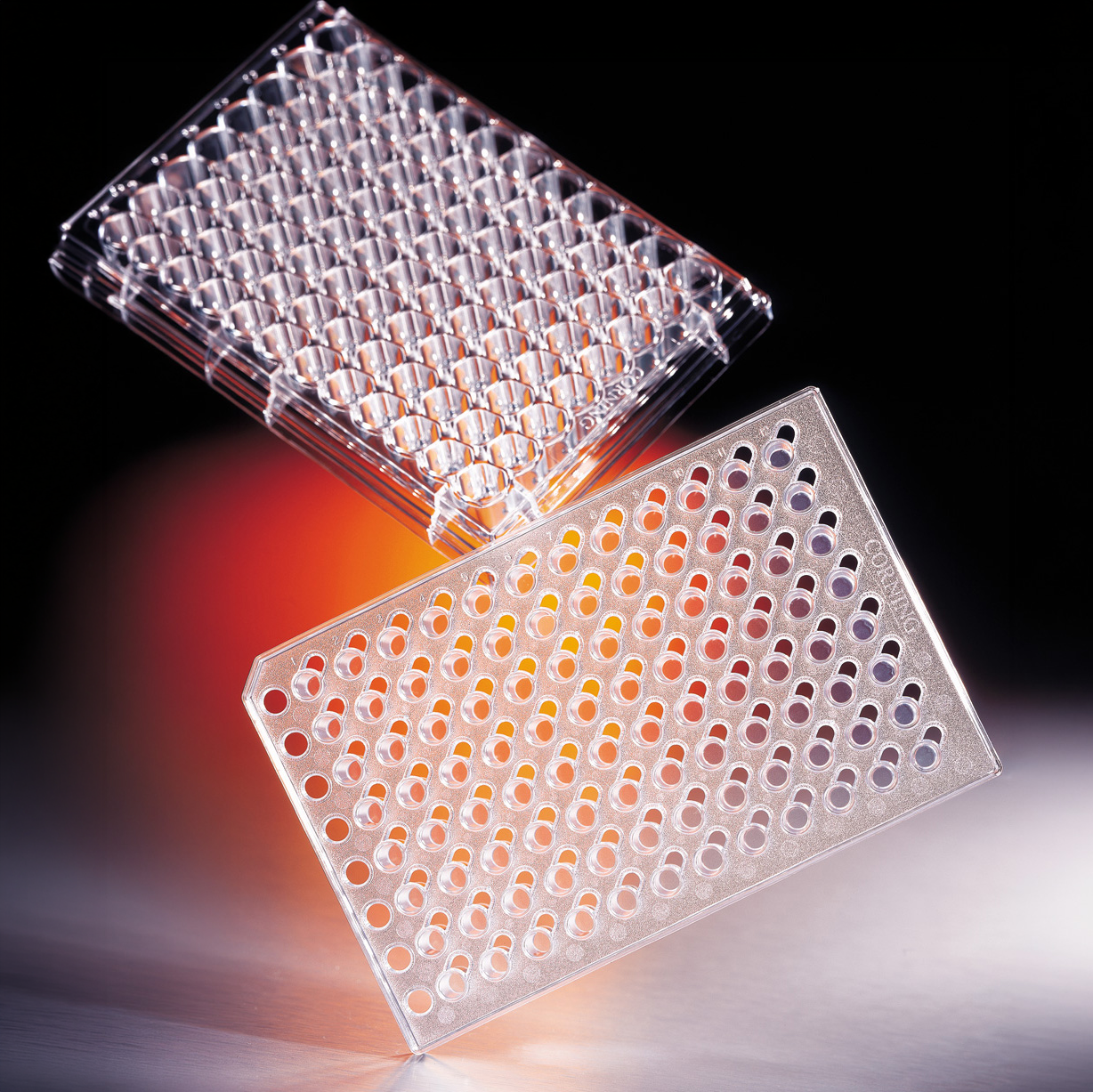

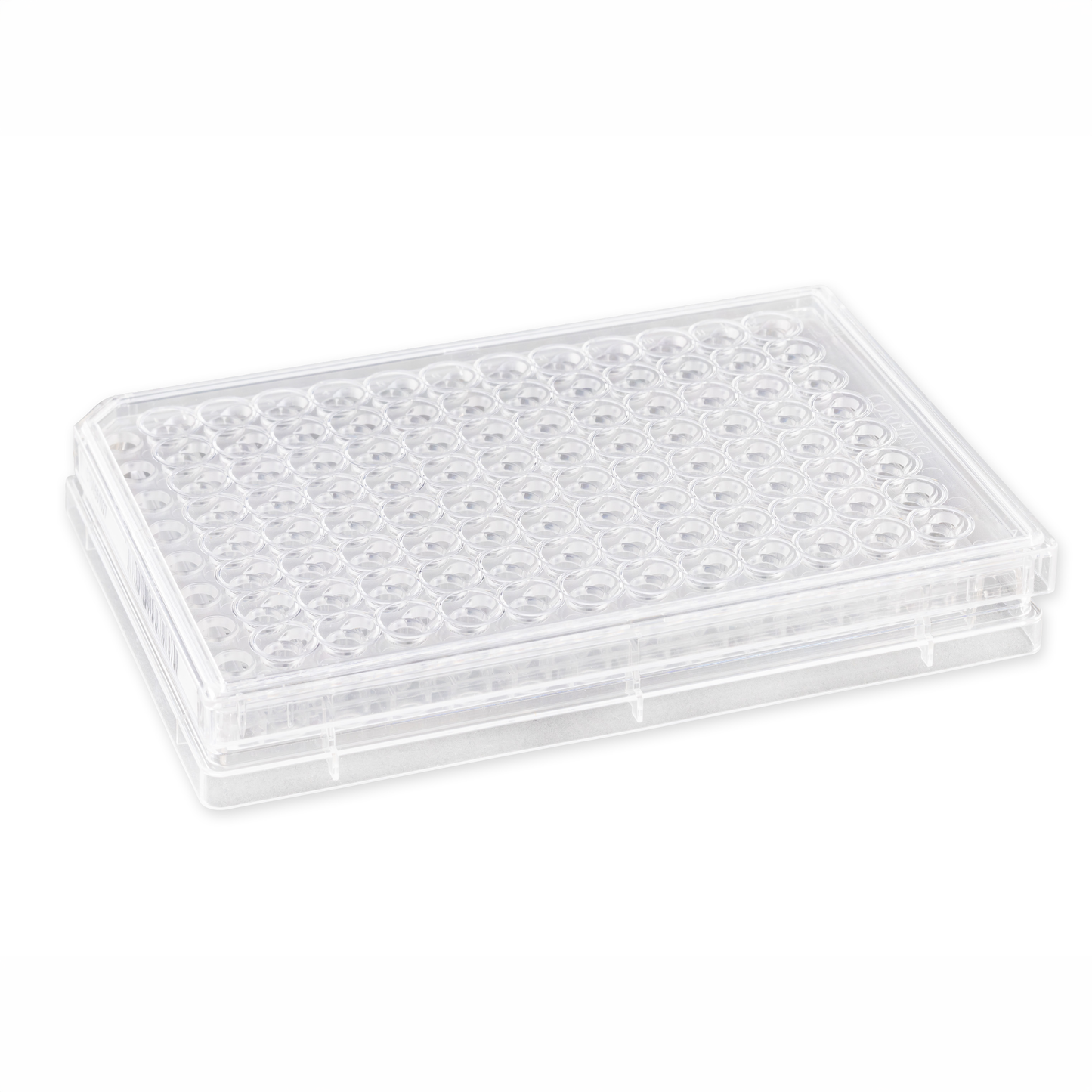

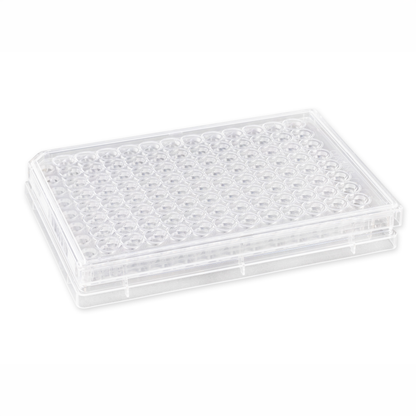

Corning® HTS Transwell®-96 Permeable Support with 8.0 microns Pore Polyester Membrane, Sterile

  • EVM-AC-03-C3374_2
  • EVM-AC-03-C3384
$225
$225

EVM-AC-03-C3374

From $225 - $926
From $225 - $926
Case of

Prices valid in USA, Canada, and PR only.

  • HTS Transwell®-96 permeable supports have an array of 96 wells with permeable inserts connected by a rigid robotics-friendly tray
  • Product includes: HTS Transwell®-96 permeable support insert, receiver plate (96 wells for growth or assay steps) and 1 sterile lid.
  • 8.0 µm pores size PET (polyester) membrane
  • Membrane area for cell growth or cell migration is 0.143 cm² which is 20-50% greater than other brands
  • Large apical and basolateral access ports
  • Automation optimized design with multi-channel feeder ports, improved gripping surface and bar coding
  • All membranes are treated for cell attachment
  • Receiver plates are untreated
  • Lid – minimizes evaporation and protects against contamination

One or more facilities manufacturing this product is 100% covered by renewable energy through the purchase of unbundled energy attribute certificates (EACs).

Details

Options

Order code Corning P/N Description Case of
EVM-AC-03-C3374 3374 Corning® HTS Transwell®-96 Permeable Support with 8.0 µm Pore Polyester Membrane, 2 per Case, Sterile 2
EVM-AC-03-C3384 3384 Corning® HTS Transwell®-96 Permeable Support with 8.0 µm Pore Polyester Membrane, 8 per Case, Sterile 8

EVOM™Compatibility:

These HTS plates are compatible with WPI’s EVOM™ Manual (EVM-MT-03-02, EVM-MT-03-01, EVOM3), EVOM2 older meters when used with the compatible electrode.

Order code Compatible Electrode

EVM-AC-03-C3374

EVM-AC-03-C3384

STX HTS EVOM™ Electrode for CORNING 96 (EVM-EL-03-03-05)



These HTS plates can be used with WPI’s EVOM™ Auto

Compatible System  Compatible Electrode  Additional Accessory/ Consumable Required for EVOM™ Auto

EVOM™ AUTO for TEER Measurement In 24/96 HTS Plate (EVA-MT-03-01)

Note : EVA-MT-03-01 includes EVA-EL-03-01

EVOM™ Auto 96 HTS Electrode Array (EVA-EL-03-01)







Not required







Resources

EVM-AC-03-C3374 Product Descriptions

EVM-AC-03-C3384 Product Descriptions

Specifications

Type



EVM-AC-03-C3374

(Corning P/N 3374)

EVM-AC-03-C3384

(Corning P/N 3384)
Qty./Pk 1 / Pk 4 / Pk
Qty./Cs 2 / Cs 8 / Cs
Brand Corning®  Corning®
Plate Format 96-well 96-well
Cell Growth Area 0.143 cm² (approx.) 0.143 cm² (approx.)
Recommended Medium Well Volume 0.235 mL   0.235 mL
Recommended Medium Insert Volume 0.075 mL 0.075 mL
Sterile  Yes Yes
Membrane Material Polyester (PET) Polyester (PET)
Membrane Pore Size 8 µm 8 µm
Membrane Diameter 4.26 mm 4.26 mm
Corning® HTS Transwell®-96 Permeable Support with 8.0 microns Pore Polyester Membrane, Sterile

$225.00
