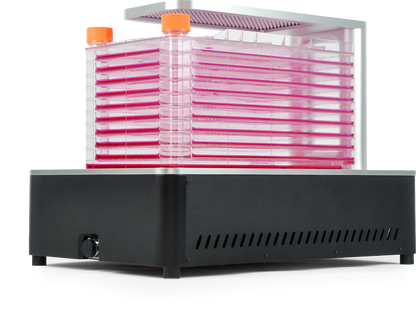

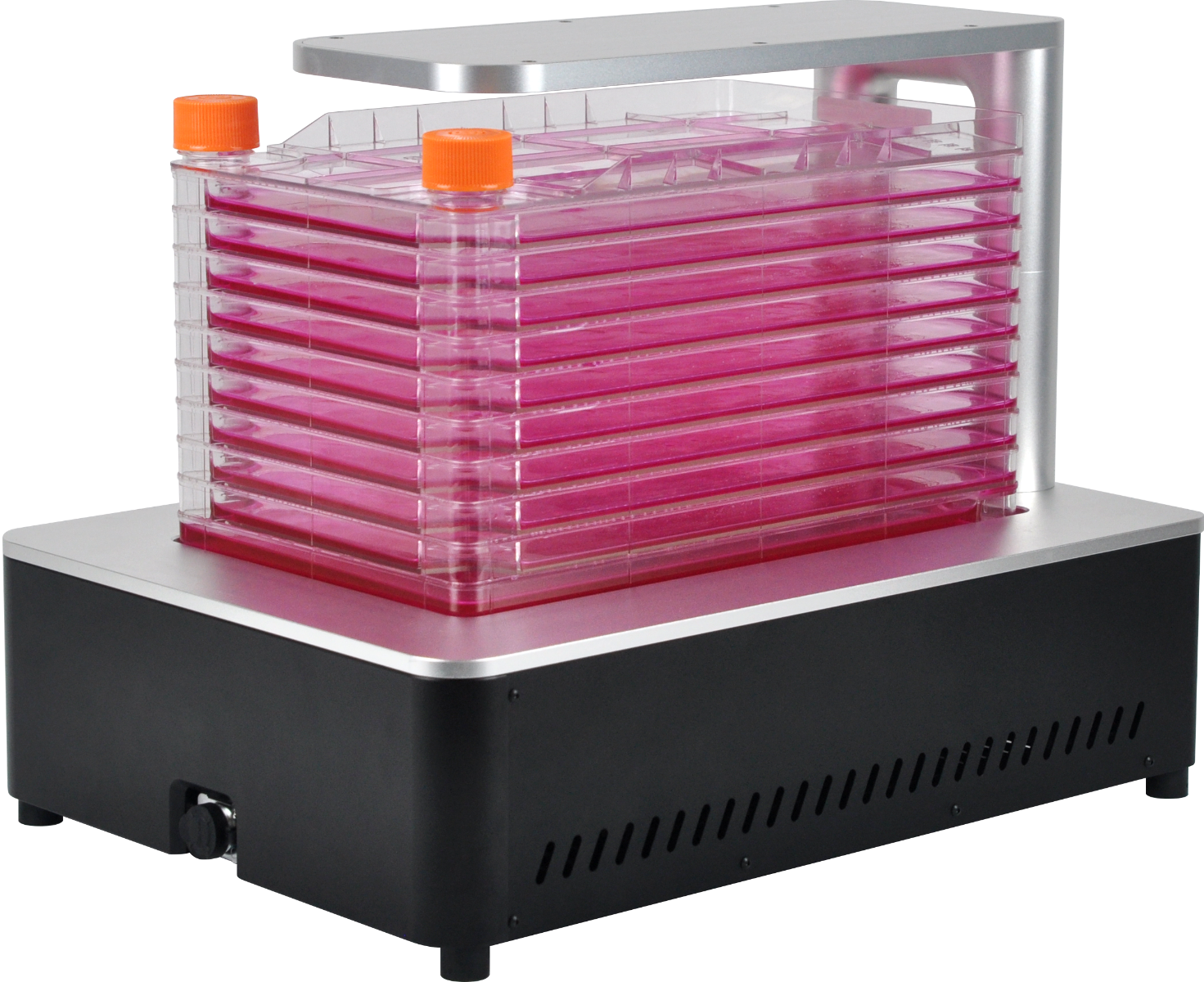

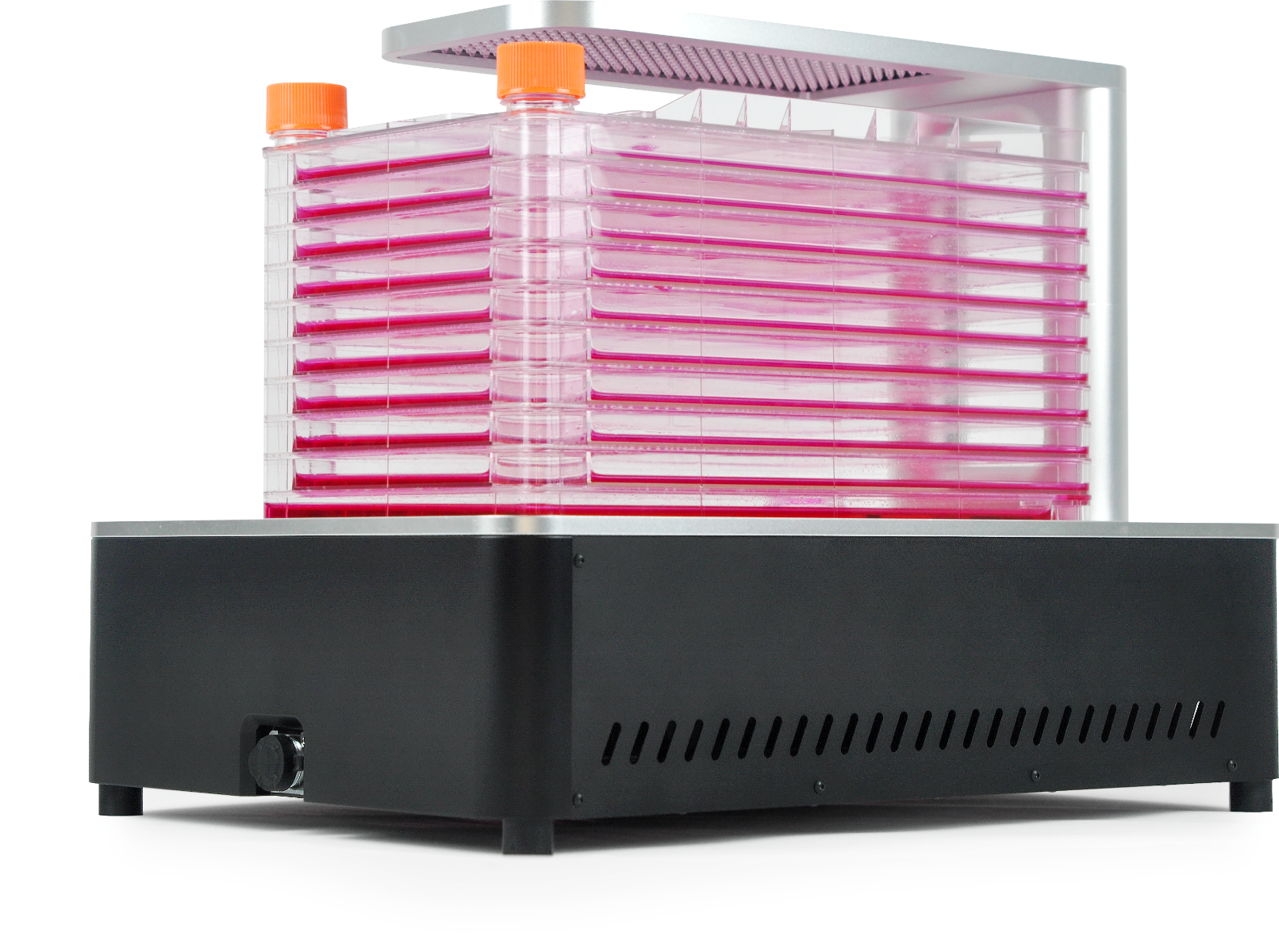

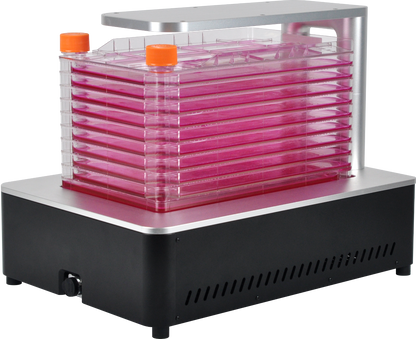

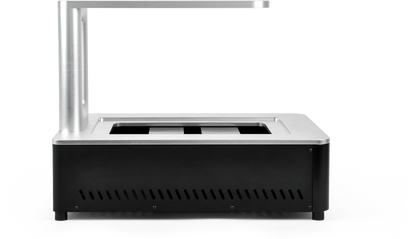

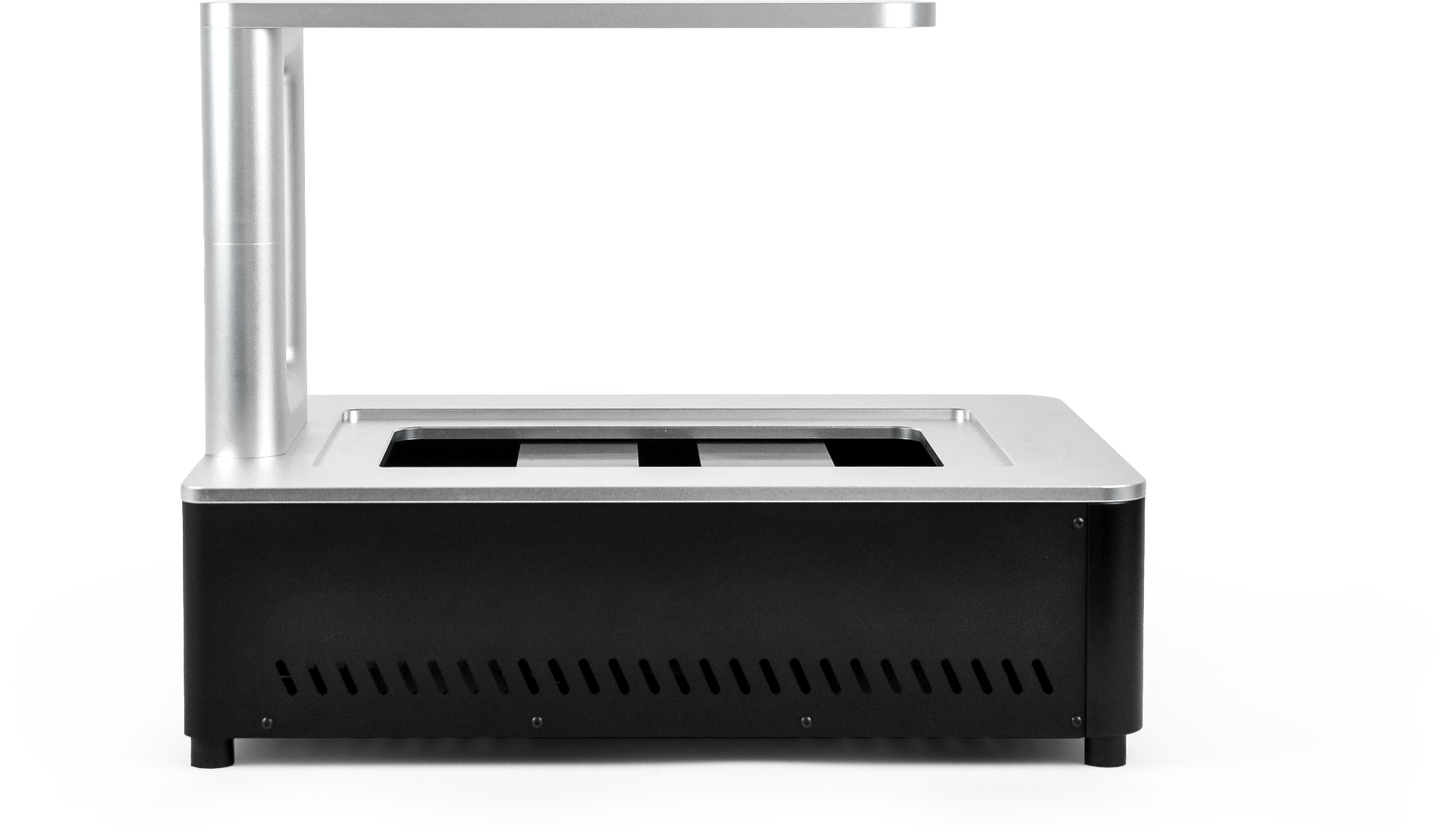

CELLOGER® STACK

EVI-LCI-01-09

Prices valid in USA, Canada, and PR only.

Celloger® Stack is an automated multi-layer vessel monitoring system that enables real-time imaging of cell samples while they are cultured in an incubator. The system is capable of detecting cells growing in a multi-layer chamber and identifying the optimal time for cell harvest. With its motorized camera that can move in all directions, the system captures multiple points within the travel range which can be made into a time-lapse video with a simple click.



NOTE: WPI is an authorized distributor of  Multicolor fluorescence and brightfield imaging

Details

Celloger® Stack : Automated multi-layer vessel monitoring system

Features

  1. Real-time monitoring inside an incubator
    No need to take the cell sample out of the incubator, eliminating contamination concerns
  2. Multi-layer observation
    Multi-layer observation up to 10 layers(image acquired from the bottom layer)
  3. Mass cell culture
    Improved reproducibility for mass cell culture and production
  4. Multi-position imaging
    A fully motorized camera allows multi-point imaging within a wide scanning area
  5. Recording & Time-lapse video
    Images captured according to set schedule can be made into videos in simple clicks
  6. Autofocusing
    Increased focus speed and reproducibility with a reliable autofocusing function

Benefits

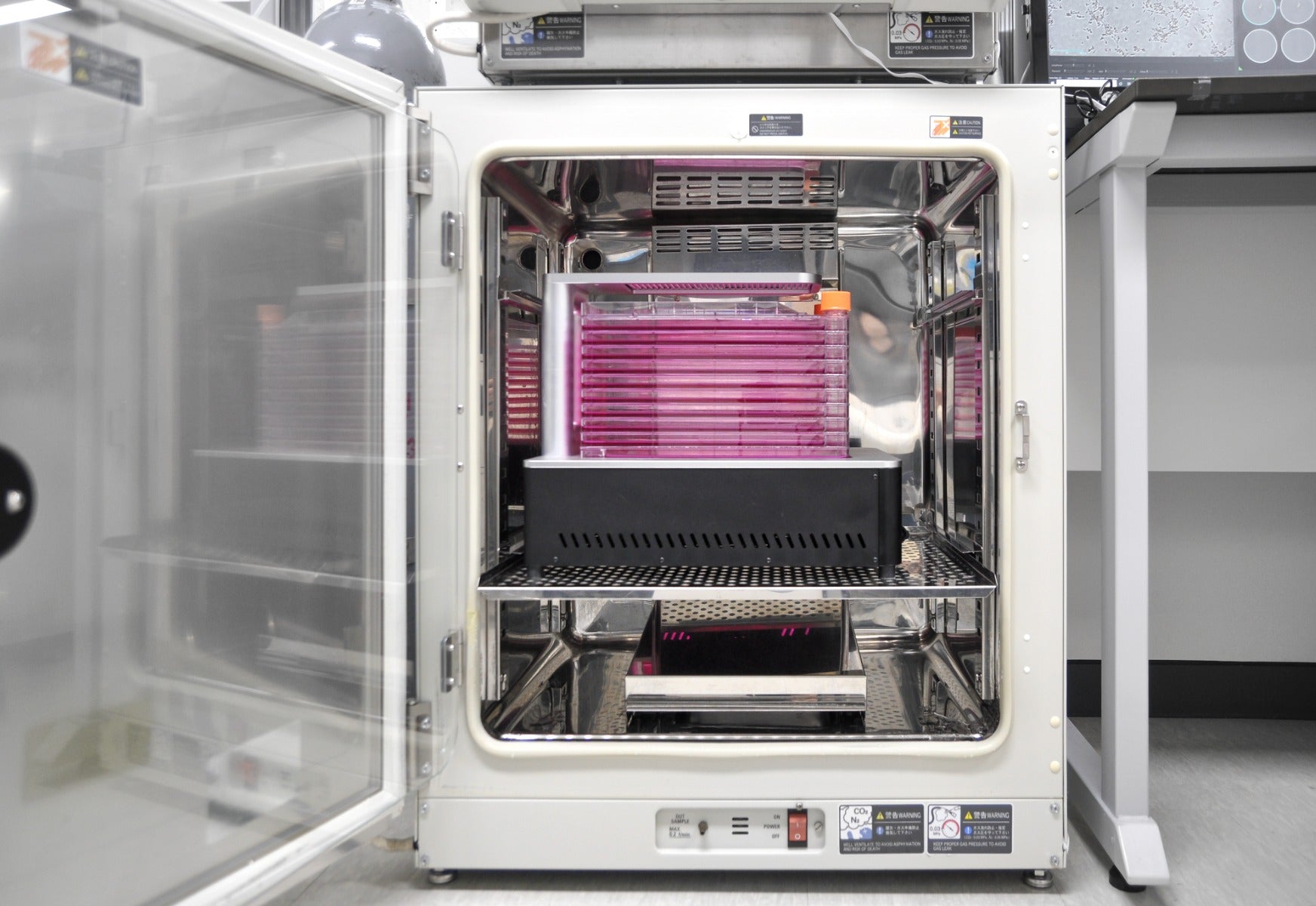

Real-time monitoring inside an incubator

  • Our optimized cell detection and imaging technology applied to Celloger® Stack allows you to monitor multi-layer vessels with up to 10 layers while culturing the cells in a standard CO₂incubator (image acquired from the bottom layer).
  • By simply placing the culture vessel on the Celloger® Stack and connecting it to your laptop, you can observe the growth of your cells in real-time without removing them from the incubator.

Real-time monitoring inside an incubator

Shows the right time to harvest your cells

  • The system automatically captures the images of set positions in accordance with the time-lapse schedule set by the user.
  • You can review these images to determine the optimal time for cell harvesting or set an alarm to notify you when the appropriate confluency level has been reached (currently in development).

Shows the right time to harvest your cells

Captures images of multiple positions

  • The Celloger® Stack has a motorized camera that travels 11cm x 24cm, x and y axis respectively, multiple points within the travel range can be imaged according to a schedule set by the user.
  • It is possible to set various imaging schedules based on your research protocol, and the schedule modification can be made easily through simple adjustments.

Captures images of multiple positions

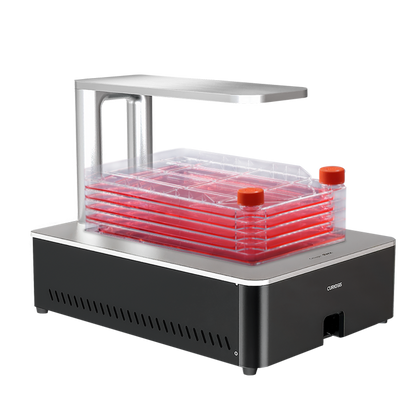

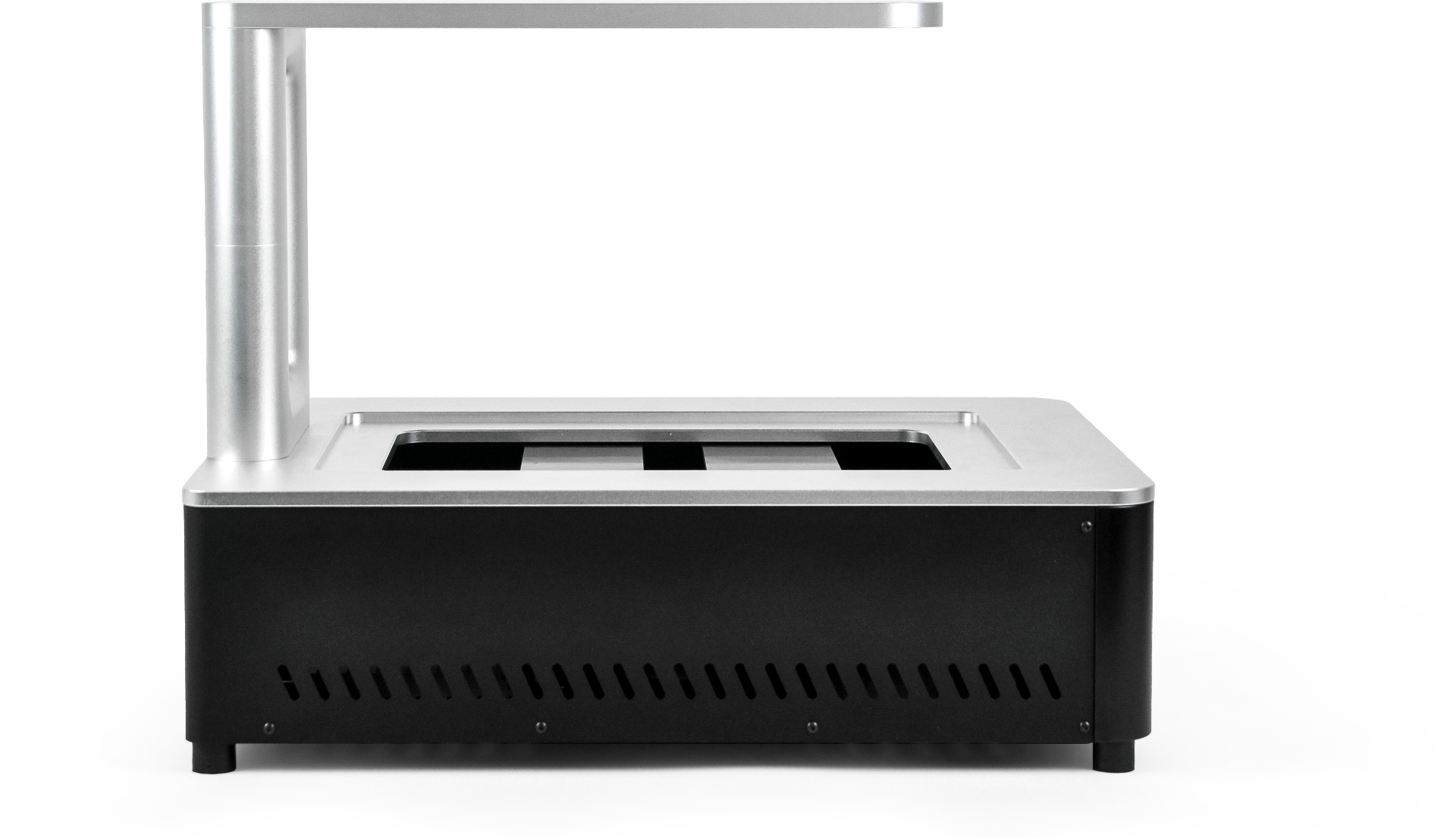

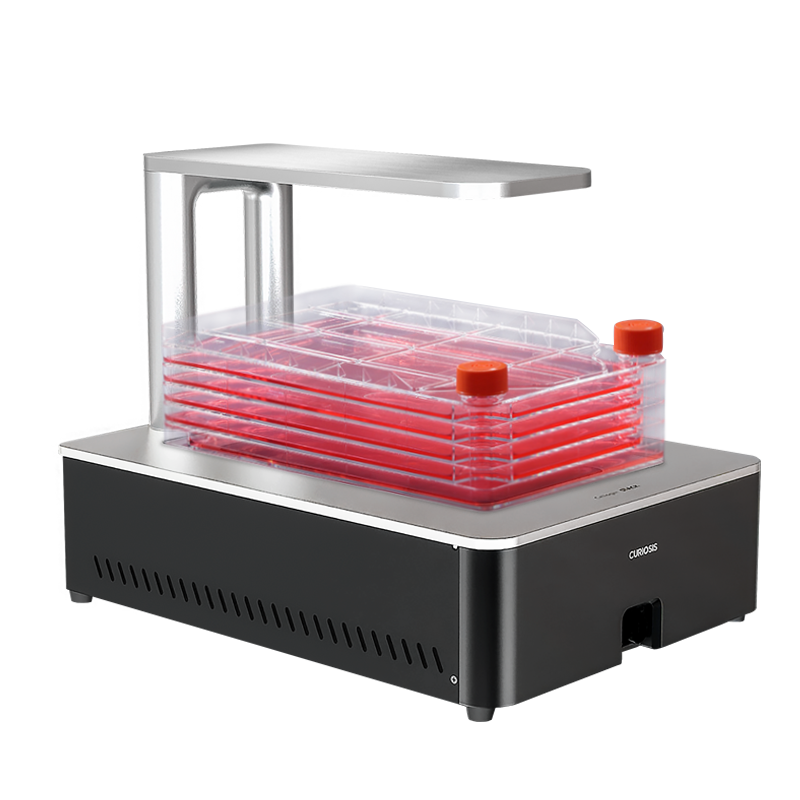

Different vessels can be used with the interchangeable vessel holders

  • The Celloger® Stack comes with interchangeable vessel holders that allow the use of different vessels, making it versatile and adaptable to various experimental needs.
  • The standard package includes a holder for Cellstack, but customized holders for vessels of different sizes, such as multi-layer dishes and flasks, can be provided upon request.

Different vessels can be used with the interchangeable vessel holders

User-friendly functions

Autofocusing Time-lapse video
Autofocusing Time-lapse video
Z-Stacking Analysis tools
Z-Stacking Analysis tools



Resources

Celloger® Stack Brochure

Celloger® Stack Manual

Celloger® Stack Application Note

Celloger® Side-by-Side Comparison



Curiosis Celloger Webinar

Specifications

Type Description
Dimensions 350 x 330 x 450 mm
Weight 15kg
Objective Lens 2X
Imaging mode Bright-field
Imaging positions Multiple
Stage Motorized XYZ (Camera moving)
Camera 5MP CMOS
Field of view 2.53 x 1.9 mm
File export format TIFF, AVI
O/S required Window 10
Storage 1TB (recommended)
Operating environment 10~40℃, 20~95% humidity
Vessel types Multi-layer chamber up to 10 layers
21 CFR Part 11 Available (optional)
