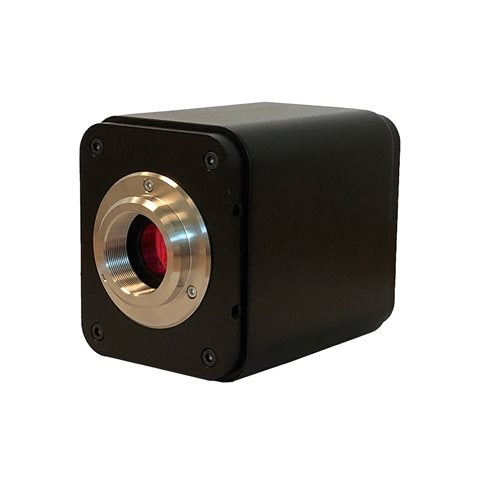

4K HD Microscope Camera

Features

• Direct output to PC or laptop with included software via USB3 cable.

• 1/1.8" (7.68 x4.32mm) 4K Sony Exmor/STARIVS IMX678(C) sensor.

• High light sensitivity, 505mv

• Pixels 2.0 x 2.0µm

• 30 frames per second at 3840 x 2160 HDMI.

• Binning 1x1

• In HDMI mode, Image capture (8mp) to SD Card (card is included) or USB flash drive (not included).

• Camera control panel for exposure, gain, white balance, color, sharpness and noise control.

• Includes on-screen monitor toolbar for measuring, mirror, comparison, zoom, freeze, cross-hair when using mouse control in HDMI mode.

• C-mount connection to your microscope.

• USB capture control for Windows, (will not work with a MAC)

• Operating System: Windows 7, 8, 10, 11 (32 & 64 bit).

• Memory: 4GB or greater.

• Size & Weight: 3.87" x 2.56" x 3.07", 1lb.

• Includes: Camera, Software, Power Adapter 100~240V, HDMI Cable, SD Card, USB Mouse.

• Monitor not included. The highest quality images are achieved when using a 4k monitor.

• 1-Year Limited Warranty



Software Calibration: If you plan to make measurements using the software you will need to calibrate the
microscope.
Calibrating your software with the microscope requires use of a Stage micrometer (not included).



4K HD Microscope Camera Brochure

4K HD Microscope Camera Spec Sheet
