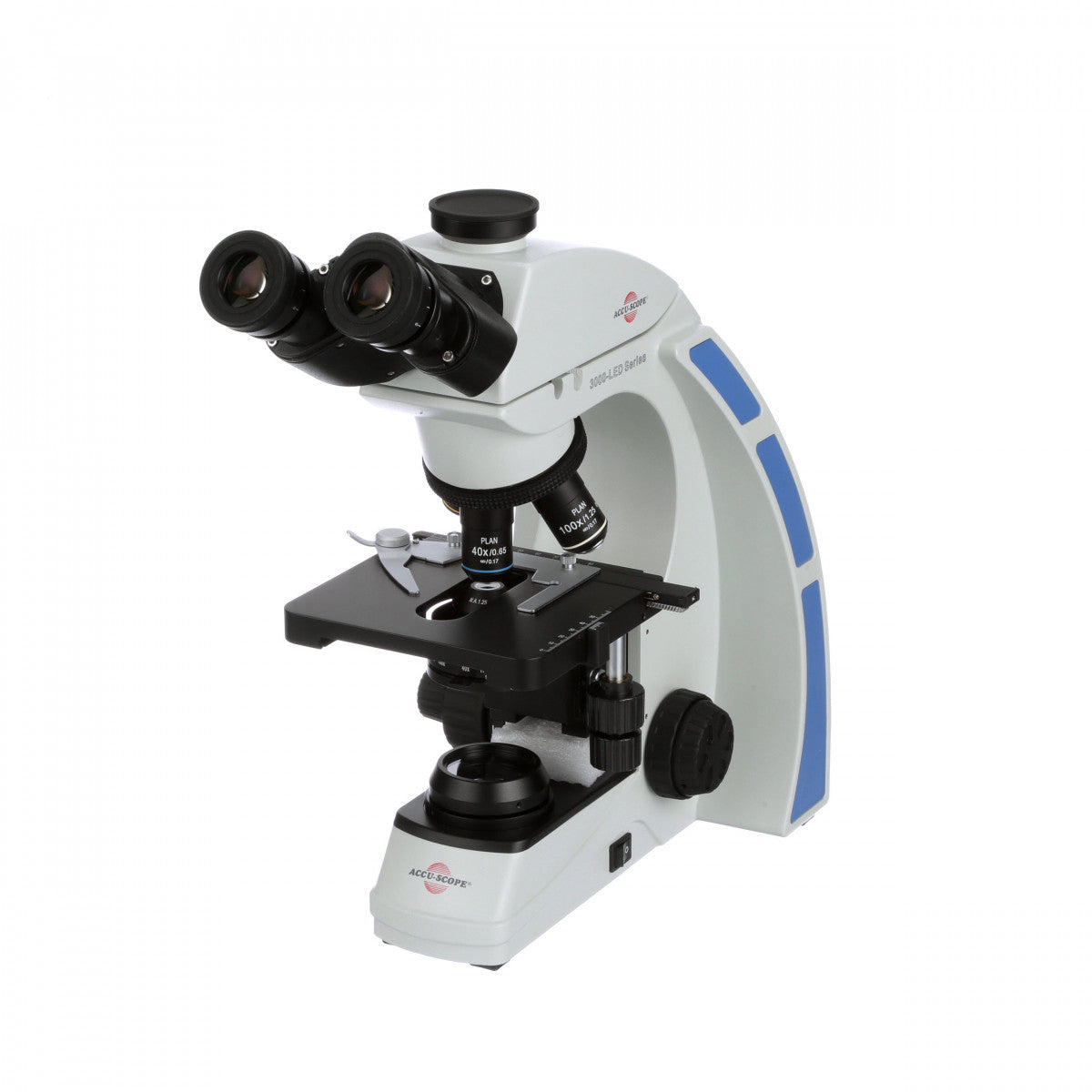

Accuscope Trinocular Microscope, Infinity Plan achromat

$1,496
$1,496

504443

Prices valid in USA, Canada, and PR only.

The ACCU-SCOPE® 3000-LED Microscope Series delivers outstanding optical performance, value and resolution to meet the exacting standards of life science professionals and students. With a newly designed infinity plan optical system, a best-in-class 20 mm field of view and a super-bright 3-watt LED illuminator, the 3000-LED Series provides high contrast images with outstanding resolution, precision design and enhanced illumination.

Details

Superb optics, durable and high performance microscopes

Features

  • Trinocular
  • Infinity plan achromat optics
  • 20 mm FOV
  • 3W LED illuminator
  • 4x, 10x, 40xR and 100xR oil objectives

Benefits

  • Super bright LED illuminator

Applications

  • Student laboratories
  • Life science research



Specifications

Optical System Infinity Optical System, f=180mm, Anti-Mold
Viewing Head Siedentopf type, inclined 30°; interpupillary distance adjustment 48-75mm, 360° rotatable; available in binocular or trinocular configurations
Eyepieces HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent classroom tampering
Nosepiece Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration
Stage Stage size 140mm X 132mm with X-Y movement range of 76mm X 50 mm
Condenser N.A. 1.25 Abbe condenser (with slot for sliders) on a rack and pinion with iris diaphragm; glass lens in condensing system protects iris diaphragm from classroom tampering
Focusing System Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear
Illumination 3 watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use
Accessories Dust cover, immersion oil and instruction manual, universal power supply 110v-240v
Stand Cast alloy aluminum; coaxial coarse and fine focusing controls. Physical Weight: 16lbs. Microscope Dimensions (LWH): 387mm x 196mm x 391mm
Digital Imaging AU Series CCD and CMOS Cameras and image analysis software, Micrometrics® CCD and CMOS Cameras and image analysis software
Eyepieces HWF15x/16mm field of view with built-in diopter (accepts 20mm reticle)
HWF20x/12.5mm field of view eyepiece with built-in diopter (does not accept a reticle)
Objectives Infinity plan achromat 20x, 50xR* oil and 60xR*; 10x, 20x, 40xR* or 100xR* Infinity Plan Phase objectives
Phase Contrast Phase sliders for 10x/BF/40x and 20x/BF/100x; Darkfield sliders; Simple polarizer/analyzer
Miscellaneous Optional cord hanger, field diaphragm and carry case, Darkfield slider (4x – 40x), Simple polarizer/analyzer
Warranty 5-year limited warranty for parts, labor and electronic components; LED bulb warranteed for 1 year
Dimensions 15.25 × 7.75 × 15.4 in. (387 × 196 × 391 mm)
Weight 16 lb (7.26 kg)
Accuscope Trinocular Microscope, Infinity Plan achromat

$1,496.00

Related Products

Related Articles

  • Microscope Basics
    Microscope Basics

    Microscope Basics

    Microscopes are a standard laboratory tool, but purchasing the right microscope for a particular application can be a challenge. First, consider how you will use the instrument. Are you looking at slides, dissecting a small animal or performing a surgery? (The application dictates the necessary working distance and power of magnification.) What kind of a stand will you be using? (Boom stand, articulating arm or post stand) Will the microscope be used in a classroom setting? (A trinocular scope offers the option of including a camera.) Will you need a camera? (A camera allows you to project the microscope image on a PC or TV or to take still images.) The answers to these questions help you determine the required working distance, level of magnification, type of mounting stand and hardware required.
