Microscope Articulating Arm Wall-Mount Plate

$180
$180

502163

Prices valid in USA, Canada, and PR only.

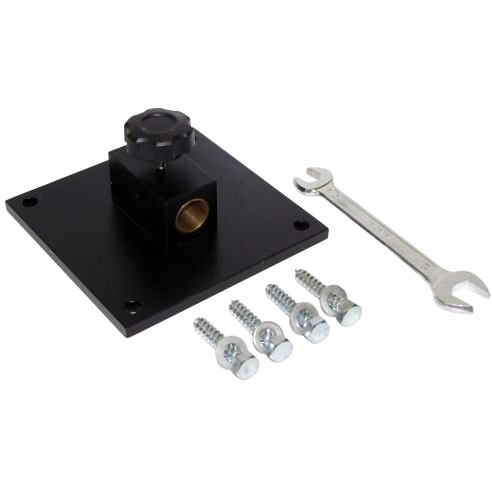

This wall-mount plate is designed for use with WPI’s Articulating Arm (502007), allowing you to securely mount your microscope system to the wall. Measuring 6 x 6 inches (150 x 150 mm), it’s ideal for laboratories where bench space is limited, offering a convenient storage and positioning solution without compromising accessibility or stability.

Details

Features

  • Wall plate for articulation arm (502007)
  • Dimensions: 6 in. x 6 in. (150 mm X150 mm)
  • Mount your microscope on the wall for convenient storage when space is tight

Details

  • Includes wall bolts (Metric)
  • The plate back is 150x150
  • The holes are 10 mm and separated by 125 mm
  • The bolts are 17 mm hex
  • 9.34 mm upper bolt shank by 70 mm long
  • A 17 mm Hex wrench is supplied
  • Shipping Weight 9 lb.

Unit shown with articulating arm installed in the image below:
