How You Improve Your Research Results When You Upgrade

For over 30 years, WPI has been perfecting the equipment for measuring Transepithelial Electrical Resistance (TEER). Researchers have relied on WPI's EVOM™ technology for the development of well over 16,000 peer-reviewed published research papers that use WPI TEER measurement meters! Here we compare the commonly used TEER meters in laboratories today. At a glance you can see the evolution of WPI's TEER technology and learn why it is the industry's standard TEER measurement methodology. Here's some of the benefits of upgrading to the EVOM™ Manual.

  • More stability means more accurate readings
  • No need to track data by hand
  • Variety of measurement ranges for your use with many cell types
  • Hands-free recording for faster sample analysis
  • Touchscreen display for easy of use and data display
  • Upgraded electrode options for many applications

EVOM™ Meter Comparison

  • Meters Powered by EVOM™ Technology

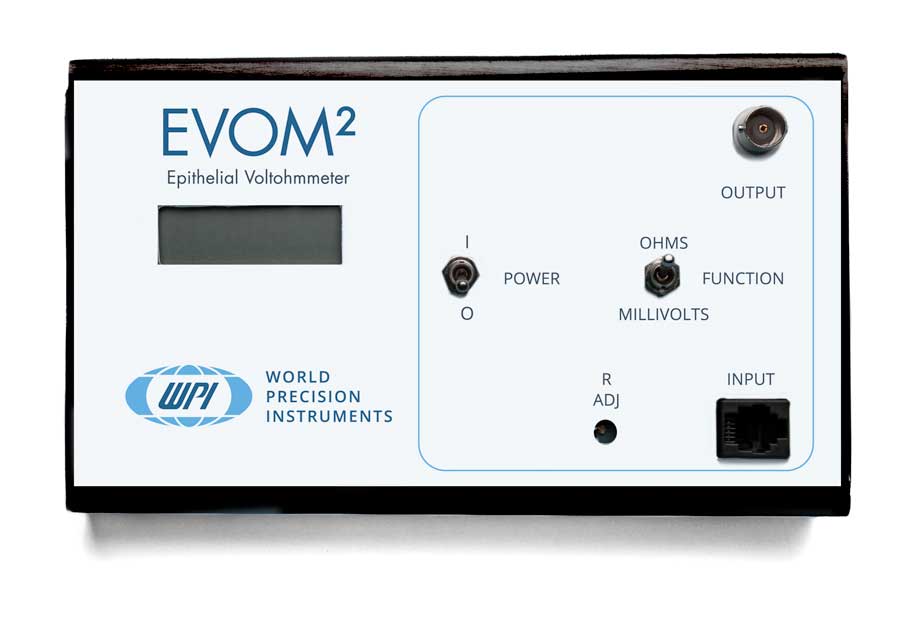

  • EVOM2

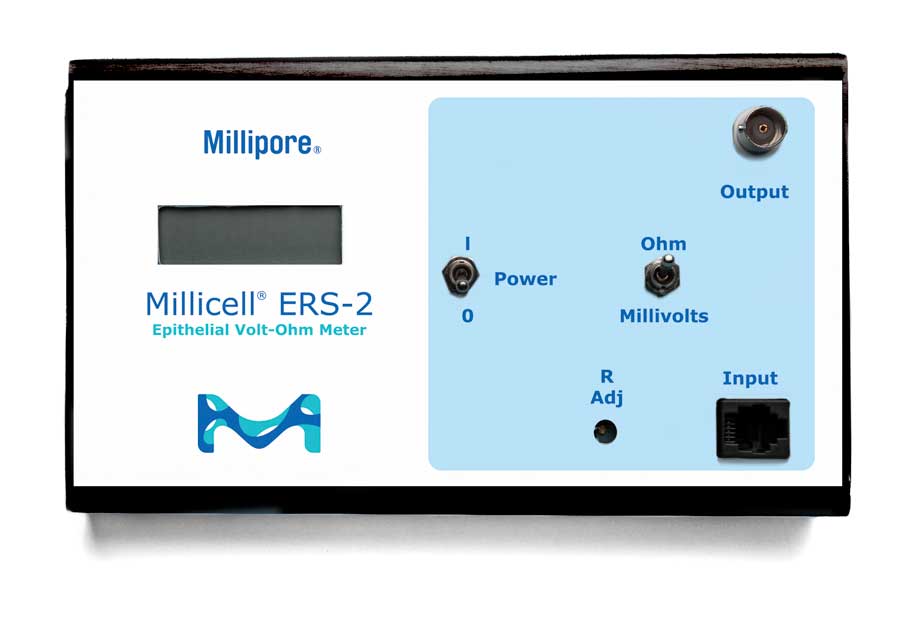

  • MilliCell® ERS-2

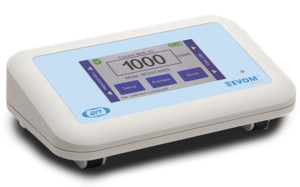

  • EVOM™ Manual

  EVOM2
Epithelial Volt Ohm Meter		 Milicell® ERS-2
Voltohmmeter		 EVOM™ Manual
TEER Measurement Meter
EVM-MT-03-01
Manufacturer WPI WPI WPI
Price Discontinued Discontinued $5125
Resistance Range 0 to 9999Ω 0 to 9999Ω 0 to 10,000 Ω
0 to 50,000 Ω
0 to 100,000 Ω
AUTO
AC Square Wave Current Nominal @ 12.5Hz ±10µA ±10µA ±10 µA for 10,000 Ω Range
± 4 µA for 50,000 Ω
± 2 µA for 100,000 Ω
± 2 µA, 4 µA, and 10 µA for AUTO mode
Electrode Connection RJ-11 Connector
STX Electrode Included 		RJ-11 Connector
STX Electrode Included 		Mini XLR Connector
Electrode Options Available , sold separately
Membrane Voltage Range ±200.0 mV
Voltage Resolution = 0.1 mV 		±200.0 mV
Voltage Resolution = 0.1 mV 		±200.0 mV
Voltage Resolution = 0.1 mV
Unit Warmup Time 20 min. 20 min. Ready for immediate use
Resistance Mode for TEER ✓ ✓ ✓
PD (mV) Mode for Active Transport Studies ✓ ✓ ✓
Compact, Lightweight & Portable ✓ ✓ ✓
Non-Invasive Measurement with EVOM™ Technology ✓ ✓ ✓
Smart Touchscreen Controls ✓
Selectable Resistance Range ✓
Auto Data Logging ✓
Hands-Free Operation ✓

Applications For EVOM™ Technology

Here are some popular applications for which EVOM™ technology is used.

  • Confluenceof Monolayer
  • Drug Discovery
  • Blood Brain Barrier
  • Epithelial/Endothelial Barrier
  • Intestinal Drug Absorption
  • Permeability or Transport of Ions or Drugs
  • Lung In Vitro Modelsfor COVID Studies
