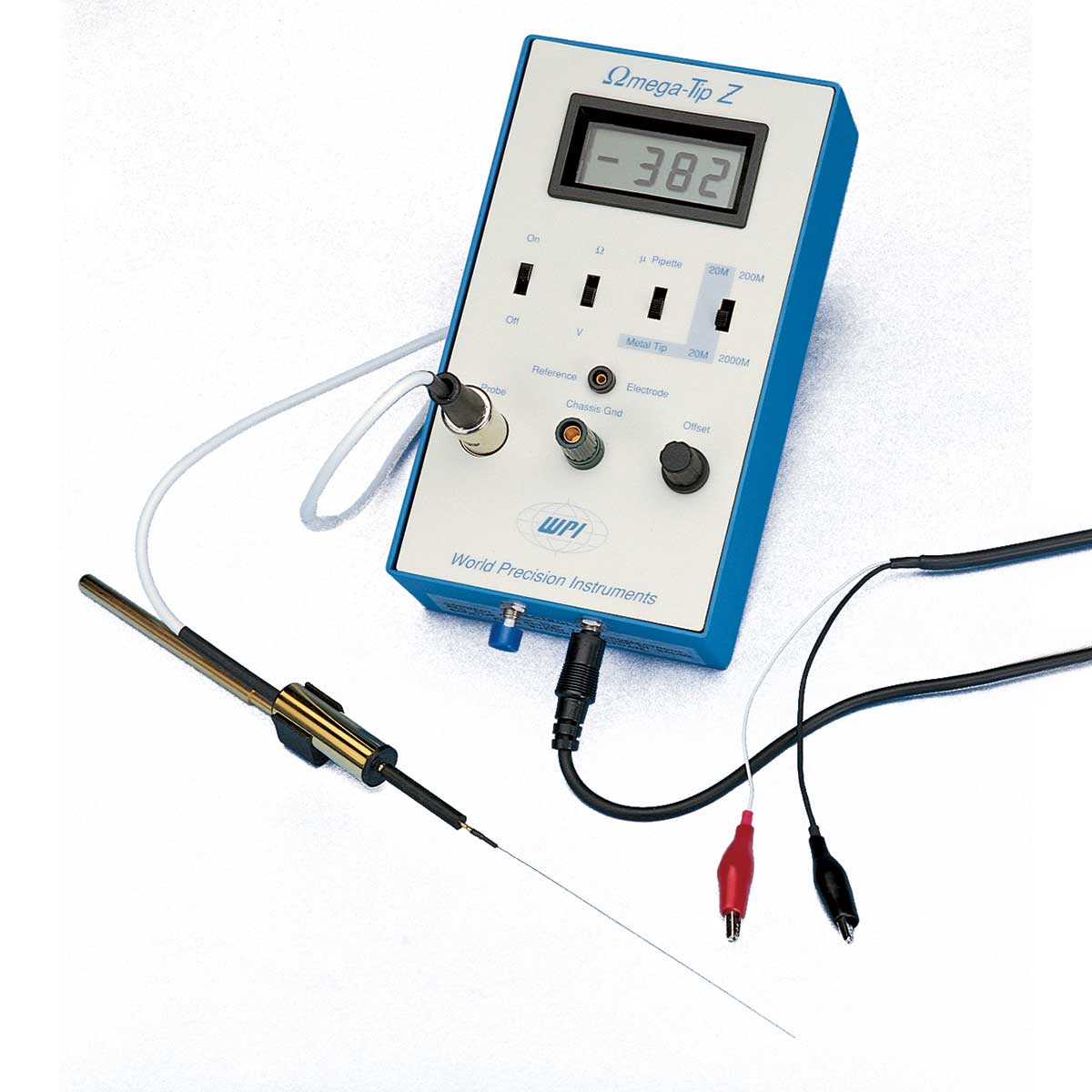

Battery Operated Impedance Measurement

$2,603.70
$2,603.70

SYS-OMEGAZ

Prices valid in USA, Canada, and PR only.

Measure mV and MΩ impedance of metal or glass microelectrodes

Omega-Tip-Z™ was created especially for measuring impedance in etched tung­sten, platinum-iridium* and steel microelectrodes, as well as electrolyte-filled micropipettes. The meter’s AC impedance-measuring circuit is unaffected by electrode offset or tip junction potentials. The gold-plated miniature probe lets you conveniently monitor micro-electrode impedance in electrolytes, and an electrode tip cleaning feature lets you remove buildup quickly. Omega-Tip-Z can also measure DC electrode tip potentials up to 2000 millivolts. The instrument operates for hundreds of hours without battery failure.

ACCESSORIES

Details

Features

  • Battery operated
  • Portable
  • Low noise probe included

Benefits

  • Determine resistance of glass capillary electrode during micropipette beveling process.
  • Measure impedance of metal microelectrodes

Applications

  • Impedance measurements provide valuable information about the electrode-electrolyte interface, including the resistance and capacitance of the system.

Required Accessories

For measuring resistance on a prepulled glass micropipette you will require an EHBF microelectrode holder. For metal microelectrode impedance testing you will require part number 5468 electrode adapter. For both applications, a reference electrode is required we recommend part number RC1T. All three accessories are sold separately.



*Shop Metal Microelectrodes.

NOTE: Metal microelectrodes which have been precalkibrated at 1 kHz should be baselined for use with Omega-Tip-Z.

For more information on Microelectrodes, you can look at the following articles:

Resources

Omega-Tip-Z Instruction Manual
