Nervenmanschette Standard

Nervenmanschetten-Elektroden sind für die zuverlässige Aufzeichnung und/oder Stimulation jedes peripheren Nervs konzipiert. Sie können akut oder für die chronische Implantation verwendet werden, wobei eine große Auswahl an Innendurchmessern zur Verfügung steht, die je nach Nervendurchmesser ausgewählt werden können. Die Nervenmanschetten sind so gestaltet, dass sie Flexibilität bei der Positionierung der Elektrodenkontakte für Aufzeichnungs- und Stimulationsprotokolle bieten.

Konfigurationen

Viele kundenspezifische Kombinationen von Innendurchmessern und Kontaktanordnungen sind für Standard-, Mikro- und Nano-Nervenmanschetten verfügbar.

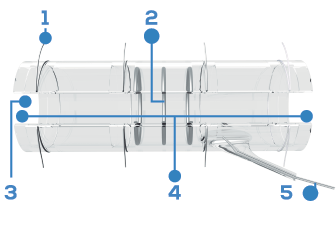

1. Optionale Nähte

2. 1 bis 24 Kontakte (Platin, Platin/Iridium oder Edelstahl)

3. Individuelle Länge

4. Individueller Durchmesser

5. Litzenförmige Edelstahlleitungen

Your Contact Information

Title *

First Name *

Last Name *

Position

Institution *

Department

Phone *

Fax

Email *

General Specifications

d. Inner diameter.
x. Spacing between contacts.
n. Number of contacts.
y. Distance from the end of the contacts to the end of the cuff.
s. Teflon insulated stranded Stainless Steel lead.
Stranded Stainless Steel leads teflon insulation 300 mm long (typical).

Typical Specifications

Variable	Description
y	Three times distance between contacts, to provide maximum isolation.
s	300 mm long

Standard (1.0–5.0 mm i.d.)

Contact material & thickness	d = inner diameter (i.d.)
125 µm stranded Stainless Steel	1.0–5.0 mm
100 µm Platinum	1.0–2.0 mm
* 250 µm Platinum	2.0–5.0 mm
* Recommended for stimulation

Microcuffs (0.75, 0.5 and 0.3 mm i.d.)

Contact material & thickness	d = inner diameter (i.d.)
100 µm Platinum	0.5 & 0.75 mm
50 µm Platinum/Iridium	0.3 mm

Nanocuffs (56–250 µm i.d.)

Contact material & thickness	d = inner diameter (i.d.)
25 µm Platinum/Iridium	160–250 µm
12.5 µm Platinum/Iridium	56–140 µm

Design specifications

1. (d) Inner diameter *

Standard size *

Metal for rings (standard) *

Microcuff size *

Metal for contacts (microcuff) *

Nanocuff size *

Metal for contacts (nanocuff) *

2. (n) Number of rings (Specify 1–9 rings) *

3. (x) Distance between rings (mm) *

4. (y) Distance from the last contact to the edge of the cuff (mm) *

Typical three times distance between contacts, to provide maximum isolation.

5. (s) Length of the stranded SS leads *

If other please specify (mm) *

6. Please select the desired angle of the leads leaving the cuff

7. Do you require the leads with silicone encapsulation?

8. Do you require sutures threads embedded in the cuff?

Your Custom Design and Layout Sheet

If your requested design cannot be fully described by the questions above, please attach a description here. Make drawing as clear as possible.

Upload a file (up to 5 files, 5 MB each)

Accessories and Additional Services

11. Do you need any of the following surgical accessories?

None

Kwik-Sil

Kwik-Cast

12. Do you require product pre-sterilization?

Yes

Application Description (Optional)

Animal Model / Application

Implant Location / Usage Description

Acute or Chronic Use

Functionality

About your order

How many of this Nerve Cuff design do you wish to order? *

Special requirements
